RJ Relays | Microwave Devices

  • Lineup

  • Basic Information

------------------------------ Tab1 showing ------------------------------

8 GHz max. capable, 1 W carrying power (at 5 GHz), 50 Ω impedance and 2 Form C relays

    • Protective construction: Sealed type

    Please refer to "the latest product specifications" when designing your product.
    Please refer to "Cautions For Use" in the catalog, and "Related Information" on our website.

      • Features

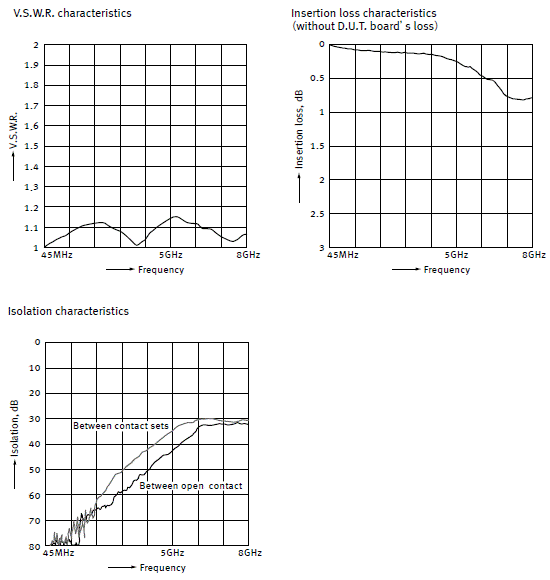

        • Excellent high frequency characteristics (50 Ω, up to 5 GHz)
        • Surface-mount type also available
        • Small size: 9 (W) x 14 (L) x 8.2 (H) mm
      • Typical Applications

        • Communication and measurement equipment
        • Medical instrument equipment
      • Note

        • If you consider using applications with low level loads or with high frequency switching, please consult us.

      ------------------------------ Always showing ------------------------------

      • Lineup
      • Discontinued Products
      RJ Relays Product number list
      No matching products found.
      • Please review your search criteria and try again.
      • If you have any questions, feel free to contact us.
        • Note)

          Note:Packing style symbol“ X”,“ Z” is not marked on the relay.

        • Standard packing

          PC board terminal (Carton packing)        : Inner carton 50 pcs. , Outer carton 500 pcs.
          Surface mount terminal (Carton packing) : Inner carton 50 pcs. , Outer carton 500 pcs.
          Surface mount terminal (Tape and reel packing Z) : Inner carton (1-reel) 500 pcs. , Outer carton 1,000 pcs.
