26.5 GHz max. coaxial switches coming in SPDT, Transfer, and SP6T types
※Actual products may differ from the photos.
Please refer to "the latest product specifications" when designing your product.
Please refer to "Cautions For Use" in the catalog, and "Related Information" on our website.
High Frequency Characteristics
50 Ω ( Initial )
SPDT and Transfer
| Frequency | Up to 1 GHz | 1 to 4 GHz | 4 to 8 GHz*1 | 8 to 12.4 GHz | 12.4 to 18 GHz | 18 to 26.5 GHz*2 |
|---|---|---|---|---|---|---|
| V.S.W.R. (Max.) | 1.1 | 1.15 | 1.25 | 1.35 | 1.5 | 1.7 |
| Insertion loss (dB、Max.) | 0.2 | 0.3 | 0.4 | 0.5 | 0.8 | |
| Isolation (dB、Min.) | 85 | 80 | 70 | 65 | 60 | 55 |
| *1: | The 6 GHz type only has the above characteristics up to 6 GHz. |
|---|---|
| *2: | 18 to 26.5 GHz characteristics can be applied 26.5 GHz type only. |
SP6T
| Frequency | Up to 1 GHz | 1 to 4 GHz | 4 to 8 GHz | 8 to 12.4 GHz | 12.4 to 18 GHz |
|---|---|---|---|---|---|
| V.S.W.R. (Max.) | 1.1 | 1.15 | 1.25 | 1.35 | 1.5 |
| Insertion loss (dB、Max.) | 0.2 | 0.3 | 0.4 | 1 | |
| Isolation (dB、Min.) | 85 | 80 | 70 | 65 | 60 |
Reference Data

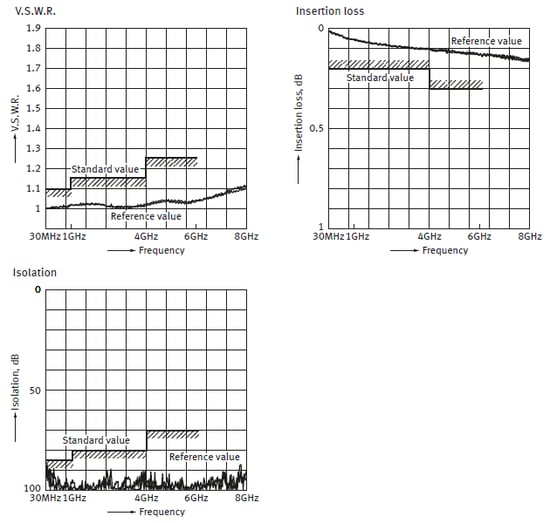

1-1. High frequency characteristics (SPDT: 6 GHz)
Sample: ARD70012
Measuring method: Measured with Agilent Technologies network analyzer (E8363B).

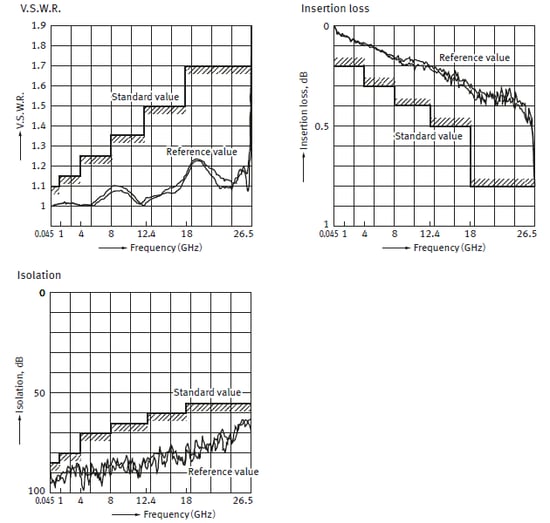

1-2. High frequency characteristics (SPDT: 18, 26.5 GHz)
Sample: ARD10012
Measuring method: Measured with Agilent Technologies network analyzer (HP8510).

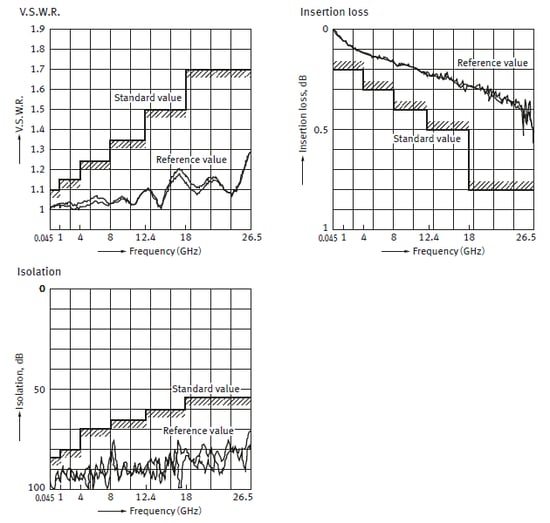

1-3.High frequency characteristics (Transfer)
Sample: ARD60012
Measuring method: Measured with Agilent Technologies network analyzer (HP8510).

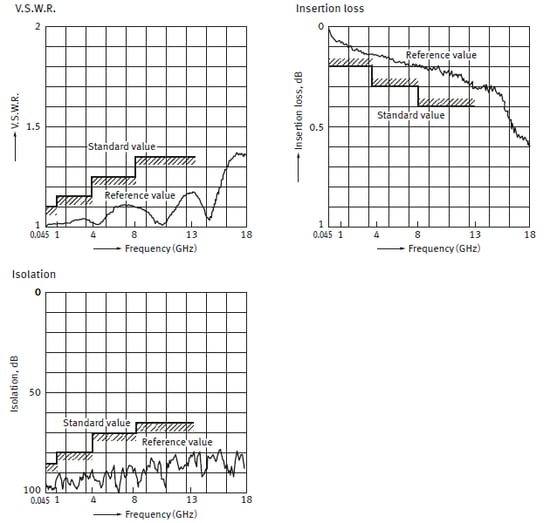

1-4.High frequency characteristics (SP6T)
Sample: ARD30012
Measuring method: Measured with Agilent Technologies network analyzer (HP8510).
