ARD32012Z｜RD Coaxial Switches

Download

Discontinued

Last time buy (JST)

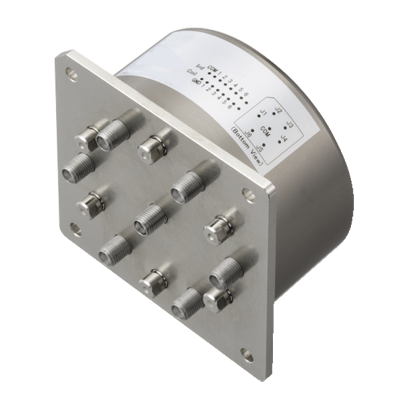

*Photo may vary from actual product.

This product has been confirmed that it does not contain the 6 substances specified in EU RoHS Directive 2011/65/EU and the 4 substances specified in 2015/863/EU.

    Product Number

    ARD32012Z

    Part Number

    ARD32012Z

    Product Name

    		 RD Coaxial Switches

    Features

    26.5 GHz max. coaxial switches coming in SPDT, Transfer, and SP6T types
    Substitute
    Sub Prod No.
    Sub Part No.
    Remark

    Spec Detail

    ItemSpecifications
    Part NumberARD32012Z
    Product NumberARD32012Z
    Operating functionLatching (with indicator)
    Operation terminalSolder terminal
    TerminationWith termination
    HF data attachedNo
    Packing styleCarton
    Frequency13GHz
    V.S.W.RMax. 1.5
    Insertion lossMax. 0.4dB
    IsolationMin. 65dB
    Impedance50Ω
    Rated coil voltage12V DC
    Rated operating powerSET 600mW/RESET(ALL) 3,600mW
    Contact arrangementSP6T (with termination type)
    Contact materialAu plating
    Contact input power (CW)Max. 2W (at 25℃, 3GHz, 50Ω, V.S.W.R. Max. 1.15, no contact switching)
    Dielectric strength Between open contacts (initial)500 V rms for 1 min (detection current: 10 mA)
    Dielectric strength Between contact and coil (initial)500 V rms for 1 min (detection current: 10 mA)
    Expected mechanical life (cold switch)Min. 5x106 ope. (switching frequency: at 180 times/min)
    ConditionsAmbient temperature: －55 to ＋85 ℃
    Humidity: 5 to 85% RH (Avoid icing and condensation)
    Expected electrical life (hot switch)Conditions: Switching frequency at 20 times/min
    Min. 5x106 ope. High frequency load 5 W (Up to 3 GHz, 50 Ω, V.S.W.R. Max. 1.2)
    Min. 5x106 ope. Indicator 10 mA 5 V DC
