AFP7FCRTC2｜FP7 擴展插件(功能插件)

下載

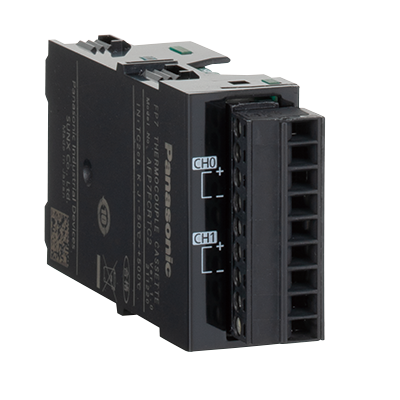

※ 實際商品可能與照片不同。

適合不含有規定:EU RoHS指令 2011/65/EU的6物質、以及EU RoHS指令2015/863/EU的4物質

品名

AFP7FCRTC2

型號

AFP7FCRTC2

產品

FP7 Add-on cassettes (function cassettes)

商品名稱

 FP7 擴展插件(功能插件)

聯繫我們

※為了商品改進，規格和外觀可能會在不事先通知的情況下變更，敬請諒解。

詳細規格

為了商品改進，規格和外觀可能會在不事先通知的情況下變更，敬請諒解。
項目內容
品名AFP7FCRTC2
型號AFP7FCRTC2
產品名FP7 Add-on cassettes (function cassettes)

仕様

項目內容
Number of input points2 channels (insulated between channels)
Input range:K type thermocouple- 50.0 to 500.0 degrees - 58.0 to 932.0 degrees Fahrenheit
Input range:J type thermocouple- 50.0 to 500.0 degrees - 58.0 to 932.0 degrees Fahrenheit
Digital conversion value:Normal timeK- 500 to K5000
Digital conversion value:When range overK- 501, K5001 or K8000
Digital conversion value:When the thermocouple brokenK8000
Digital conversion value:When data preparationK8001
Resolution0.2 degrees (Display is 0.1 degrees with the software averaging process.)
Sampling cycle100 ms / 2 channels
Overall precisionplus or minus 0.5 % F.S. or less and cold contact accuracy: 1.5 degrees (0 to +55 degrees +32 to +131 degrees Fahrenheit )
Input impedance344 kOhm
Insulation method- Between analog input terminal and internal digital circuit: transformer insulation, isolation IC insulation
- Between analog input terminal and analog output terminal: transformer insulation, isolation IC insulation
Connection methodConnector type terminal block

一般常規規格

項目內容
使用環境溫度0 to +55 ℃ +32 to +131 ℉, Storage: -40 to +70 ℃ -40 to +158 ℉
使用環境濕度10 to 95 % RH (at +25 ℃ +77 ℉, no condensation), Storage: 10 to 95 % RH (at +25 ℃ +77 ℉, no condensation)
耐振動5 to 8.4 Hz, single amplitude of 3.5 mm 0.138 in, 1 sweep/min. (IEC 61131-2) ; 8.4 to 150 Hz, constant acceleration of 9.8 m/s2, 1 sweep/min. (IEC 61131-2), 10 times each in X, Y, and Z directions
耐衝擊147 m/s2 or more , 3 times each in X, Y, and Z directions (IEC61131-2)
抗干擾1,000 V [p-p] with pulse width 50 ns and 1 micro s (using a noise simulator)
工作條件Free from corrosive gasses and excessive dust

一般個別規格

項目內容
額定電壓範圍-
消耗電流45 mA or less
(Note) This value is the increase in CPU current consumption.
本體重量25 g approx. (with terminal block)
