AFP7FCRA21|FP7 擴展插件(功能插件)

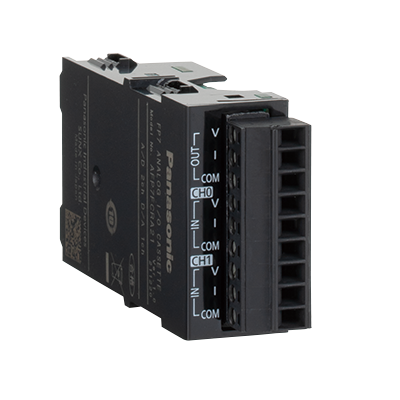

※ 實際商品可能與照片不同。
適合不含有規定:EU RoHS指令 2011/65/EU的6物質、以及EU RoHS指令2015/863/EU的4物質
※為了商品改進,規格和外觀可能會在不事先通知的情況下變更,敬請諒解。
詳細規格
為了商品改進,規格和外觀可能會在不事先通知的情況下變更,敬請諒解。
項目 | 內容 |
---|---|
品名 | AFP7FCRA21 |
型號 | AFP7FCRA21 |
產品名 | FP7 Add-on cassettes (function cassettes) |
INPUT SPECIFICATIONS
項目 | 內容 |
---|---|
Number of input points | 2 channels (non-insulated between channels) |
Input range:Voltage | 0 to 10 V / 0 to 5 V, Switch setting (individual settings possible) |
Input range:Current | 0 to 20 mA |
Digital conversion value | K0 to K4000 |
Resolution | 1/4000 (12 bits) |
Conversion speed | 1 ms / channel |
Overall precision | plus or minus 1 % F.S. or less (0 to +55 degrees +32 to +131 degrees Fahrenheit ) |
Input impedance:Voltage | 1 MOhm |
Input impedance:Current | 250 Ohm |
Absolute maximum input:Voltage | - 0.5 V, +15 V |
Absolute maximum input:Current | 30 mA |
Insulation method | - Between analog input terminal and internal digital circuit: transformer insulation, isolation IC insulation - Between analog input terminal and analog output terminal: transformer insulation, isolation IC insulation |
External connection method | Connector type terminal block |
OUTPUT SPECIFICATIONS
項目 | 內容 |
---|---|
Number of output points | 1 channel |
Output range:Voltage | 0 to 10 V / 0 to 5 V, Switch setting |
Output range:Current | 0 to 20 mA |
Digital conversion value | K0 to K4000 |
Resolution | 1/4000 (12 bits) |
Conversion speed | 1 ms / channel |
Overall precision | plus or minus 1 % F.S. or less (0 to +55 degrees +32 to +131 degrees Fahrenheit ) |
Output impedance | 0.5 Ohm (voltage output) |
Max. output current | 10 mA (voltage output) |
Absolute output load resistance | 600 Ohm or less (current output) |
Insulation method | - Between analog input terminal and internal digital circuit: transformer insulation, isolation IC insulation - Between analog input terminal and analog output terminal: transformer insulation, isolation IC insulation |
External connection method | Connector type terminal block |
COMMON GENERAL SPECIFICATIONS
項目 | 內容 |
---|---|
Ambient temperature | 0 to +55 ℃ +32 to +131 ℉, Storage: -40 to +70 ℃ -40 to +158 ℉ |
Ambient humidity | 10 to 95 % RH (at +25 ℃ +77 ℉, no condensation), Storage: 10 to 95 % RH (at +25 ℃ +77 ℉, no condensation) |
Vibration resistance | 5 to 8.4 Hz, single amplitude of 3.5 mm 0.138 in, 1 sweep/min. (IEC 61131-2) ; 8.4 to 150 Hz, constant acceleration of 9.8 m/s2, 1 sweep/min. (IEC 61131-2), 10 times each in X, Y, and Z directions |
Shock resistance | 147 m/s2 or more , 3 times each in X, Y, and Z directions (IEC61131-2) |
Noise immunity | 1,000 V [p-p] with pulse width 50 ns and 1 micro s (using a noise simulator) |
Operating condition | Free from corrosive gasses and excessive dust |
INDIVIDUAL GENERAL SPECIFICATIONS
項目 | 內容 |
---|---|
Rated voltage range | - |
Current consumption | 75 mA or less (Note) This value is the increase in CPU current consumption. |
Net weight | 25 g approx. (with terminal block) |
