MFECA0030EAD｜Encoder Cabel
Download
Currently, there are no downloadable files related to this product.
*Photo may vary from actual product.
This product has been confirmed that it does not contain the 6 substances specified in EU RoHS Directive 2011/65/EU and the 4 substances specified in 2015/863/EU.
| Part Number | MFECA0030EAD |
|---|---|
| Product | Encoder Cable (without battery box) |
| Details | without battery box, 3 m |
| Product Name | Encoder Cabel |
Contact Us
*Specifications and design of the products are subject to change without notice for the product improvement.
Spec Detail
Specifications and design of the products are subject to change without notice for the product improvement.
| Item | Specifications |
|---|---|
| Part Number | MFECA0030EAD |
| Product details | without battery box, 3 m |
| Specification detail | A6 Family: 23-bit absolute encoder When used in incremental system A5 Family: 17-bit incremental encoder |
| About Enclosure | It doesn't correspond to IP65 and IP67. |
| Specification | 3 m |
| Applicable Family / Series | AC Servo Motors MINAS A7 Family MINAS A6 Family MINAS A5 Family |

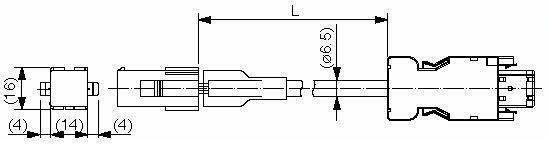

Dimensions
Specifications and design of the products are subject to change without notice for the product improvement.
[Unit: mm]
[Unit: mm]
*L =length.
