MBEU5A1AAV｜MINAS-BL GU Series (Discontinued)

Download

Discontinued

Last time buy (JST)

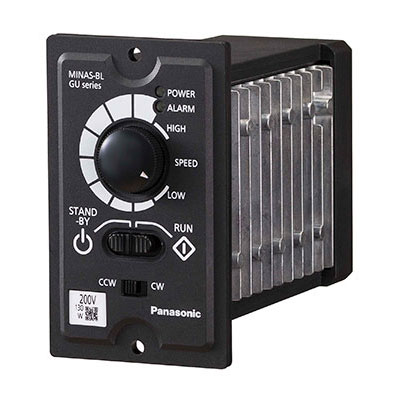

*Photo may vary from actual product.

This product has been confirmed that it does not contain the 6 substances specified in EU RoHS Directive 2011/65/EU and the 4 substances specified in 2015/863/EU.

    Part Number

    MBEU5A1AAV

    Product

    Brushless Amplifier

    Product Name

    		 MINAS-BL GU Series (Discontinued)

    Features

    Speed control type, for GV series motor, Variable with the speed adjusting knob on the Amplifier, 50 W・90 W・130 W, Input power supply for Amplifier: Voltage AC 100 V/200 V, Rated speed 3000 r/min
    Substitute
    Sub Prod No.
    Sub Part No.
    Remark

    Spec Detail

    ItemSpecifications
    Part NumberMBEU5A1AAV
    Control methodSpeed control
    SeriesMBEU
    Motor rated output50 W
    Supply voltageSingle phase AC100 V to 120 V
    Rated rotation speed (r/min)3000
    Speed control range (r/min)30 to 4000 (Speed ratio 1:133)
    * Adjustment of the parameters is necessary depending on the workload conditions.
    Speed fluctuation factor : With load±0.5 % or below (at 0 to Rated torque, Rated rotation speed)
    Speed fluctuation factor : With voltage±0.5 % or below (at supply voltage ±10 %, rated rotation speed)
    Speed fluctuation factor : With temperature±0.5 % or below (at 0 ℃ to 50 ℃, rated rotation speed)
    Acceleration/ Deceleration time0.01 sec to 300 sec* (time for changing 1000 r/min)
    Signal input5 inputs* (run/ stop, CW run/ CCW run, multi function 3 bit)
    Signal output2 outputs (Open collector)* (Trip output etc)
    Communication functionWithout
    Regenerating brakeNo connection function
    Protection levelProtection level: torque command 115 ％ / Inverse time characteristics: 150 ％ 60 sec.
    Protection structure/ Cooling systemEquivalent to IP20/ Self cooling
    Mass (kg)0.38
    Power cable includedwithout

    Remarks

    ItemSpecifications
    Note* Can be set either with PANATARM for BL, Console B (Digital key pad) or “Acceleration time setting volume (ACC)” and “Deceleration time setting volume (DEC)” when the front panel is removed.
