MBEG5A5BCP｜MINAS-BL GP Series (Discontinued)

Download

Discontinued

Last time buy (JST)

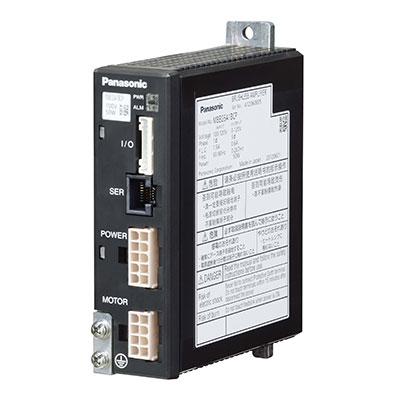

*Photo may vary from actual product.

This product has been confirmed that it does not contain the 6 substances specified in EU RoHS Directive 2011/65/EU and the 4 substances specified in 2015/863/EU.

    Part Number

    MBEG5A5BCP

    Product

    Brushless Amplifier

    Product Name

    		 MINAS-BL GP Series (Discontinued)

    Features

    Position control type.50 W・90 W・130 W, Input power supply for Amplifier: Voltage AC 100 V/200 V, Rated speed 3000 r/min
    Substitute
    Sub Prod No.
    Sub Part No.
    Remark

    Spec Detail

    ItemSpecifications
    Part NumberMBEG5A5BCP
    Control methodPosition control
    SeriesMBEG
    Motor rated output50 W
    Supply voltageSingle/3-phase AC200 V to 240 V
    Rated rotation speed (r/min)3000
    Speed control range (r/min)30 to 4000 (Speed ratio 1:133)
    * Adjustment of the parameters is necessary depending on the workload conditions.
    Number of positioning points4 points (Travel distance, speed, acceleration time, deceleration time, and relative/absolute can be set per point)
    Positioning resolution288 pulse/rotation (Accuracy: Within ±5° at 20 ℃ at no load)
    Signal input4 inputs
    Signal output2 outputs (Open collector)
    Communication functionRS485
    Regenerating brakeExternally connected
    Protection levelProtection level: torque command 115 ％ / Inverse time characteristics: 150 ％ 60 sec.
    Protection structure/ Cooling systemEquivalent to IP20/ Self cooling
    Mass (kg)0.37
    Power cable includedwithout
