MUMA042P1S｜MINAS E series Servo Motor (Discontinued)
Download
Discontinued
Last time buy (JST)
*Photo may vary from actual product.
This product has been confirmed that it does not contain the 6 substances specified in EU RoHS Directive 2011/65/EU and the 4 substances specified in 2015/863/EU.
| Part Number | MUMA042P1S |
|---|---|
| Product | Servo Motor |
| Product Name | MINAS E series Servo Motor (Discontinued) |
| Features | Position control type, 50 W to 400 W, Input power supply for Driver: Voltage AC 100 V/200 V, 2500 p/r incremental encoder, Frequency response 400 Hz |
Spec Detail
| Item | Specifications |
|---|---|
| Part Number | MUMA042P1S |
| Type | Ultra low inertia |
| Protection class | IP65 |
| About Enclosure | Except rotating portion of output shaft and leadwire end. |
| Environmental Conditions | For more details, please refer to the instruction manual. |
| Voltage specifications (V) | 200 |
| Rated output (W) | 400 |
| Rated current (A rms) | 2.5 |
| Holding brake | without |
| Mass (kg) | 1.5 |
| Oil seal | without |
| Shaft | Key-way, center tap |
| Rated torque (N ⋅ m) | 1.3 |
| Momentary Max. peak torque (N ⋅ m) | 3.8 |
| Regenerative brake frequency (times/min) | Without option :No limit With option :No limit Option (External regenerative resistor) Part No. : DV0P2891 |
| Rated rotational speed (r/min) | 3000 |
| Max. rotational speed (r/min) | 5000 |
| Inertia of rotor ( x10-4 kg ⋅ m²) | 0.17 |
| Recommended inertia ratio | 30 times or less |
| About recommended moment of inertia ratio of the load and the rotor | Note) 3. Consult us or a dealer if the load moment of inertia exceeds the specified value. |
| Rotary encoder: specifications | 2500 P/r Incremental |
| Rotary encoder: Resolution | 10000 |
Permissible load
| Item | Specifications |
|---|---|
| During assembly: Radial load P-direction (N) | 392 |
| During assembly: Thrust load A-direction (N) | 147 |
| During assembly: Thrust load B-direction (N) | 196 |
| During operation: Radial load P-direction (N) | 245 |
| During operation: Thrust load A, B-direction (N) | 98 |
Applicable Driver
| Part Number | Series | Type | I/F Classification of type | Frame | Supply voltage |
|---|---|---|---|---|---|
Ⅾiscontinued | E series | Ultra compact position control type | Pulse train only | L-Frame | 3-phase 200 V |
Ⅾiscontinued | E series | Ultra compact position control type | Pulse train only | L-Frame | Single/3-phase 200 V |

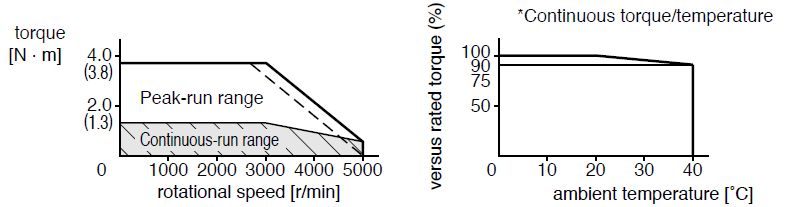

Torque characteristics

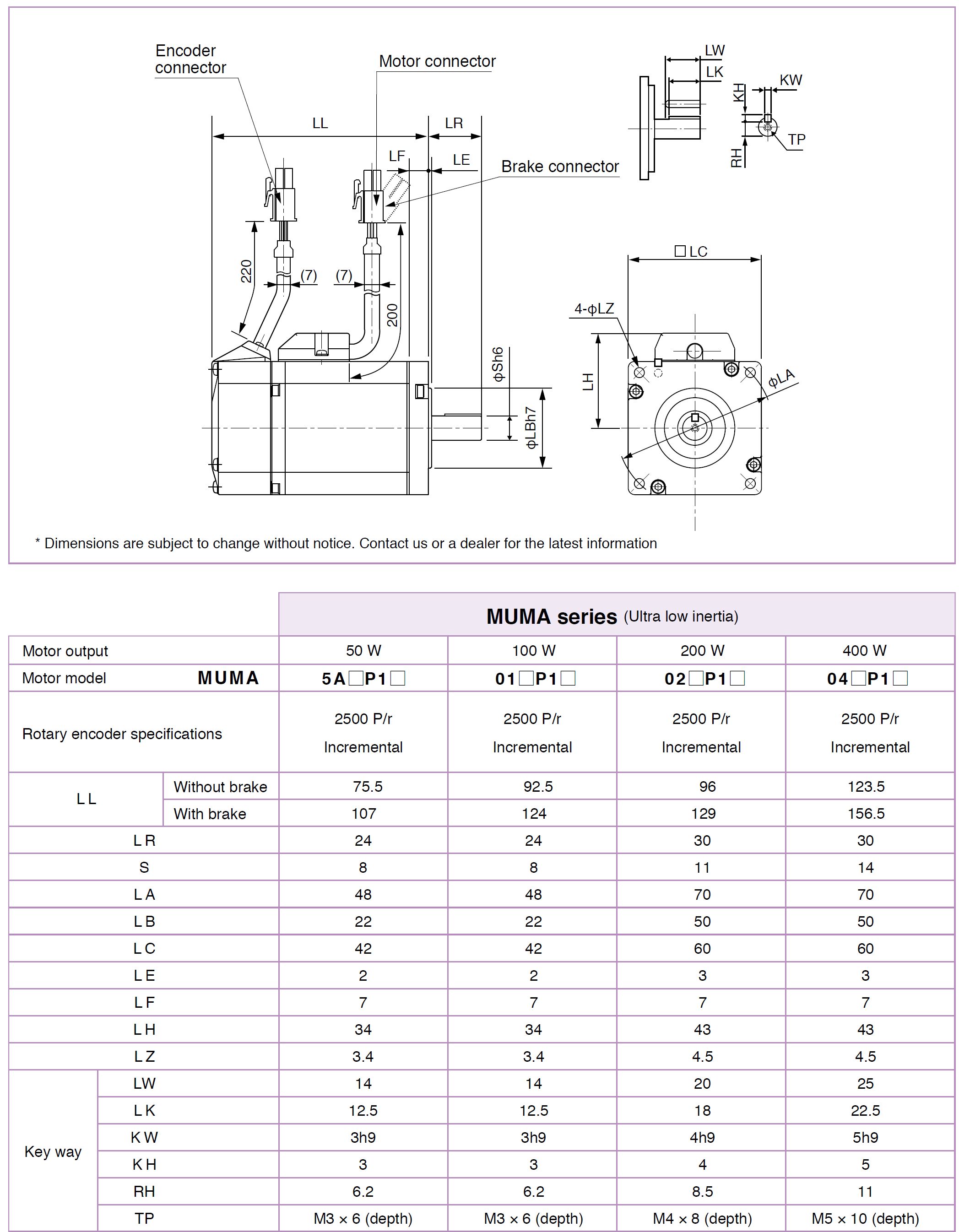

Dimensions
[Unit: mm]
