| Power supply | 90-264V AC 50/60Hz 280VA |
|---|
| Lamp | Part Number | ANUPS204 |
|---|
| Lamp | Preset one-touch type 200W mercury-xenon lamp
*3,000-hour lifetime: maximum time of use
*Guaranteed lifetime 2,000 hours: At least 70% of initial UV intensity |
|---|
| UV intensity | 4000mW/cm2 (initial)
5 mm 1-branch fiber, without lens, without filter, Auto control = OFF, distance = 10mm |
|---|
| UV Illumination | Built-in UV auto control
- Illumination at constant intensity/time
- Programmable pattern illumination (10 steps in 9 patterns)
- Control UV intensity via external signals (switch between 4 different intensities)
- Modify UV intensity by setting aperture opening
|
|---|
| Shutter | Electronically controlled shutter; control manually or via timer |
|---|
| Setting | Digital settings via sheet switches With wrong operation prevention function |
|---|
| External Signals | Input | Open/close shutter (timer/manual) / lamp on / light control etc. |
|---|
| Output | Lamp on / lamp stable / shutter closed / error / lamp lifetime over etc. |
|---|

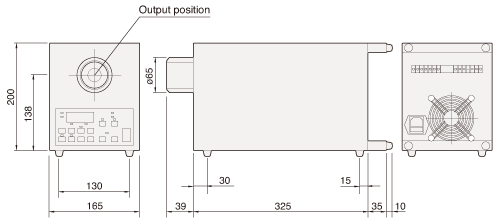

| External Dimensions | 165 × 210 × 410 mm (excluding protruding parts) |
|---|
| Weight | Approx. 8 kg |
|---|
