Discontinued Products
------------------------------ Tab2 showing ------------------------------
Specifications
Controllers
| UJ30 (Standard model) | UJ35 (High performance model) | ||
|---|---|---|---|
| Controller Part No. | ANUJ3000 | ANUJ3500 | |
| Connectable heads | 1to 4 heads | ||
| Connectable UV sensor | Not compatible | Compatible | |
| UV irradiation | One pattern irradiation in simple mode The heads are either collectively or individually controlled. | One pattern in simple mode and programmed pattern 0irradiation (up to 7 patterns with up to 10 steps) The heads are either collectively or individually controlled. | |
| Pattern switching | None (1 type) | Switchable (8 types) | |
| Intensity/irradiation control | Digital intensity and irradiation control manual or timer control Manual/timer control (0.1 to 99.9 sec., 100 to 999 sec.) Auto-tuning function using the UV sensor (for UJ35 only) Specifications of UV sensor: [Temperature characteristic: ±5 % F.S. (+5 to +35℃ +41 to +95℉)/ Repeat accuracy: ±1 % (+25℃ +77℉)] | ||
| Setting/Operation | Setting by the operation switches and power-on/off by a key switch | Setting by the operation switches, power-on/off by a key switch and RS-232C (UJ35 setup tool) | |
| Display | 7-segment display | ||
| Cooling system | Natural cooling (without a fan) | ||
| External control | Method | Parallel I/O | RS-232C, Parallel I/O |
| External input | Individual irradiation input, irradiation stop input, interlock, full-irradiation input, pattern switching (for UJ35 only) | ||
| External output | READY signal, error signal, alarm output, BUSY output (each head separately), +5 V output (for indicator) | ||
| Operating voltage | With AC adapter: 100 - 240 V AC (±10 %) 50 / 60 Hz 60 VA (at 100 V AC) | ||
| Operating ambient temperature / Operating ambient humidity | 0 to +35℃ +32 to +95℉ / 30 to 85 % RH (No dew condensation allowed) | ||
| Storage ambient temperature / Storage ambient humidity | –10 to +60℃ +14 to +140℉ / 30 to 85 % RH (No dew condensation or icing allowed) | ||
| Accessories | AC adapter and Key | ||
| Weight | 1,180 g approx. (Controller: 940 g approx., AC adapter: 240 g approx.) | 1,200 g approx. (Controller: 960 g approx., AC adapter: 240 g approx.) | |
Heads
ANUJ6180 series
| 365 nm wavelength high-output head | Head model No. | ANUJ6186 | ||||||
|---|---|---|---|---|---|---|---|---|
| Compatible lens | Spot diameter | ø3 mm ø0.118 in | ø4 mm ø0.157 in | ø6 mm ø0.236 in | ø8 mm ø0.315 in | ø10 mm ø0.394 in | Protective glass (Note2) | |
| Lens model No. | ANUJ6423 | ANUJ6424 | ANUJ6426 | ANUJ6428 | ANUJ6420 | ANUJ6430 | ||
| UV intensity (mW/cm2) (Note1) | 17,200 | 14,940 | 7,560 | 4,450 | 1,360 | 530 | ||
| Irradiation distance | 8 mm 0.315 in | 10 mm 0.394 in | 15 mm 0.591 in | 20 mm 0.787 in | 30 mm 1.181 in | 10 mm 0.394 in | ||
| 365 nm wavelength standard type | Head model No. | ANUJ6180 | ||||||
| Compatible lens | Spot diameter | ø3 mm ø0.118 in | ø4 mm ø0.157 in | ø6 mm ø0.236 in | ø8 mm ø0.315 in | ø10 mm ø0.394 in | Protective glass (Note2) | |
| Lens model No. | ANUJ6423 | ANUJ6424 | ANUJ6426 | ANUJ6428 | ANUJ6420 | ANUJ6430 | ||
| UV intensity (mW/cm2) (Note1) | 12,500 | 10,600 | 4,720 | 2,500 | 580 | 300 | ||
| Irradiation distance | 10 mm 0.394 in | 12 mm 0.472 in | 20 mm 0.787 in | 25 mm 0.984 in | 30 mm 1.181 in | 10 mm 0.394 in | ||
| 385 nm wavelength high-output head | Head model No. | ANUJ6188 | ||||||
| Compatible lens | Spot diameter | ø3 mm ø0.118 in | ø4 mm ø0.157 in | ø6 mm ø0.236 in | ø8 mm ø0.315 in | ø10 mm ø0.394 in | Protective glass (Note2) | |
| Lens model No. | ANUJ6423 | ANUJ6424 | ANUJ6426 | ANUJ6428 | ANUJ6420 | ANUJ6430 | ||
| UV intensity (mW/cm2) (Note1) | 19,500 | 16,920 | 8,680 | 4,750 | 1,400 | 580 | ||
| Irradiation distance | 8 mm 0.315 in | 10 mm 0.394 in | 15 mm 0.591 in | 20 mm 0.787 in | 30 mm 1.181 in | 10 mm 0.394 in | ||
| 385 nm wavelength standard type | Head model No. | ANUJ6184 | ||||||
| Compatible lens | Spot diameter | ø3 mm ø0.118 in | ø4 mm ø0.157 in | ø6 mm ø0.236 in | ø8 mm ø0.315 in | ø10 mm ø0.394 in | Protective glass (Note2) | |
| Lens model No. | ANUJ6423 | ANUJ6424 | ANUJ6426 | ANUJ6428 | ANUJ6420 | ANUJ6430 | ||
| UV intensity (mW/cm2) (Note1) | 14,700 | 11,700 | 5,800 | 2,790 | 590 | 330 | ||
| Irradiation distance | 10 mm 0.394 in | 12 mm 0.472 in | 15 mm 0.591 in | 20 mm 0.787 in | 30 mm 1.181 in | 10 mm 0.394 in | ||
| 405 nm wavelength high-output head | Head model No. | ANUJ6189 | ||||||
| Compatible lens | Spot diameter | ø3 mm ø0.118 in | ø4 mm ø0.157 in | ø6 mm ø0.236 in | ø8 mm ø0.315 in | ø10 mm ø0.394 in | Protective glass (Note2) | |
| Lens model No. | ANUJ6423 | ANUJ6424 | ANUJ6426 | ANUJ6428 | ANUJ6420 | ANUJ6430 | ||
| UV intensity (mW/cm2) (Note1) | 20,900 | 17,800 | 9,190 | 5,450 | 1,790 | 810 | ||
| Irradiation distance | 8 mm 0.315 in | 10 mm 0.394 in | 15 mm 0.591 in | 20 mm 0.787 in | 30 mm 1.181 in | 10 mm 0.394 in | ||
| 405 nm wavelength standard type | Head model No. | ANUJ6187 | ||||||
| Compatible lens | Spot diameter | ø3 mm ø0.118 in | ø4 mm ø0.157 in | ø6 mm ø0.236 in | ø8 mm ø0.315 in | ø10 mm ø0.394 in | Protective glass (Note2) | |
| Lens model No. | ANUJ6423 | ANUJ6424 | ANUJ6426 | ANUJ6428 | ANUJ6420 | ANUJ6430 | ||
| UV intensity (mW/cm2) (Note1) | 15,500 | 12,600 | 5,730 | 3,150 | 890 | 440 | ||
| Irradiation distance | 10 mm 0.394 in | 12 mm 0.472 in | 20 mm 0.787 in | 25 mm 0.984 in | 30 mm 1.181 in | 10 mm 0.394 in | ||
| Common item | Light source | Class 3B LED product (JIS C6802:2005) Risk group 3 (ANUJ6189 / ANUJ6187: Risk group 2) (IEC 62471) | ||||||
| Estimated light source life (Note3) | 20,000 hours (when the LED temperature inside the head is 60℃ 140℉) | |||||||
| Cable length | 0.2 m 0.656 ft A connection cable is required to connect the high-output head to a UJ series controller. | |||||||
| Ambient operating temperature / ambient operating humidity | +5 to +35℃ +41 to +95℉ / 30 to 85 % RH (No dew condensation allowed) | |||||||
| Storage temperature and humidity | –10 to +60℃ +14 to +140℉ / 30 to 85 % RH (No dew condensation or icing allowed) | |||||||
Note:
1)The values were measured using a UJ30/35 illuminometer with ø1 mm ø0.039 in sensor hole when the high-output heads were fixed to the attachment, the ambient temperature was maintained at 25℃ 77℉ by the UJ30/35, and they were turned on with 100% output (initial value: based on Panasonic's reference measurement method).
Since the LED elements show illumination intensity fluctuations, the actual UV intensity may be more than 20% higher.
2)It is recommended that protective glass (ANUJ6430) be used to protect the head-side lens from contamination when the high-output head is used without a lens. For further information about protective glass, contact our sales office.
3)The value is not a guaranteed value.
ANUJ6170 series
| Standard head (Note1) | Product No. | ANUJ6172 | |||||
|---|---|---|---|---|---|---|---|
| Cable length | 1.9m 6.234ft (ANUJ6172), directly connectable to the controller | ||||||
| Compatible lens | Spot diameter | ø3mm 0.118in | ø4mm 0.157in | ø6mm 0.236in | ø8mm 0.315in | ø10mm 0.394in | |
| Product No. | ANUJ 6423 | ANUJ 6424 | ANUJ 6426 | ANUJ 6428 | ANUJ 6420 | ||
| Irradiation intensity (mW/cm2) (Note2) | 9,300 | 7,900 | 3,600 | 1,700 | 640 | ||
| Irradiation distance | 10mm 0.394in | 12mm 0.472in | 20mm 0.787in | 25mm 0.984in | 30mm 1.181in | ||
| Common item | Light source | Class 3B LED product | |||||
| Estimated lamp life (Note3) | 20,000 hours (When the temperature of the LED in the head is 60℃ 140℉ or less.) | ||||||
| Operating temperature and humidity | +5 to +35℃+41 to +95℉ , 30 to 85% RH (No condensation at 25℃ 77℉ ) | ||||||
| Storage temperature and humidity | -10 to +60℃+14 to +140℉ , 30 to 85% RH (No condensation at 25℃ 77℉ ) | ||||||
Note:
1)The cable for standard heads is supplied in a fixed length.
2)When being fixed to the metal attachment, the ambient temperature is 25℃ 77℉ , and the intensity is set to 100% (initial value).
3)Not a guarateed value.
4)Go to the specifications page of the heads (ANUJ6170 series)
I/O SPECIFICATIONS
Input specifications
Open collector (Tr) ornon-voltage input such as a relay
Contact input
Non-contact input
Output specifications
Rated operation voltage:5 to 24 V DCOutput capacity: 100 mA (max.)
With external power supply
With internal power supply
| INPUT | OUTPUT | |||
|---|---|---|---|---|
| Terminal No. | Signal | Terminal No. | Signal | |
| 1 | START1 | 13 | READY-All | |
| 2 | START2 | 14 | READY / BUSY1 (Note 2) | |
| 3 | START3 | 15 | READY / BUSY2 (Note 2) | |
| 4 | START4 | 16 | READY / BUSY3 (Note 2) | |
| 5 | TYPE Chg1 (Note 1) | 17 | READY / BUSY4 (Note 2) | |
| 6 | TYPE Chg2 (Note 1) | 19 | ERROR | |
| 7 | TYPE Chg3 (Note 1) | 20 | ALARM | |
| 8 | UV CHECK (Note 1) | 21 | COM | |
| 9 | STOP | 22 | COM | |
| 10 | START-All | 23 | FG | |
| 11 | INTERLOCK (Note 3) | 24 | +5 V DC | |
| 12 | COM | 25 | COM | |
Notes:
1)Nos. 5 / 6 / 7 / 8 (Type-Chg 1 / 2 / 3 and UV-CHECK) are functions
available UJ35 only. These terminals for UJ30 are spare.
2)The READY / BUSY switching of Nos. 14 / 15 / 16 / 17 is performed on the
UJ30 / UJ35 controller.
3)At shipment, for B-contact (allows irradiation when ON), No.11
(INTERLOCK) is connected to No.12 (COM) by a short-circuit line.
------------------------------ Tab3 showing ------------------------------
Dimensions
- Unit: mm in

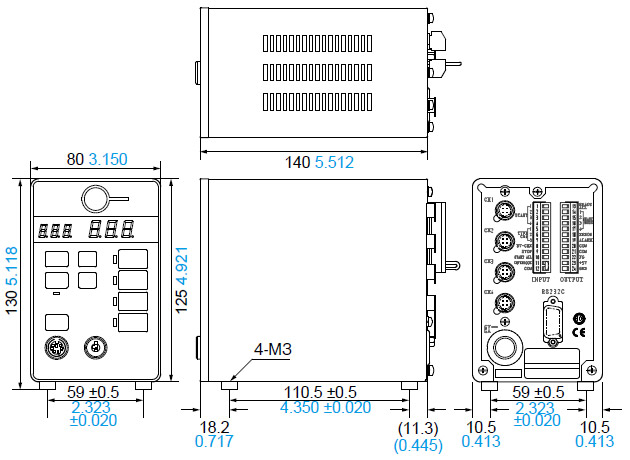

ANUJ3000 ANUJ3500
UJ30 / UJ35 controller

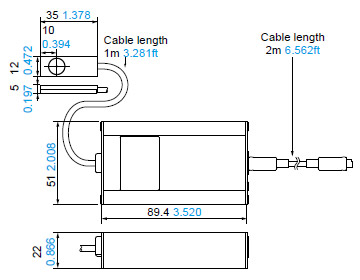

ANUJ3800
UV sensor

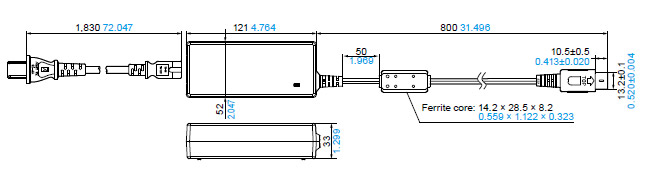

ANUJ6802
AC adapter
ANUJ6803
200 V AC power cable
ANUJ6804

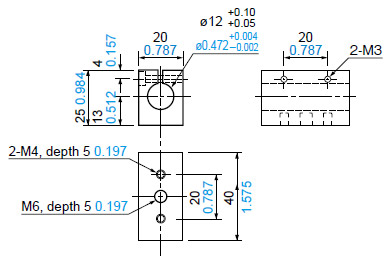

Head mounting bracket
ANUJ6180 ANUJ6184 ANUJ6186 ANUJ6187 ANUJ6188 ANUJ6189
Head sections

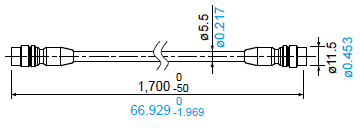

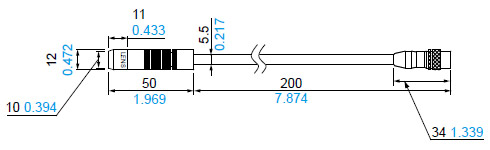

ANUJ6220
Connection cable
ANUJ642*
ANUJ64**S
Standard and cylindrical lens
ANUJ642*SV
Side view lens
ANUJ6447L
Rod lens
ANUJ6467L
Rod lens
ANUJ6430
Protective glass
------------------------------ Tab4 showing ------------------------------
Data
ANUJ6180 Series

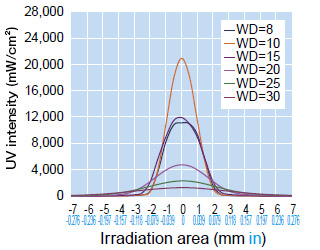

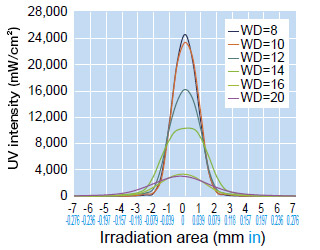

High-output head UV wavelength 365 nm 0.014 mil (ANUJ6186)
Inherits an existing intensity profile
Standard type head UV wavelength 365 nm 0.014 mil (ANUJ6180)
405 nm 0.016 mil type for broader UV curing applications
High-output head (ANUJ6189)
Standard type (ANUJ6187)
Featuring Panasonic high-efficiency lens (Note)
High-output head UV wavelength 365 nm 0.014 mil (ANUJ6186)
Note: Lens embedded in the head of ANUJ6186 or ANUJ6188.

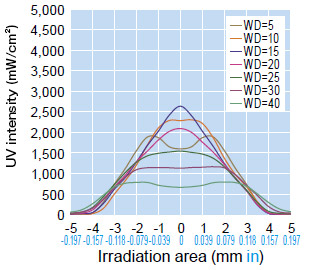

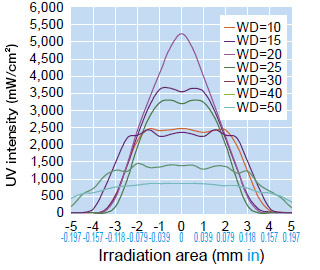

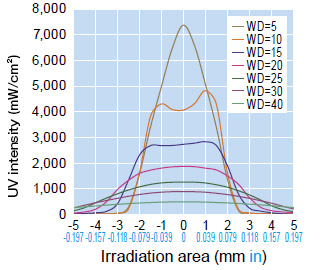

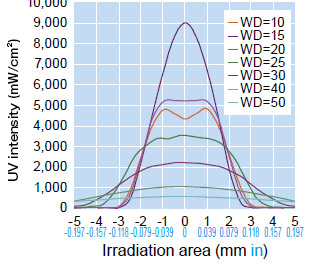

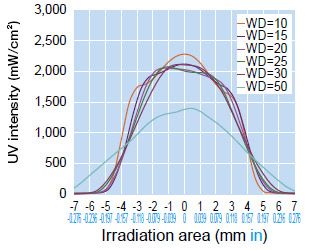

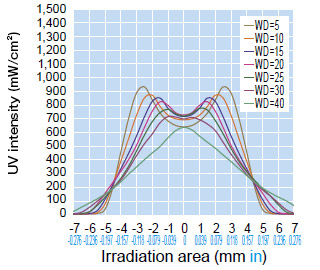

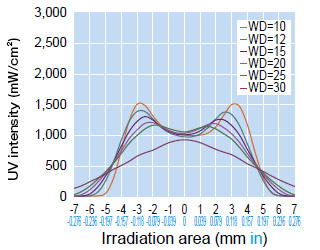

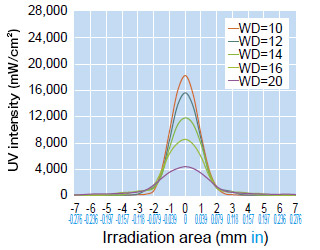

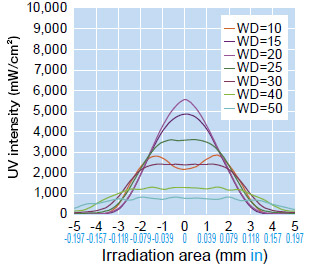

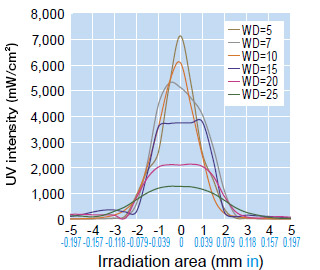

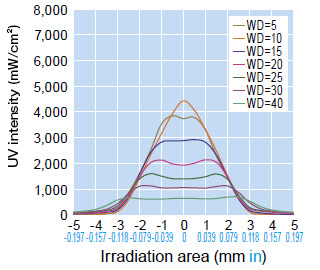

Standard lens and Protective glass

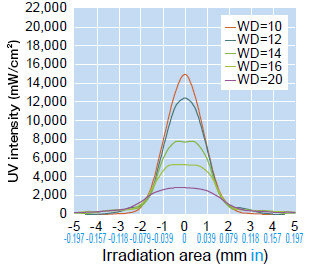

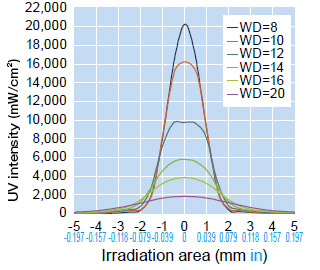

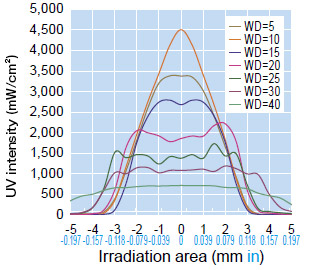

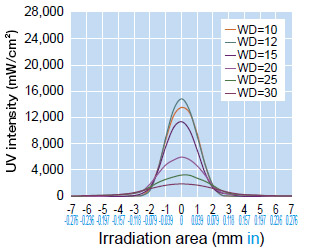

* WD: Working Distance (mm)

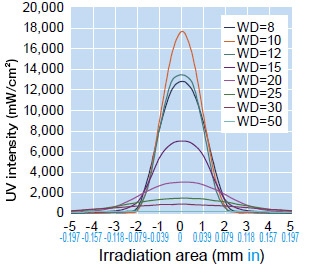

ANUJ6423 (ø3 mm ø0.118 in)
ANUJ6424 (ø4 mm ø0.157 in)
ANUJ6426 (ø6 mm ø0.236 in)
ANUJ6428 (ø8 mm ø0.315 in)
ANUJ6420 (ø10 mm ø0.394 in)
ANUJ6430 (Protective glass)

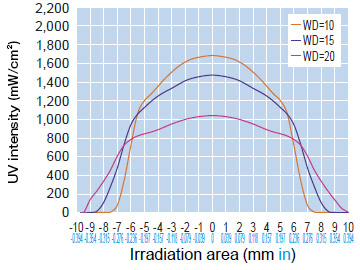

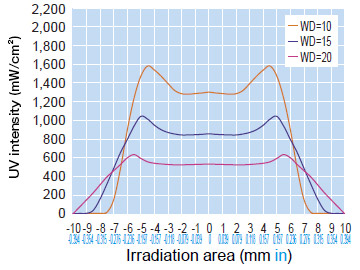

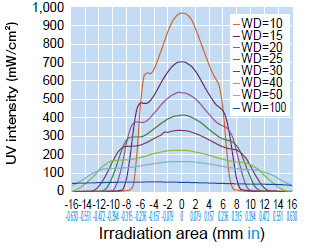

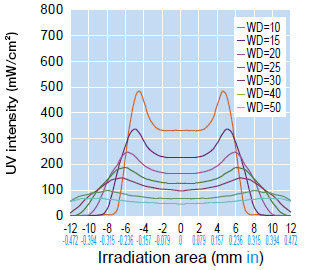

Side view lens

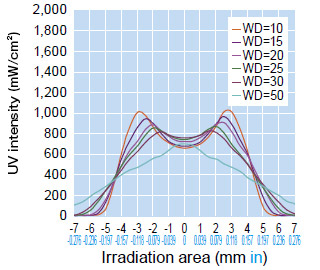

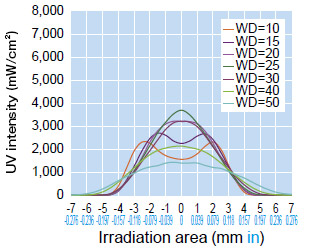

* WD: Working Distance (mm)

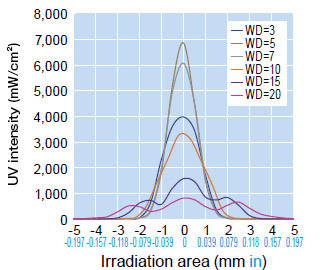

ANUJ6426SV (ø6 mm ø0.236 in)
ANUJ6428SV (ø8 mm ø0.315 in)
ANUJ6420SV (ø10 mm ø0.394 in)

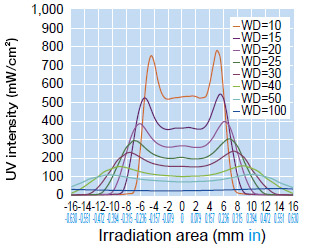

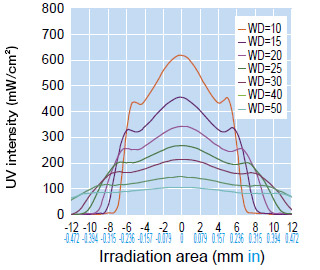

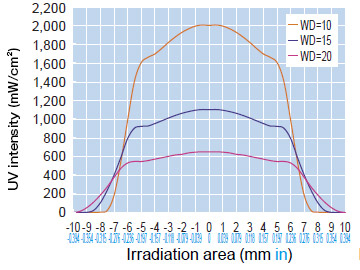

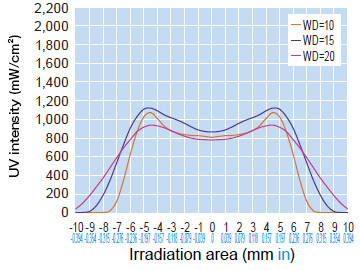

Cylindrical lens
*WD: Working Distance (mm)

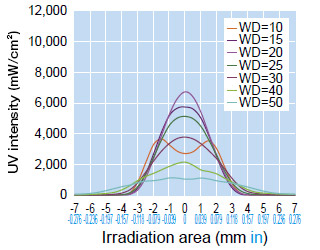

ANUJ6450S (ø6 mm ø0.236 in)
(Width direction)
ANUJ6475S (Longitudinal direction)
(Width direction)

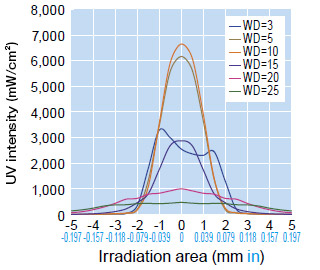

Rod lens
* WD: Working Distance (mm)
Rod diameter: 4 mm 0.157 in (custom-made products)
Rod diameter: 6 mm 0.236 in (custom-made products)
Note:
Rod lens combined with ANUJ6186, ANUJ6188 and ANUJ6189 high-output heads are treated as custom-made products. Please consult us for further information.
Inherits an existing intensity profile
Standard type head UV wavelength 365 nm 0.014 mil (ANUJ6180)

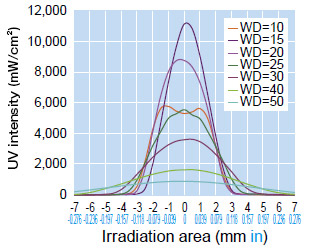

Standard lens and Protective glass
* WD: Working Distance (mm)
ANUJ6423 (ø3 mm ø0.118 in)
ANUJ6424 (ø4 mm ø0.157 in)
ANUJ6426 (ø6 mm ø0.236 in)
ANUJ6428 (ø8 mm ø0.315 in)
ANUJ6420 (ø10 mm ø0.394 in)
ANUJ6430 (Protective glass)

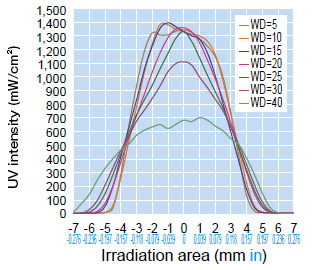

Side view lens
* WD: Working Distance (mm)
ANUJ6426SV (ø6 mm ø0.236 in)
ANUJ6428SV (ø8 mm ø0.315 in)
ANUJ6420SV (ø10 mm ø0.394 in)
Cylindrical lens
* WD: Working Distance (mm)
ANUJ6450S (Longitudinal direction)
(Width direction)
ANUJ6475S (Longitudinal direction)
(Width direction)
Rod lens
* WD: Working Distance (mm)
ANUJ6447L
ANUJ6467L
405 nm 0.016 mil type for broader UV curing applications
High-output head (ANUJ6189)

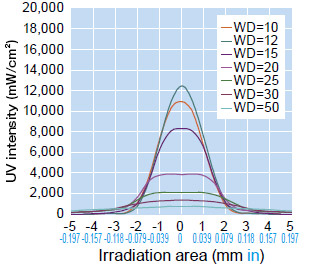

Standard lens and Protective glass
* WD: Working Distance (mm)
ANUJ6423 (ø3 mm ø0.118 in)
ANUJ6424 (ø4 mm ø0.157 in)
ANUJ6426 (ø6 mm ø0.236 in)
ANUJ6428（ø8 mm ø0.315 in）
ANUJ6420 (ø10 mm ø0.394 in)
ANUJ6430 (Protective glass)
Standard type (ANUJ6187)

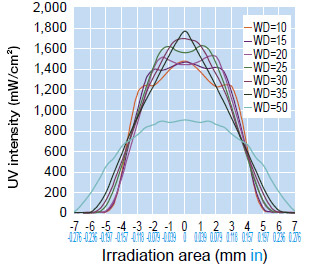

Standard lens and Protective glass
ANUJ6423 (ø3 mm ø0.118 in)
ANUJ6424 (ø4 mm ø0.157 in)
ANUJ6426 (ø6 mm ø0.236 in)
ANUJ6428 (ø8 mm ø0.315 in)
ANUJ6420 (ø10 mm ø0.394 in)
ANUJ6430 (Protective glass)
------------------------------ Tab5 showing ------------------------------
How to read UV intensity data
Intensity vs head distance
When ANUJ6160 and ANUJ6423 are used in combination, the peak intensity in the center position at an irradiation distance of 10 mm is 8,600W/cm2.
A 1.4-mm-diameter are can be irradiated at 70% of the center intensity (6020mW/cm2).
Irradiation distance vs intensity and area
If an intensity of 500 mW/cm2 and irradiation area of 6 mm diameter are required, draw a line on the graph that covers the ±3 and 500 mW/cm2 positions. This determines the lens that will satisfy the area this line surrounds and the lens irradiation distance. In this case, we can see that the ANUJ6428 can maintain an intensity of 500 mW/cm2 or higher with an irradiation distance of 40 mm and area of 6 mm diameter.

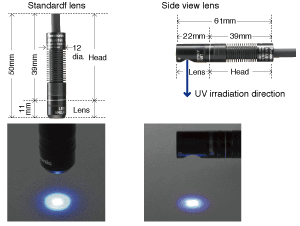

About Side view lens
Side view lens
The side view lens bends the light path at 90 degrees, broadening the choice of head installation locations.
The head length and the cable leading direction are different from those of the standard type, signifficantly reducing the required space.

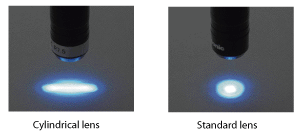

About Cylindrical lens
Cylindrical lens
An oval-shaped irradiation area results from a cylindrical lens. Using the directionality of the irradiation area, you can do things such as irradiate wide areas simultaneously or reduce the number of heads by crossing the irradiation area.
The cylindrical lens is not available as a set. Please purchase a head and cable at the same time.

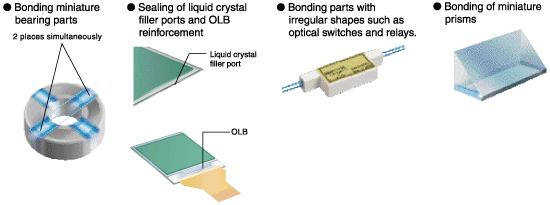

Best applications
About Rod lens
Rod lens

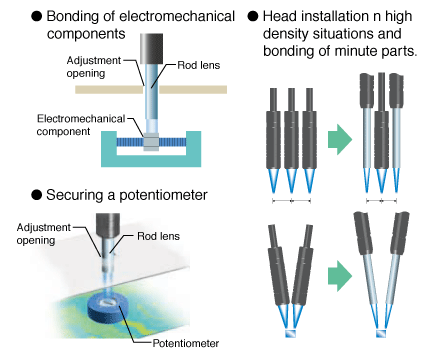

This is an elongated version of the standard lens. It is ideal when the head size is large and head placement is difficult. The rod lens is not available as a set. Please purchase a head and cable at the same time.
Best applications
------------------------------ Tab6 showing ------------------------------
I/O Circuit and Wiring diagrams
Input and Output specifications
Input specifications
Contact input
Non-contact input
Output specifications
With external power supply
With internal power supply
I/O list
| INPUT | OUTPUT | ||
|---|---|---|---|
| Terminal No. | Signal | Terminal No. | Signal |
| 1 | START1 | 13 | READY-All |
| 2 | START2 | 14 | READY/BUSY1 (Note 2) |
| 3 | START3 | 15 | READY/BUSY2 (Note 2) |
| 4 | START4 | 16 | READY/BUSY3 (Note 2) |
| 5 | TYPE Chg1 (Note 1) | 17 | READY/BUSY4 (Note 2) |
| 6 | TYPE Chg2 (Note 1) | 18 | ERROR |
| 7 | TYPE Chg3 (Note 1) | 19 | ALARM |
| 8 | UV CHECK (Note 1) | 20 | COM |
| 9 | STOP | 21 | COM |
| 10 | START-All | 22 | FG |
| 11 | INTERLOCK (Note 3) | 23 | +5 V DC |
| 12 | COM | 24 | COM |
Notes:
1)Nos. 5 / 6 / 7 / 8 (Type-Chg 1 / 2 / 3 and UV-CHECK) are functions available UJ35 only.
These terminals for UJ30 are spare.
2)The READY/BUSY switching of Nos. 14 / 15 / 16 / 17 is performed on the UJ30 / UJ35 controller.
3)At shipment, for B-contact (allows irradiation when ON), No.11 (INTERLOCK) is connected to No.12 (COM) by a short-circuit line.
------------------------------ Tab7 showing ------------------------------
Cautions For Use
Safety precautions
This LED UV curing system uses a Class-3B ultraviolet LED.
Safety labels are affixed to the product.
English
Japanese
Chinese (Simplified)
