Basic Information

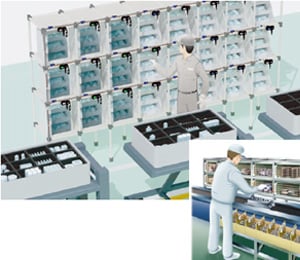

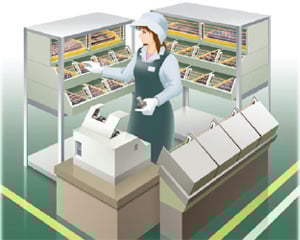

Suitable for picking of important maintenance parts and safety-related parts for which erroneous picking must be prevented by all means!
CE : EMC Directive
Features
Note:
The product is equipped with an arm (shutter) that operates at high speed. Take note of the arm (shutter) moving range in order to prevent the arm (shutter) from hitting the worker's face or other parts of the body.
Equipped with shutter for zero picking error
The shutter closes to prevent erroneous picking. The unit features a cantilever supporter and is compact, so it is suitable for installation on a narrowwidth shelf for miniature parts. |

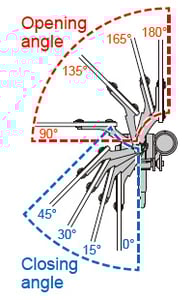

The shutter operates properly even if the tray extends from the edge of parts shelf. The shutter closing delay time can also be adjusted in five stages. |
Lamp colors selectable
It can be selectable from green (default), red, blue, and a two-stage indication*.
*The address configuration remote control (sold separately) is required in order to select the lamp color.
Remote controller

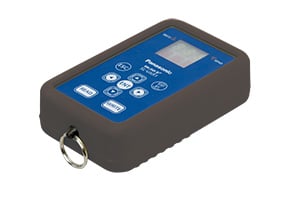

The SL-VAR1 address setting remote controller (optional) enables easy setting of addresses and selection of lamp color. The remote controller helps reduce the setting workload during shelf rearrangement. The remote controller can be used repeatedly for changing settings.
------------------------------ Tab2 showing ------------------------------
------------------------------ Tab3 showing ------------------------------
------------------------------ Tab4 showing ------------------------------
------------------------------ Tab5 showing ------------------------------
Dimensions
Unit: mm inSL-VPK02
Picking switch
One ø28 mm ø1.102 inpipe mounting holder,one plate for arm,two M4 screws (length: 12 mm 0.472 in) for plate-fixing,two spring washers for plate-fixing and one M6 hexagon socket-head bolt (length 15 mm 0.591 in) for holder-fixing are attached.
SL-VAR1
Address setting remote controller (optional)
MS-PK02-W
MaterialMain unit: POM, Pipe mounting holder: SPCC, Driving shaft: SUM, Arm: SPCC[One plate for arm, two spring washers for plate-fixing and two M4 trass head screws (length: 12 mm 0.472 in) are attached.]
