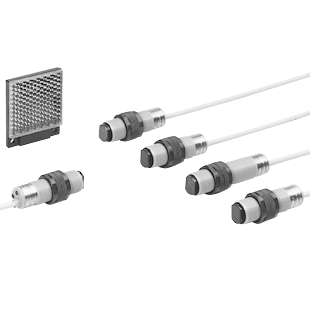

Cylindrical Photoelectric Sensor CY (Discontinued Products)
Download
-
Discontinued Products
-
Specifications
-
Dimensions
Ⅾiscontinued
Last time buy (JST)
September 30, 2013
------------------------------ Tab1 showing ------------------------------
------------------------------ Tab2 showing ------------------------------
Specifications
DC supply type
Type | Thru-beam | Retrorefl ective | Diffuse refl ective | ||
---|---|---|---|---|---|
With polarizing filters | |||||
Model No. | NPN output | CY-21 | CY-27 | CY-29 | CY-22 |
PNP output | CY-21-PN | CY-27-PN | CY-29-PN | CY-22-PN | |
Sensing range | 12 m 39.370 ft | 3 m 9.843 ft (Note 2) | 1.5 m 4.921 ft (Note 2) | 120 mm 4.724 in (Note 3) | |
Sensing object | ø8 mm ø0.315 in or more opaque object (Completely beam interrupted object) | ø50 mm ø1.969 in or more opaque or translucent object (Note 2, 4) | ø50 mm ø1.969 in or more opaque, translucent or specular object (Note 2, 4) | Opaque, translucent or transparent object (Note 4) | |
Hysteresis | - | 15 % or less of operation distance (Note 3) | |||
Repeatability (perpendicular to sensing axis) | 0.1 mm 0.004 in or less | 0.3 mm 0.012 in or less | |||
Supply voltage | 10 to 30 V DC Ripple P-P 10 % or less | ||||
Current consumption | Emitter: 20 mA or less Receiver: 25 mA or less | 25 mA or less | |||
Output | <NPN output type> NPN open-collector transistor ・Maximum sink current: 100 mA ・Applied voltage: 30 V DC or less (between output and 0 V) ・Residual voltage: 1.5 V or less (at 100 mA sink current) <PNP output type> PNP open-collector transistor ・Maximum source current: 100 mA ・Applied voltage: 30 V DC or less (between output and +V) ・Residual voltage: 1.5 V or less (at 100 mA source current) | ||||
Utilization category | DC-12 or DC-13 | ||||
Output operation | Selectable either Light-ON or Dark-ON by the control input | ||||
Short-circuit protection | Incorporated | ||||
Response time | 2 ms or less | ||||
Test input (emission halt) function | Incorporated | - | |||
Operation indicator | Red LED (lights up when the output is ON) | ||||
Emission indicator | Red LED (lights up during beam emission) | - | |||
Pollution degree | 3 (Industrial environment) | ||||
Protection | IP67 (IEC) (Refer to p.984 for details of standards.) | ||||
Ambient temperature | -25 to +55 ℃ -13 to +131 ℉ (No dew condensation or icing allowed), Storage: -30 to +70 ℃ -22 to +158 ℉ | ||||
Ambient humidity | 35 to 85 % RH, Storage: 35 to 85 % RH | ||||
Ambient illuminance | Incandescent light: 3,000 lx at the light-receiving face | ||||
EMC | EN 60947-5-2 | ||||
Voltage withstandability | 1,000 V AC for one min. between all supply terminals connected together and enclosure | ||||
Insulation resistance | 20 MΩ, or more, with 250 V DC megger between all supply terminals connected together and enclosure | ||||
Vibration resistance | 10 to 500 Hz frequency, 1.5 mm 0.059 in amplitude (10 G max.) in X, Y and Z directions for two hours each | ||||
Shock resistance | 500 m/s2 acceleration (50 G approx.) in X, Y and Z directions for three times each | ||||
Emitting element | Infrared LED (modulated) | Red LED (modulated) | Infrared LED (modulated) | ||
Peak emission wavelength | 950 nm 0.037 mil | 660 nm 0.026 mil | 950 nm 0.037 mil | ||
Material | Enclosure: PBT, Lens: Polycarbonate | Enclosure: PBT, Front cover: Acrylic | |||
Cable | 0.34 mm2 4-core (thru-beam type emitter: 3-core) cabtyre cable, 2 m 6.562 ft long | ||||
Cable extension | Extension up to total 100 m 328.084 ft is possible with 0.34 mm2, or more, cable (thru-beam type: both emitter and receiver). | ||||
Net Weight | Emitter: 90 g approx. Receiver: 100 g approx. | 100 g approx. | |||
Accessories | Nut: 4 pcs. | Nut: 2 pcs. |
Note 1 :Where measurement conditions have not been specified precisely, the conditions used were an ambient temperature of +23 ℃ +73.4 ℉.
Note 2 :The sensing range and the sensing object of the retroreflective type sensor are specified for the RF-230 reflector (optional).
Note 3 :The sensing range and the hysteresis of the diffuse reflective type sensor are specified for white non-glossy paper (200 x 200 mm 7.874 x 7.874 in) as the object.
Note 4 :Make sure to confirm detection with an actual sensor before use.
AC supply type
Type | Thru-beam | Retroreflective | Diffuse reflective | ||
---|---|---|---|---|---|
With polarizing filters | |||||
Model No. | Light-ON | CY-11A | CY-17A | CY-19A | CY-12A |
Dark-ON | CY-11B | CY-17B | CY-19B | CY-12B | |
Sensing range | 12 m 39.370 ft | 3 m 9.843 ft (Note 2) | 1.5 m 4.921 ft (Note 2) | 120 mm 4.724 in (Note 3) | |
Sensing object | ø8 mm ø0.315 in or more opaque object (Completely beam interrupted object) | ø50 mm ø1.969 in or more opaque or translucent object (Note 2, 4) | ø50 mm ø1.969 in or more opaque, translucent or specular object (Note 2, 4) | Opaque, translucent or transparent object (Note 4) | |
Hysteresis | - | 15 % or less of operation distance (Note 3) | |||
Repeatability (perpendicular to sensing axis) | 0.1 mm 0.004 in or less | 0.3 mm 0.012 in or less | |||
Supply voltage | 24 to 240 V AC + 10/- 15 % | ||||
Power consumption | Emitter: 1.5 VA or less Receiver: 2.5 VA or less | 2.7 VA or less | |||
Output | AC non-contact (thyristor) output ・Load current: 5 to 200 mA ・Applied voltage: 24 to 240 V AC + 10/- 15 % ・Residual voltage: 4 V or less (at 200 mA load current) | ||||
Response time | 20 ms or less | ||||
Operation indicator | Red LED (lights up when the output is ON), incorporated on the receiver for the thru-beam type sensor | ||||
Power indicator | Red LED (lights up when the power is ON), incorporated on the emitter | - | |||
Pollution degree | 3 (Industrial environment) | ||||
Protection | IP67 (IEC) (Refer to p.984 for details of standards.) | ||||
Ambient temperature | -25 to +55 ℃ -13 to +131 ℉ (No dew condensation or icing allowed), Storage: -30 to +70 ℃ -22 to +158 ℉ | ||||
Ambient humidity | 35 to 85 % RH, Storage: 35 to 85 % RH | ||||
Ambient illuminance | Incandescent light: 3,000 lx at the light-receiving face | ||||
EMC | EN 61000-6-2, EN 61000-6-4 | ||||
Voltage withstandability | 1,500 V AC for one min. between all supply terminals connected together and enclosure | ||||
Insulation resistance | 20 MΩ, or more, with 500 V DC megger between all supply terminals connected together and enclosure | ||||
Vibration resistance | 10 to 500 Hz frequency, 1.5 mm 0.059 in amplitude (10 G max.) in X, Y and Z directions for two hours each | ||||
Shock resistance | 500 m/s2 acceleration (50 G approx.) in X, Y and Z directions for three times each | ||||
Emitting element | Infrared LED (modulated) | Red LED (modulated) | Infrared LED (modulated) | ||
Peak emission wavelength | 950 nm 0.037 mil | 660 nm 0.026 mil | 950 nm 0.037 mil | ||
Material | Enclosure: PBT, Lens: Polycarbonate | Enclosure: PBT, Front cover: Acrylic | |||
Cable | 0.34 mm2 3-core (thru-beam type emitter: 2-core) cabtyre cable, 2 m 6.562 ft long | ||||
Cable extension | Extension up to total 100 m 328.084 ft is possible with 0.34 mm2, or more, cable (thru-beam type: both emitter and receiver). | ||||
Net weight | Emitter: 90 g approx. Receiver: 100 g approx. | 100 g approx. | |||
Accessories | Nut: 4 pcs. | Nut: 2 pcs. |
Note 1 :Where measurement conditions have not been specified precisely, the conditions used were an ambient temperature of +23 ℃ +73.4 ℉.
Note 1 :The sensing range and the sensing object of the retroreflective type sensor are specified for the RF-230 reflector (optional).
Note 1 :The sensing range and the hysteresis of the diffuse reflective type sensor are specified for white non-glossy paper (200 x 200 mm 7.874 x 7.874 in) as the object.
Note 1 :Make sure to confirm detection with an actual sensor before use.
------------------------------ Tab3 showing ------------------------------

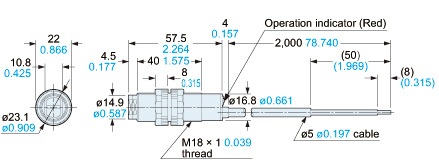

Dimensions
- Unit: mm in

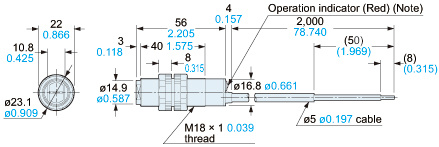

CY-21□ CY-22□ CY-27□
Sensor
Note:It is the emitting indicator (red) on the emitter of the thru-beam type sensor.

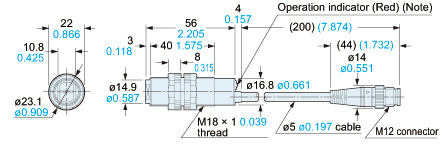

CY-21□-J CY-22□-J CY-27□-J
Sensor
Note:It is the emitting indicator (red) on the emitter of the thru-beam type sensor.
CY-29□
Sensor

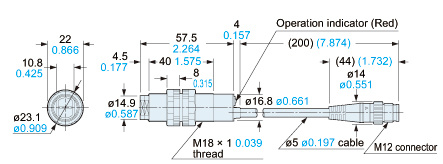

CY-29□-J
Sensor

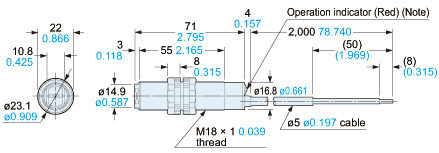

CY-11□ CY-12□ CY-17□
Sensor
Note:It is the power indicator (red) on the emitter of the thru-beam type sensor.

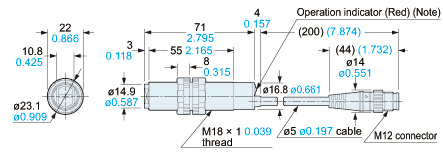

CY-11□-J CY-12□-J CY-17□-J
Sensor
Note:It is the power indicator (red) on the emitter of the thru-beam type sensor.

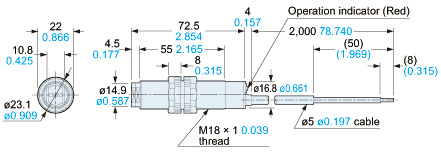

CY-19□
Sensor

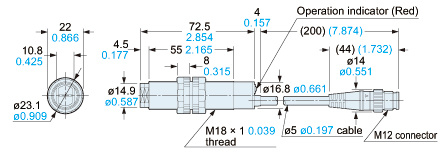

CY-19□-J
Sensor
