BE-AH161｜For small diameter tubes Optical Bubble Sensor BE-AH

Download

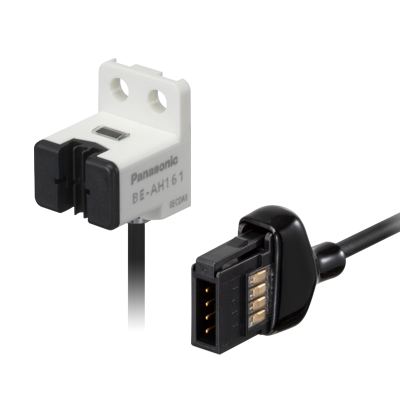

*Photo may vary from actual product.

This product has been confirmed that it does not contain the 6 substances specified in EU RoHS Directive 2011/65/EU and the 4 substances specified in 2015/863/EU.

Product Number

BE-AH161

Part Number

BE-AH161

Product

For small diameter tubes Optical Bubble Sensor

Details

Sensor head

Product Name

 For small diameter tubes Optical Bubble Sensor BE-AH

Contact Us

*Specifications and design of the products are subject to change without notice for the product improvement.

Spec Detail

Specifications and design of the products are subject to change without notice for the product improvement.
ItemSpecifications
Part NumberBE-AH161
Product NumberBE-AH161
Products NameFor small diameter tubes Optical Bubble Sensor
Product detailsSensor head
Applicable regulationsCE Marking(EMC Directive, RoHS Directive)
Sensing objectLiquid
(Note):Sensing is affected by dirt or residues adhered to the inner wall of the tube. Before using the product, be sure to confirm correct detection using actual tube, sensing liquid and equipment.
Sensing object e.g.: Water (Tap water), Pure water, Ethanol, PBS, Isopropanol, Trypsin EDTA (with Phenol Red)
Applicable tube typeTransparent resin tube (equivalent to PFA)
(Note): When using a tube out of specifications or it doesn’t have a smooth surface, please test sensing on the actual machine before use.
Applicable tube dia.〈For FEP / PFA / PTFE〉
[Outer dia.]
ø1.6 mm ±0.025 mm ø1/16 in ±0.001 in
[Inner dia.]
ø0.25mm -0.025mm to ø1.0mm +0.025mm
ø0.01 in -0.001 in to ø0.04 in +0.001 in
〈For ETFE〉
[Outer dia.]
ø1.6 mm ±0.025 mm ø1/16 in ±0.001 in
[Inner dia.]
ø0.75 mm -0.025 mm to ø1.0 mm +0.025 mm
ø0.03 in -0.001 in to ø0.04 in +0.001 in
(Note):When using a tube out of specifications or it doesn’t have a smooth surface, please test sensing on the actual machine before use.
Detectable air gap0.8 mm 0.031 in or more
(Note): Sensing air gap refers to the width of an air bubble formed in the entire area of the inner diameter of the tube.
Operation indicatorOrange LED (lights up with absent liquid)
Environmental resistance : ProtectionIP40 (IEC)
Environmental resistance : Ambient temperature-10 to +55 ℃ +14 to +131 ℉ (No dew condensation or icing allowed),Storage: -20 to +70 ℃ -4 to +158 ℉
(Note): Liquid being detected should also be kept within the rated ambient temperature range.
Environmental resistance : Ambient humidity35 to 85 % RH, Storage: 35 to 85 % RH
Environmental resistance : Ambient illuminanceFluorescent light: 1,000 ℓx or less at the light-receiving face
Environmental resistance : Voltage withstandability1,000 V AC for one min. between all supply terminals connected together and enclosure
Environmental resistance : Insulation resistance20 MΩ or more, with 250 V DC megger between all supply terminals connected together and enclosure
Environmental resistance : Vibration resistance10 to 150 Hz frequency, 0.75 mm 0.030 in double amplitude or maximum acceleration 49 m/s2, in X, Y and Z directions for two hours each
Environmental resistance : Shock resistance100 m/s2 acceleration in X, Y, and Z directions three times each
Emitter elementInfrared LED (Peak emission wavelength: 855 nm 0.034 mil, non-modulated)
MaterialEnclosure: PBT, Tube holder: Polyamide,
Indicator: Polycarbonate
Cable0.09 mm2 4-core cabtyre cable 1 m 3.281 ft
(Provided with a connector for the connection of sensitivity adjustment unit)
WeightNet weight: 15 g approx., Gross weight: 25 g approx.
