FD-BEF50｜Liquid Detection Fiber FD-BEF

Download

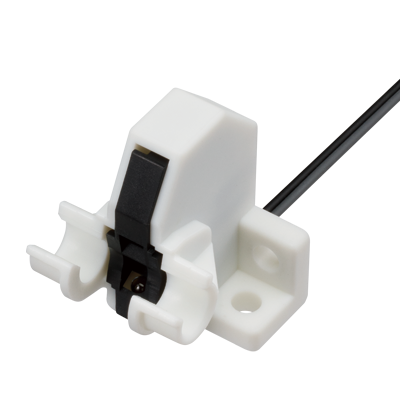

*Photo may vary from actual product.

This product has been confirmed that it does not contain the 6 substances specified in EU RoHS Directive 2011/65/EU and the 4 substances specified in 2015/863/EU.

Product Number

FD-BEF50

Part Number

FD-BEF50

Product

Liquid Detection Fiber

Details

Compatible with ø5 mm tubes

Product Name

 Liquid Detection Fiber FD-BEF

Contact Us

*Specifications and design of the products are subject to change without notice for the product improvement.

Spec Detail

Specifications and design of the products are subject to change without notice for the product improvement.
ItemSpecifications
Part NumberFD-BEF50
Product NumberFD-BEF50
Products NameLiquid Detection Fiber
Product detailsCompatible with ø5 mm tubes
Fiber typeFor ø5 mm tube
Applicable amplifierFX-501, FX-501P, FX-502, FX-502P
Sensing objectTransparent water or liquid with the same refractive index

Note : It may not be possible to sense cloudy liquid, liquid with different refractive index, or liquid with high viscosity (liquid that causes the light to disperse).
Recommended bending radiusR4 mm R0.157 in

Note : Due to variations in the fiber amplifier's displayed values, a bending radius of R4 mm or more is recommended.
Fiber cable length2 m 6.562 ft
Ambient temperature-40 to +70 ℃ -40 to +158 ℉
Ambient humidity35 to 85 % RH
MaterialTube installation part: Nylon, Sensing part : ABS resin Lens: Polycarbonate
AccessoryFX-CT2 (Fiber cutter) : 1 pc.
FX-AT4 (Fiber attachment for ø1 mm ø0.039 in) : 1 pc.

Applicable tubes

ItemSpecifications
MaterialClear / transparent flexible tube (flexible polyvinyl chloride and silicone)
DiameterOutside : 5 mm
Inside : 3 mm

Note : With respect to tubes that are outside the specified diameter or wall thickness, no guarantee can be given for the sensing performance. There is a risk of damage.
Conformity confirmed tubeSilicone : 3355L
PVC : LMT-55

Note : Tubes manufactured by Saint-Gobain K.K. When using different tubes, be sure to check them with the actual product.
