Head-separated Dual Display Digital Pressure Sensor [For Gas] DPS-400 / DPH-100

Download

Basic Information
Order guide
Option
Specifications
Dimensions
Circuit/ Wiring
Cautions For Use

------------------------------ Tab1 showing ------------------------------

Basic Information

Thin body controller can do cascade connection and communication with upper devices

CE,UKCA Approved

Features

Works like a fiber sensor

DPS-400 series accommodates to the requirements for pressure sensors at production site such as miniaturization of sensors for downsizing equipment, convenient shape to fit into machines, and reduction of man-hours when it comes to replacement.

■Sensor head DPH-100 series

Direct installation using a hexagonal wrench

・Direct mounting from above
・Installation in narrow spaces
・Extended freedom of layout
・Single axis type free turning structure

■Controller DPS-400 series

Thin body (t10 mm t0.394 in) and multi-unit connection on a DIN rail helps to downsize equipment for better construction.

Current value and threshold value can be checked simultaneously on the dual display

The controller is equipped with a 4-digit dual digital display. Because the threshold value can be adjusted while checking the "current value (current pressure value)", direct setting and checking of the "threshold value" is made smoothly without having to switch screen modes.

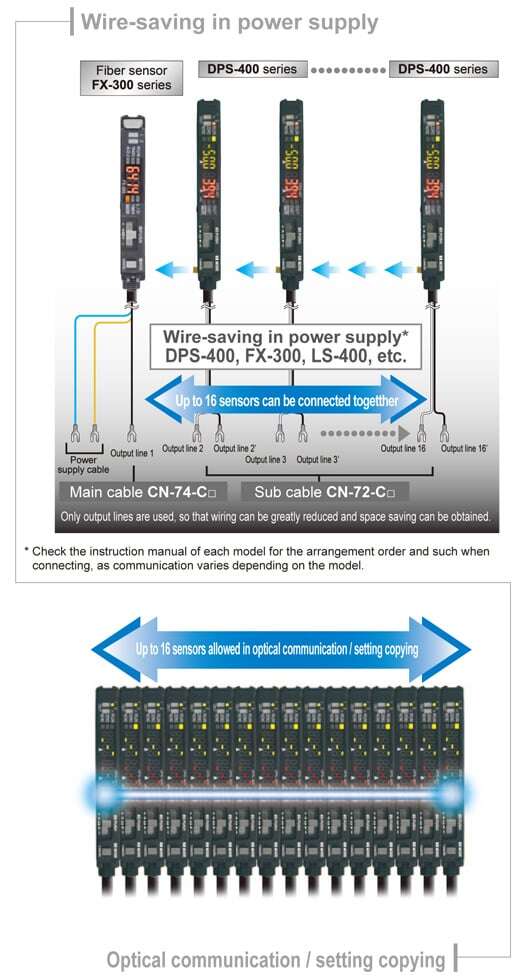

Wire-saving, space-saving

The quick-connection cables enable reductions in wiring. The connections and man-hours for the relay terminal block setup can be reduced and valuable space is saved. Also, DPS-400 series can be connected side-by-side with fiber sensors FX-300 series or laser sensors LS-400 series.

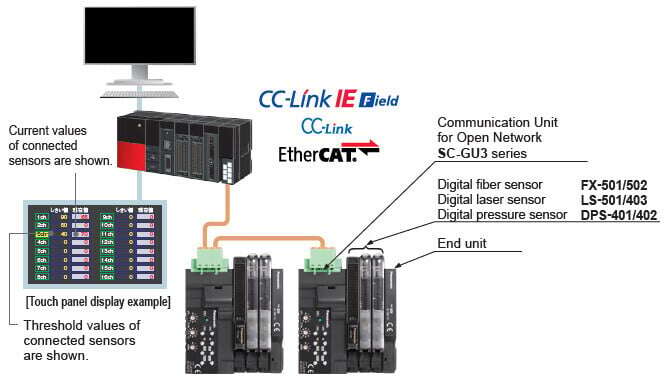

Network communication

Can connect to Open Network CC-Link IE Field / CC-Link / DeviceNet / EtherCAT via Communication Unit for Open Network SC-GU3 series. Monitoring and various settings can be done from PLC, PC, etc.

* CC-Link and CC-Link IE Field are a registered trademark of Mitsubishi Electric Corporation. DeviceNet is a registered trademark of ODVA (Open DeviceNet Vender Association, Inc.). EtherCAT is a registered trademark of Beckhoff Automation GmbH.* Refer to SC-GU3 series.

Ultra high-speed response time at 150 μs

Ultra high-speed response time contributes to even greater productivity.

Independent dual outputs and five output modes equipped

The sensor is equipped with two independent comparative outputs in which separate sensing modes can be selected.

(1) EASY mode
This mode is used for comparative output ON / OFF control.

(2) Hysteresis mode
This mode is used for setting comparative output hysteresis to the desired level and for carrying out ON / OFF control.

(3) Window comparator mode
This mode is used for setting comparative output ON or OFF at pressures within the setting range.

(4) Forced output ON mode
The comparative outputs are forcibly maintained at ON irrespective of the set values.

(5) Forced output OFF mode
The comparative outputs are forcibly maintained at OFF irrespective of the set values.

Hexagonal wrench installation saves man-hours and spaces [Industry first^*]

Using a hexagonal wrench, obstructions can be avoided and installation can be done easily by turning the bolt from above.

Quick maintenance

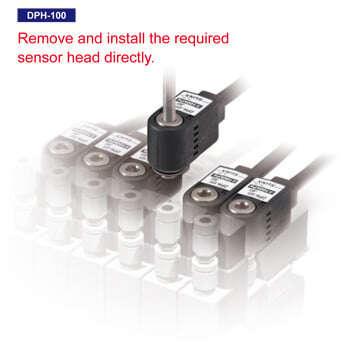

During maintenance, the sensor head needed to be removed can be easily removed from directly above.

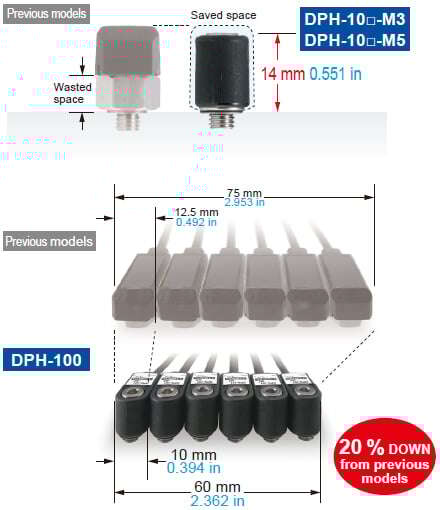

Mounting shape at 14 mm 0.551 in

Because the dead zone caused by the nut is eliminated, the narrowed-down thickness after installation contributes to space saving.

------------------------------ Tab2 showing ------------------------------

Order guide

Controllers

Type	Appearance	Model No.	Applicable sensor head	Output	Connection method
For compound pressure / vacuum pressure		DPS-401	DPH-101□ DPH-103□	NPN open-collector transistor two outputs	Use optional quick-connection cable (4-core)
For positive pressure		DPS-402	DPH-102□	NPN open-collector transistor two outputs	Use optional quick-connection cable (4-core)

Quick-connection cables

Quick-connection cable is not supplied with the controller. Please order it separately.

Type	Model No.	Description
Main cable (4-core)	CN-74-C1	Length: 1 m 3.281 ft	0.2 mm² 4-core cabtyre cable, with connector on one end Cable outer diameter: ø3.3 mm ø0.130 in
	CN-74-C2	Length: 2 m 6.562 ft
	CN-74-C5	Length: 5 m 16.404 ft
Sub cable (2-core)	CN-72-C1	Length: 1 m 3.281 ft	0.2 mm² 2-core cabtyre cable, with connector on one end Cable outer diameter: ø3.3 mm ø0.130 in
	CN-72-C2	Length: 2 m 6.562 ft
	CN-72-C5	Length: 5 m 16.404 ft

(Note):

The material of Quick-connection cable will be changed from production in March 2013, as soon as the previous ones are shipped out.
・Conductor cross-sectional area has been changed from 0.15mm² to 0.2mm².
・Sheath diameter has been changed from ø3.0mm to ø3.3mm.

Recommended e-CON connector

Manufactured by 3M Japan Limited
Adapted connector:37104-3101-000 FL

Please refer to "Introducing the 3M™ mini-clamp connector" for details.

End plates

End plates are not supplied with the controller. Please order them separately when the controllers are mounted in cascade.

Appearance	Model No.	Description
	MS-DIN-E	When cascading multiple controllers, or when it moves depending on the way it is installed on a DIN rail, these end plates clamp controllers into place on both sides. Make sure to use end plates when cascading multiple controllers together.

Sensor heads

Type		Rated pressure range	Model No.	Pressure port	Applicable fluid
Compound pressure		-100.0kPa to +100.0kPa	DPH-101	R1/8 male thread + M5 female thread	Air, non-corrosive gas
			DPH-101-M3	M3 male thread
			DPH-101-M5	M5 male thread
	Bending-resistant cable		DPH-101-R	R1/8 male thread + M5 female thread
			DPH-101-M3-R	M3 male thread
			DPH-101-M5-R	M5 male thread
Positive pressure		0 to +1.000MPa	DPH-102(Note)	R1/8 male thread + M5 female thread
Positive pressure			DPH-102-M5	M5 male thread
	Bending-resistant cable		DPH-102-M5-R	M5 male thread
Vacuum pressure		0 to -101.0kPa	DPH-103	R1/8 male thread + M5 female thread
			DPH-103-M3	M3 male thread
			DPH-103-M5	M5 male thread
	Bending-resistant cable		DPH-103-R	R1/8 male thread + M5 female thread
			DPH-103-M3-R	M3 male thread
			DPH-103-M5-R	M5 male thread

(Note):

The bending-resistant cable type of DPH-102 is not available.

5 m 16.404 ft cable length type

5 m 16.404 ft cable length type (standard: 2 m 6.562 ft) is also available. When ordering this type, suffix "-C5" to the Model No. (e.g.) 5 m 16.404 ft cable length type of DPH-103-M5-R is "DPH-103-M5-R-C5"

種類・価格

コントローラ

種類	形状	型式名	組み合わせセンサヘッド	出力	接続方式	標準価格 <税別>
連成圧・負圧用		DPS-401	DPH-101□ DPH-103□	NPNトランジスタオープンコレクタ2出力	別売ワンタッチケーブル(4芯)を使用	各20,500円
正圧用		DPS-402	DPH-102□	NPNトランジスタオープンコレクタ2出力	別売ワンタッチケーブル(4芯)を使用	各20,500円

ワンタッチケーブル

ワンタッチケーブルは、コントローラ本体には付属されていません。必ず別売のワンタッチケーブルをご購入ください。

種類	型式名	内容		標準価格 <税別>
親ケーブル (4芯)	CN-74-C1	長さ1m	0.2mm² 4芯片側コネクタ付キャブタイヤケーブルケーブル外径：ø3.3mm	1,600円
	CN-74-C2	長さ2m		1,900円
	CN-74-C5	長さ5m		2,400円
子ケーブル (2芯)	CN-72-C1	長さ1m	0.2mm² 2芯片側コネクタ付キャブタイヤケーブルケーブル外径：ø3.3mm	1,300円
	CN-72-C2	長さ2m		1,600円
	CN-72-C5	長さ5m		2,100円

(注): 2013年3月生産分より順次ワンタッチケーブルの材質がUL規格適合品(難燃グレードVW-1)へ変更となります。
・導体公称断面積：0.15mm²→0.2mm²
・シース外径：ø3.0mm→ø3.3mm

外部機器接続用コネクタ（e-CON）の推奨品のご案内

3Mジャパン(株)製
適合コネクタ：37104-3101-000 FL

詳細につきましては、「3M™ ミニ・クランプコネクタのご案内」をご参照ください。

エンドプレート

エンドプレートは、コントローラ本体には付属されていません。連結させる際は、必ず別売のエンドプレートをご購入ください。

形状	型式名	内容	標準価格 <税別>
	MS-DIN-E	コントローラを連結させる際、またはDINレールへの取り付け状態によりコントローラが動く場合に、両端からはさみ込むようにしてコントローラを固定します。連結させる際は、必ずご使用ください。	560円 [2個セット]

センサヘッド

種類		定格圧力範囲	型式名	圧力ポート	適用気体	標準価格 <税別>
連成圧		-100.0kPa～ +100.0kPa	DPH-101	R1/8おねじ+M5めねじ	空気、非腐食性気体	各8,300円
			DPH-101-M3	M3おねじ
			DPH-101-M5	M5おねじ
	耐屈曲ケーブル		DPH-101-R	R1/8おねじ+M5めねじ		各9,000円
			DPH-101-M3-R	M3おねじ
			DPH-101-M5-R	M5おねじ
正圧		0～+1.000MPa	DPH-102(注1)	R1/8おねじ+M5めねじ		各8,300円
正圧			DPH-102-M5	M5おねじ		各8,300円
	耐屈曲ケーブル		DPH-102-M5-R	M5おねじ		9,000円
負圧		0～-101.0kPa	DPH-103	R1/8おねじ+M5めねじ		各8,300円
			DPH-103-M3	M3おねじ
			DPH-103-M5	M5おねじ
	耐屈曲ケーブル		DPH-103-R	R1/8おねじ+M5めねじ		各9,000円
			DPH-103-M3-R	M3おねじ
			DPH-103-M5-R	M5おねじ

(注1): DPH-102には、耐屈曲ケーブルタイプはありません。

ケーブル長5mタイプ

センサヘッドにケーブル長5mタイプ(標準は2m)を用意しています。型式名末尾に"-C5"を付けてご注文ください。
(例)DPH-103-M5-Rのケーブル長5mタイプは"DPH-103-M5-R-C5"
標準価格<税別>：DPH-10□-C5 各9,000円、DPH-10□-R-C5 各9,800円

------------------------------ Tab3 showing ------------------------------

Option

Designation	Model No.	Description
Controller mounting bracket	MS-DIN-2	Mounting bracket for controller
Controller protection seal	FX-MB1	10 sets of 2 communication window seals and 1 connector seal Communication window seal: It prevents malfunction due to transmission signal from another controller, as well as, prevents effect on another controller. Connector seal: It prevents contact of any metal, etc., with the pins of the quick-connection cable.

Controller mounting bracket

MS-DIN-2

Controller protection seal

FX-MB1

------------------------------ Tab4 showing ------------------------------

Specifications

Controllers

Type		For compound pressure / vacuum pressure	For positive pressure
Model No.		DPS-401	DPS-402
CE marking directive compliance		EMC Directive, RoHS Directive
Applicable sensor head		Compound pressure : DPH-101□ Vacuum pressure : DPH-103□	Positive pressure : DPH-102□
Rated pressure range		Compound pressure: -100.0 to +100.0kPa Vacuum pressure: 0 to -101kPa	Positive pressure: 0 to +1.000MPa
Display / set pressure range		Compound pressure: –199.9 to +199.9 kPa Vacuum pressure: +101.3 to –101.3 kPa	Positive pressure: –1.050 to +1.050 MPa
Supply voltage		12 to 24 V DC ±10 % Ripple P-P 10 % or less
Power consumption (Note 2)		Normal operation: 650 mW or less (Current consumption 25 mA or less at 24 V supply voltage) ECO mode: 500 mW or less (Current consumption 20 mA or less at 24 V supply voltage)
Sensor head supply voltage		Same as supply voltage
Sensor head input		Input voltage range: 1 to 5 V DC (over rated pressure range)
Comparative outputs (Comparative output 1, 2)		NPN open-collector transistor ・Maximum sink current: 50 mA (Note 3) ・Applied voltage: 30 V DC or less (between comparative output and 0 V) ・Residual voltage: 1.5 V or less (Note 4) [at 50 mA (Note 3) sink current]
	Output operation	NO / NC, selectable by jog switch
	Hysteresis	Minimum 0 digit, variable by hysteresis setting
	Repeatability	With compound pressure type connected: within ±0.2 % F.S. (±4 digits), With vacuum / positive pressure type connected: within ±0.2 % F.S. (±2 digits)
	Response time	150 μs, 500 μs, 1 ms, 5 ms, 10 ms, 50 ms, 100 ms, 500 ms, selectable by jog switch
Ambient temperature		–10 to +50℃ +14 to +122℉ (cascading 8 to 16 controllers: –10 to +45℃ +14 to +133℉) (No dew condensation or icing allowed), Storage: –20 to +70℃ –4 to +158℉
Ambient humidity		35 to 85 % RH, Storage: 35 to 85 % RH
Temperature characteristics		Over ambient temperature range –10 to +50℃ +14 to +122℉: within ±0.5 % F.S. of pressure at +25℃ +77℉
Material		Enclosure: Heat-resistant ABS, Protective cover: Polycarbonate, Jog switch: ABS, MODE key: Acrylic
Weight		Net weight:20 g approx.

Note 1:Where measurement conditions have not been specified precisely, the conditions used were an ambient temperature of +20℃ +68℉.

Note 2:Excluding current consumption of the applicable pressure sensor head.

Note 3:25 mA max. if 5 or more controllers are connected together.

Note 4:In case of using the quick-connection cable (cable length: 5 m 16.404 ft)(optional)

Note 5:The cable for controller connection is not supplied as an accessory. Make sure to use the quick-connection cables (optional) given below.
Main cable (4-core): CN-74-C1 (cable length: 1m 3.281 ft), CN-74-C2 (cable length: 2 m 6.562 ft), CN-74-C5 (cable length: 5 m 16.404 ft)
Sub cable (2-core): CN-72-C1 (cable length: 1m 3.281 ft), CN-72-C2 (cable length: 2 m 6.562 ft), CN-72-C5 (cable length: 5 m 16.404 ft)

Note 6:The values specified above are applied only to the controller.

Sensor heads

Type		Compound pressure			Positive pressure		Vacuum pressure
Type		±100 kPa type			1 MPa type		–101 kPa type
Model No. (Note 3)		DPH-101(-R)	DPH-101-M3(-R)	DPH-101-M5(-R)	DPH-102	DPH-102-M5(-R)	DPH-103(-R)	DPH-103-M3(-R)	DPH-103-M5(-R)
CE marking directive compliance		EMC Directive, RoHS Directive
Type of pressure		Gauge pressure
Rated pressure range		–100.0 to +100.0 kPa			0 to +1.000 MPa		0 to –101.0 kPa
Pressure withstandability		500kPa			1.5MPa		500kPa
Applicable fluid		Air, non-corrosive gas
Supply voltage		12 to 24 V DC ±10 % Ripple P-P 10 % or less
Current consumption		15 mA or less
Ambient temperature		0 to +50℃ +32 to +122℉ (No dew condensation allowed), Storage: –10 to +60℃ +14 to +140℉
Ambient humidity		35 to 85 % RH, Storage: 35 to 85 % RH
Temperature characteristics		Over ambient temperature range 0 to +50℃ +32 to +122℉: within ±2 % F.S. of detected pressure at +25℃ +77℉
Material		Front case: PBT, Rear case: PBT (glass fiber reinforced), Pressure port: Stainless steel (SUS303), O-ring: NBR Pressure element: Silicon diaphragm, PPS
Cable		0.2 mm² 4-core oil resistant cabtyre cable (Models with "-R" affixed to the Model No. have bending-resistant, oil-resistant cabtyre cable)
Cable extension		Extension up to total 10 m 32.808 ft is possible with 0.2 mm², or more, cable.
Weight	Net weight	DPH-10□(-R): Head 10 g approx. / Cable 40 g approx., DPH-10□-M3/M5(-R): Head 6 g approx. / Cable 40 g approx.
Weight	Gross weight	DPH-10□(-R): 80 g approx., DPH-10□-M3/M5(-R): 70 g approx.
Accessory		Connector (e-CON): 1 pc. (Note 4)

Note 1:Where measurement conditions have not been specified precisely, the conditions used were an ambient temperature of +25℃ +77℉.

Note 2:The sensor head can be used independently.

Note 3:Model No. having the suffix "-R" is bending-resistant cable type. The bending-resistant cable type of DPH-102 is not available.

Note 4:Connectors (e-CON) are available as spare parts. CN-EP2: 5 pcs.

------------------------------ Tab5 showing ------------------------------

Dimensions

Unit: mm in

DPS-401 DPS-402

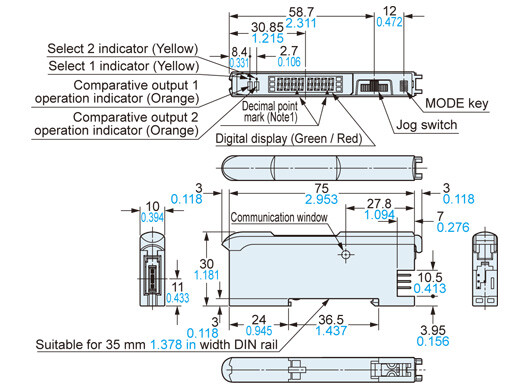

Controller

Note:Decimal points for pressure value. Above figure shows the DPS-401 (compound pressure / vacuum pressure). Positions of display and the pressure unit on the name plate for DPS-402 (positive pressure) differ from the above figure.

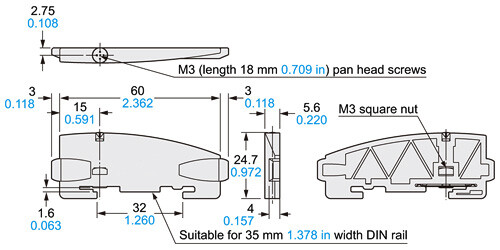

MS-DIN-E

End plate (Optional)

Material: Polycarbonate

CN-74-C1 CN-74-C2 CN-74-C5

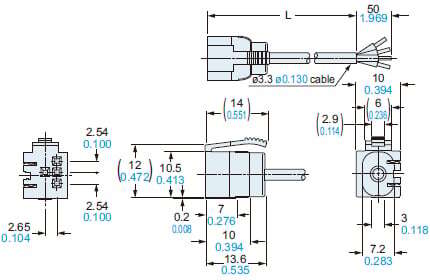

Main cable (Optional)

•Length L

Model No.	Length L
CN-74-C1	1,000 39.370
CN-74-C2	2,000 78.740
CN-74-C5	5,000 196.850

CN-72-C1 CN-72-C2 CN-72-C5

Sub cable (Optional)

•Length L

Model No.	Length L
CN-72-C1	1,000 39.370
CN-72-C2	2,000 78.740
CN-72-C5	5,000 196.850

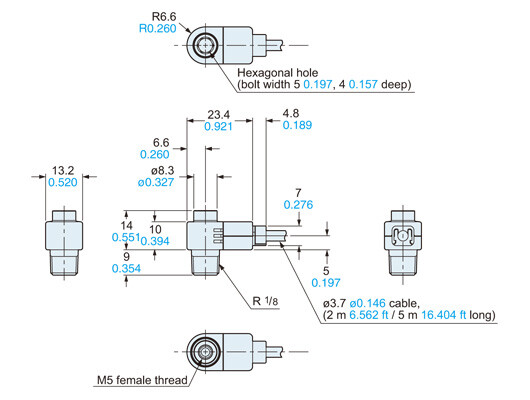

DPH-10□(-R)

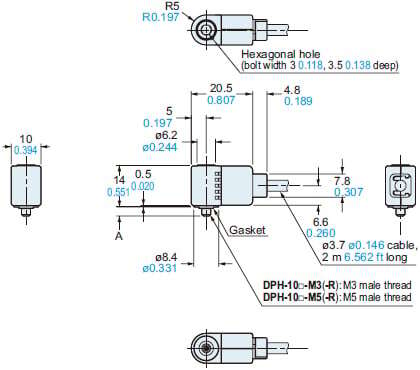

Sensor head

DPH-10□-M3(-R) DPH-10□-M5(-R)

Sensor head

Model No.	A
DPH-10□-M3(-R)	3 0.118
DPH-10□-M5(-R)	3.5 0.138

MS-DIN-2

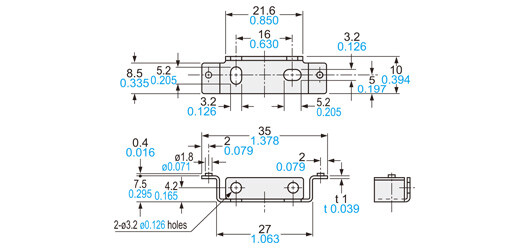

Controller mounting bracket (Optional)

Material: Cold rolled carbon steel (SPCC) (Uni-chrome plated)

------------------------------ Tab6 showing ------------------------------

I/O Circuit and Wiring diagrams

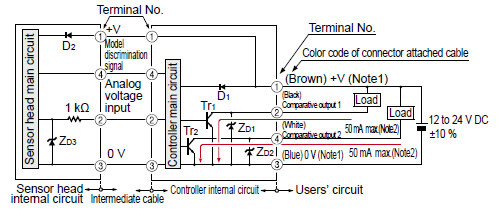

I/O circuit diagram

Notes:

1)The quick-connection sub cable does not have +V (brown) and 0 V (blue). The power is supplied from the connector of the main cable.

2)25 mA max. if 5 or more controllers are connected together.

3)Do not use the controllers in a series (AND) connection.

Symbols･･･

D₁, D₂: Reverse supply polarity protection diode
Z_D1 to Z_D3: Surge absorption zener diode
T_r1, T_r2: NPN output transister

Quick-connection cable side terminal arrangement diagram

Sensor head side terminal arrangement diagram

------------------------------ Tab7 showing ------------------------------

Cautions For Use

Never use this product as a sensing device for personnel protection.
In case of using sensing devices for personnel protection, use products which meet laws and standards, such as OSHA, ANSI or IEC etc., for personnel protection applicable in each region or country.
The DPH-100 series is designed for use with air and non-corrosive gas. It cannot be used with liquid or corrosive and inflammable gases.

Wiring

Make sure to use the optional quick-connection cable for the connection of the controller. Extension up to total 50 m 164.042 ft (cascading 9 to 16 controllers: 20 m 65.617 ft) is possible with 0.3 mm2, or more, cable. However, in order to reduce noise, make the wiring as short as possible.

Others

Use within the rated pressure range.
Do not use during the initial transient time (controller: 1 sec. approx., sensor head: 50 ms approx.) after the power supply is switched on.
Do not apply pressure exceeding the pressure withstandability value. The diaphragm will get damaged and correct operation shall not be maintained.
Do not insert wires, etc., into the pressure port.
The diaphragm will get damaged and correct operation shall not be maintained.

Head-separated Dual Display Digital Pressure Sensor [For Gas] DPS-400 / DPH-100

Basic Information

Features

Works like a fiber sensor

Current value and threshold value can be checked simultaneously on the dual display

Wire-saving, space-saving

Network communication

Ultra high-speed response time at 150 μs

Independent dual outputs and five output modes equipped

Hexagonal wrench installation saves man-hours and spaces [Industry first*]

Quick maintenance

Mounting shape at 14 mm 0.551 in

Order guide

Controllers

Quick-connection cables

Recommended e-CON connector

End plates

Sensor heads

5 m 16.404 ft cable length type

種類・価格

コントローラ

ワンタッチケーブル

外部機器接続用コネクタ（e-CON）の推奨品のご案内

エンドプレート

センサヘッド

ケーブル長5mタイプ

Option

Controller mounting bracket

Controller protection seal

Specifications

Controllers

Sensor heads

Dimensions

DPS-401 DPS-402

MS-DIN-E

CN-74-C1 CN-74-C2 CN-74-C5

CN-72-C1 CN-72-C2 CN-72-C5

DPH-10□(-R)

DPH-10□-M3(-R) DPH-10□-M5(-R)

MS-DIN-2

I/O Circuit and Wiring diagrams

I/O circuit diagram

Quick-connection cable side terminal arrangement diagram

Sensor head side terminal arrangement diagram

Cautions For Use

Cautions For Use

Wiring

Others

Recently checked products

Recently checked product numbers

Contact Us

Components & DevicesTechnical Support

FA Sensors & ComponentsTechnical Support

Motors for FA & Industrial ApplicationTechnical Support

Motors for Facility/Home appliance & AutomotiveTechnical Support

Guidelines for Ordering and Usage

Hexagonal wrench installation saves man-hours and spaces [Industry first^*]

Components & Devices
Technical Support

FA Sensors & Components
Technical Support

Motors for FA & Industrial Application
Technical Support

Motors for Facility/Home appliance & Automotive
Technical Support
