| Type of pressure | Gauge pressure |
|---|
| Rated pressure range | 0 to -101.3 kPa | 0 to 1.000 MPa | -100.0 to 100.0 kPa |
|---|
| Set pressure range | 5.1 to -101.3 kPa
(0.052 to -1.033 kgf/cm2, 0.051 to -1.013 bar
0.74 to -14.70 psi, 38 to -760 mmHg
1.5 to -29.9 inHg) | -0.050 to 1.050 MPa
(-0.51 to 10.71 kgf/cm2
-0.50 to 10.50 bar
-7.2 to 152.2 psi) | -101.3 to 105.0 kPa
(-1.033 to 1.071 kgf/cm2
-1.013 to 1.050 bar
-14.68 to 15.22 psi) |
|---|
| Pressure withstandability | 490 kPa | 1.470 MPa | 490 kPa |
|---|
| Applicable fluid | Non-corrosive gas |
|---|
| Hysteresis | 1 digit (however, variable in hysteresis mode) |
|---|
| Repeatability | Within ±0.2 % F.S. ± 1 digit (within ±3 digits) | Within ±0.2 % F.S. ± 2 digits
(within ±6 digits) |
|---|
| Supply voltage | 12 to 24 V DC +10/-15 % Ripple P-P 10 % or less |
|---|
| Current consumption | 40 mA or less |
|---|
| Output | <NPN output type>
NPN open-collector transistor
・Maximum sink current: 100 mA
・Applied voltage: 30 V DC or less (between output and 0 V)
・Residual voltage: 1 V or less (at 100 mA sink current)
0.4 V or less (at 16 mA sink current)
<PNP output type>
PNP open-collector transistor
・Maximum source current: 100 mA
・Applied voltage: Same as supply voltage (between output and +V)
・Residual voltage: 2 V or less (at 100 mA source current) |
|---|
| | Utilization category | DC-12 or DC-13 |
|---|
| Output operation | NO / NC (selectable by key operation) |
|---|
| Output modes | Equipped with 4 types of modes: Hysteresis mode, window comparator mode, automatic sensitivity setting mode,
forced output mode (selectable by key operation) |
|---|
| Short-circuit protection | Incorporated |
|---|
| Response time | 2 ms, 16 ms, 128 ms, 512 ms or less (selectable by key operation) |
|---|

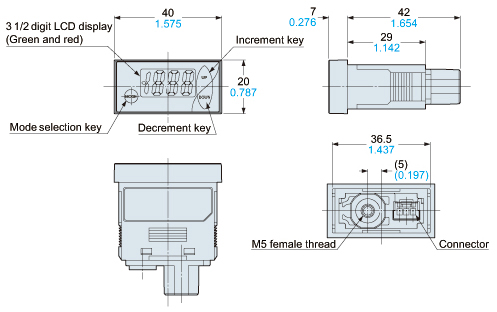

| Display | 3 1/2 digit LCD display (with red and green backlight)
(Sampling rate: 256 ms, 512 ms, 1,024 ms selectable by key operation) |
|---|
| | Displayable pressure
range | 5.1 to -101.3 kPa
(0.052 to -1.033 kgf/cm2, 0.051 to -1.013 bar
0.74 to -14.70 psi, 38 to -760 mmHg
1.5 to -29.9 inHg) | -0.050 to 1.050 MPa
(-0.51 to 10.71 kgf/cm2
-0.50 to 10.50 bar
-7.2 to 152.2 psi) | -101.3 to 105.0 kPa
(-1.033 to 1.071 kgf/cm2
-1.013 to 1.050 bar
-14.68 to 15.22 psi) |
|---|
| Analog bar display | Bar display in steps of 14 % F.S. approx. |
|---|
| Operation display | LCD segment is red when the output is ON, and green when the output is OFF |
|---|
| Pollution degree | 3 (Industrial environment) |
|---|
| Protection | IP40 (IEC) (Refer to p.1001 for datails of standards.) |
|---|
| Ambient temperature | 0 to +50 ℃ +32 to +122 ℉ (No dew condensation),
Storage: -10 to +60 ℃ +14 to +140 ℉ |
|---|
| Ambient humidity | 35 to 85 % RH, Storage: 35 to 85 % RH |
|---|
| EMC | EN 61000-6-2, EN 61000-6-4 |
|---|
| Voltage withstandability | 1,000 V AC for one min.
between all supply terminals connected together and enclosure |
|---|
| Insulation resistance | 50 MΩ, or more,
with 500 V DC megger between all supply terminals connected together and enclosure |
|---|
| Vibration resistance | 10 to 150 Hz frequency, 0.75 mm 0.030 in amplitude,
in X, Y and Z directions for two hours each |
|---|
| Shock resistance | 100 m/s2 acceleration (10 G approx.) in X, Y and Z directions for three times each |
|---|
| Temperature characteristics | Over ambient temperature range +10 to +40 ℃ +50 to +104 ℉
: within ±2 % F.S. of detected pressure at +25 ℃ +77 ℉
Over ambient temperature range 0 to +50 ℃ +32 to +122 ℉
: within ±5 % F.S. of detected pressure at +25 ℃ +77 ℉ |
|---|
| Pressure port | M5 female thread |
|---|
| Material | Front case: ABS, LCD display: PET, Rear case: PBT [M5 threaded part: Brass (nickel plated)] |
|---|

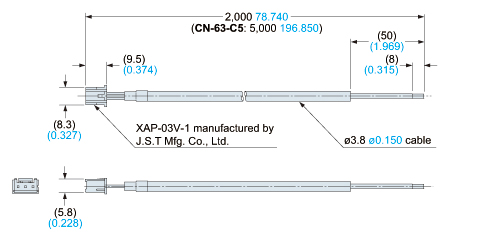

| Connecting method | Connector |
|---|
| Suitable cable | Conductor cross-section area | 0.16 to 0.32 mm2 (AWG#25 to #22) (Note 2) |
|---|
| Lead wire diameter | ø1.2 to ø1.8 mm ø0.047 to ø0.071 in |
|---|
| Wire material | Tin plated, soft, twisted copper wire |
|---|
| Cable length | Total length up to 100 m 328.084 ft (less than 10 m 32.808 ft when conforming to CE marking) is possible with 0.3 mm2, or more, cable. |
|---|
| Weight | Net weight: 30 g approx. |
|---|

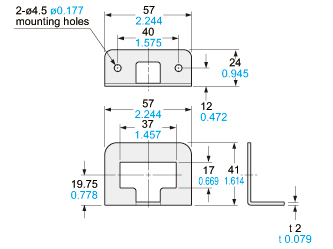

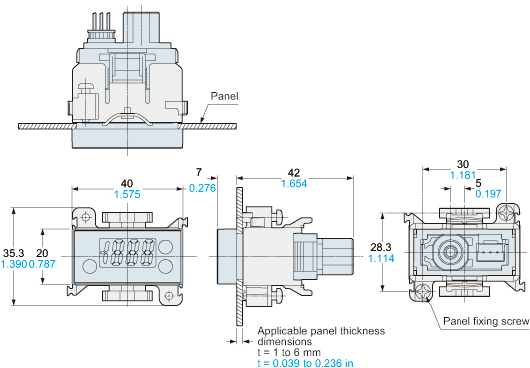

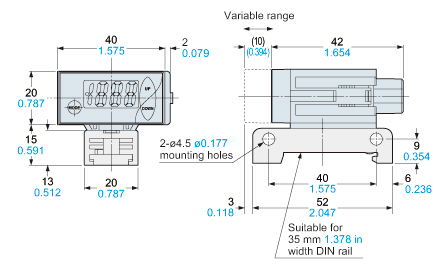

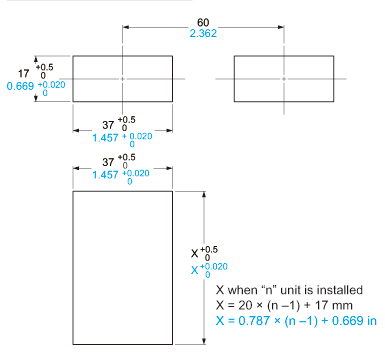

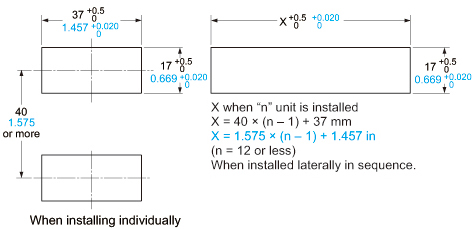

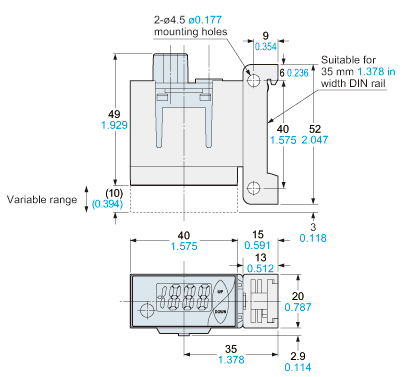

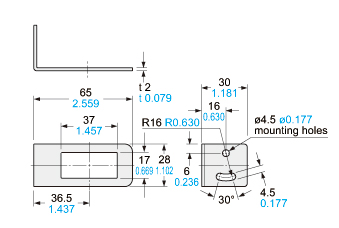

| Accessories | Panel mounting bracket (MS-DP-1): 1 set, Pressure unit label: 1 pc.

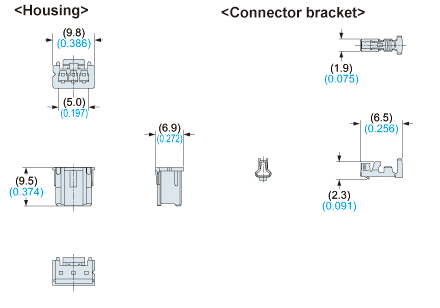

Connector: 1 set (Housing: 1 pc., Connector pin: 3 pcs.) |
|---|
