LP-S500W｜FAYb Laser Marker LP-S500W(Discontinued)

Download

Discontinued

Last time buy (JST)

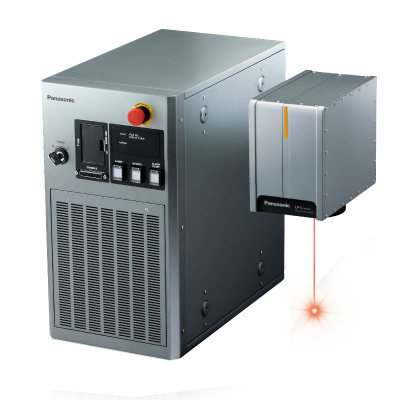

*Photo may vary from actual product.

This product has been confirmed that it does not contain the 6 substances specified in EU RoHS Directive 2011/65/EU and the 4 substances specified in 2015/863/EU.

    Product Number

    LP-S500W

    Part Number

    LP-S500W

    Product

    FAYb Laser Marker

    Product Name

    		 FAYb Laser Marker LP-S500W(Discontinued)
    Substitute
    Sub Prod No.
    Sub Part No.
    Remark

    Spec Detail

    ItemSpecifications
    Part NumberLP-S500W
    Product NumberLP-S500W
    Products NameFAYb Laser Marker
    The price of the productPlease contact our office
    CE marking directive complianceLow Voltage Directive, EMC Directive, RoHS Directive
    Work distance reference position193 mm 7.598 in
    (Note) Work distance reference position represents the calculated center position of the work distance range. Depending on objects to be marked, optimal distance may vary.
    Work distance range173 to 213 mm 6.811 to 8.385 in
    (Note) Work distance range represents the configurable work distance. Depending on objects to be marked, optimal distance or markable range may vary.
    Marking laserClass 4 Yb fiber laser; wavelength: 1,070 nm 0.042 mil
    Marking laser : Average output42 W (plus or minus 5 %) CW oscillation
    (Note) This output is measured at the work end. (The preset power is 100, at the shipment time.)
    Guide laser / pointerClass 2 semiconductor laser; wavelength: 655 nm 0.026 mil
    Marking field90 × 90 mm 3.543 × 3.543 in
    Scanning methodGalvano scanning method
    Character settings (character height, width)0.1 to 90 mm 0.004 to 3.543 in
    (configurable in 0.001 mm 0.0004 in steps)
    Marking spacing (character spacing, line pitch)0 to 90 mm 0 to 3.543 in
    (configurable in 0.001 mm 0.0004 in steps)
    Arced output: -180° to +180° (configurable in 0.01° steps)
    Marking shapeStraight Line, Propotional, Justify, Arc
    Character typesEnglish uppercase letters, English lowercase letters, numerals, katakana, hiragana, kanji (JIS No. 1 and No. 2 standards), symbols, user-registered characters (up to 50)
    Bar codeCode 39, Code 128, ITF, NW-7, JAN (EAN) / UPC, RSS-14 (GS1 DataBar), RSS (GS1 DataBar) Limited, RSS (GS1 DataBar) Expanded
    2D codeQR Code, Micro QR Code, Data Matrix, GS1 Data Matrix
    Composite codesRSS-14 (GS1 DataBar) CC-A, RSS (GS1 DataBar) Stacked CC-A, RSS (GS1 DataBar) Limited CC-A, UCC / EAN COMPOSITE etc.
    Input / output portInput terminal, Output terminal, I / O connector
    InterfaceRS-232C, Ethernet
    Cooling methodHead: Naturally air cooling
    Controller: Forced air cooling
    Power supply90-132 V AC, or 180-264 V AC (Auto-switching), 50/60 Hz
    Power consumption470 VA or less (100 V AC)
    650 VA or less (200 V AC)
    Protection degreeHead: IP67G (Excluding the controller)
    Ambient temperature0 to +40 ℃ +32 to +104 ℉ (Controller, Head) (No dew condensation or icing allowed)
    Storage ambient temperature-10 to +60 ℃ +14 to +140 ℉ (Controller, Head) (No dew condensation or icing allowed)
    Ambient humidity35 % to 85 % RH (Controller, Head)(No dew condensation or icing allowed)
    Applicable standardsFDA regulations, CE marking
    (Note) China models are available, too. Please contact our sales office.
    Net weight : Head6.5 kg approx.
    Net weight : Controller24 kg approx.
    Laser Marker Utility OSMicrosoft Windows ® 10 Professional (32-bit / 64-bit) / 8 Professional (32-bit / 64-bit) / 7 Professional (32-bit / 64-bit) / SP1 Vista Business (32-bit) SP2 / XP Professional (32-bit) SP3
    (Note) Windows ® 10 Professional, 8 Professional, 7 Professional, Vista Business, and XP Professional are trademarks or registered trademarks of Microsoft Corporation in the United State and other countries.
