Applicable standards
(Note 1) | CE marking directives(EMC Directive, Low Voltage Directive, RoHS Directive), FDA regulations, KC Mark |
|---|

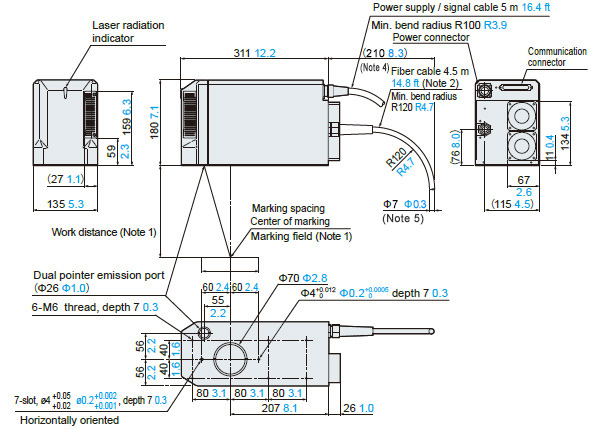

Work distance
(variable length) | 190 mm (±25 mm)
7.5 in (±0.98 in) | 330 mm (±25 mm)
13.0 in (±0.98 in) |
|---|
| Marking laser | Yb : Fiber laser λ=1060 nm 0.042 mil Class 4 laser product |
|---|
| | Pulse width | 30 ns, 100 ns, 200 ns | 50 ns, 100 ns, 200 ns |
|---|
Average output
(Note 2) | 13 W
(pulse oscillation) | 25 W
(pulse oscillation) |
|---|
| Guide laser/pointer | Semiconductor laser λ=655 nm 0.026 mil Class 2 laser product |
|---|
| Marking field | 120 x 120 mm
4.7 x 4.7 in | 330 x 330 mm
13.0 x 13.0 in |
|---|
| Scanning method | Galvano scanning method |
|---|
| Scan speed | Max. 12,000 mm/s 472 in/s | Max. 8,000 mm/s 315 in/s |
|---|
| Character height / width | 0.1 to 120 mm 0.004 to 4.7 in (Note 3) | 0.1 to 330 mm 0.004 to 13.0 in (Note 3) |
|---|
Marking spacing
(character spacing, line pitch) | 0 to 120 mm 0 to 4.7 in (Note 3)
Arced output: –180° to +180° (Note 4) | 0.1 to 330 mm 0.004 to 13.0 in (Note 3)
Arced output: –180° to +180° (Note 4) |
|---|
| Marking shape | Straight Line, Arc, Propotional, Justify |
|---|
| Logo data | VEC (Note 5), BMP, DXF, HPGL, JPEG, AI, EPS |
|---|
| Character types | English uppercase letters, English lowercase letters, numerals, katakana, hiragana, kanji (JIS No. 1 and No. 2 standards), symbols, user-registered characters (up to 50) |
|---|
| Barcodes | Code 39, Code 128, ITF, NW-7, JAN (EAN) / UPC, RSS-14 (GS1 DataBar), RSS (GS1 DataBar) Limited, RSS (GS1 DataBar) Expanded |
|---|
| 2D codes | QR Code, Micro QR Code, Data Matrix, GS1 Data Matrix |
|---|
| Composite codes | RSS-14 (GS1 DataBar) CC-A, RSS-14 (GS1 DataBar) Stacked CC-A, RSS (GS1 DataBar) Limited CC-A, etc. |
|---|
| Input / Output | Input Terminal, Output Terminal, I/O Connector |
|---|
| Interface | RS-232C, Ethernet(Note 6) |
|---|
| Cooling method | Forced air cooling (Controller / Head) |
|---|
| Power supply | 90 to 132 V AC, 180 to 264 V AC (automatic switching),
50/60 Hz |
|---|
| Power consumption | 390 VA or less (100 V AC); 420 V or less (200 V AC) |
|---|
| Emergency stop switch | Located on controller |
|---|
| Ambient temperature (Note 7) | 0 to +40 ℃
32 to 104 ℉ (Controller / Head) | 0 to +35 ℃
32 to 95 ℉ (Controller / Head) |

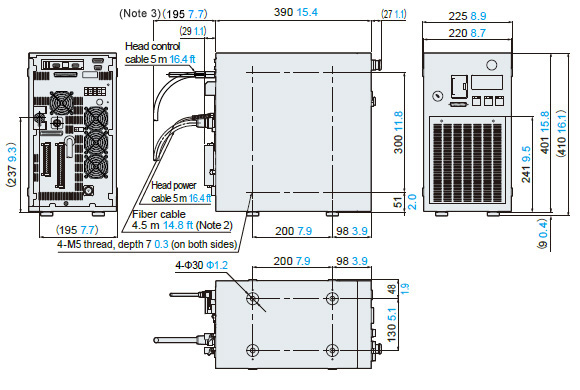

|---|
| Ambient temperature for storage (Note 7) | -10 to +60 ℃ 14 to 140 ℉ (Controller / Head) |
|---|
| Ambient humidity (Note 7) | 35 % to 85 % RH (controller / Head) |
|---|
| Net weight | Head : 9.5 kg / Controller : 24 kg |
|---|
