| Work distance (Note 1) | 127 mm 5.0 in |
|---|
| Marking laser | Class 4 Yb fiber laser; wavelength: 1.06 μm 0.042 mil |
|---|
| | Average output
(Note 2) | 5 W (CW oscillation) |
|---|
| Guide laser/pointer | Class 2 semiconductor laser; wavelength: 655 nm 0.026 mil |
|---|
| Marking field | 55 x 55 mm 2.2 x 2.2 in |
|---|
| Scan speed | Max. 6,000 mm/s |
|---|
| Line speed (Note 3) | 120 m/min or less |
|---|
| Installation orientation | All |
|---|
Character settings
(character height, width) | 0.2 to 55 mm 0.008 to 2.2 in
(variable in 0.001 mm 0.00004 in steps) |
|---|
Marking spacing
(character spacing, line pitch) | 0 to 55 mm 0 to 2.2 in (variable in 0.001 mm 0.00004 in steps)
Arced output: -180° to +180° (variable in 0.01° steps) |
|---|
| Making shape | Straight Line, Arc, Proportional, Justify |
|---|
| Character types | English uppercase letters, English lowercase letters, numerals, katakana, hiragana, kanji (JIS No. 1 and No. 2 standards), symbols, user-registered characters (up to 50) |
|---|
| Barcodes | Code 39, Code 128, ITF, NW-7, JAN (EAN) / UPC, RSS-14 (GS1 DataBar), RSS (GS1 DataBar) Limited, RSS (GS1 DataBar) Expanded |
|---|
| 2D codes | QR Code, Micro QR Code, Data Matrix, GS1 Data Matrix |
|---|
| Composite codes | RSS-14 (GS1 DataBar) CC-A, RSS-14 (GS1 DataBar) Stacked CC-A, RSS (GS1 DataBar) Limited CC-A, etc. |
|---|
| Logos / Shapes | VEC (Note 4), BMP, DXF, HPGL, JPEG, AI (Note 5), EPS (Note 5) |
|---|
| Interface (Note 6) | RS-232C, Ethernet |
|---|
| Cooling method | Forced air cooling |
|---|
| Power supply | 90 to 132 V AC or 180 to 264 V AC (automatic switching),
50/60 Hz |
|---|
| Power consumption | 310 VA or less (100 V AC); 360 VA or less (200 V AC) |
|---|
| Inputs | Remote, trigger, encoder (A), encoder (B), shutter control, laser excitation, alarm reset, emergency stop, laser stop, etc. |
|---|
| Outputs | Power supply (+12 V), remote, marking ready, marking, marking complete, laser excitation, warning, alarm, configuration complete, counter complete |
|---|
| Marking state | Still, moving |
|---|
| Functions | ・Marking order optimization
・Intersection correction
・Counter marking
・Current date marking
・Deadline date marking
・Lot marking
・Logo data marking
・Font creation and editing
・Monospaced alignment
・Updating of operating screen display
・System offset
・Shared character settings
・Guide laser
・Dual pointers
・Overlapping marking
・Backup
・Marking on long moving objects
・Font selection
・Focus adjustment
・Proportional marking
・Marking image display
・Marking time measurement
・Target object image display
・Bold marking
・Rank marking
・Offset marking
・Time hold
・Step and repeat
・Operator adjustment
・I/O simulation
・Error log display
・Serial data marking
・Power check and correction
・I/O confirmation monitor
・Power and speed configuration by row or logo file |
|---|
| Emergency stop switch | Located on controller |
|---|
| Ambient temperature | 0 to +40℃ +32 to +104℉
(Storage: -10 to +60 ℃ +14 to 140 ℉)
(non-condensing and non-freezing) |

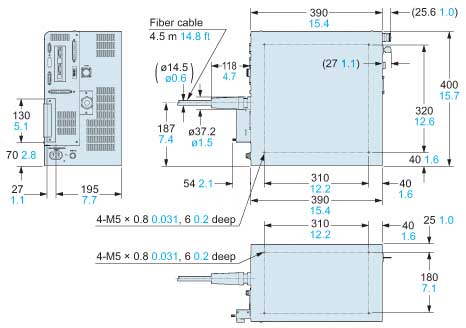

|---|
| Ambient humidity | 35 % to 85 % RH (non-condensing and non-freezing) |
|---|
| Net weight | Head | 9 kg |
|---|
| Controller | 22 kg |
|---|
