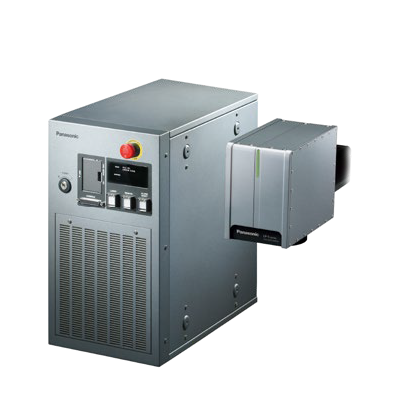

FAYb Laser Marker LP-S (Discontinued Products)
Download
-
Discontinued Products
-
Specifications
-
Dimensions
Ⅾiscontinued
Last time buy (JST)
September 29, 2023
We are sorry, the products have been discontinued. Please refer to the details of the discontinued products and the recommended substitutes list below.
------------------------------ Tab1 showing ------------------------------
Discontinued Products

------------------------------ Tab2 showing ------------------------------
Specifications
LP-S500
Item | Standard | Small spot | Wide-area | |
---|---|---|---|---|
LP-S500 | LP-S502 | LP-S505 | ||
CE marking directive compliance | Low Voltage Directive, EMC Directive, RoHS Directive | |||
Work distance(Note 1) | 190 mm 7.480 in | 130 mm 5.118 in | 350 mm 13.780 in | |
Marking laser | Class 4 Yb fiber laser; wavelength: 1,064 nm 0.042 mil | |||
Average output(Note 2) | 42 W (±5 %) (pulse oscillation) | |||
Guide laser / pointer | Class 2 semiconductor laser; wavelength: 655 nm 0.026 mil | |||
Marking range | 90 mm × 90 mm 3.543 in × 3.543 in | 55 mm × 55 mm 2.165 in × 2.165 in | 160 mm × 160 mm 6.299 in × 6.299 in | |
Scanning method | Galvano scanning method | |||
Character settings (character height, width) (Note 3) | 0.1 to 90 mm 0.004 to 3.543 in | 0.1 to 55 mm 0.004 to 2.165 in | 0.1 to 160 mm 0.004 to 6.299 in | |
Marking spacing (character spacing, line pitch) (Note 3) | 0 to 90 mm 0 to 3.543 in | 0 to 55 mm 0 to 2.165 in | 0 to 160 mm 0 to 6.299 in | |
Arced output: -180°to +180°(variable in 0.01°steps) | ||||
Marking shape | Straight Line, Propotional, Justify, Arc | |||
Character types | English uppercase letters, English lowercase letters, numerals, katakana, hiragana, kanji (JIS No. 1 and No. 2 standards), symbols, user-registered characters (up to 50) | |||
Barcodes | Code 39, Code 128, ITF, NW-7, JAN/UPC, RSS-14 (GS1 DataBar), RSS (GS1 DataBar) Limited, RSS (GS1 DataBar) Expanded | |||
2D codes | QR Code, Micro QR Code, Data Matrix, GS1 Data Matrix | |||
Composite codes | RSS-14 (GS1 DataBar) CC-A, RSS-14 (GS1 DataBar) Stacked CC-A, RSS (GS1 DataBar) Limited CC-A, UCC / EAN COMPOSITE etc. | |||
I/O | Input terminal, Output terminal, I/O connector | |||
Interface | RS-232C, Ethernet | |||
Cooling method | Head: Naturally air cooling, Controller: Forced air cooling | |||
Power supply | 90-132 V AC, or 180-264 V AC (automatic switching), 50/60 Hz | |||
Power consumption | 530 VA or less (100 V AC), 650 VA or less (200 V AC) | |||
Protection degree | Head: IP67G | |||
Ambient temperature | 0 to +40℃ +32 to +104 ℉ (No dew condensation or icing allowed) | |||
Storage ambient temperature | -10 to +60℃ +14 to +140 ℉ (No dew condensation or icing allowed) | |||
Ambient humidity | 35 % to 85 % RH (No dew condensation or icing allowed) | |||
Applicable standards | FDA regulations, CE marking (Note 4) | |||
Net weight | Head | 7.5 kg approx. | 7.5 kg approx. | 8 kg approx. |
Controller | 25 kg approx. |
Notes:
1) Work distance varies by approx. ±0.5 mm ±0.020 in from model to model. (LP-S505 and LP-S205: approx. ±2 mm ±0.079 in)
2) This output is measured at the work end. (The preset power is 100, at the shipment time.)
3) Variable in 0.001 mm 0.0004 in steps.
4) China models are available,too. Please contact our sales office.
LP-S200
Item | Standard | Small spot | Wide-area | |
---|---|---|---|---|
LP-S200 | LP-S202 | LP-S205 | ||
CE marking directive compliance | Low Voltage Directive, EMC Directive, RoHS Directive | |||
Work distance(Note 1) | 190 mm 7.480 in | 130 mm 5.118 in | 350 mm 13.780 in | |
Marking laser | Class 4 Yb fiber laser; wavelength: 1,064 nm 0.042 mil | |||
Average output(Note 2) | 17 W (±5 %) (pulse oscillation) | |||
Guide laser / pointer | Class 2 semiconductor laser; wavelength: 655 nm 0.026 mil | |||
Marking range | 90 mm × 90 mm 3.543 in × 3.543 in | 55 mm × 55 mm 2.165 in × 2.165 in | 160 mm × 160 mm 6.299 in × 6.299 in | |
Scanning method | Galvano scanning method | |||
Character settings (character height, width) (Note 3) | 0.1 to 90 mm 0.004 to 3.543 in | 0.1 to 55 mm 0.004 to 2.165 in | 0.1 to 160 mm 0.004 to 6.299 in | |
Marking spacing (character spacing, line pitch) (Note 3) | 0 to 90 mm 0 to 3.543 in | 0 to 55 mm 0 to 2.165 in | 0 to 160 mm 0 to 6.299 in | |
Arced output: -180°to +180°(variable in 0.01°steps) | ||||
Marking shape | Straight Line, Propotional, Justify, Arc | |||
Character types | English uppercase letters, English lowercase letters, numerals, katakana, hiragana, kanji (JIS No. 1 and No. 2 standards), symbols, user-registered characters (up to 50) | |||
Barcodes | Code 39, Code 128, ITF, NW-7, JAN/UPC, RSS-14 (GS1 DataBar), RSS (GS1 DataBar) Limited, RSS (GS1 DataBar) Expanded | |||
2D codes | QR Code, Micro QR Code, Data Matrix, GS1 Data Matrix | |||
Composite codes | RSS-14 (GS1 DataBar) CC-A, RSS-14 (GS1 DataBar) Stacked CC-A, RSS (GS1 DataBar) Limited CC-A, UCC / EAN COMPOSITE etc. | |||
I/O | Input terminal, Output terminal, I/O connector | |||
Interface | RS-232C, Ethernet | |||
Cooling method | Head: Naturally air cooling, Controller: Forced air cooling | |||
Power supply | 90-132 V AC, or 180-264 V AC (automatic switching), 50/60 Hz | |||
Power consumption | 330 VA or less (100 V AC), 450 VA or less (200 V AC) | |||
Protection degree | Head: IP67G | |||
Ambient temperature | 0 to +40℃ +32 to +104 ℉ (No dew condensation or icing allowed) | |||
Storage ambient temperature | -10 to +60℃ +14 to +140 ℉ (No dew condensation or icing allowed) | |||
Ambient humidity | 35 % to 85 % RH (No dew condensation or icing allowed) | |||
Applicable standards | FDA regulations, CE marking (Note 4) | |||
Net weight | Head | 7.5 kg approx. | 7.5 kg approx. | 8 kg approx. |
Controller | 24 kg approx. |
Notes:
1) Work distance varies by approx. ±0.5 mm ±0.020 in from model to model. (LP-S505 and LP-S205: approx. ±2 mm ±0.079 in)
2) This output is measured at the work end. (The preset power is 100, at the shipment time.)
3) Variable in 0.001 mm 0.0004 in steps.
4) China models are available,too. Please contact our sales office.
Software for PC Setting of Laser Marker
Software | Supported OS |
---|---|
Laser Marker Utility*1 | Microsoft Windows® 10 Pro (32 bit / 64 bit) / 8 Pro (32 bit / 64 bit) / 7 Professional (32 bit / 64 bit) / Vista Business (32 bit) / XP Professional (32 bit) |
*1 Windows® 10 Pro, 8 Pro, 7 Professional, Vista Business, and XP Professional are trademarks or registered trademarks of Microsoft Corporation in the United State and other countries.
[ Dust-, water- and oil-proof performance ]
- The head of the FAYb Laser Marker (excluding controller) offers dust- and water-proof performance conforming to IEC/JIS protection grade IP67. Oil-proof performance conforms to IPXXG, and offers protection against some lubricant and cutting oils. Tests are conducted according to the specified environments, times, and methods. However, dust-, water- and oil-proof performance is not guaranteed in all environments. Refer to IEC 60529 (JIS C 0920) for details of testing methods. Oil-proof performance is evaluated using typical lubricants and cutting oils (see table below), but this performance may not be fully achieved depending on the type of oil.
- The protection degree fully achieves performance only when the fiber unit, connectors, focus adjustment unit cover and lens protection glass are attached correctly.
- Although the product features a protection degree, it cannot be used submersed in water or oil.
Test oils
Oil type | Product name |
---|---|
Water-insoluble cutting oil | Yushiron Cut Abas BM405 |
Water-soluble cutting oil | Daphne Alpha Cool EW, Yushiroken EC50T5 |
Lubricant | COSMO ALLPUS 32, Super Mulpus DX2 |
Machine oil | Daphne Mechanic Oil 46 |
PRECAUTIONS FOR PROPER USE
・This catalog is a guide to select a suitable product. Be sure to read instruction manual attached to the product prior to its use.
- This product is classified as a Class 4 Laser Product in IEC / JIS standards and in FDA* regulations. Never look at or touch the direct laser beam and its reflection.
- The laser used by this product generates infrared light that is invisible to the human eye. Use particular caution when the laser is operating.
- The following labels are attached to this product. Handle the product according to the instruction given on the warning labels.
(Warning labels are not shown in the product photographs in this catalog.)
* This product complies with 21 CFR 1040.10 and 1040.11 Laser Notice
No. 50, dated June 24, 2007, issued by CDRH.
Safety standards for laser beam products
- A laser beam can harm human being’s eyes, skin, etc.,
because of its high energy density. IEC has classified laser products according to the degree of hazard and the stipulated safety requirements. The LP-S series are classified as Class 4 laser.
Overview of classification by IEC 60825-1
Classification | Description |
---|---|
Class 4 | Lasers that are also capable of producing hazardous diffuse reflections. They may cause skin injuries and could also constitute a fire hazard. |
Safe use of laser products
- For the purpose of preventing user from suffering injuries by laser products, IEC 60825-1 (Safety of laser products).
Kindly check the standards before use.
Recommended use of a dust collector
- Depending on the object being marked, harmful gasses or smoke that have a detrimental effect on the human body or the laser marker may be generating during marking.
If your application falls under this description, use a dust collector.
* For more information, contact your sales representative.
Maintenance
- Air filter: Regularly clean the air filter attached to the FAYb Laser Marker to maintain cooling effects.
- Laser pointer emission port: Dust or chips adhering to the laser pointer emission port may affect the printing quality or seriously damage the laser marker. Clean the laser pointer emission port regularly.
Touch Panel Console
Model No. | LP-ADP50 |
---|---|
Power voltage | DC24V±10% (supplied from laser marker/laser processing machine) |
Consumption current | 300mA or less |
Display device | Color liquid crystal display with touch panel 10.1 inch TFT WXGA |
Resolution | 1280 × 3 × 800 (pixel) |
Viewing angle | Omnidirectional: -85° to 85° (Typ.) |
Backlight | LED |
Operating ambient temperature (Note) | 0 to +50℃ For storage: -10 to +70℃ |
Operating ambient humidity (Note) | 10 to 90%RH For storage: 10 to 90%RH |
Protection degree | IP54 (excluding the cable connector) |
Material | Case: PC + ABS Cable: PVC |
Weight | Approx. 1.5kg |
Applicable laser marker/laser processing machine | LP-M series/LP-S series/LP-S500W series/LP-Z series/LP-400 series/LP-V series |
(Note) :
No condensation or freezing shall be allowed. If there is a gap between the stored temperature and operating temperature, make sure to have the product get used to the operating ambient temperature gradually prior to use to prevent the dew condensation.
------------------------------ Tab3 showing ------------------------------
Dimensions
- Unit: mm in
Head
■Fiber unit (when removed)
Note: The fiber unit protection cap should be removed when the scanner unit is connected.
Controller
Note: Indicates the height at the protruding section when the rubber foot are not attached.The rubber foot can be attached to either the right or left side of the controller.
Console
LP-ADP50 (Optional)
Discontinued products
Console
LP-ADP40 (Optional)
