Specifications
LP-M500
| Model No. | LP-M500 | LP-M500-S | LP-M505 | LP-M505-S | |
|---|---|---|---|---|---|
| Work distance | 190 ± 22 mm 7.480 ± 0.866 in | 220 ± 22 mm 8.661 ± 0.866 in | |||
| Marking field | 120 × 120 mm 4.724 × 4.724 in | 220 × 220 mm 8.661 × 8.661 in | |||
| Marking laser | Class 4 Yb fiber laser; λ= 1,064 nm 0.0419 mil laser | ||||
| Average output*1 | 40 W ± 5 % (pulse oscillation) | ||||
| Guide laser / pointer | Red semiconductor laser; λ= 655 nm 0.026 mil; Class 2 laser: Maximum output 1 mW or less | ||||
| Scanning method | X-, Y- and Z-axis directions; 3D scanning method | ||||
| Scan speed | Maximum 12,000 mm/sec. 472.441 in/sec. | ||||
| Character settings (character height, width) | 0.1 to 120 mm 0.004 to 4.724 in (configurable in 0.001 mm 0.0004 in steps) | 0.1 to 220 mm 0.004 to 8.661 in (configurable in 0.001 mm 0.0004 in steps) | |||
| Setting range (Straight Line, Proportional, Justify | Character spacing | 0 to 120 mm 0 to 4.724 in | 0 to 220 mm 0 to 8.661 in | ||
| Line pitch | |||||
| Setting range (Arc) | Radius | 0 to 999.999 mm 0 to 39.370 in (configurable in 0.001 mm 0.0004 in steps) | |||
| Angle | -180° to +180°(configurable in 0.01°steps) | ||||
| Line pitch radius | 0 to 120 mm 0 to 4.724 in (configurable in 0.001 mm 0.0004 in steps) | 0 to 220 mm 0 to 8.661 in (configurable in 0.001 mm 0.0004 in steps) | |||
| Logo data | VEC*2, DXF, BMP, HPGL, JPEG, AI, EPS | ||||
| Marking shape | Straight Line, Propotional, Justify, Arc | ||||
| Character types | English uppercase letters, English lowercase letters, numerals, katakana, hiragana, kanji (JIS No. 1 and No. 2 standards), symbols, user-registered characters (up to 50) | ||||
| Barcodes | CODE39, CODE128, ITF, NW-7, EAN / UPC, GS1 DataBar (GS1 DataBar Limited, GS1 DataBar Stacked, etc.), GS1 composite code (GS1 DataBar Limited CC-A, GS1 DataBar Stacked CC-A, GS1-128 CC-A, etc.) | ||||
| 2D codes | QR Code, Micro QR Code, Data Matrix, GS1 Data Matrix | ||||
| I/O port | I/O terminal, I/O connector, interlock connector, displacement sensor input connector, laser gate terminal (-S type only) | ||||
| Serial communication interface | EIA-RS-232C, Ethernet | ||||
| Displacement sensor input | Analog current input (4 to 20 mA) | ||||
| Cooling method | Head: Naturally air cooling, Controller: Forced air cooling | ||||
| Power supply | 90-132 V AC, or 180-264 V AC (including voltage fluctuation range of ±10 %) , 50/60 Hz（Auto-switching） | ||||
| Power consumption | 580 VA or less (100 V AC), 720 VA or less (200 V AC) | ||||
| Laser gate | Not equipped | Equipped in Head | Not equipped | Equipped in Head | |
| Ambient temperature | 0 to +40 ℃ +32 to +104 ℉( Controller, Head) (No dew condensation or icing allowed) | ||||
| Storage ambient temperature | -10 to +60 ℃ +14 to +140 ℉( Controller, Head) (No dew condensation or icing allowed) | ||||
| Ambient humidity | 35 % to 85 % RH (Controller, Head) (No dew condensation or icing allowed) | ||||
| Protection degree | IP64*3 | ||||
| Applicable standards | FDA Regulations, CE Marking (Low Voltage Directive, EMC Directive, RoHS Directive), GB standard, KC mark | ||||
| Net weight | Head | 12 kg | |||
| Controller | 28 kg | ||||
*1 Output at product processing edge (at configured power of 100, standard factory settings).
*2 File format (logo file) that can be used by the laser marker.
*3 The head is IP64 only in regions where an electrical or optical part is deployed.
・China models are available,too. Please contact our sales office.
LP-M200
| Model No. | LP-M200 | LP-M200-S | LP-M205 | LP-M205-S | |
|---|---|---|---|---|---|
| Work distance | 190 ± 22 mm 7.480 ± 0.866 in | 220 ± 22 mm 8.661 ± 0.866 in | |||
| Marking field | 120 × 120 mm 4.724 × 4.724 in | 220 × 220 mm 8.661 × 8.661 in | |||
| Marking laser | Class 4 Yb fiber laser; λ= 1,064 nm 0.0419 mil laser | ||||
| Average output*1 | 16 W ± 5 % (pulse oscillation) | ||||
| Guide laser / pointer | Red semiconductor laser; λ= 655 nm 0.026 mil; Class 2 laser: Maximum output 1 mW or less | ||||
| Scanning method | X-, Y- and Z-axis directions; 3D scanning method | ||||
| Scan speed | Maximum 12,000 mm/sec. 472.441 in/sec. | ||||
| Character settings (character height, width) | 0.1 to 120 mm 0.004 to 4.724 in (configurable in 0.001 mm 0.0004 in steps) | 0.1 to 220 mm 0.004 to 8.661 in (configurable in 0.001 mm 0.0004 in steps) | |||
| Setting range (Straight Line, Proportional, Justify) | Character spacing | 0 to 120 mm 0 to 4.724 in | 0 to 220 mm 0 to 8.661 in | ||
| Line pitch | |||||
| Setting range (Arc) | Radius | 0 to 999.999 mm 0 to 39.370 in (configurable in 0.001 mm 0.0004 in steps) | |||
| Angle | -180° to +180°(configurable in 0.01°steps) | ||||
| Line pitch radius | 0 to 120 mm 0 to 4.724 in (configurable in 0.001 mm 0.0004 in steps) | 0 to 220 mm 0 to 8.661 in (configurable in 0.001 mm 0.0004 in steps) | |||
| Logo data | VEC*2, DXF, BMP, HPGL, JPEG, AI, EPS | ||||
| Marking shape | Straight Line, Propotional, Justify, Arc | ||||
| Character types | English uppercase letters, English lowercase letters, numerals, katakana, hiragana, kanji (JIS No. 1 and No. 2 standards), symbols, user-registered characters (up to 50) | ||||
| Barcodes | CODE39, CODE128, ITF, NW-7, EAN / UPC, GS1 DataBar (GS1 DataBar Limited, GS1 DataBar Stacked, etc.), GS1 composite code (GS1 DataBar Limited CC-A, GS1 DataBar Stacked CC-A, GS1-128 CC-A, etc.) | ||||
| 2D codes | QR Code, Micro QR Code, Data Matrix, GS1 Data Matrix | ||||
| I/O port | I/O terminal, I/O connector, interlock connector, displacement sensor input connector, laser gate terminal (-S type only) | ||||
| Serial communication interface | EIA-RS-232C, Ethernet | ||||
| Displacement sensor input | Analog current input (4 to 20 mA) | ||||
| Cooling method | Head: Naturally air cooling, Controller: Forced air cooling | ||||
| Power supply | 90-132 V AC, or 180-264 V AC (including voltage fluctuation range of ±10 %) , 50/60 Hz（Auto-switching） | ||||
| Power consumption | 390 VA or less (100 V AC), 510 VA or less (200 V AC) | ||||
| Laser gate | Not equipped | Equipped in Head | Not equipped | Equipped in Head | |
| Ambient temperature | 0 to +40 ℃ +32 to +104 ℉( Controller, Head) (No dew condensation or icing allowed) | ||||
| Storage ambient temperature | -10 to +60 ℃ +14 to +140 ℉( Controller, Head) (No dew condensation or icing allowed) | ||||
| Ambient humidity | 35 % to 85 % RH (Controller, Head) (No dew condensation or icing allowed) | ||||
| Protection degree | IP64*3 | ||||
| Applicable standards | FDA Regulations, CE Marking (Low Voltage Directive, EMC Directive, RoHS Directive), GB standard, KC mark | ||||
| Net weight | Head | 12 kg | |||
| Controller | 28 kg | ||||
*1 Output at product processing edge (at configured power of 100, standard factory settings).
*2 File format (logo file) that can be used by the laser marker.
*3 The head is IP64 only in regions where an electrical or optical part is deployed.
・China models are available,too. Please contact our sales office.
Software for PC Setting of Laser Marker
| Software | Supported OS*1 |
|---|---|
| Laser Marker Utility*2 | Microsoft Windows®10 Pro (32-bit / 64-bit) / 8.1 Pro (32-bit / 64-bit) |
| NAVILINK-3D*2 (sold separately) | Microsoft Windows®10 Pro (32-bit / 64-bit) / 8.1 Pro (32-bit / 64-bit) |
*1 OS versions of which Microsoft has ended support are excluded.
*2 To use Export Vec, Adobe® Illustrator® must be installed. Please contact us about the version corresponding to Adobe® Illustrator®. Microsoft and Windows are trademarks or registered trademarks of Microsoft Corporation in the United State and other countries.
Precautions for Proper Use
■Laser safety
- This product is classified as a Class 4 Laser Product in IEC/JIS/FDA regulations 21 CFR 1040.10 and 1040.11. Never look at or touch the direct laser beam and its reflection.
- The following labels are attached to the LP-M500 series. Handle the product according to the instruction given on the warning labels. （Warning labels are not shown in the product photographs in this website.）
- The laser used by this product generates infrared light that is invisible to the human eye. Use particular caution when the laser is operating.
■Maintenance
・Air filter:
Regularly clean the air filter attached to the FAYb Laser Marker to maintain cooling effects.
・Laser pointer emission port:
Dust or chips adhering to the laser pointer emission port may affect the printing quality or seriously damage the laser marker. Clean the laser pointer emission port regularly.
■Recommended use of a dust collector
- Depending on the object being marked, harmful gasses or smoke that have a detrimental effect on the human body or the laser marker may be generating during marking. If your application falls under this description, use a dust collector.
*For more information, contact your sales representative.
Touch Panel Console
| Model No. | LP-ADP50 |
|---|---|
| Power voltage | DC24V±10% (supplied from laser marker/laser processing machine) |
| Consumption current | 300mA or less |
| Display device | Color liquid crystal display with touch panel 10.1 inch TFT WXGA |
| Resolution | 1280 × 3 × 800 (pixel) |
| Viewing angle | Omnidirectional: -85° to 85° (Typ.) |
| Backlight | LED |
| Operating ambient temperature (Note) | 0 to +50℃ For storage: -10 to +70℃ |
| Operating ambient humidity (Note) | 10 to 90%RH For storage: 10 to 90%RH |
| Protection degree | IP54 (excluding the cable connector) |
| Material | Case: PC + ABS Cable: PVC |
| Weight | Approx. 1.5kg |
| Applicable laser marker/laser processing machine | LP-M series/LP-S series/LP-S500W series/LP-Z series/LP-400 series/LP-V series |
(Note) : No condensation or freezing shall be allowed. If there is a gap between the stored temperature and operating temperature, make sure to have the product get used to the operating ambient temperature gradually prior to use to prevent the dew condensation.
------------------------------ Tab3 showing ------------------------------
Dimensions
- Unit: mm in

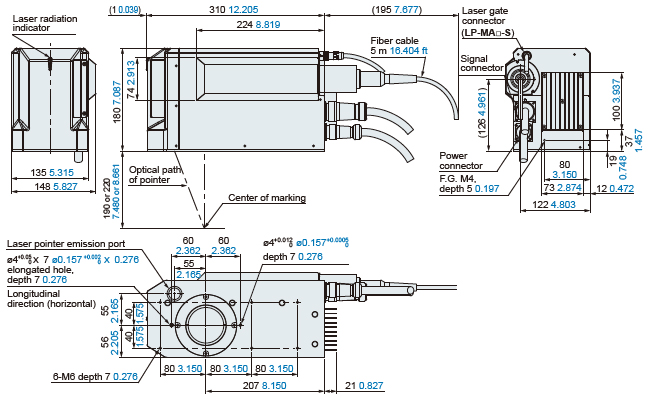

Head

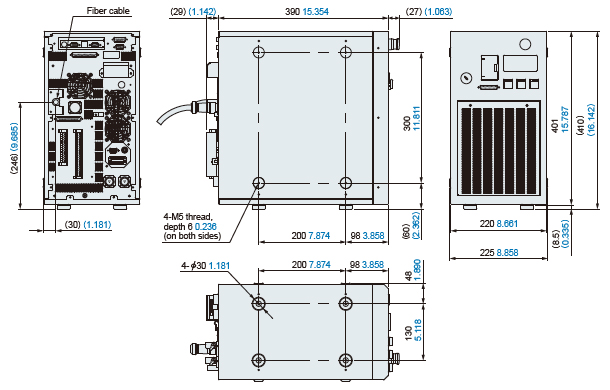

Controller
Console
LP-ADP50 (Optional)
Discontinued products
Console
LP-ADP40 (Optional)
