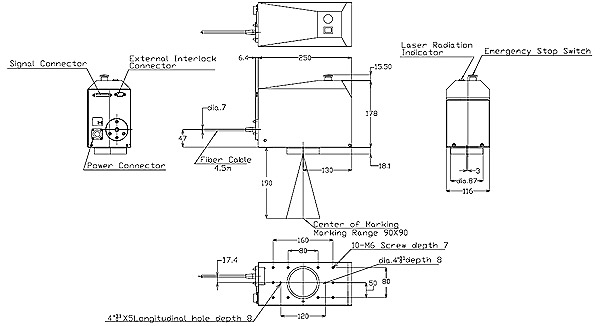

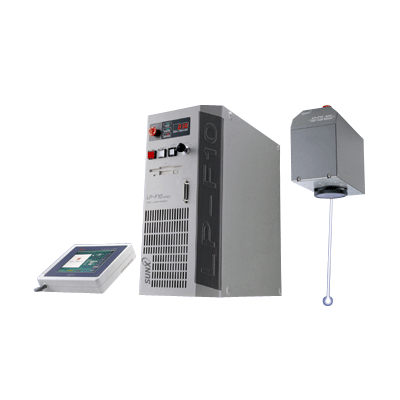

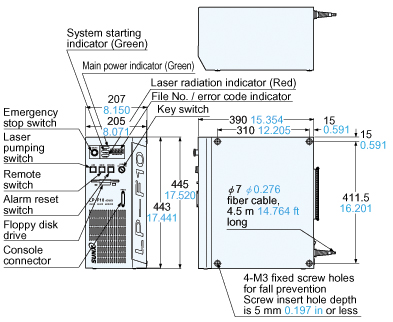

| Work distance (Note 1) | 190 mm 7.48 in |
|---|
| Scanning method | Galvano-scanning method |
|---|
| Marking laser | Fiber-laser class 4 (Laser oscillator output: Average 20 W ・Max. 15 W, Peak emission wavelength: 1.06 µm 0.042 mil) |
|---|
| Range to be marked | 90 x 90 mm 3.543 x 3.543 in |
|---|
| Basic dimensions of characters | Height and width: 0.2 to 90 mm 0.008 to 3.543 in, Interval / position of marked characters: settable at 0.01 mm 0.0004 in interval |
|---|
| Scanning speed | 3,000 mm/sec. max. |
|---|
| Array of characters | Straight line, Straight-line proportional, obliquely straight line, obliquely straight line proportional, fan-like |
|---|
| Marking condition | Stationary |
|---|
| Types of characters | English capital and small characters, figures, hiragana, katakana, symbols, kanji (JIS first level),
user-defined characters (up to 50 types) |
|---|
| Cooling method | Head: Natural air-cooling, Controller: Forced-air cooling |
|---|
| Supply voltage | 90 to 132 V AC or 180 to 264 V AC (auto-changing) 50 / 60 Hz |
|---|
| Power consumption (Note 2) | 430 VA or less at 100 V AC , 500 VA or less at 200 V AC |
|---|
| Input | Marking trigger, alarm reset, emergency stop, shutter control, laser excitation, interlock, file No., file confirmation, counter reset |
|---|
| Output | Power supply (12 V), alarm, during marking, ready for marking, end of marking, remote, warning, file confirmation, counter end |
|---|
| Installation direction | Horizontal / vertical (both head and controller) |
|---|
| Functions | ・ Marking image display
・ Work image display
・ Image screen enlargement
・ Origin offset
・ Help display
・ Memory capacity display
・ Step and repeat
・ Counter marking
・ Current date marking
・ Expiry date marking
・ Lot marking
・ Rank marking (Note 3)
・ Offset marking (Note 3)
・ Font selection
・ Intersection point compensation
・ Uniform marking
・ Spline compensation
・ Proportional
・ Bold character marking
・ Marking order optimized
・ Automatic shutter
・ Marking point display (guide laser)
・ Operating condition marking
・ CAD marking
・ Real-time display
・ Console auto-off
・ Power / speed setting for each row
・ On-line fine adjustment
・ Operator adjustment
・ VGA mouse connector equipment
・ Password protection
・ Double trigger sensing
・ Laser error sensing |
|---|
| Emergency stop switch | Incorporated (on both, head and controller) |
|---|
| Ambient temperature | 0 to + 40 ℃ + 32 to + 104 ℉
(No dew condensation allowed),
Storage: - 10 t + 50 ℃ + 14 to + 122℉ |
|---|
| Ambient humidity | 35 to 85 % RH, Storage: 35 to 85 % RH |
|---|
| Net weight | Head: 4.2 kg approx., Controller: 18 kg approx. |
|---|
