2D Code Reader LP-ABR10 (Discontinued Products)

  • Discontinued Products

  • Specifications

  • Dimensions

Ⅾiscontinued

Last time buy (JST)

September 30, 2022

We are sorry, the products have been discontinued. Please refer to the details of the discontinued products and the recommended substitutes list below.

------------------------------ Tab1 showing ------------------------------

Discontinued Products

------------------------------ Tab2 showing ------------------------------

Specifications

2D code reader unit

TypeStandard typeLong-distance type
Model No.LP-ABR11LP-ABR12
CE marking directive complianceEMC Directive, RoHS Directive
Image sensor1/3 inches CMOS monochrome
Effective pixels1,280 × 960 (1.2 million pixels approx.)
Internal illumination sourceWhite LED
Reading anglePITCH: ±35°, SKEW: ±35°, TILT: 360°
Supply voltage24 V DC ±10 %
Power consumptionCommand (SYNC) standby: 140 mA approx.,
During reading operation: 400 mA approx.
InterfaceEthernet10Base-T, 100Base-T, 1000Base-T
RS-232C1,200 bps to 115.2 kbps
Digital inputPhoto-coupler isolation × 1
(Input resistance: 1 kΩ, OFF voltage: 0 to 0.8 V, ON voltage: 6 to 28 V)
Digital outputPhoto-coupler isolation × 4 (Maximum rating: 30 V DC, 50 mA)
Environmental resistanceProtectionIP65(IEC)
Ambient temperature0 to +40 ℃ +32 to +104 ℉, Storage: -20 to +65 ℃ -4 to +149 ℉
Ambient humidity35 to 85 % RH (No dew condensation allowed),
Storage: 35 to 85 % RH (No dew condensation allowed)
Vibration resistance10 to 55 Hz amplitude 1.5 mm 0.059 in (total width) in X, Y, Z directions for two hours each
WeightNet weight: 200 g approx.

Read function

TypeStandard typeLong-distance type
Model No.LP-ABR11LP-ABR12
Supported symbols (2D)Data Matrix (ECC200), QR Code
Minimum resolution0.167 mm 0.007 in
Read center distance100 mm 3.937 in200 mm 7.874 in
View area (horizontal × vertical)54 × 40 mm 2.126 × 1.575 in
(at read center distance)
44 × 33 mm 1.732 × 1.299 in
(at read center distance)
Reading distance (typical)<Data Matrix (ECC200), QR Code>
• For cell size of 0.167 mm 0.007 in : 85 to 125 mm 3.346 to 4.921 in
• For cell size of 0.25 mm 0.010 in : 70 to 150 mm 2.756 to 5.906 in
<Data Matrix (ECC200)>
• For cell size of 0.167 mm 0.007 in : 185 to 220 mm 7.283 to 8.661in
• For cell size of 0.25 mm 0.010 in : 175 to 230 mm 6.89 to 9.055 in

<QR Code>
• For cell size of 0.167 mm 0.007 in : 190 to 215 mm 7.48 to 8.465 in
• For cell size of 0.25 mm 0.010 in : 180 to 225 mm 7.087 to 8.858 in

* Cell size of 0.25 mm 0.010 in or larger is recommended (horizontal direction) when the 2D code print quality verification function is used.

Reading distance – View area (typical)

Standard type LP-ABR11

Standard type LP-ABR11

(Unit: mm in)

Supported symbols (2D)Data Matrix (ECC200), QR Code
Cell size0.167 0.0070.25 0.010
NearReading distance85 3.34670 2.756
View area
(horizontal × vertical)
46 × 34
1.811 × 1.339
38 × 29
1.496 × 1.142
CenterReading distance100 3.937
View area
(horizontal × vertical)
54 × 40
2.126 × 1.575
FarReading distance125 4.921150 5.906
View area
(horizontal × vertical)
66 × 50
2.598 × 1.969
79 × 60
3.11 × 2.362

Long-distance type LP-ABR12

Long-distance type LP-ABR12

(Unit: mm in)

Supported symbols (2D)Data Matrix(ECC200)QR Code
Cell size0.167 0.0070.25 0.0100.167 0.0070.25 0.010
NearReading distance185 7.283175 6.890190 7.480180 7.087
View area
(horizontal × vertical)
40 × 30
1.575 × 1.181
38 × 28
1.496 × 1.102
42 × 31
1.654 × 1.220
39 × 29
1.535 × 1.142
CenterReading distance200 7.874200 7.874
View area
(horizontal × vertical)
44 × 33
1.732 × 1.299
44 × 33
1.732 × 1.299
FarReading distance220 8.661230 9.055215 8.465225 8.858
View area
(horizontal × vertical)
49 × 37
1.929 × 1.457
51 × 38
2.008 × 1.496
48 × 36
1.890 × 1.417
50 × 37
1.969 × 1.457

------------------------------ Tab3 showing ------------------------------

Dimensions

  • Unit: mm in

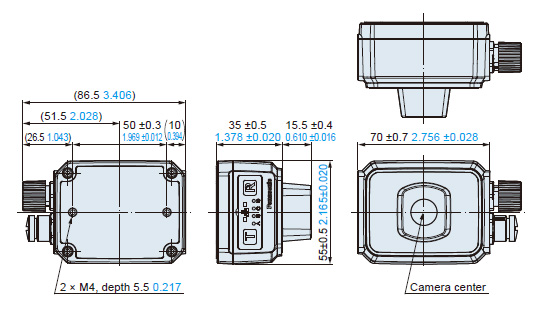

LP-ABR11

2D code reader
Standard type

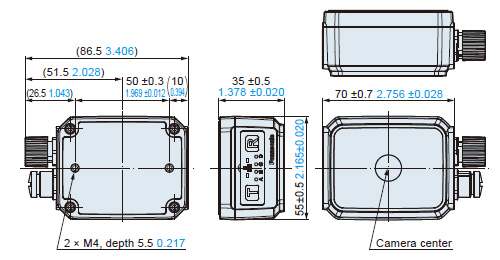

LP-ABR11

LP-ABR12

2D code reader
Long-distance type

LP-ABR12

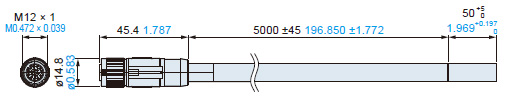

LP-ABR10-C5

Control cable (sold separately)

LP-ABR10-C5

LP-ABR10-L5

LAN cable (sold separately)

LP-ABR10-L5
