CO2 Laser Marker LP-400 (Discontinued Products)

Download

Discontinued Products
Specifications

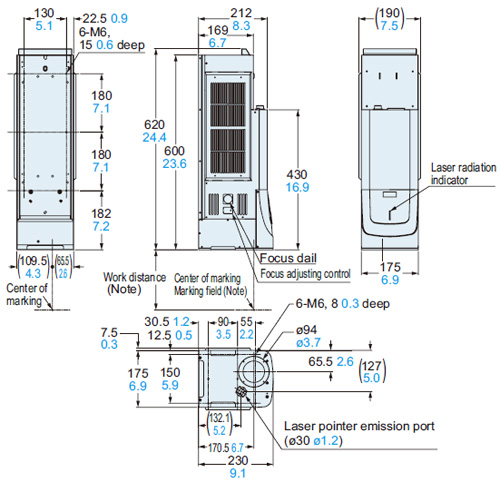

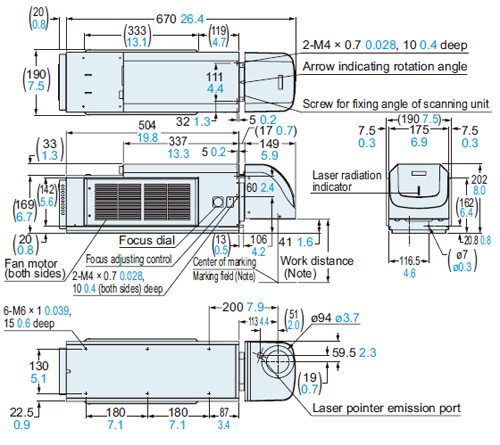

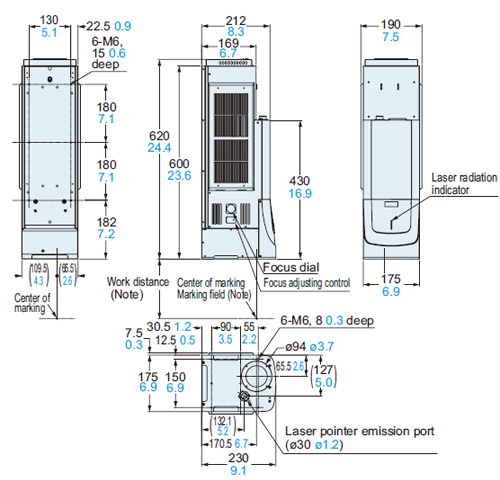

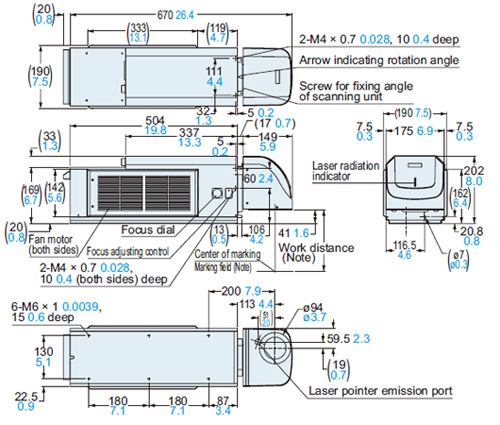

Dimensions

Ⅾiscontinued

Last time buy (JST)

September 29, 2023

We are sorry, the products have been discontinued. Please refer to the details of the discontinued products and the recommended substitutes list below.

------------------------------ Tab1 showing ------------------------------

Discontinued Products

------------------------------ Tab2 showing ------------------------------

Specifications

Type		General-purpose type
Set model No.	Standard models	LP-430U	LP-420S9U	LP-410U
Set model No.	Tower head models	LP-430TU	LP-420S9TU	LP-410TU
Marking laser		Class 4 CO₂ laser
	Average output (Note 1)	30 W	20 W	10 W
	Wavelength	10.6 μm 0.417 mil	9.3 μm 0.366 mil	10.6 μm 0.417 mil
Guide laser / pointer		Class 2 semiconductor laser; wavelength: 655 nm 0.026 mil
Marking field		110 x 110 mm 4.3 x 4.3 in

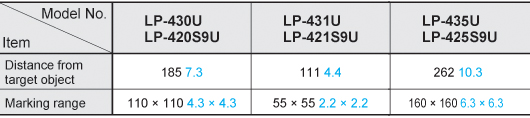

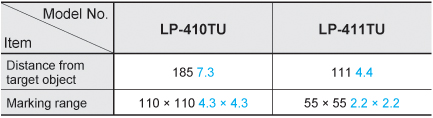

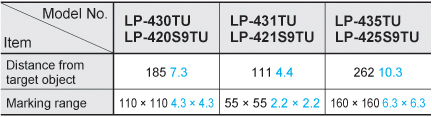

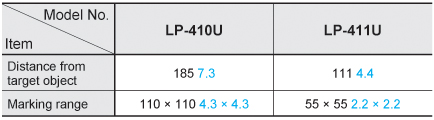

Work distance (Note 2)		185 mm 7.3 in
Scan speed		Max. 12,000 mm/sec.
Line speed (Note 3)		240 m/min. or less		170 m/min. or less
Marking setting (character height, width)		0.2 to 110 mm 0.008 to 4.3 in (variable in 0.001 mm 0.00004 in steps)
Marking spacing (character spacing, line pitch)		0 to 110 mm 0 to 4.3 in (variable in 0.001 mm 0.00004 in steps) Arced output: -180° to +180° (variable in 0.01° steps)
Marking shape		Straight Line, Arc, Proportional, Justify
Character types		English uppercase letters, english lowercase letters, numerals, katakana, hiragana, kanji (JIS No. 1 and No. 2 standards), symbols, user-registered characters (up to 50)
Barcodes		Code 39, Code 128, ITF, NW-7, JAN (EAN) / UPC, RSS-14 (GS1 DataBar), RSS (GS1 DataBar) Limited, RSS (GS1 DataBar) Expanded
2D codes		QR Code, Micro QR Code, Data Matrix, GS1 Data Matrix
Composite codes		RSS-14 (GS1 DataBar) CC-A, RSS-14 (GS1 DataBar) Stacked CC-A, RSS (GS1 DataBar) Limited CC-A, etc.
Logos / Shape		VEC (Note 4), BMP, DXF, HPGL, JPEG, AI (Note 5), EPS (Note 5)
Interface(Note 6)		RS-232C, Ethernet
Cooling method		Forced air cooling
Power supply		90 to 132 V AC or 180 to 264 V AC (automatic switching), 50 / 60 Hz
Power consumption	100 V AC	1,000 VA or less		670 VA or less
Power consumption	200 V AC	1,200 VA or less		700 VA or less
Inputs		Remote, trigger, encoder (A), encoder (B), shutter control, laser excitation, alarm reset, emergency stop, laser stop, etc.
Outputs		Power supply (+12 V), remote, marking ready, marking, marking complete, laser excitation, warning, alarm, configuration complete, counter complete
Marking condition		Still, moving
Functions		・Marking order optimization ・Intersection correction ・Counter marking ・Current date marking ・Deadline date marking ・Lot marking ・Logo data marking ・Font creation and editing ・Monospaced alignment ・Updating of operating screen display ・System offset ・Shared character settings ・Guide laser ・Dual pointers ・Focus adjustment ・Overlapping marking ・Backup ・Marking on long moving objects ・Font selection ・Bold marking ・Proportional marking ・Marking image display ・Marking time measurement ・Target object image display ・Operator adjustment ・Rank marking ・Offset marking ・Time hold ・Step and repeat ・I/O check monitor ・I/O simulation ・Error log display ・Serial data marking ・Power and speed configuration by row or logo file
Emergency stop switch		Located on controller
Ambient temperature		0 to +40 ℃ +32 to +104 ℉ (Storage: -10 to +60 ℃ +14 to +140 ℉) (No dew condensation or icing allowed)
Ambient humidity		35 to 85 % RH (No dew condensation or icing allowed)
Net weight	Standard head	20 kg		16 kg
	Tower head	20 kg		16 kg

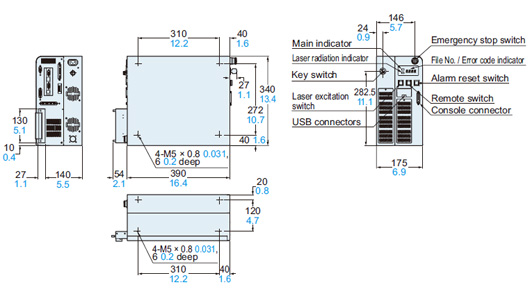

	Controller	12 kg		11 kg

Notes:

1) Independent output of oscillator.

2) Work distance varies by approx. ±2 mm ±0.079 in from model to model.

3) Varies by target object.

4) VEC is a usable format of logo file for laser marker.

5) The PC installed Adobe® Illustrator® 9.x to CS5 (Windows) is necessary.

6) Ethernet has been changed from production in March 2013.

Type		Small-spot type
Set model No.	Standard models	LP-431U	LP-421S9U	LP-411U
Set model No.	Tower head models	LP-431TU	LP-421S9TU	LP-411TU
Marking laser		Class 4 CO₂ laser
	Average output (Note 1)	30 W	20 W	10 W
	Wavelength	10.6 μm 0.417 mil	9.3 μm 0.366 mil	10.6 μm 0.417 mil
Guide laser / pointer		Class 2 semiconductor laser; wavelength: 655 nm 0.026 mil
Marking field		55 x 55 mm 2.2 x 2.2 in
Work distance (Note 2)		111 mm 4.4 in
Scan speed		Max. 6,000 mm/sec.
Line speed (Note 3)		120 m/min. or less		85 m/min. or less
Marking setting (character height, width)		0.2 to 55 mm 0.008 to 2.2 in (variable in 0.001 mm 0.00004 in steps)
Marking spacing (character spacing, line pitch)		0 to 55 mm 0 to 2.2 in (variable in 0.001 mm 0.00004 in steps) Arced output: -180° to +180° (variable in 0.01° steps)
Marking shape		Straight Line, Arc, Proportional, Justify
Character types		English uppercase letters, english lowercase letters, numerals, katakana, hiragana, kanji (JIS No. 1 and No. 2 standards), symbols, user-registered characters (up to 50)
Barcodes		Code 39, Code 128, ITF, NW-7, JAN (EAN) / UPC, RSS-14 (GS1 DataBar), RSS (GS1 DataBar) Limited, RSS (GS1 DataBar) Expanded
2D codes		QR Code, Micro QR Code, Data Matrix, GS1 Data Matrix
Composite codes		RSS-14 (GS1 DataBar) CC-A, RSS-14 (GS1 DataBar) Stacked CC-A, RSS (GS1 DataBar) Limited CC-A, etc.
Logos / Shape		VEC (Note 4), BMP, DXF, HPGL, JPEG, AI (Note 5), EPS (Note 5)
Interface (Note 6)		RS-232C, Ethernet
Cooling method		Forced air cooling
Power supply		90 to 132 V AC or 180 to 264 V AC (automatic switching), 50 / 60 Hz
Power consumption	100 V AC	1,000 VA or less		670 VA or less
Power consumption	200 V AC	1,200 VA or less		700 VA or less
Inputs		Remote, trigger, encoder (A), encoder (B), shutter control, laser excitation, alarm reset, emergency stop, laser stop, etc.
Outputs		Power supply (+12 V), remote, marking ready, marking, marking complete, laser excitation, warning, alarm, configuration complete, counter complete
Marking condition		Still, moving
Functions		・Marking order optimization ・Intersection correction ・Counter marking ・Current date marking ・Deadline date marking ・Lot marking ・Logo data marking ・Font creation and editing ・Monospaced alignment ・Updating of operating screen display ・System offset ・Shared character settings ・Guide laser ・Dual pointers ・Focus adjustment ・Overlapping marking ・Backup ・Marking on long moving objects ・Font selection ・Bold marking ・Proportional marking ・Marking image display ・Marking time measurement ・Target object image display ・Operator adjustment ・Rank marking ・Offset marking ・Time hold ・Step and repeat ・I/O check monitor ・I/O simulation ・Error log display ・Serial data marking ・Power and speed configuration by row or logo file
Emergency stop switch		Located on controller
Ambient temperature		0 to +40 ℃ +32 to +104 ℉ (Storage: -10 to +60 ℃ +14 to +140 ℉) (No dew condensation or icing allowed)
Ambient humidity		35 to 85 % RH (No dew condensation or icing allowed)
Net weight	Standard head	20 kg		16 kg
	Tower head	20 kg		16 kg
	Controller	12 kg		11 kg

Notes:

1) Independent output of oscillator.

2) Work distance varies by approx. ±2 mm ±0.079 in from model to model.

3) Varies by target object.

4) VEC is a usable format of logo file for laser marker.

5) The PC installed Adobe® Illustrator® 9.x to CS5 (Windows) is necessary.

6) Ethernet has been changed from production in March 2013.

Type		Wide-area type
Set model No.	Standard models	LP-435U	LP-425S9U
Set model No.	Tower head models	LP-435TU	LP-425S9TU
Marking laser		Class 4 CO₂ laser
	Average output (Note 1)	30 W	20 W
	Wavelength	10.6 μm 0.417 mil	9.3 μm 0.366 mil
Guide laser / pointer		Class 2 semiconductor laser; wavelength: 655 nm 0.026 mil
Marking field		160 x 160 mm 6.3 x 6.3 in
Work distance (Note 2)		262 mm 10.3 in
Scan speed		Max. 12,000 mm/sec.
Line speed (Note 3)		240 m/min. or less
Marking setting (character height, width)		0.2 to 160 mm 0.008 to 6.3 in (variable in 0.001 mm 0.00004 in steps)
Marking spacing (character spacing, line pitch)		0 to 160 mm 0 to 6.3 in (variable in 0.001 mm 0.00004 in steps) Arced output: -180° to +180° (variable in 0.01° steps) Arced output: -180° to +180° (variable in 0.01° steps)
Marking shape		Straight Line, Arc, Proportional, Justify
Character types		English uppercase letters, english lowercase letters, numerals, katakana, hiragana, kanji (JIS No. 1 and No. 2 standards), symbols, user-registered characters (up to 50)
Barcodes		Code 39, Code 128, ITF, NW-7, JAN (EAN) / UPC, RSS-14 (GS1 DataBar), RSS (GS1 DataBar) Limited, RSS (GS1 DataBar) Expanded
2D codes		QR Code, Micro QR Code, Data Matrix, GS1 Data Matrix
Composite codes		RSS-14 (GS1 DataBar) CC-A, RSS-14 (GS1 DataBar) Stacked CC-A, RSS (GS1 DataBar) Limited CC-A, etc.
Logos / Shape		VEC (Note 4), BMP, DXF, HPGL, JPEG, AI (Note 5), EPS (Note 5)
Interface (Note 6)		RS-232C, Ethernet
Cooling method		Forced air cooling
Power supply		90 to 132 V AC or 180 to 264 V AC (automatic switching), 50 / 60 Hz
Power consumption	100 V AC	1,000 VA or less
Power consumption	200 V AC	1,200 VA or less
Inputs		Remote, trigger, encoder (A), encoder (B), shutter control, laser excitation, alarm reset, emergency stop, laser stop, etc.
Outputs		Power supply (+12 V), remote, marking ready, marking, marking complete, laser excitation, warning, alarm, configuration complete, counter complete
Marking condition		Still, moving
Functions		・Marking order optimization ・Intersection correction ・Counter marking ・Current date marking ・Deadline date marking ・Lot marking ・Logo data marking ・Font creation and editing ・Monospaced alignment ・Updating of operating screen display ・System offset ・Shared character settings ・Guide laser ・Dual pointers ・Focus adjustment ・Overlapping marking ・Backup ・Marking on long moving objects ・Font selection ・Bold marking ・Proportional marking ・Marking image display ・Marking time measurement ・Target object image display ・Operator adjustment ・Rank marking ・Offset marking ・Time hold ・Step and repeat ・I/O check monitor ・I/O simulation ・Error log display ・Serial data marking ・Power and speed configuration by row or logo file
Emergency stop switch		Located on controller
Ambient temperature		0 to +40 ℃ +32 to +104 ℉ (Storage: -10 to +60 ℃ +14 to +140 ℉) (No dew condensation or icing allowed)
Ambient humidity		35 to 85 % RH (No dew condensation or icing allowed)
Net weight	Standard head	20 kg
	Tower head	20 kg
	Controller	12 kg

Notes:

1) Independent output of oscillator.

2) Work distance varies by approx. ±2 mm ±0.079 in from model to model.

3) Varies by target object.

4) VEC is a usable format of logo file for laser marker.

5) The PC installed Adobe® Illustrator® 9.x to CS5 (Windows) is necessary.

6) Ethernet has been changed from production in March 2013.

Type		Japanese model	FDA regulations conforming type	CE marking conforming type
General-purpose type	Standard model	LP-430U	LP-430U-A	LP-430U-C
		LP-420S9U	LP-420S9U-A	LP-420S9U-C
		LP-410U	LP-410U-A	LP-410U-C
	Tower head model	LP-430TU	LP-430TU-A	LP-430TU-C
		LP-420S9TU	LP-420S9TU-A	LP-420S9TU-C
		LP-410TU	LP-410TU-A	LP-410TU-C
Small-spot type	Standard model	LP-431U	LP-431U-A	LP-431U-C
		LP-421S9U	LP-421S9U-A	LP-421S9U-C
		LP-411U	LP-411U-A	LP-411U-C
	Tower head model	LP-431TU	LP-431TU-A	LP-431TU-C
		LP-421S9TU	LP-421S9TU-A	LP-421S9TU-C
		LP-411TU	LP-411TU-A	LP-411TU-C
Wide-area type	Standard model	LP-435U	LP-435U-A	LP-435U-C
	Standard model	LP-425S9U	LP-425S9U-A	LP-425S9U-C
	Tower head model	LP-435TU	LP-435TU-A	LP-435TU-C
	Tower head model	LP-425S9TU	LP-425S9TU-A	LP-425S9TU-C

Software for PC Setting of Laser Marker

Software	Supported OS
Laser Marker Driver & Utility^※1	Microsoft Windows® 10 Pro (32 bit / 64 bit) / 8.1 Pro (32 bit / 64 bit) / 7 Professional (32 bit / 64 bit) SP1

※1 : To use Export Vec, Adobe® Illustrator® must be installed.
The OS version which is no longer supported by Microsoft is excluded from our supported OS.
Windows® 10 Pro, 8.1 Pro and 7 Professional are trademarks or registered trademarks of Microsoft Corporation in the United State and other countries.

This product is classified as a Class 4 Laser Product in IEC / JIS standards and a Class IV Laser Product in FDA regulations 21 CFR 1040.10. Never look at or touch the direct laser beam and its reflection.
The laser used by this product generates infrared light that is invisible to the human eye. Use particular caution when the laser is operating.
The following labels are attached to this product. Handle the product according to the instruction given on the warning labels.
(Warning labels are not shown in the product photographs in this catalog.)

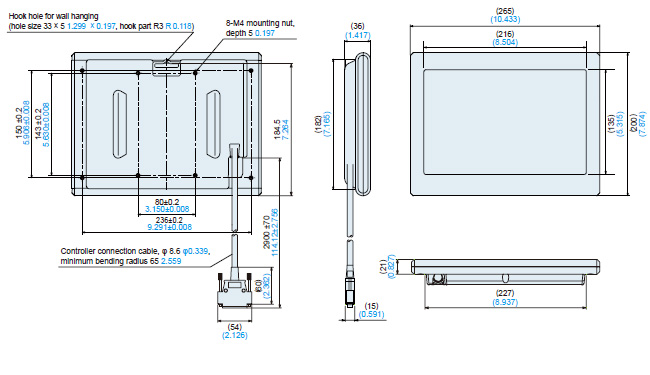

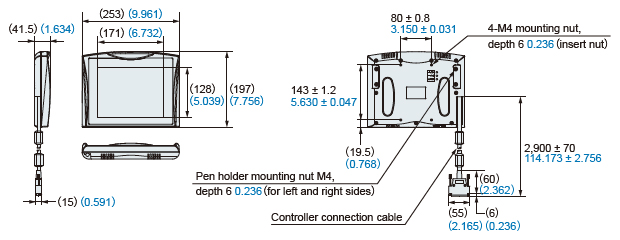

Touch Panel Console

Model No.	LP-ADP50
Power voltage	DC24V±10% (supplied from laser marker/laser processing machine)
Consumption current	300mA or less
Display device	Color liquid crystal display with touch panel 10.1 inch TFT WXGA
Resolution	1280 × 3 × 800 (pixel)
Viewing angle	Omnidirectional: -85° to 85° (Typ.)
Backlight	LED
Operating ambient temperature (Note)	0 to +50℃ For storage: -10 to +70℃
Operating ambient humidity (Note)	10 to 90%RH For storage: 10 to 90%RH
Protection degree	IP54 (excluding the cable connector)
Material	Case: PC + ABS Cable: PVC
Weight	Approx. 1.5kg
Applicable laser marker/laser processing machine	LP-M series/LP-S series/LP-S500W series/LP-Z series/LP-400 series/LP-V series

(Note) : No condensation or freezing shall be allowed. If there is a gap between the stored temperature and operating temperature, make sure to have the product get used to the operating ambient temperature gradually prior to use to prevent the dew condensation.
