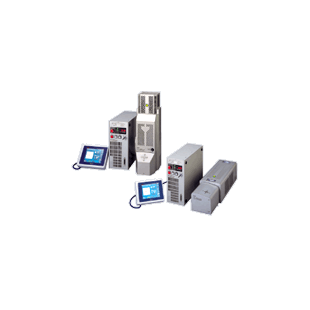

| Work distance (Note 1) | 145 mm
5.709 in | 89 mm
3.504 in | 176 mm
6.929 in | 95 mm
3.740 in |
|---|
| Scanning method | Galvano-scanning method |
|---|
| Marking laser | CO2 laser Class 4
(Laser oscillator output: Average 12 W ・Max. 30 W, Peak emission wavelength: 10.6 μm 0.417 mil) |
|---|

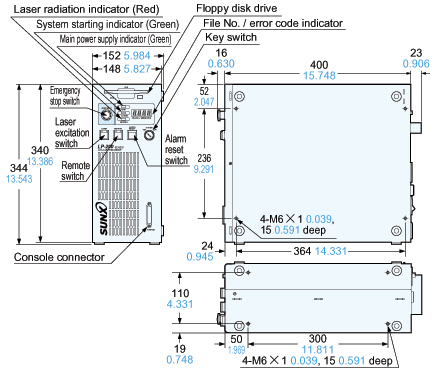

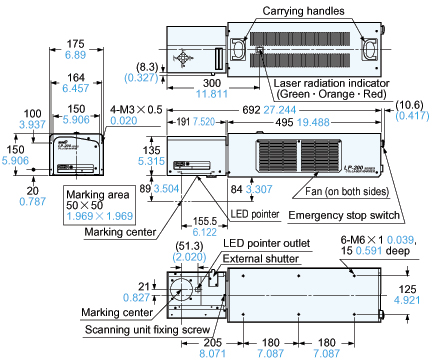

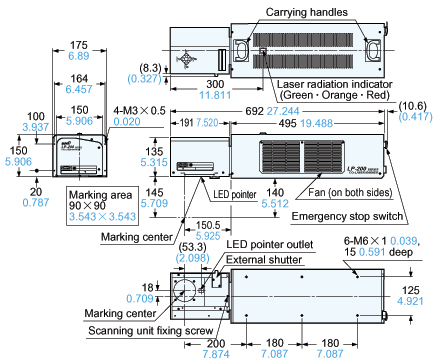

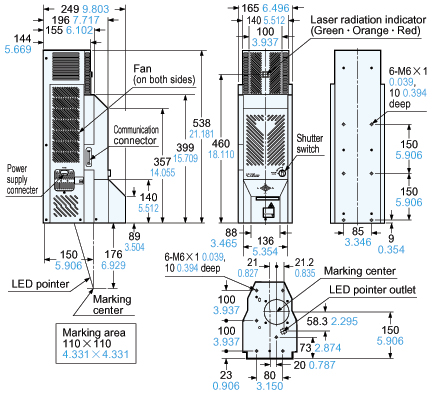

| Range to be marked | 90 x 90 mm 3.543 x 3.543 in | 50 x 50 mm 1.969 x 1.969 in | 110 x 110 mm 4.331 x 4.331 in | 50 x 50 mm 1.969 x 1.969 in |
|---|
Basic dimensions of
characters (Note 2) | Height and width:
0.2 to 90 mm 0.008 to 3.543 in | Height and width:
0.2 to 50 mm 0.008 to 1.969 in | Height and width:
0.2 to 110 mm 0.008 to 4.331 in | Height and width:
0.2 to 50 mm 0.008 to 1.969 in |
|---|
| Interval / position of marked characters: settable at 0.01 mm 0.0004 in interval |
| Scanning speed | 3,000 mm/sec. max. |
|---|
| Array of characters | Straight line, fan-like, oblique straight line, mirror-reflection |
|---|
| Marking condition | Stationary |
|---|
| Types of characters | English capital and small characters, figures, hiragana, katakana, symbols, kanji (JIS first level),
user-defined characters (up to 50 types) |
|---|
| Cooling method | Forced-air cooling |
|---|
| Supply voltage | 90 to 132 V AC or 180 to 264 V AC (auto-changing) 50 / 60 Hz (Note 3) |
|---|
| Power consumption | 700 VA or less |
|---|
| Input | Trigger, alarm reset, emergency stop, shutter control, laser excitation, interlock, file No., file confirmation, counter reset |
|---|
| Output | Power supply (12 V), alarm, marking, ready for marking, end of marking, remote, warning, file confirmation, counter end |
|---|
| Installation direction | Horizontal / vertical (both head and controller) |
|---|
| Functions | ・ Marking image display
・ Work image display
・ Image screen enlargement
・ Origin offset
・ Memory capacity display
・ Step and repeat
・ Counter marking
・ Current date marking
・ Period / date marking
・ Lot marking
・ Rank marking (Note 3)
・ Offset marking (Note 3)
・ Font selection
・ Uniform marking
・ Intersection point compensation
・ Spline compensation
・ Bold character marking
・ Automatic shutter
・ Marking point display (LED pointer)
・ Operating condition marking
・ CAD marking
・ Power / speed setting for each row
・ On-line fine adjustment
・ Operator adjustment
・ Real-time display
・ Console auto-off
・ Password protection
・ Double trigger sensing
・ Laser error sensing
・ Marking time measurement |
|---|
| Emergency stop switch | Incorporated (on both, head and controller) | Incorporated (on controller) |
|---|
| Ambient temperature | 0 to + 40 ℃ + 32 to + 104 ℉
(No dew condensation allowed),
Storage:-10 to + 50 ℃ + 14 to + 122 ℉ |
|---|
| Ambient humidity | 35 to 85 % RH, Storage: 35 to 85 % RH |
|---|
| Net weight | Head: 14 kg approx., Controller: 11 kg approx. | Head: 11 kg approx., Controller: 11 kg approx. |
|---|
