AIG12MQ03D｜GT12

Download

To Be Discontinued

Last time buy (JST)

Please note that the end date may be earlier due to various circumstances.

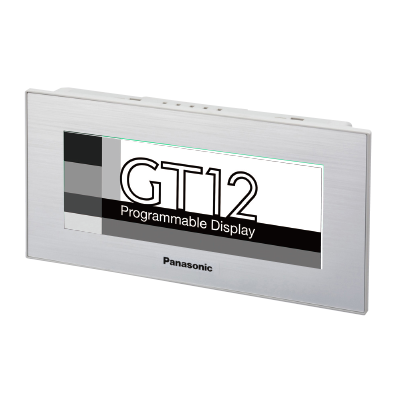

*Photo may vary from actual product.

This product has been confirmed that it does not contain the 6 substances specified in EU RoHS Directive 2011/65/EU and the 4 substances specified in 2015/863/EU.

Product Number

AIG12MQ03D

Part Number

AIG12MQ03D

Product

Compact Programmable Display

Details

GT12M

Product Name

 GT12
Substitute
Sub Prod No.
Sub Part No.
Remark

Contact Us

*Specifications and design of the products are subject to change without notice for the product improvement.

Spec Detail

Specifications and design of the products are subject to change without notice for the product improvement.
ItemSpecifications
Part NumberAIG12MQ03D
Product NumberAIG12MQ03D
Products NameCompact Programmable Display
Product detailsGT12M
The price of the productPlease contact our office
Power supply24 V DC
Operating voltage range21.6 to 26.4 V DC
Power consumption1.7W or less
Power supply unit isolation methodTransformer isolation
Ambient temperature0 to +50 ℃ +32 to +122 ℉
Ambient humidity20 to 85% RH (at +25 ℃ +77 ℉), (No dew condensation allowed)
Storage temperature-20 to +60 ℃ -4 to +140 ℉
Storage humidity10 to 85% RH (at +25 ℃ +77 ℉), (No dew condensation allowed)
Vibration resistance5 to 9 Hz amplitude: 3.5 mm 0.138 in, 9 to 150 Hz acceleration 9.8 m/s2,
10 sweeps each in X, Y and Z directions (1 octave/min.)
Shock resistance147 m/s2, 3 times in each of the X, Y and Z directions
Superposed noise suppression1,000 V [P-P] or more, pulse width of 50 ns, 1 μs between power supply terminals (by a noise simulator)
Environmental resistanceIP67 (in the initial stages)
Note : This protective structure condition applies to the front surface of the installed panel. This condition does not guarantee usage in all environments provided by users. When reattaching the panel, replace the waterproof packing.
Net weight240 g approx.
Display:Display deviceTFT monochrome LCD
Note : The display has been changed STN LCD to TFT LCD from production in November 2016.
Display:Resolution320 (W) x 120 (H) dots
Display:Display color2 colors (black / white, 8-gray scale)
Display:Displayable area108.8 (W) x 40.8 (H) mm 4.283 (W) x 1.606 (H) in
Display:BacklightGT12M: 3-color LED (white / pink / red)
Functions:Font typesFixed (GTWIN) : 1/4 width (8 × 8), half width (16 × 8), full width (16 × 16) Characters can be displayed in the 1, 2, 4, or 8 times width or height.
True Type (GTWIN): 10 to 120 dots
Functions:LanguagesJapanese, English, Simplified Chinese, Traditional Chinese, Korean, German, Italian, Spanish, French, Turkish, Russian, Vietnamese
Functions:GraphicsStraight lines, Continuous straight lines, Squares, Circles, Ovals, Arcs, Elliptic arcs, Fan shapes, Elliptic fan shapes, Beveled squares, Bitmaps
Functions:Number of screens2-gray scale: 250 screens approx.
8-gray scale: 200 screens approx.
Note : The number of screens that can be registered varies according to the registered contents.
Functions:Screen setting No.No. 0 to 3FF
Functions:Part functionsMessages, Lamps, Switches, Function switches, Data, Bar graphs, Clocks, Keyboards, Line graphs, Alarm list, Alarm record, Custom parts (messages, lamps, switches)
Functions:Other functionsRecipe, Flow display, Write device, Multiple PLC connection, FP monitor, Language switching, GT link, Operation security
Functions:Clock functionProvided with a built-in clock. (Can also refer to and display a PLC clock.) * Buy the backup battery (AFPX-BATT).
Functions:Contrast adjustmentUnnecessary
Functions:BuzzerInstalled
Functions:Automatic communication settingsThe communication speed (baud rate) is automatically changed if there is no response from the target equipment.
Functions:Through functionGT connected between a PC and PLC allows the PLC to be debugged without a direct connection with the PC.
Functions:Screen creationDedicated software should be used. Applicable OS: Windows® 2000 / XP / Vista / 7 / 8 / 8.1 / 10
Note : The 64-bit version is not supported except for Windows® 7 / 8 / 8.1 / 10.
Windows is registered trademark or trademark of Microsoft Corporation in the United States and other countries.
Touch key resolutionFree layout (8 dots min.)
Touch key operation force0.8 N or less
Touch key life1 million operations or more. (at +25 ℃ +77 ℉)
COM. Port:Communication standardConforms to RS-232C
COM. Port:External communication conditionsBaud rate: 9,600 bps, 19,200 bps, 38,400 bps, 57,600 bps, 115,200 bps
Data bits: 7 or 8 bits, Parity: None, Odd, Even, Stop bits: 1 bit
COM. Port:ProtocolOur FP series supported, General-purpose serial interface supported, Other companies' PLC supported
COM. Port:ConnectorConnector terminal block (8 pins)
Screen data transfer interface:Communication standardUSB 1.1
Screen data transfer interface:Communication conditions with PC—
Screen data transfer interface:ProtocolOur dedicated protocol
Screen data transfer interface:ConnectorUSB Mini-B
User’s memory:MemoryF-ROM
User's memory:Capacity2 Mbyte
Memory backup:MemorySRAM
Memory backup:Backup batteryLithium battery (replaceable) AFPX-BATT (Does not include with product.)
