AIG02GQ22D｜GT02

Download

Discontinued

Last time buy (JST)

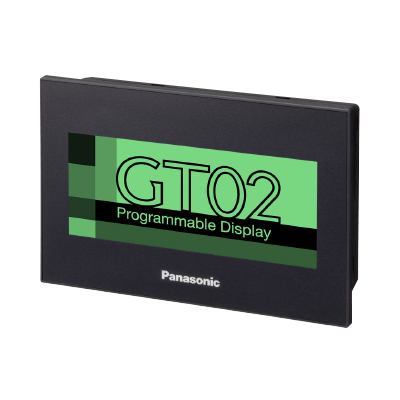

*Photo may vary from actual product.

This product has been confirmed that it does not contain the 6 substances specified in EU RoHS Directive 2011/65/EU and the 4 substances specified in 2015/863/EU.

    Product Number

    AIG02GQ22D

    Part Number

    AIG02GQ22D

    Product

    Compact Programmable Display

    Details

    GT02G

    Product Name

    		 GT02
    Substitute
    Sub Prod No.
    Sub Part No.
    Remark

    Spec Detail

    ItemSpecifications
    Part NumberAIG02GQ22D
    Product NumberAIG02GQ22D
    Products NameCompact Programmable Display
    Product detailsGT02G
    The price of the productPlease contact our office
    Power supply24 V DC
    Operating voltage range21.6 to 26.4 V DC
    Power consumption1.9 W or less
    Power supply unit isolation method—
    Ambient temperature0 to +50 ℃ +32 to +122℉
    Ambient humidity20 to 85% RH (at +25 ℃ +77 ℉), (No dew condensation allowed)
    Storage temperature–20 to +60 ℃ –4 to +140℉
    Storage humidity10 to 85% RH (at +25 ℃ +77 ℉), (No dew condensation allowed)
    Vibration resistance5 to 8.4 Hz amplitude: 3.5 mm 0.138 in, 8.4 to 150 Hz acceleration 9.8 m/s2, 10 sweeps each in X, Y and Z directions (1 octave/min.)
    Shock resistance147 m/s2, 3 times in each of the X, Y and Z directions
    Superposed noise suppression1,000 V [P-P] or more, pulse width of 50 ns, 1 μs between power supply terminals (by a noise simulator)
    Environmental resistanceIP67 (in the initial stages)
    Note: This protective structure condition applies to the front surface of the installed panel. This condition does not guarantee usage in all environments provided by users. When reattaching the panel, replace the waterproof packing.
    Net weight170 g approx.
    Display:Display deviceTFT monochrome LCD
    Note: The display has been changed STN LCD to TFT LCD from production in February 2017.
    Display:Resolution240 (W) × 96 (H) dots
    Display:Display color2 colors (black/white)
    Display:Displayable area88.5 (W) × 35.4 (H) mm 3.484 (W) × 1.394 (H) inch
    Display:Backlight3-color LED (green / orange / red)
    Functions:Font typesFixed (GTWIN) : 1/4 width (8 × 8), half width (16 × 8), full width (16 × 16) Characters can be displayed in the 1, 2, 4, or 8 times width or height.
    TrueType (GTWIN): 10 to 96 dots
    Functions:LanguagesJapanese, English, Simplified Chinese, Traditional Chinese, Korean, German, Italian, Spanish, French, Turkish, Russian, Vietnamese
    Functions:GraphicsStraight lines, Continuous straight lines, Squares, Circles, Ovals, Arcs, Elliptic arcs, Fan shapes, Elliptic fan shapes, Beveled squares, Bitmaps
    Functions:Number of screens250 screens approx.
    Note: The number of screens that can be registered varies according to the registered contents.
    Functions:Screen setting No.No. 0 to 3FF
    Functions:Part functionsMessages, Lamps, Switches, Function switches, Data, Bar graphs, Clocks, Keyboards, Line graphs, Alarm list, Alarm history, Custom parts (messages, lamps, switches)
    Functions:Other functionsRecipe, Flow display, Write device, Language switching, GT link, Operation security, Data logging, SD recipe
    Functions:Clock functionProvided with a built-in clock. (Can also refer to and display a PLC clock.)
    * Buy the backup battery (AFPX-BATT).
    Functions:Contrast adjustmentUnnecessary
    Functions:BuzzerInstalled
    Functions:Automatic communication settingsThe communication speed (baud rate) is automatically changed if there is no response from the target equipment.
    Functions:Through functionGT connected between PC and PLC allows PLC to be debugged without a direct connection to a PC.
    Functions:Screen creationDedicated software should be used. Applicable OS: Windows® 2000 / XP / Vista / 7 / 8 / 8.1 / 10
    Note: The 64-bit version is not supported except for Windows® 7 / 8 / 8.1 / 10.
    Windows is registered trademark or trademark of Microsoft Corporation in the United States and other countries.
    Touch key resolutionFree layout (8 dots min.)
    Touch key operation force0.8 N or less
    Touch key life1 million operations or more (at +25 ℃ +77 ℉)
    COM. Port:Communication standardConforms to RS-232C
    COM. Port:External communication conditionsBaud rate: 9,600 bps, 19,200 bps, 38,400 bps, 57,600 bps, 115,200 bps
    Data bits: 7 or 8 bits, Parity: None, Odd, Even, Stop bits: 1 bit
    COM. Port:ProtocolOur FP series supported, General-purpose serial interface supported, Other companies' PLC supported (Refer to the compatible PLC list for manufacturers and models.)
    COM. Port:ConnectorConnector terminal block (8 pins)
    Screen data transfer interface:Communication standardUSB1.1
    Screen data transfer interface:ProtocolOur dedicated protocol
    Screen data transfer interface:ConnectorUSB Mini-B
    User’s memory:MemoryF-ROM
    User's memory:Capacity2 Mbyte
    Memory backup:MemorySRAM
    Memory backup:Backup batteryLithium battery (replaceable) AFPX-BATT (Does not include with product.)
