AHY100｜HY Relays(Discontinued)
Download
Discontinued
Last time buy (JST)

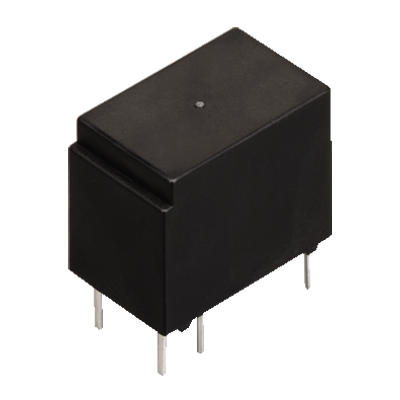

*Photo may vary from actual product.
This product has been confirmed that it does not contain the 6 substances specified in EU RoHS Directive 2011/65/EU and the 4 substances specified in 2015/863/EU.
| Product Number | HY1-1.5V |
|---|---|
| Part Number | AHY100 |
| Details | Single side stable type, Standard PC board terminal, 1.5V DC |
| Product Name | HY Relays(Discontinued) |
| Features | Non-polarized compact 1Form C relay that achieves 150 mW power consumption |
Spec Detail
| Item | Specifications |
|---|---|
| Part Number | AHY100 |
| Product Number | HY1-1.5V |
| Product details | Single side stable type, Standard PC board terminal, 1.5V DC |
| Protective construction | Sealed Type |
| Terminal shape | Standard PC board terminal |
| Contact arrangement | 1 Form C |
| Contact material | Ag+Au clad |
| Operating function | Single side stable type |
| Rated operating power | 150mW |
| Rated coil voltage | 1.5V DC |
| Pick-up voltage (at20℃) | 75%V or less of nominal voltage (Initial) |
| Drop-out voltage (at20℃) | 10%V or more of nominal voltage (Initial) |
| Contact rating (resistive load) | 1 A 30 V DC |
| Max.switching current | 2 A |
| Min. switching capacity | 1mA 1 V DC |
| Breakdown voltage (Initial) : Between open contacts | 500 Vrms for 1min. (Detection current: 10mA.) |
| Breakdown voltage (Initial) : Between contact and coil | 1,000 Vrms for 1min. (Detection current: 10mA.) |
| Expected life : Mechanical | Min. 107 (at 180 cpm) |
| Expected life : Electrical | Min. 105 (1 A 30 V DC resistive) (at 20 cpm) |
| Conditions | Ambient temperature: –40 to +70℃ –40 to +158°F Humidity: 5 to 85% R.H. (Not freezing and condensing at low temperature) |
| Height (mm) | 10.1 |
| Unit weight | Approx. 1.8 g .063 oz |
| Packing style | Tube packing |
| Standard packing: Inner packing (pcs.) | 50 |
| Standard packing: Case (pcs.) | 2000 |
Information on Compliance with Standards
| Status | Status | Information on Compliance | ||
|---|---|---|---|---|
| UL | Approval | File No. | E43149 | |
| Rating | 1A 30V DC | |||
| Remarks | Approved by 100,000 operation rating | |||
| Last update | ||||
| CSA | Approval | File No. | 80126050 | |
| Rating | 1A 30V DC | |||
| Remarks | Approved by 100,000 operation rating | |||
| Last update | ||||
| Mark on products* | ||||
* The "Mark on products" field shows the standards' certificate type marked to products. Note that not all certified products have a certificate mark affixed to them.
