ALE1PB12｜LE Relays(Discontinued)
Download
Discontinued
Last time buy (JST)

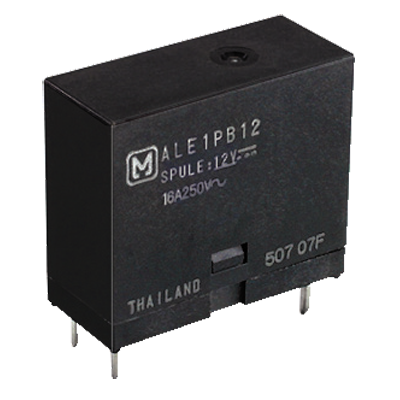

*Photo may vary from actual product.
This product has been confirmed that it does not contain the 6 substances specified in EU RoHS Directive 2011/65/EU and the 4 substances specified in 2015/863/EU.
| Product Number | ALE1PB12 |
|---|---|
| Part Number | ALE1PB12 |
| Product Name | LE Relays(Discontinued) |
| Features | 1 Form A 16A power relay for micro wave oven |
Spec Detail
| Item | Specifications |
|---|---|
| Part Number | ALE1PB12 |
| Product Number | ALE1PB12 |
| Protective construction | Flux-resistant |
| Operating function | Single side stable |
| Terminal shape | PC board terminal |
| Rated operating power type | Standard type |
| Coil insulation class | Class B insulation |
| Insulation distance | [Between contact and coil] Clearance: Min. 8 mm, Creepage: Min. 9.5 mm |
| Standard packing Carton (pieces) | 100 |
| Standard packing Case (pieces) | 500 |
Coil data
| Item | Specifications |
|---|---|
| Rated coil voltage | 12 V DC |
| Operate voltage (at20℃) | Max. 75% V of rated coil voltage (Initial) |
| Release voltage (at20℃) | Min. 5% V of rated coil voltage (Initial) |
| Rated operating current [±10%] (at 20℃) | 33.3 mA |
| Coil resistance [±10%] (at 20℃) | 360 Ω |
| Rated operating power | 400 mW |
| Max. allowable voltage (at 20℃) | 145% V of rated coil voltage |
Specifications
| Item | Specifications |
|---|---|
| Contact arrangement | 1 Form A |
| Contact shape | Single |
| Contact resistance (initial) | Max. 100 mΩ (by voltage drop 6 V DC 1 A) |
| Contact material | AgSnO2 type |
| Contact rating (resistive load) | 16 A 277 V AC |
| Max. switching power (resistive load) | 4,432 VA |
| Max. switching voltage | 277 V AC |
| Max. switching current | 16 A |
| Min. switching load (reference value) | 100 mA 5 V DC |
| Insulation resistance (initial) | Min. 1,000 MΩ (at 500 V DC, Measured portion is the same as the case of dielectric strength.) |
| Dielectric strength (initial) : Between open contacts | 1,000 Vrms for 1 min (detection current: 10 mA) |
| Dielectric strength (initial) : Between contact and coil | 4,000 Vrms for 1 min (detection current: 10 mA) |
| Surge withstand voltage (initial) : Between contact and coil | 10,000 V |
| Operate time (initial) (at 20℃) | Max. 20 ms at rated coil voltage (without bounce) |
| Release time (initial) (at 20℃) | Max. 20 ms at rated coil voltage (without bounce, with diode) |
| Shock resistance (Functional) | 200 m/s2 (half-sine shock pulse: 11 ms, detection time: 10 μs) |
| Shock resistance (Destructive) | 1,000 m/s2 (half-sine shock pulse: 6 ms) |
| Vibration resistance (Functional) | 10 to 55 Hz (at double amplitude of 1.5 mm, detection time: 10 μs) |
| Vibration resistance (Destructive) | 10 to 55 Hz (at double amplitude of 1.5 mm) |
| Mechanical life | Min. 2x106 ope. (switching frequency: at 180 times/min) |
| Conditions | Ambient temperature: -40 to +85℃ Humidity: 5 to 85% RH (Avoid icing and condensation) |
| Unit weight | Approx. 15 g |
Information on Compliance with Standards
| Status | Status | Information on Compliance | ||
|---|---|---|---|---|
| UL | Approval | File No. | E43149 | |
| Rating | 16A 277V AC 16A 30V DC | |||
| Remarks | - | |||
| Last update | ||||
| CSA | Approval | File No. | LR26550 | |
| Rating | 16A 277V AC 16A 30V DC | |||
| Remarks | - | |||
| Last update | ||||
| VDE | Approval | File No. | 40009159 | |
| Rating | 16A 250V AC(cosφ=1.0) 16A 30V DC(0ms) | |||
| Remarks | - | |||
| Last update | ||||
| TV | Approval | File No. | E43149 | |
| Rating | TV5 | |||
| Remarks | - | |||
| Last update | ||||
| CQC | Approval | File No. | CQC09002039708 | |
| Rating | - | |||
| Remarks | - | |||
| Last update | ||||
| Mark on products* | ||||
* The "Mark on products" field shows the standards' certificate type marked to products. Note that not all certified products have a certificate mark affixed to them.
