AP5528F｜HL Relays(Discontinued)
Download
Discontinued
Last time buy (JST)

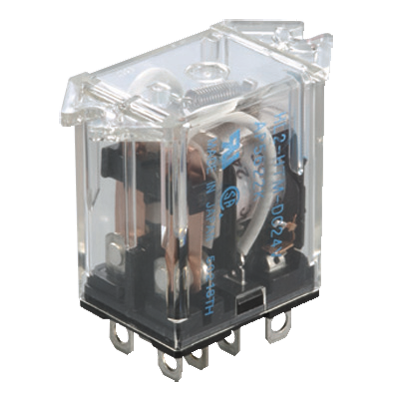

*Photo may vary from actual product.
This product has been confirmed that it does not contain the 6 substances specified in EU RoHS Directive 2011/65/EU and the 4 substances specified in 2015/863/EU.
| Product Number | HL2-HTM-AC240V-F |
|---|---|
| Part Number | AP5528F |
| Details | Quick connect terminal (TM type), Without LED indication |
| Product Name | HL Relays(Discontinued) |
| Features | Relay for control panel of 1c 15A, and 2c 10A |
Spec Detail
| Item | Specifications |
|---|---|
| Part Number | AP5528F |
| Product Number | HL2-HTM-AC240V-F |
| Product details | Quick connect terminal (TM type), Without LED indication |
| Protective construction | Dust Cover Type |
| Terminal arrangment | Quick connect terminal (TM type) |
| Contact arrangement | 2 Form C |
| Coil voltage | 220/240V AC |
| Nominal Operating Power | 1.3VA(50Hz)/1.2VA(60Hz) |
| Pick-up voltage | 176/192V AC |
| Drop-out voltage | 66/72V AC |
| Nominal switching capacity (Resistive load) | 10A,250V AC |
| Min. switching capacity | 100mA 5V DC |
| Type of operation | BBM |
| Contact material | AgSnO2 type |
| Expected life (Mechanical) (Min.operation) | 5x10^7 |
| Expected life (Electrical) | 5x10^5 |
| Breakdown voltage (Contact-Contact)(Initial) | 1000Vrms |
| Breakdown voltage (Contact-Coil)(Initial) | 2000Vrms |
| Ambient temperature | -50deg to +70deg |
| Operating function | Single Side Stable Type |
| Operation indication | Without LED indication |
Information on Compliance with Standards
| Status | Status | Information on Compliance | ||
|---|---|---|---|---|
| UL/C-UL | Approval | File No. | E43028 | |
| Rating | 10A 250V AC 1/3 HP 125, 250V AC 10A 30V DC | |||
| Remarks | - | |||
| Last update | ||||
| CSA | N/A | File No. | - | |
| Rating | - | |||
| Remarks | CSA standard certified by C-UL | |||
| Last update | ||||
| TUV | Approval | File No. | B 18 03 13461 375 | |
| Rating | 10A 250V AC (cosφ=1.0) 10A 30V DC (L/R=0ms) | |||
| Remarks | - | |||
| Last update | ||||
| TV | N/A | File No. | - | |
| Rating | - | |||
| Remarks | Approved for products having a different last digit of part number. | |||
| Last update | - | |||
| Mark on products* | ||||
* The "Mark on products" field shows the standards' certificate type marked to products. Note that not all certified products have a certificate mark affixed to them.
