AP312346F｜HC Relay Amber Type(Discontinued)
Download
Discontinued
Last time buy (JST)

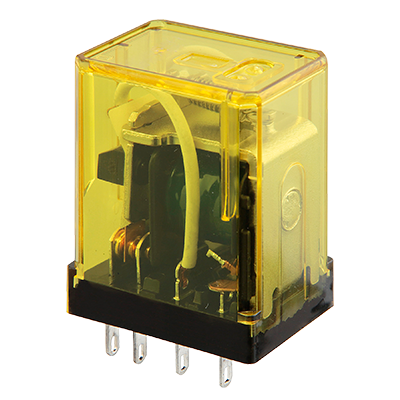

*Photo may vary from actual product.
This product has been confirmed that it does not contain the 6 substances specified in EU RoHS Directive 2011/65/EU and the 4 substances specified in 2015/863/EU.
| Product Number | HC2E-L-AC48V-F |
|---|---|
| Part Number | AP312346F |
| Details | Plug-in terminal |
| Product Name | HC Relay Amber Type(Discontinued) |
| Features | Wide applications. Versatile range. Foot print compatible with competitive types |
Spec Detail
| Item | Specifications |
|---|---|
| Part Number | AP312346F |
| Product Number | HC2E-L-AC48V-F |
| Product details | Plug-in terminal |
| Accessories | Sockets and terminal sockets are available. |
| Protective construction | Sealed Type |
| Terminal arrangment | Plug-in terminal |
| Contact arrangement | 2 Form C |
| Coil voltage | 48V AC |
| Nominal Operating Power | 1.3VA(50Hz)/1.2VA(60Hz) |
| Pick-up voltage | 38.4V AC |
| Drop-out voltage | 14.4V AC |
| Nominal switching capacity (Resistive load) | 3A,250V AC |
| Min. switching capacity | 1mA 1V DC |
| Type of operation | BBM |
| Contact material | Stationary contact: AgSnO2 type + Au flash Movable contact: AgSnO2 type + Au flash |
| Expected life (Mechanical) (Min.operation) | 5x10^7 |
| Expected life (Electrical) | 2x10^5 |
| Breakdown voltage (Contact-Contact)(Initial) | 700Vrms |
| Breakdown voltage (Contact-Coil)(Initial) | 2000Vrms |
| Ambient temperature | -40deg to +60deg |
| Operating function | Single Side Stable Type |
| Operation indication | With LED indication |
Information on Compliance with Standards
| Status | Status | Information on Compliance | ||
|---|---|---|---|---|
| UL | Approval | File No. | E43028 | |
| Rating | 4A 250V AC 1/10 HP 125, 250V AC 3A 30V DC | |||
| Remarks | - | |||
| Last update | ||||
| CSA | Approval | File No. | LR26550 | |
| Rating | 4A 250V AC 1/10 HP 125, 250V AC 3A 30V DC | |||
| Remarks | - | |||
| Last update | ||||
| Mark on products* | ||||
* The "Mark on products" field shows the standards' certificate type marked to products. Note that not all certified products have a certificate mark affixed to them.
