AYF362535｜Y3BC(0.3mm pitch)(Discontinued)

Download

Discontinued

Last time buy (JST)

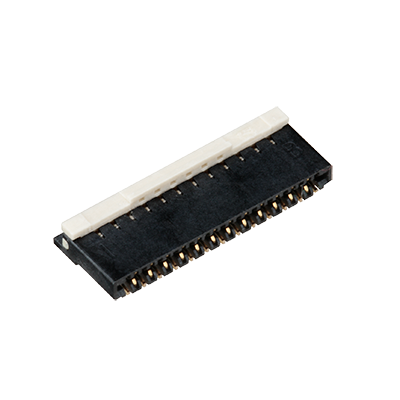

*Photo may vary from actual product.

This product has been confirmed that it does not contain the 6 substances specified in EU RoHS Directive 2011/65/EU and the 4 substances specified in 2015/863/EU.

    Product Number

    AYF362535

    Part Number

    AYF362535

    Details

    Back lock

    Product Name

    		 Y3BC(0.3mm pitch)(Discontinued)

    Features

    Pitch 0.3 mm and double top and bottom contacts construction
    Substitute
    Sub Prod No.
    Sub Part No.
    Remark

    Spec Detail

    ItemSpecifications
    Part NumberAYF362535
    Product NumberAYF362535
    Product detailsBack lock
    Connector TypeFPC
    Piece Type1 Piece type
    ApplicationsSmartphones, DSC and other mobile devices
    Contact pitch (mm)0.3
    Terminal pitch (mm)0.6
    Lock structureBack lock
    Contact directionTop and bottom contact
    Number of pins25
    Packing styleEMBOSSED TAPE AND PLASTIC REEL
    Packing Inner carton5,000 pieces (1-reel)
    Packing Outer carton10,000 pieces
    Soldering terminalswithout
    FPC holding contactswithout
    Body length (L mm)8.40
    Body Height (H mm)1.00
    Recommended PC board pattern Width (mm)3.60
    Rated current0.2A/pin contact
    Dielectric strength150V AC for 1min.
    Insulation resistance (Min. MΩ) (Initial)1000
    Contact resistance (Max.mΩ)100
    Insertion and removal life (times)20
    Molded portion materialHousing: LCP resin (UL94V-0) Lever: LCP resin (UL94V-0)
    Contact and Post MaterialCopper alloy
    Surface treatment materialBase: Ni plating, Surface: Au plating
