AXK850125WG｜P4(0.4mm pitch) With soldering terminals(Discontinued)

Download

Discontinued

Last time buy (JST)

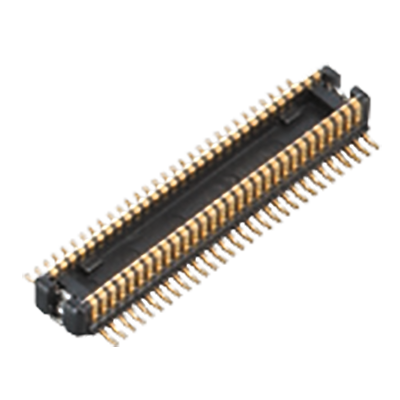

*Photo may vary from actual product.

This product has been confirmed that it does not contain the 6 substances specified in EU RoHS Directive 2011/65/EU and the 4 substances specified in 2015/863/EU.

    Product Number

    AXK850125WG

    Part Number

    AXK850125WG

    Details

    Header

    Product Name

    		 P4(0.4mm pitch) With soldering terminals(Discontinued)
    Substitute
    Sub Prod No.
    Sub Part No.
    Remark

    Spec Detail

    ItemSpecifications
    Part NumberAXK850125WG
    Product NumberAXK850125WG
    Product detailsHeader
    Connector TypeBOARD-TO-BORAD, BOARD-TO-FPC
    Piece Type2 Pieces type (Header)
    Socket/HeaderHeader
    ApplicationsCompact portable devices "Cellular phones, DVC, Digital cameras, etc"
    Terminal pitch (mm)0.4
    Number of pins50
    Mated height (mm)1.5mm/2.0mm/2.5mm
    Packing styleEMBOSSED TAPE AND PLASTIC REEL
    Packing Inner carton3,000 pieces (1-reel)
    Packing Outer carton6,000 pieces
    Soldering terminalswith
    Positioning bosseswithout
    Body length (L mm)11.10
    Body Height (H mm)1.31
    Short width (mm)3.96
    Recommended PC board pattern Width (mm)4.56
    Rated current0.3A/pin contact (Max. 5A at total pin contacts)
    Dielectric strength150V AC for 1min.
    Insulation resistance (Min.MΩ) (Initial)1000
    Contact resistance (Max.mΩ)70
    Insertion and removal life (times)50
    Molded portion materialHeat-resistant resin (UL94V-0), Black
    Contact and Post MaterialCopper alloy
    Surface treatment materialBase: Ni plating Surface: Au plating
