AXE314124｜A4F(0.4mm pitch)(Discontinued)

Download

Discontinued

Last time buy (JST)

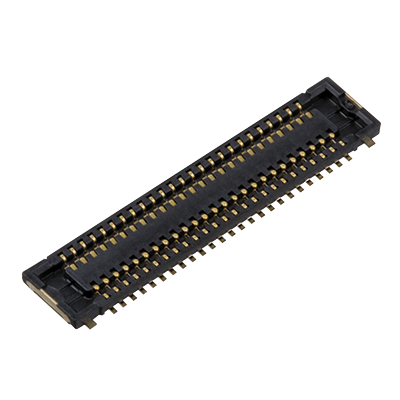

*Photo may vary from actual product.

This product has been confirmed that it does not contain the 6 substances specified in EU RoHS Directive 2011/65/EU and the 4 substances specified in 2015/863/EU.

    Product Number

    AXE314124

    Part Number

    AXE314124

    Details

    Socket

    Product Name

    		 A4F(0.4mm pitch)(Discontinued)
    Substitute
    Sub Prod No.
    Sub Part No.
    Remark

    Spec Detail

    ItemSpecifications
    Part NumberAXE314124
    Product NumberAXE314124
    Product detailsSocket
    Connector TypeBOARD-TO-FPC
    Piece Type2 Pieces type (Socket)
    Socket/HeaderSocket
    ApplicationsCompact portable devices "Cellular phones, DVC, Digital cameras, etc"
    Terminal pitch (mm)0.4
    Number of pins14
    Mated height (mm)0.6mm
    Packing styleEMBOSSED TAPE AND PLASTIC REEL
    Packing Inner carton5,000 pieces (1-reel)
    Packing Outer carton10,000 pieces
    Soldering terminalswith
    Positioning bosseswithout
    Body length (L mm)5.30
    Body Height (H mm)0.57
    Short width (mm)3.00
    Recommended PC board pattern Width (mm)3.40
    Rated current0.3A/pin contact (Max. 5A at total pin contacts)
    Dielectric strength150
    Insulation resistance (Min.MΩ) (Initial)1000
    Contact resistance (Max.mΩ)90
    Insertion and removal life (times)30
    Molded portion materialLCP resin (UL94V-0)
    Contact and Post MaterialCopper alloy
    Surface treatment materialBase: Ni plating Surface: Au plating
