PV310 (Discontinued Products)
Download
-
Discontinued Products
-
Specifications
-
Dimensions
Ⅾiscontinued
Last time buy (JST)
September 30, 2013
------------------------------ Tab1 showing ------------------------------
Discontinued Products
Recommended Substitutes
[Note]
The following applicable products and options are available continuously.
Product Name | Specification | CE | Part No. |
---|---|---|---|
Double-Speed Random Camera (C Mount) | progressive support | ○ | ANM831 |
Standard Camera (CS Mount) | with 3 m cable | ANM832 | |
with 3 m cable | ○ | ANM832CE | |
with 30 cm cable | ANM83203 | ||
Double-Speed Random Camera Cable | 3 m | ANM84303 | |
3 m | ○ | ANM84303CE | |
Double-Speed Random Camera Cable (Durable Type) = 3m | ANM84603 | ||
Camera Extension Cable | 2 m extension: Total 5 m | ANM84002A | |
7 m extension: Total 10 m | ANM84007A | ||
12 m extension: Total 15 m | ANM84012A | ||
17 m extension: Total 20 m | ANM84017A | ||
2 m extension: Total 5 m | ○ | ANM84002ACE | |
7 m extension: Total 10 m | ○ | ANM84007ACE | |
12 m extension: Total 15 m | ○ | ANM84012ACE | |
12 m extension: Total 15 m | ○ | ANM84017ACE | |
Durable extention 2 m: Total 5 m | ANM84502 | ||
Durable extention 7 m: Total 10 m | ANM84507 | ||
Durable extention 12 m: Total 15 m | ANM84512 | ||
Durable extention 17 m: Total 20 m | ANM84517 | ||
VGA Monitor Cable | Cable length: 3 m | ANMX83313 | |
C Mount Lens | f8.5 C mount lens with lock | ANB843L | |
f16 C mount lens with lock | ANB845NL | ||
f16 C mount compact lens with lock | ANM88161 | ||
f25 C mount compact lens | ANB846NL | ||
f25 C mount compact lens with lock | ANM88251 | ||
f50 C mount super-compact lens with lock | ANB847L | ||
f50 C mount super-compact lens | ANM88501 | ||
Adapter Ring | 5 mm | ANB84805 | |
0.5/1/5/10/20/40 mm | ANB848 | ||
Operation Keypad | with 2 m cable | ANM85202 | |
with 3 m cable | ANM85203 | ||
with 5 m cable | ANM85205 | ||
with 10 m cable | ANM85210 | ||
with 10 m cable | ○ | ANM85202CE | |
with 3 m cable | ○ | ANM85203CE | |
with 5 m cable | ○ | ANM85205CE | |
with 5 m cable | ○ | ANM85210CE | |
COM Port Cable | for connection to PC (D-SUB: 9 pins): 3 m | ANM81103 | |
for connection to PLC (discrete-wire cable): 3 m | ANM81303 |
------------------------------ Tab2 showing ------------------------------
Specifications
General Specifications
troller: ANPV0310***
Item | Specification |
---|---|
Rated Operating Voltage | 24V DC |
Operating Voltage Range | 21.6 to 26.4V DC(including ripples) |
Rated Current Consumption | 0.7A max.(1 camera) 0.9A max.(1 camera) |
Ambient Temperature (in use) | 0 to 50°C(no freezing or condensation) |
Storage Ambient Temperature | -20 to +60°C(no freezing or condensation) |
Ambient Humidity (in use and storage) | 35 to 75%RH(at 25°C with no freezing or condensation) |
Noise Immunity | 1000 V pulse width 50 ns/1 μs(using noise simulator method) |
Vibration Resistance | 10 to 55 Hz, 1 cycle/1 min. Double amplitude of 0.75 mm. 30 min. each in X, Y and Z directions |
Shock Resistance | 196 m/s2, 5 times each in X, Y and Z directions |
Weight | Approx. 450g |
Dimensions (mm) | W59 × H130 × D100 (with connector 110) |

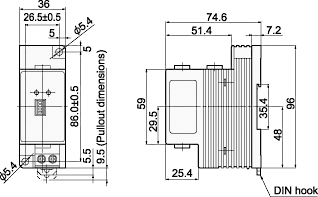

Camera Switching Unit: ANPV3700
Item | Specification | |
---|---|---|
Functions | Camera Switching | 2-camera input - 1-camera output (Switching by external signal input/Manual switching) |
Camera Image Split ANM832 (CE) only | 2-camera input - 1-camera output of top/bottom split images/ 2-camera input - 1-camera output of left/right split images | |
External Switching Signal Input | 1 input, photo-coupler bidirectional input supported, 5 to 24 V DC | |
DIP Switch Setting | LOCAL/REMOTE、NOMAL/DIV、A/B、Top-Bottom/Left-Right | |
Rated Voltage Range | 12V DC(supplied from the MICROIMAGECHECKER unit) | |
Weight | Approx. 150 g (Main unit only) |
*1 Included items: 1 connection cable (30 cm), 2 ferrite cores, and 1 installation manual
*2 The operation condition requirements are the same as those for the PV310 Controller.
Functional Specifications
Functional Specifications
Item | Specification | |
---|---|---|
Settings Data Storage Capacity | Approx. 4 MB | |
Frame Memory | 512×480(pixels) | |
Operation Environment | Menu selection by dedicated keypad Key Emulation Menu selection by serial command | |
Input/Output | Cameras | 2 Standard cameras, double-speed random cameras, or ultra-compact cameras (max. 4 cameras when using camera switching unit, excluding ultra-compact camera) |
Monitor Output | Color VGA ouput | |
Memory Card | Compact Flash: 1 slot | |
Serial | RS-232C×1 | |
Parallel | Input: 13 points; output: 14 points; removable screw-down terminal block | |
Keypad Input | 1 Connector for dedicated keypad (ANM8520*) | |
Tools | Ethernet: 1 channel |
Image Processing Functional Specifications
Item | Specification | |
---|---|---|
Monitor Display | Full color VGA/gray scale image/binary image Two-screen compressed display: side-by-side display (when gray scale image selected) through/memory, data monitor, marker, + information display region (128x480) | |
Number of Connected Cameras | Max. 2 cameras (Max. 4 cameras using camera switching unit, excluding ultra compact camera) | |
Processing Method | Gray scale processing - Binary processing | |
No. of Product Types | Max. 64 types(depends on settings data capacity) | |
Inspection Functions | Max. 99 checkers/product type Position adjustment,rotation adjustment,binary window Gray scale window,binary edge,gray scale edge Feature extraction,smart matching,contour matching,scratch detection | |
Numerical Computation | Max. 96 functions/product type Operators: 4-operation calculation, ,√,arc tangent,distance between 2 points,parenthesis, sin, cos, absolute value of difference | |
Judgment Output | Max. 96 functions/product type Operators: NOT/AND/OR/XOR/parenthesis | |
Statistics | Max. 96/product type Calculation of no. of passes/no. of fails/fails/pass average/pass distribution/pass max. value/pass min. value/pass range(for judgment output no. of passes/no. of fails only) | |
Data Monitor | Max. 50/product type Displayed on screen in table form during RUN Title input and substitution of numerical computation results, judgment output results, statistical results and product numbers possible | |
Operation Data | Max. 4/environment Substitution in numerical computation possible | |
Marker | Max. 8/product type Graphic display on screen during RUN | |
External Input/Output | Serial | RS-232C=1ch(max. speed 115200bps) |
Input: start/product type switch/camera display switch/template re-registration/CompactFlash settings restore/reference to and alteration of upper and lower values for numerical computation/reference to and alteration of binary level/reference to and alteration of gray scale edge thresholds/data storage/fixed length input for input commands for statistics initialization (for PLC) Output: output (no. of inspections/judgment output/numerical computations/statistics) synchronous or asynchronous to inspection start trigger Computer link support: Supported models: Panasonic Industry PLC OMRON Corporation - C, CV and CS1 series Mitsubishi Electric Corporation - A, Q and FX series Rockwell Automation DF1 protocol Fuji Electric SX series | ||
Parallel | Input: 13 points; output: 14 points Input: start/product type switch/camera display switch/template re-registration/data restore from Compact Flash Output: ready/error/flush/image acquired/strobe/judgment output data/synchronous output (no. of inspections/judgment output/numerical computation/statistics) possible by handshake output | |
Ethernet(1 channel) | Output: no. of inspections/judgment output/numerical computations/statistics/ settings data/image backup and restore/conversion to documentation for settings data (Vision AXTOOL) | |
CF Card(1 slot) | Output: no. of inspections/judgment output/numerical computations/statistics/ settings data/image backup and restore/screen dumps | |
Other | Display Functions | Transparent menu/parallel output status monitor/reference coordinate display/checkers with fail results highlighted in different color |
Collective Movement | Collective movement of set checkers in units of position/rotation adjustment groups | |
Image Storage | Max. 16 images/camera Each time/storage possible according to judgment result Test runs available on stored images Display of date and time saved Function to maintain display of last image saved | |
Setting Help | Focusing/aperture adjustment/parallel monitor/lighting adjustment/gray scale profile display | |
Calendar | Calendar information added to stored images File time stamp | |
Password | Password function for when moving between settings modes |
------------------------------ Tab3 showing ------------------------------
Dimensions

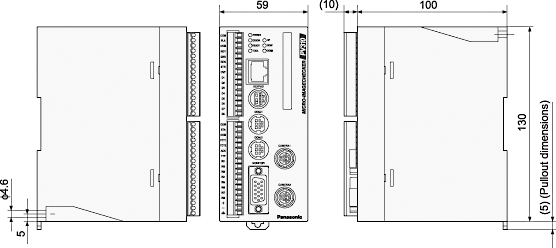

Unit: mm inMICRO-IMAGECHECKER PV310
ANPV0310EDN
Operation Keypad
ANM852**
ANM852**CE

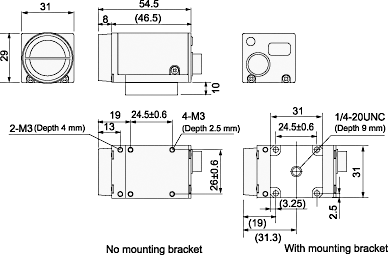

Double-speed Random Camera: C Mount
ANM831

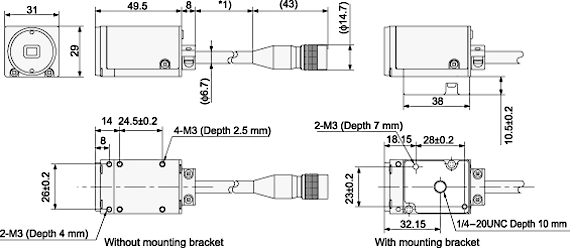

Standard Camera: CS Mount
ANM832/ANM83203/ANM832CE
*1 ANM832:3000+80-10
ANM832CE:2780+80-10
ANM83203:300+40-10

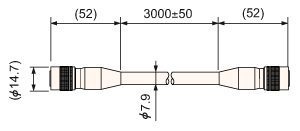

Double-speed Random Camera Cable
ANM84303/ANM84303CE
*2 This is the length of cable in use. Becomes slightly shorter with CE attached.
Double-speed Random Camera Cable(Durable Type)
ANM84603

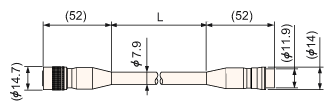

Camera Extension Cable : CE version
ANM840**A/ANM840**ACE
*3 The boxes correspond to the length of cable in use.
Camera Extension Cable(Durable Type)
ANM845**A
*3 The boxes correspond to the length of cable in use.
Lens
0.3M camera lenses
ANB842NL
ANB843L
ANB845NL
ANB846NL
ANB847L
ANM88161
ANM88251
ANM88501
