M100 (Discontinued Products)

Download

Currently, there are no downloadable files available for this product.

  • Discontinued Products

  • Specifications

  • Dimensions

Ⅾiscontinued

Last time buy(JST)

August 01, 2003

We are sorry, the products have been discontinued. Please refer to the details of the discontinued products and the recommended substitutes list below.

------------------------------ Tab1 showing ------------------------------

Discontinued Products

pic01

Recommended Substitutes

------------------------------ Tab2 showing ------------------------------

Specifications

CPU32bit RISC CPU
Image memoryHorizontal 512 x vertical 480 x 8bit(256 gray-scale levels)
Processing resolutionNormal shutter: horizontal 512 x vertical 480
Electronic shutter / random shutter: horizontal 512 x vertical 240
Processing functionDetermined by package
Input / OutputSerial portRS-232C: 1
Parallel port7 photocoupler inputs, 11 photocoupler outputs
Monitor output1 ch
No. of cameras connectable1 (2 with optional camera switching unit)
Operation inputDedicated operation keypad
Ambient usage temperature / humidity0 to 50℃ / 35 to 75%RH (with no condensation or frosting)
Ambient storage temperature / humidity-20 to 60℃ / 35 to 75%RH (with no condensation or frosting)
Rated voltage / rated currentDC 24V / 1.4A max. (0.9A max. when only one camera is connectable)
WeightApprox. 800g

------------------------------ Tab3 showing ------------------------------

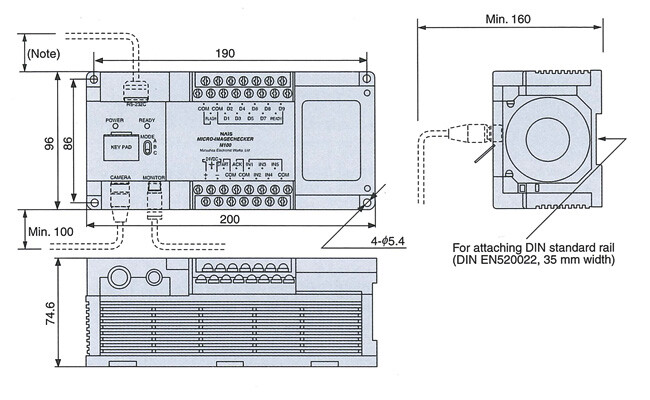

Dimensions

Unit: mm in

(Note) This varies depending on the cable being used. Do not apply excessive force to the connector.
