AE20 (Discontinued Products)
Download
-
Discontinued Products
-
Specifications
-
Dimensions
Ⅾiscontinued
Last time buy (JST)
August 31, 2012
Please refer to the details of the discontinued products and the recommended substitutes list below.
------------------------------ Tab1 showing ------------------------------
Discontinued Products
Recommended Substitutes
------------------------------ Tab2 showing ------------------------------
Specifications
General Specifications
Item | Specifications |
---|---|
Rated Operating Voltage | 24 V DC |
Operating Voltage Range | 21.6 to 26.4 V DC (including ripples) |
Rated Current Consumption | 0.5 A max. |
Ambient Temperature in Use | 0 to +40°C |
Storage Ambient Temperature | -20 to +60°C (no freezing or condensation) |
Ambient Humidity in Use | 35 to 85 %RH (at 25°C no freezing or condensation) |
Storage Ambient Humidity | 35 to 85 %RH (at 25°C no freezing or condensation) |
Insulation Resistance | 100 Mohm max. (500 VDC) *1 |
Breakdown Voltage | 500 V AC/1 min (600 V AC/1 sec) *1 |
Noise Immunity | 1000 V pulse width 50 ns/1 µs (using noise simulator method) |
Protective Structure | IP67 *2 |
Weight | Approx: 300 g (Main Unit) |
Vibration Resistance | 10 to 55 Hz, 1 sweep/min. Double amplitude of 1.5 mm. 30 min. each in X, Y and Z directions |
Shock Resistance | 196 m/s2, 5 times each in X, Y and Z directions |
*1
Evaluation was carried out with the primary side power supply varistor and capacitor removed from the internal circuit of the device.
*2
Evaluation was carried out with the USB cable not connected and the waterproof cap in place.
This product conforms to EU EMC standards (EN61000-6-4 and EN61000-6-2) in accordance with EMC Directive 89/336/EEC.
Function Specifications
Main Unit
Item | Specifications | ||||
---|---|---|---|---|---|
Model | ANE2000 | ANE2010 | ANE2020 | ANE2030 | |
Installation Distance (mm) | 15±0.5 | 45±2.5 | 55±5 | 170(145 to 220) | |
Visual Field (mm) | 2×1.6 | 10×8 | 30×25 | 80×70(70×56 to 100×80)*3 | |
Resolution (mm) | 0.02 | 0.1 | 0.3 | 0.5 | |
Photo Acceptance Unit | Color C-MOS 330,000 pixels | ||||
Valid Pixels | 352 horizontal x 288 vertical pixels (100,000 pixels) | ||||
Image Capture Light Source | White LED | ||||
Expected Life | Light Amount Half-Life: 30,000 h min. (at 25°C) | ||||
(Conditions) | SPEED | High with internal trigger (during continuous measurement) | |||
Processing time at time of internal trigger *4 | ANE201 * 30 ms (exposure time 2 ms) ANE202 * 30 ms (exposure time 3 ms) ANE203 * 30 ms (exposure time 2 ms) ANE204 * 30 ms (exposure time 3 ms) | ||||
Exposure Time | Shutter timing and interlock (alteration possible from operation unit: 0.03 to 50 ms) | ||||
Visual Field Marker Light Source | White LED | ||||
Parallel | Photo coupler input: 5 points, photoMOS relay output: 5 points | ||||
USB | USB1.1(WindowsXP, 2000, Me, 98(SE)) | ||||
Serial | Usage possible with optional RS-232C cable Settings possible up to 57600 bit/s |
*3
With ANE2030, the visual range changes between 70 x 56 mm to 100 x 80 mm depending on the installation distance.
*4
Processing time at the time of the internal trigger changes according to the application software. If an external trigger is used and the measurement interval increases, LED life can be extended.
Application
1.Color Extraction
Item | Specifications | ||
---|---|---|---|
Function Name | Color Area | ||
Color Resolution | 12 colors (Use the Gretag Macbeth Color Rendition Chart for confirmation) | ||
Function | Detects area of registered color on object | ||
Execution Time [Execution time at time of internal trigger] | 30 ms (approx. 100,000 pixels, data culling: none) | ||
No. of Registered Items | 7 types | ||
Color Registration Method | Teaching (teaches color) | ||
Evaluation Input Value | Upper and lower limit values for area judgment | ||
Serial | RS-232C (when using optional cable) | ||
Input | I/O Command | Trigger Input, Type Switching (types 1 to 7) | |
Teaching Command | Exposure Time Setting | ||
Evaluation Criteria Command | Upper and lower values for area | ||
Output | Evaluation result (OK/NG), computation result and error output | ||
Parallel | Power I/O Cable | ||
Input | Trigger Input, Type Switching (types 1 to 7), Mode Switching (Run/Teaching) | ||
Output | Evaluation result (OK/NG), READY, Alarm |
2.Color Discrimination
Item | Specifications | |||
---|---|---|---|---|
Function Name | Color Discrimination | |||
Color Resolution | 12 colors (Use the Gretag Macbeth Color Rendition Chart for confirmation) | |||
Function | Distinguishes which color among a maximum of 7 registered colors | |||
Execution Time [Execution time at time of internal trigger] | SPEED | High Middle Low | 60 ms (approx. 6,000 pixels, data culling: 1/16) 180 ms (approx. 25,000 pixels, data culling: 1/4) 600 ms (approx. 100,000 pixels, data culling: none) | |
No. of Registered Items | 7 types | |||
Color Registration Method | Teaching (teaches color) | |||
Evaluation Input Value | Upper and lower limit values for area judgment | |||
Serial | RS-232C (when using optional cable) | |||
Input | I/O Command | Trigger Input, Type Switching (types 1 to 7) | ||
Teaching Command | Exposure Time Setting | |||
Evaluation Criteria Command | Upper and lower values for area | |||
Output | Evaluation result, type No., computation result, error output | |||
Parallel | Power I/O Cable | |||
Input | Trigger Input, Type Switching (types 1 to 7), Mode Switching (Run/Teaching) | |||
Output | Evaluation result, type No., READY, Alarm |
3.Edge Detection
Item | Specifications | |||
---|---|---|---|---|
Function Name | Edge Detection | |||
Detection Capability | Resolution (differs according to speed) | |||
SPEED | High Middle Low | 60 ms (approx. 6,000 pixels, data culling: 1/16) 180 ms (approx. 25,000 pixels, data culling: 1/4) 600 ms (approx. 100,000 pixels, data culling: none) | ||
Function | Detects edges of object using binary images. | |||
Execution Time [Execution time at time of internal trigger] | SPEED | High Middle Low | 60 ms (approx. 6,000 pixels, data culling: 1/16) 180 ms (approx. 25,000 pixels, data culling: 1/4) 600 ms (approx. 100,000 pixels, data culling: none) | |
No. of Registered Items | 7 types | |||
Type Registration Method | Teaching (teaches color) | |||
Evaluation Input Value | Extent of permissible area around base point | |||
Serial | RS-232C (when using optional cable) | |||
Input | I/O Command | Trigger Input, Type Switching (types 1 to 7) | ||
Teaching Command | Exposure Time Setting, Binarization Level | |||
Evaluation Criteria Command | Permissible area (X/Y) | |||
Output | Evaluation result (OK/NG), computation result, error output | |||
Parallel | Power I/O Cable | |||
Input | Trigger Input, Type Switching (types 1 to 7), Mode Switching (Run/Teaching) | |||
Output | Evaluation result (OK/NG), READY, Alarm |
4.Apex Detection
Item | Specifications | |||
---|---|---|---|---|
Function Name | Apex Detection | |||
Detection Capability | Resolution (differs according to speed) | |||
SPEED | High Middle Low | Resolution × 4 times Resolution × 2 times Resolution | ||
Function | Detects apex of object using binary images. | |||
Execution Time [Execution time at time of internal trigger] | 30 ms | |||
No. of Registered Items | 7 types | |||
Type Registration Method | Teaching (teaches base point) | |||
Evaluation Input Value | Extent of permissible area around base coordinate | |||
Serial | RS-232C (when using optional cable) | |||
Input | I/O Command | Trigger Input, Type Switching (types 1 to 7) | ||
Teaching Command | Exposure Time Setting, Binarization Level | |||
Evaluation Criteria Command | Permissible area (X/Y) | |||
Output | Evaluation result (OK/NG), computation result, error output | |||
Parallel | Power I/O Cable | |||
Input | Trigger Input, Type Switching (types 1 to 7), Mode Switching (Run/Teaching) | |||
Output | Evaluation result (OK/NG), READY, Alarm |
5.Size Measurement
Item | Specifications | |||
---|---|---|---|---|
Function Name | Size Measurement | |||
Detection Capability | Resolution × 2 times (differs according to speed) | |||
SPEED | High Middle Low | Resolution × 8 times Resolution × 4 times Resolution × 2 times | ||
Function | Detects max. and min. of X and Y values for object using binary images | |||
Execution Time [Execution time at time of internal trigger] | SPEED | High Middle Low | 30 ms (approx. 6,000 pixels, data culling: 1/16) 60 ms (approx. 25,000 pixels, data culling: 1/4) 90 ms (approx. 100,000 pixels, data culling: none) | |
No. of Registered Items | 7 types | |||
Type Registration Method | Teaching | Teaches base vertical size (max./min.) and base horizontal size (max./min.) | ||
Evaluation Input Value | Permissible range from vertical base point (max./min.) and horizontal base point (max./min.) and min. detection size | |||
Serial | RS-232C (when using optional cable) | |||
Input | I/O Command | Trigger Input, Type Switching (types 1 to 7) | ||
Teaching Command | Exposure Time Setting, Binarization Level | |||
Evaluation Criteria Command | Permissible range for X max. width, X min. width, Y max. width and Y min. width | |||
Output | Evaluation result (OK/NG), computation result, error output | |||
Parallel | Power I/O Cable | |||
Input | Trigger Input, Type Switching (types 1 to 7), Mode Switching (Run/Teaching) | |||
Output | Evaluation result (OK/NG), → OUT1: max. evaluation result, OUT2: min. evaluation result, READY, Alarm |
6.Color and Pattern Matching
Item | Specifications | |||
---|---|---|---|---|
Function Name | Color and Pattern Matching | |||
Detection Capability | Resolution (differs according to speed) The speed setting sets the data compression during search. | |||
SPEED | High Middle Low | Resolution × 2 times (8 compression → 4 compression → 2 compression) Resolution (8 compression → 4 compression → no compression) Resolution (4 compression → no compression) | ||
Function | Detects objects close the registered colors and shapes | |||
Execution Time | Computation time (64 x 48 pixel template, default settings) is as a guideline only. Computation time changes according to template size and individual settings. | |||
SPEED | High Middle Low | 100ms 200ms 400ms | ||
No. of Registered Items | 7 types | |||
Type Registration Method | Teaching [Registers a template] | |||
Evaluation Input Value | Permissible range around center coordinates (X coordinate), (Y coordinate) of the template, correlation value (0 to 100) | |||
Serial | RS-232C (when using optional cable) | |||
Input | I/O Command | Trigger Input, Type Switching (types 1 to 7) | ||
Teaching Command | Exposure Time Setting, Binarization Level | |||
Evaluation Criteria Command | Permissible range for X coordinate and Y coordinate | |||
Output | Evaluation result (OK/NG), computation result (center coordinates of template: X and Y coordinates, and evaluation result), error output | |||
Parallel | Power I/O Cable | |||
Input | Trigger Input, Type Switching (types 1 to 7), Mode Switching (Teaching/Run/Run-View) | |||
Output | Evaluation result (OK/NG) → OUT1: result whether detected or not, OUT2: X coordinate evaluation result, OUT3: Y coordinate evaluation result, READY, Alarm |
*The total processing time from receiving the trigger input to output is calculated as follows:
Total Processing Time = Exposure Time + Data Transfer Time (3.8 ms) + Computation Time
Modes
Item | Specifications | |
---|---|---|
Operation Modes | a. Teaching Mode | Sets the search area which stores the evaluation criteria. Set Exposure Time With Color Detection/Color Discrimination: Teaching Area With Edge Detection/Size Measurement: Binary Level With Color and Pattern Matching:Template |
b. RUN Mode | Execution Mode | |
c. RUNVIEW Mode | Displays images in the finder while carrying out processing (1 unit of processing approx. 0.3 s) | |
Environment Settings Modes | a. Speed (selects communication baud rate) b. Device No. (device number with serial communication) c. Output Delay (evaluation output delay) d. Acquisition Delay (delay between trigger input and image acquisition) e. Trigger Selection (switches between continuous measurement/external trigger) f. Type on Startup (initial type setting at startup) g. Backlight Shutoff Time (when shutting the finder unit backlight off) h. Auto-save (switches auto-save ON/OFF) i. Initialization (returns unit to default settings) j. Light ON/OFF (switches white lighting on the main unit ON and OFF) k. Processing Speed (switches between SPEED: High/Middle/Low) l. Buffering Delay m.Answer-back ON/OFF Switch [Size Measurement Only] o. Extracted Color Switch (Black or White) [Color and Pattern Matching Only] p. Detailed Settings ON/OFF Switch (switches settings for 0 to 3 ON and OFF) q. No. of Search Candidates (setting for No. of search candidates: 1 to 50) r. Exposure Correction ON/OFF Switch (switches exposure correction function ON/OFF) |
------------------------------ Tab3 showing ------------------------------
Dimensions
Unit: mm inMain Unit

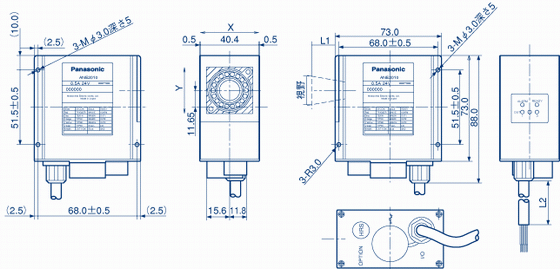

ANE2010 / ANE2020 / ANE2030
Main Unit

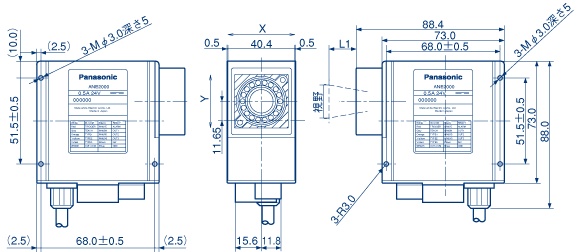

ANE2000
Product number | Installation distance (mm) | Visual field (Xmm ラ Ymm) |
---|---|---|
ANE2000 | 15 | 2×1.6 |
ANE2010 | 45 | 10×8 |
ANE2020 | 55 | 30×25 |
ANE2030 | 170 | 80×70 |

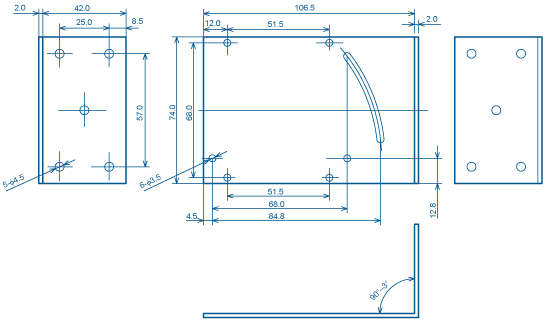

Mounting Bracket
ANE8870
