Aicure UP50 Lamp Spot Type (Discontinued Products)

Download

  • Discontinued Products

  • Specifications

  • Dimensions

  • Data

Ⅾiscontinued

Last time buy (JST)

September 30, 2021

We are sorry, the products have been discontinued. Please refer to the details of the discontinued products and the recommended substitutes list below.

------------------------------ Tab1 showing ------------------------------

Discontinued Products

pic01-1

[Note]
The following applicable products and options are available continuously.

Product nameSpecificationsPart No.
LampFor UP50ANUPS204
Lamp lead wireFor UP50ANUPS50H2

------------------------------ Tab2 showing ------------------------------

Specifications

Aicure Product No.ANUP50
Power supply90 to 264V AC 50/60Hz 280VA
LampLamp Product No.ANUPS204
Lamp200 W mercury xenon lamp, preset quickly-attachable type
*Average life of 3,000 hours: Ratio to the initial UV intensity -- 80% or higher in a vertical position, 70% or higher in a horizontal position (when the auto control function is off)
*Guaranteed life: 2,000 hours
Ambient temperature / ambient humidity+10 to +40 °C +50 to +104 °F / Max. 80 % RH (no condensation)
AccessoriesLamp (ANUPS204)
Power cord (3 m 9.843 ft, 100 V AC compatible, plug with 2-pole ground)
UV irradiationUV intensity adjustment by digital setting (0 to 100%, in increments of 0.5%)
UV auto control
Programmable irradiation (10 steps in each of 10 patterns)
External signal control: Turning the lamp on/off, manual opening/closing of the shutter, starting programmed pattern irradiation, starting timer-controlled irradiation, and executing calibration
ShutterElectronically-controlled shutter using manual or timer-controlled operation
SettingDigital setting using membrane switches
External signalInputOpening/closing the shutter (timer/manual), lighting the lamp
OutputLighting the lamp, stabilizing the lamp light, opening the shutter, outputting error signals, and indicating the lamp life
Dimensions165 × 201 × 325 mm 6.496 × 7.913 × 12.795 in (Excluding protruding sections)
Weight8 kg approx.

------------------------------ Tab3 showing ------------------------------

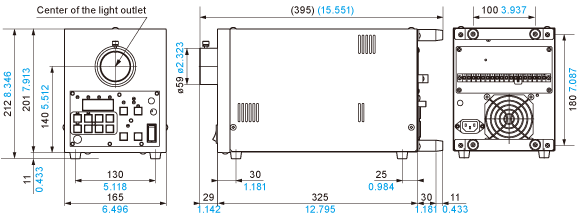

Dimensions

  • Unit: mm in

1.ANUP50 controller

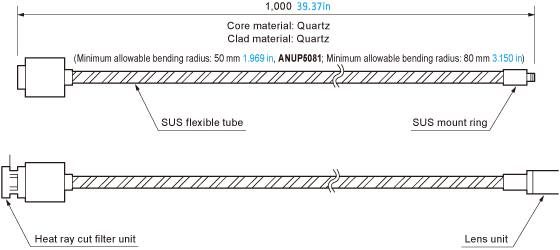

2.Light guide fiber units

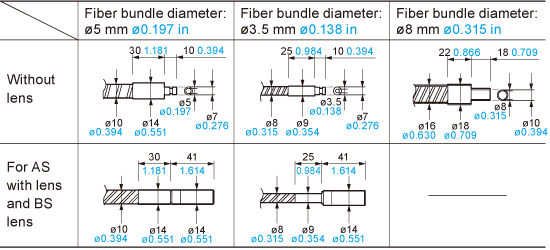

Light outlet end shape

------------------------------ Tab4 showing ------------------------------

Data

Bundle diameter: ø8 mm ø0.315 in, Straight

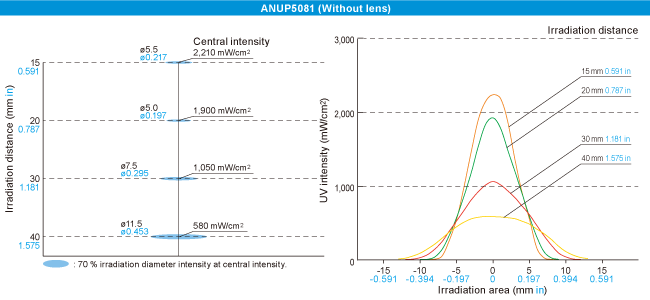

ANUP5081

Bundle diameter: ø5 mm ø0.197 in, Straight

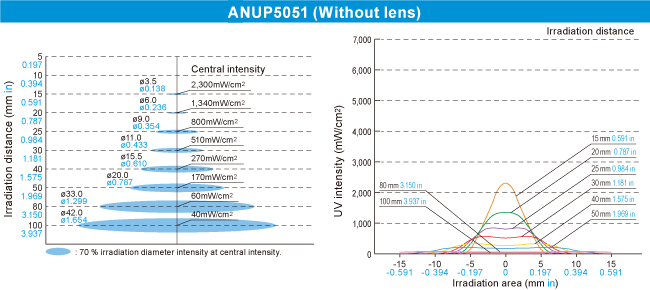

ANUP5051

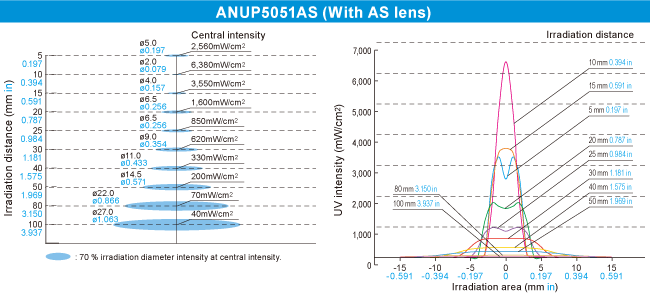

ANUP5051AS

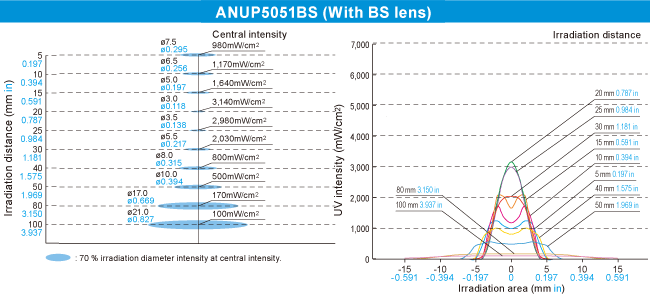

ANUP5051BS

Bundle diameter: ø3.5 mm ø0.138 in, Straight

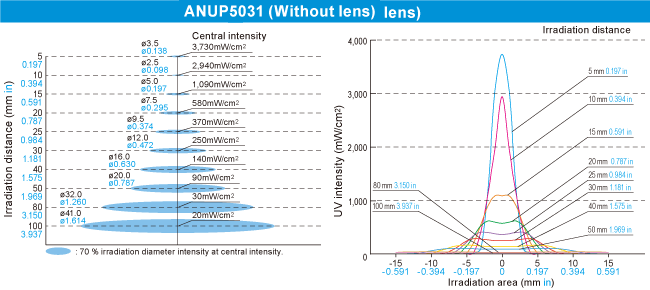

ANUP5031

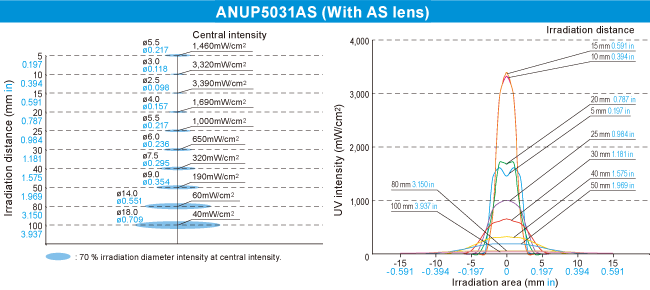

ANUP5031AS

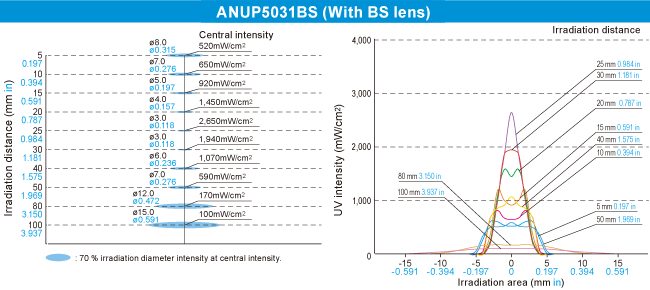

ANUP5031BS

General guide for ratio of UV intensity to number of fiber-unit branches

Bundle diameter: 5 mm 0.197 in1 branch2 branch3 branch4 branch
UV intensity ratioWithout lens100%75%55%50%
With lens100%65%53%45%
Bundle diameter: 3.5 mm 0.138 in1 branch2 branch3 branch4 branch
UV intensity ratioWithout lens100%80%62%57%
With lens100%75%60%50%

*Irradiation distance: 15 mm 0.591 in, φ1 mm φ0.039 in sensor
