Heads (ANUJ6170 series) (Discontinued Products)

Download

  • Discontinued Products

  • Specifications

  • Dimensions

Ⅾiscontinued

Last time buy (JST)

June 01, 2014

We are sorry, the products have been discontinued. Please refer to the details of the discontinued products and the recommended substitutes list below.

------------------------------ Tab1 showing ------------------------------

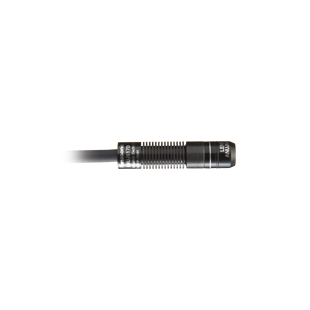

Discontinued Products

pic01-1

------------------------------ Tab2 showing ------------------------------

Specifications

ANUJ6170 Series

Standard head *1Product No.ANUJ6173
Cable length1.83m 6.004ft (ANUJ6173), directly connectable to the controller
Compatible lensSpot diameterø3mm 0.118inø4mm 0.157inø6mm 0.236inø8mm 0.315inø10mm 0.394in
Product No.ANUJ 6423ANUJ 6424ANUJ 6426ANUJ 6428ANUJ 6420
Irradiation intensity (mW/cm2) *29,3007,9003,6001,700640
Irradiation distance10mm 0.394in12mm 0.472in20mm 0.787in25mm 0.984in30mm 1.181in
High intensity headProduct No.ANUJ6170 / ANUJ6171
Cable length0.2m 0.656ft (ANUJ6170) 0.13m 0.427ft (ANUJ6171)
A connection cable (1.7m 5.577ft /3m 9.843ft /5m 16.404ft /7m 22.966ft /10m 32.808ft ) is required for connection to the controller.
Compatible lensSpot diameterø3mm 0.118inø4mm 0.157inø6mm 0.236inø8mm 0.315inø10mm 0.394in
Product No.ANUJ 6423ANUJ 6424ANUJ 6426ANUJ 6428ANUJ 6420
Irradiation intensity (mW/cm2) *210,1008,6003,9002,000710
Irradiation distance10mm 0.394in12mm 0.472in20mm 0.787in25mm 0.984in30mm 1.181in
385-nm wavelength headProduct No.ANUJ6174 / ANUJ6175
Cable length0.2m 0.656ft (ANUJ6174) 0.13m 0.427ft (ANUJ6175)
A connection cable (1.7m 5.577ft /3m 9.843ft /5m 16.404ft /7m 22.966ft /10m 32.808ft ) is required for connection to the controller.
Compatible lensSpot diameterø3mm 0.118inø4mm 0.157inø6mm 0.236inø8mm 0.315inø10mm 0.394in
Product No.ANUJ 6423ANUJ 6424ANUJ 6426ANUJ 6428ANUJ 6420
Irradiation intensity (mW/cm2) *212,80010,3004,9002,600870
Irradiation distance10mm 0.394in12mm 0.472in20mm 0.787in25mm 0.984in30mm 1.181in
Common itemLight sourceClass 3B LED product
Estimated lamp life *320,000 hours (When the temperature of the LED in the head is 60℃ 140℉ or less.)
Operating temperature and humidity+5 to +35℃+41 to +95℉ , 30 to 85% RH (No condensation at 25℃ 77℉ )
Storage temperature and humidity-10 to +60℃+14 to +140℉ , 30 to 85% RH (No condensation at 25℃ 77℉ )

*1The cable for standard heads is supplied in a fixed length.

*2When being fixed to the metal attachment, the ambient temperature is 25℃ 77℉ , and the intensity is set to 100% (initial value).

*3Not a guarateed value.

------------------------------ Tab3 showing ------------------------------

Dimensions

  • Unit: mm in

Head

ANUJ6170 / ANUJ6174

ANUJ6173

ANUJ6171 / ANUJ6175
