Picking Switch for Shutter SL-VPK02
Download
-
Basic Information
-
Applications
-
Order guide
-
Specifications
-
Dimensions
-
Cautions For Use
Discontinuation plan
Last time buy (JST)
September 30, 2025
Basic Information

Suitable for picking of important maintenance parts and safety-related parts for which erroneous picking must be prevented by all means!
CE : EMC Directive
Contact Us
Features
Note:
The product is equipped with an arm (shutter) that operates at high speed. Take note of the arm (shutter) moving range in order to prevent the arm (shutter) from hitting the worker's face or other parts of the body.

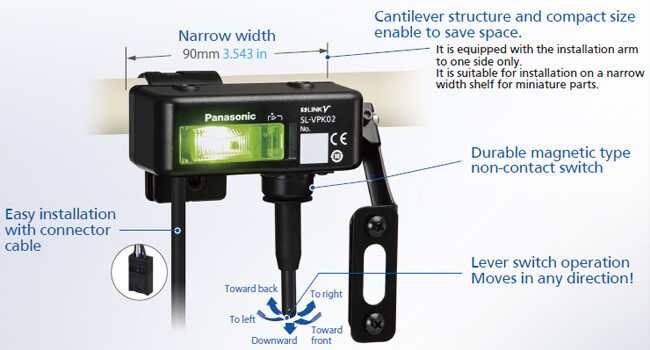

Equipped with shutter for zero picking error

The shutter closes to prevent erroneous picking. The unit features a cantilever supporter and is compact, so it is suitable for installation on a narrowwidth shelf for miniature parts. |

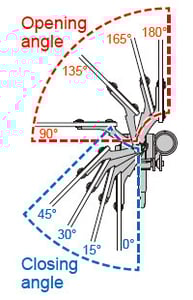

Four-stage setting for both opening angle and closing angle

The shutter operates properly even if the tray extends from the edge of parts shelf. The shutter closing delay time can also be adjusted in five stages. |

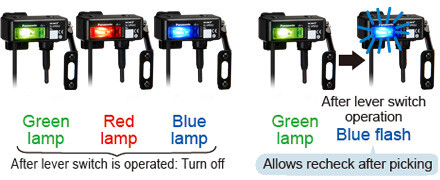

Lamp colors selectable
It can be selectable from green (default), red, blue, and a two-stage indication*.
*The address configuration remote control (sold separately) is required in order to select the lamp color.

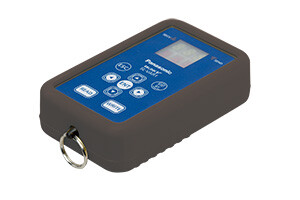

Remote controller

The SL-VAR1 address setting remote controller (optional) enables easy setting of addresses and selection of lamp color. The remote controller helps reduce the setting workload during shelf rearrangement. The remote controller can be used repeatedly for changing settings.
Applications


Order guide
Specifications
Picking switch
Model No. | SL-VPK02 |
---|---|
Power supply voltage | 24V DC±10%(Supplied from a S-LINK V control unit. A separate power supply is also available.) |
Current consumption | 24 V DC line: 25 mA or less (When the lamp is ON) Current for shutter operation: 450 mA or less |
Communication specification | Complies with S-LINK V protocol. |
Communication mode | B mode, C mode |
Address setting (using optional remote controller) | Input address (lever switch): 0 to 255 Output address (lamp, shutter): Select an offset of +32, +64, +128, or +256 from the input address. |
Number of I/Os | 1 lever input, 1 lamp or shutter output |
Lever switch (Input) | Turns ON when lever switch is tilted to angle of 15° to 30° or pulled downward for a distance of about 2 mm 0.079 in or more.(Note) |
Lamp (Output) | Lamp (LED) color: Selectable from green (default), red, blue or 2-stage indication (green, blue) Turns ON when output signal from signal transmission line turns ON. Turns OFF when output signal from signal transmission line turns OFF. |
Recommended shutter | Material: Danpla (plastic board) Maximum thickness: 5 mm 0.197 in Maximum weight: 50 g approx. Recommended size: W300 x H210 mm W11.811 x H8.268 in |
Ambient temperature | 0 to +50 ℃ +32 to +122 ℉ (No dew condensation) Storage: -20 to +60 ℃ -4 to +140 ℉ |
Ambient humidity | 35 to 85 % RH, Storage: 35 to 85 % RH |
Material | Front cover: Polycarbonate Lamp cover: Polycarbonate, Rear case: ABS Pipe mounting holder: Cold rolled carbon steel (SPCC) Driving shaft: SUM Arm: Cold rolled carbon steel (SPCC) |
Cable | 4-core cabtyre cable, 0.15 m 0.492 ft long (With a snap male connector SL-CP2) |
Weight | 250g approx. |
Note : Pulling load is 19.6N or less. Make sure that stress by forcible bend or pulling is not applied directly to the lever part.
Address setting remote controller
Model No. | SL-VAR1 |
---|---|
Supply voltage | AAA alkaline batteries: 2 pcs (Note) |
Auto sleep | Incorporated (3 minutes) |
Transmission method | Infrared (Peak emission wavelength: 940 nm 0.037 mil) |
Setting distance (Max) | 100 mm 3.973 in or less |
Ambient temperature | 5 to +45℃ +41 to + 113℉ (No dew condensation), Storage: 0 to +55℃ -32 to +131℉ |
Ambient humidity | 35 to 85 % RH, Storage: 35 to 85 % RH |
Material | Enclosure: ABS, Control panel: Polycarbonate Communications window cover: Polycarbonate Cover: Silicone, Mounting clip: Nylon, Keyring: SWRM6 |
Net weight | 160 g approx. (excluding batteries) |
Note: Batteries not included. Please purchase separately.
Mounting
Use ø28 mm ø1.102 in pipes for the installation of the product.

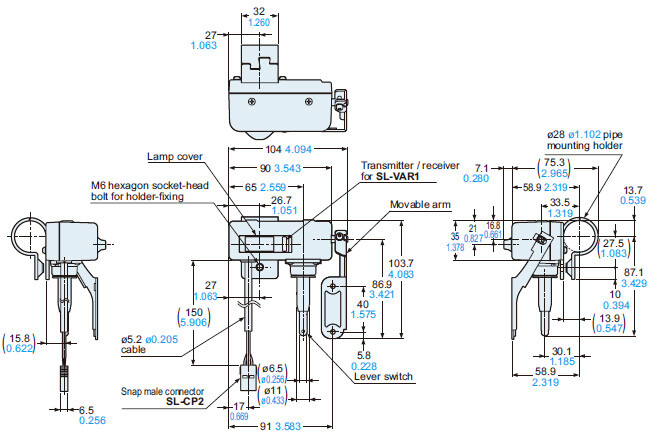

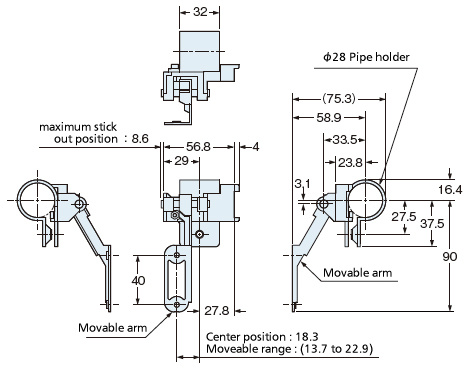

Dimensions
Unit: mm inSL-VPK02
Picking switch
One ø28 mm ø1.102 inpipe mounting holder,one plate for arm,two M4 screws (length: 12 mm 0.472 in) for plate-fixing,two spring washers for plate-fixing and one M6 hexagon socket-head bolt (length 15 mm 0.591 in) for holder-fixing are attached.
SL-VAR1
Address setting remote controller (optional)

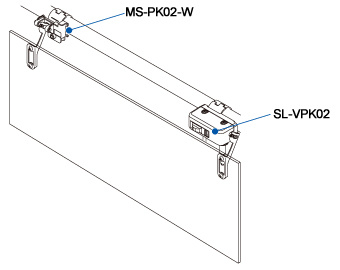

MS-PK02-W
MaterialMain unit: POM, Pipe mounting holder: SPCC, Driving shaft: SUM, Arm: SPCC[One plate for arm, two spring washers for plate-fixing and two M4 trass head screws (length: 12 mm 0.472 in) are attached.]
Cautions For Use
- Never use this product as a device for protecting human bodies.
- For protecting human bodies use a device which meets related laws / regulations and standards, such as OSHA, ANSI or IEC, in each region or country.
- Be sure to discharge any static electricity on your body, which may damage this product, before handling this product.
- This product is equipped with an arm (shutter) moving at a high speed. Limit the movable range so that the arm (shutter) does not contact your face or others.
