Picking Switch SL-VPK01

Download

  • Basic Information

  • Applications

  • Order guide

  • Specifications

  • Dimensions

------------------------------ Tab1 showing ------------------------------

Basic Information

Ideal for anti-absentmindness in assembly lines
The SL-VPK01 is a pipe attachment type picking switch.

CE Approved

CE : EMC Directive

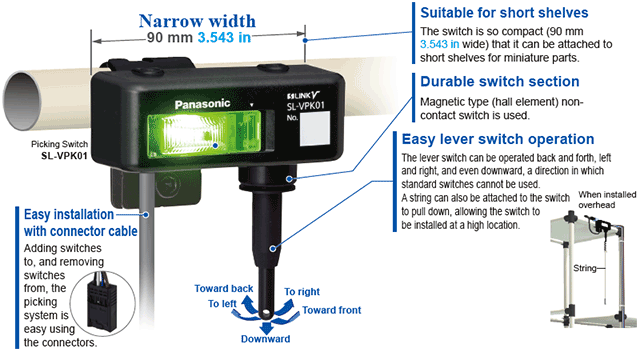

    Features

    特長

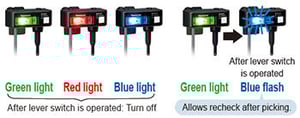

    Lamp colors selectable

    It can be selectable from green (default), red, blue, and a two-stage indication*.
    *The address configuration remote control (sold separately) is required in order to select the lamp color.

    選べるランプ色

     Before operationAfter operation
    Pattern 1Gleen lightTurn off
    Pattern 2Red lightTurn off
    Pattern 3Blue lightTurn off
    Pattern 4Gleen lightBlue flash

    Set and check the address with a remote control

    It’s easy to set the address and select the lamp color with the SL-VAR1 address setting remote controller (optional).
    This approach dramatically reduces work by eliminating the need to turn setting switches on and off and memorize switch combinations as in the past. Additionally, the remote control can be used to check the current settings


    Up to 256 picking switches can be connected to one S-LINK V control unit

     The SL-VPK01 has one input and one output.
    Since each S-LINK V control unit has 512 inputs and outputs, up to 256 SL-VPK01 units can be connected.

    ------------------------------ Tab2 showing ------------------------------

    Applications

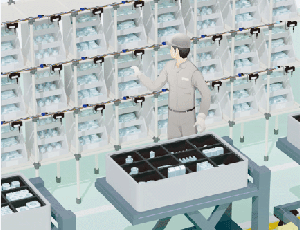

    Automobile assembly line
    自動車組立ライン
    Electronic device assembly line
    電子機器組立ライン

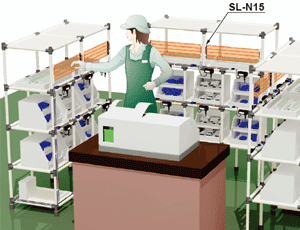

    Improve productivity using picking system

    Due to considerable lack of skilled operators recently, an enormous amount of time is required to train operators.
    Installing the picking system allows even novice operators to perform assembly properly according to the lighting sequence of the picking indicator. In addition, the picking system performs checks each time a part is picked up, and warns the operator when an incorrect part is picked up, which reduces manufacturing defects and improves productivity.

    ------------------------------ Tab3 showing ------------------------------

    Order guide

    ------------------------------ Tab4 showing ------------------------------

    Specifications

    Picking switch

    Model No.SL-VPK01
    Supply voltage24 V DC ±10 % (supplied from the S-LINK V control unit. A separate power supply can also be used.)
    Current consumption24 V - 0 V line: 25 mA or less (When lamp is on)
    Communications modeB mode, C mode
    Address setting
    (using optional
    remote controller)    		Input address (lever switch): 0 to 255
    Output address (lamp): Select an offset of +32, +64, +128, or +256 for the input address
    Lever switch (Input)When the lever switch is tilted 15° or more, the input goes ON.
    When the lever switch is pulled 1.6 mm 0.063 in, or more, the input goes ON.
    Lamp (Output)Lamp color (LED): Select from green (default), red, blue, and a two-stage indication.
    Lamp lights up and turns off when the output signal from the signal transmission line turns on and off, respectively.
    Ambient temperature0 to +50℃ +32 to +122℉ (No dew condensation),Storage: -20 to +60℃ -4 to +140℉
    Ambient humidity35 to 85 % RH, Storage: 35 to 85 % RH
    MaterialEnclosure: Polycarbonate, Lamp cover: Polycarbonate
    Rear case: SGMCC, Pipe mounting holder: Cold rolled carbon steel (SPCC)
    Cable4-core cabtyre cable, 0.15 m 0.492 ft long (With a male hook-up connector SL-CP2)
    Net weight200 g approx.

    Address setting remote controller

    Model No.SL-VAR1
    Supply voltageAAA alkaline batteries: 2 pcs (Note)
    Auto sleepIncorporated (3 minutes)
    Transmission methodInfrared (Peak emission wavelength: 940 nm 0.037 mil)
    Setting distance (Max)100 mm 3.973 in or less
    Ambient temperature5 to +45℃ +41 to + 113℉ (No dew condensation), Storage: 0 to +55℃ -32 to +131℉
    Ambient humidity35 to 85 % RH, Storage: 35 to 85 % RH
    MaterialEnclosure: ABS, Control panel: Polycarbonate
    Communications window cover: Polycarbonate
    Cover: Silicone, Mounting clip: Nylon, Keyring: SWRM6
    Net weight160 g approx. (excluding batteries)

    Note: Batteries not included. Please purchase separately.

    Mounting

    Use ø28 mm ø1.102 in pipes for the installation of the product.

    ------------------------------ Tab5 showing ------------------------------

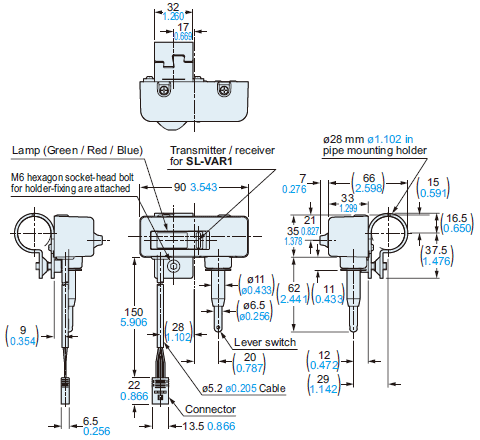

    Dimensions

    Unit: mm in

    SL-VPK01

    Picking switch

    SL-VPK01

    One pipe mounting holder and one M6 (length 15 mm 0.591 in) hexagon socket-head bolt for holder-fixing are attached.

    SL-VAR1

    Address setting remote controller (optional)

    SL-VAR1
