Robust Light Curtain [Type 4 PLe SIL3] SF4B-□G Ver.2 (Discontinued Products)

Download

  • Discontinued Products

  • Specifications

  • Dimensions

  • Circuit/ Wiring

  • Cautions For Use

Ⅾiscontinued

Last time buy (JST)

September 30, 2022

We are sorry, the products have been discontinued.
Please refer to the details of the discontinued products and the recommended substitutes list below.

------------------------------ Tab1 showing ------------------------------

Discontinued Products

[Note]
The following applicable products and options are available continuously.

Standard components (8-core cable)
Extension cable

TypeAppearanceModel No.Description
With connectors
on both ends		For
emitter

SFB-CCJ3ELength: 3 m 9.843 ft
Net weight: 380 g approx. (2 cables)		Used for cable extension or connecting to the SF-C11 and the SF-C14EX control unit.
One each for emitter and receiver
Connector outer diameter: ø14 mm ø0.551 in max.
Connector color: Gray (for emitter), Black (for receiver)
Connector outer diameter: ø14 mm ø0.551 in max.
SFB-CCJ10ELength: 10 m 32.808 ft
Net weight: 1,200 g approx. (2 cables)
For
receiver		SFB-CCJ3DLength: 3 m 9.843 ft
Net weight: 190 g approx. (1 cables)
SFB-CCJ10DLength: 10 m 32.808 ft
Net weight: 1,200 g approx. (2 cables)

Muting control components (12-core cable, with interference prevention wire)
Extension cable

TypeAppearanceModel No.Description
With connector
on one end

SFB-CC3-MULength: 3 m 9.843 ft
Net weight: 430 g approx.
(2 cables)		Used for connecting to an extension cable or the SF-C13 control unit.
2 cables/set for emitter and receiver
Connector outer diameter: ø16 mm ø0.630 in max.
SFB-CC7-MULength: 7 m 22.966 ft
Net weight: 1,000 g approx.
(2 cables)
SFB-CC10-MULength: 10 m 32.808 ft
Net weight: 1,300 g approx.
(2 cables)
With connectors
on both ends		For
emitter

SFB-CCJ3E-MULength: 3 m 9.843 ft
Net weight: 190 g approx.
(1 cables)		Used for connecting to an extension cable or the SF-C12 control unit.
One each for emitter and receiver
Connector color: Gray (for emitter), Black (for receiver)
Connector outer diameter: ø16 mm ø0.630 in max.
SFB-CCJ10E-MULength: 10 m 32.808 ft
Net weight: 660 g approx.
(1 cable)
For
receiver		SFB-CCJ3D-MULength: 3 m 9.843 ft
Net weight: 210 g approx.
(1 cables)
SFB-CCJ10D-MULength: 10 m 32.808 ft
Net weight: 680 g approx.
(1 cable)
DesignationModel No.Description
Test rod ø14SF4B-TR14Min. sensing object for regular checking (ø14 mm ø0.551 in), with finger protection type (min. sensing object ø14 mm ø0.551 in)
Test rod ø25SF4B-TR25Min. sensing object for regular checking (ø25 mm ø0.984 in), with hand protection type (min. sensing object ø25 mm ø0.984 in)

Control units

DesignationAppearanceModel No.Application cableDescription
Connector
connection type
control unit

SF-C11Bottom cap cable :
SFB-CB□

Extension cable :
SFB-CCJ□		Use 8-core cable with connector to connect to the safety
light curtain.
Compatible with up to Control Category 4.
Interference prevention wires and muting function cannot be used.
Slim type
control unit

SF-C13Bottom cap cable :
SFB-CCB□(-MU)

Extension cable :
SFB-CC□(-MU)		Use a discrete wire cable to connect to the safety light curtain.
Compatible with up to Control Category 4.
Interference prevention wires and muting function can be used.

Note : Refer to "Exclusive Control Unit for Safety Light Curtain SF-C10 " for details of the exclusive control units.

Recommended safety relay

open link in new window

SF relay, slim type
SF series

Recommended safety relay

Note：Please contactour sales officefor details on the recommended products.

TypeWith LED indicator
Model No.SFS3-L-DC24VSFS4-L-DC24V
Part No.AG1S132AG1S142
Contact arrangement3a1b4a2b
Rated nominal switching capacity6A／250V AC、6A／30V DC
Min. switching capacity1mA／5V DC
Coil rating15mA／24V DC20.8mA／24V DC
Rated power consumption360mW500mW
Operation time20ms or less
Release time20ms or less
Ambient temperature-40 to +85 ℃ -40 to + 185 ℉
(Humidity: 5 to 85 % RH)
Applicable certificationsUL/c-UL, TÜV, Korea S-mark

Y-shaped connector

TypeAppearanceModel No.Description
Wire-saving
Y-shaped
connector

SFB-WY1
(Note)		Wire-saving connector for standard components (8-core cable). Cables of emitter and receiver are consolidated into one cable for wire-saving.
Wiring has +24 V, 0 V, OSSD 1, OSSD 2, output polarity setting wire (shield).
Net weight: 35 g approx.
[Power wire and synchronization wire are connected inside the connector. Interlock is disabled (automatic reset).]
Cable with
connector
on one side

WY1-CCN3
(Note)		Cable length: 3 m 9.843 ft
Net weight: 200 g approx.
(1 cable)		Mating cable for Y-shaped connector
Cable color: Gray (with black line)
Connector color: Black
The min. bending radius: R6 mm R0.236 in
WY1-CCN10
(Note)		Cable length: 10 m 32.808 ft
Net weight: 620 g approx.
(1 cable)

Note : Not compatible with SF4B-□-01<V2>.

By using the Y-shaped connector, the least required wires such as power or safety output are consolidated into one cable. Man-hours taken for wiring is eliminated to the minimum. Construction times as well as wiring mistakes are greatly reduced.

Refer to the instruction manual for more details such as installation of Y-shaped connector, terminal wiring, and wiring example.

Handy-controller

DesignationAppearanceModel No.
Handy-controller


* Includes 2 adapter cables		SFB-HC
Cable set for
cable type
connection

SFC-WNC1

Note : A handy-controller cannot be used with the SF4B-□-01<V2> and the SF-C14EX-01.

Pigtailed type

Pigtailed type

Cable type

Cable type

Corner mirror

DesignationCorner mirror
Applicable beam channelsModel No.Effective refl ective surface
FingerHandArm / Foot
23126RF-SFBH-12236 x 72mm
9.291 x 2.835 in
31168RF-SFBH-16316 x 72mm
12.441 x 2.835 in
392010RF-SFBH-20396 x 72mm
15.591 x 2.835 in
472412RF-SFBH-24476 x 72mm
18.740 x 2.835 in
552814RF-SFBH-28556 x 72mm
21.890 x 2.835 in
633216RF-SFBH-32636 x 72mm
25.039 x 2.835 in
713618RF-SFBH-36716 x 72mm
28.189 x 2.835 in
794020RF-SFBH-40796 x 72mm
31.339 x 2.835 in
954824RF-SFBH-48956 x 72mm
37.638 x 2.835 in
1115628RF-SFBH-561,116 x 72mm
43.937 x 2.835 in
1276432RF-SFBH-641,276 x 72mm
50.236 x 2.835 in
-7236RF-SFBH-721,436 x 72mm
56.535 x 2.835 in
-8040RF-SFBH-801,596 x 72mm
62.835 x 2.835 in
-8844RF-SFBH-881,756 x 72mm
69.134 x 2.835 in
-9648RF-SFBH-961,916 x 72mm
75.433 x 2.835 in

RF-SFBH-□

Normally for an L-shaped or U-shaped installation, 2 or 3 sets of safety light curtains are needed. With the use of a corner mirror reflecting the light, one set of safety light curtain is possible for L-shaped or U-shaped installation.

Operating range

With 1 mirrorDeclined to 90 %
With 2 mirrorsDeclined to 80 %

Others

DesignationModel No.Description
Large display unit
for safety light curtain		SF-IND-2With the auxiliary output of the safety light curtain, the operation is easily observable from various directions.

Specifi cations
・Supply voltage: 24 V DC ±15 %
・Current consumption: 12 mA or less
・Indicators: Orange LED (8 pcs. used)[Light up when external contact is ON]
・Ambient temperature: –10 to +55 ℃ +14 to +131℉(No dew condensation or icing allowed)
・Material: POM (Enclosure), Polycarbonate (Cover), Cold rolled carbon steel (SPCC) (Bracket)
・Cable: 0.3mm2 2-core cabtyre cable, 3m 9.843 ft long
・Weight: 70 g approx. (including bracket)

I/O circuit diagrams
<With NPN output type>



<With PNP output type>

DesignationModel No.Description
Test rod ø45SF4B-TR45Min. sensing object for regular checking (ø45 mm ø1.772 in),
with arm / foot protection type (min. sensing object ø45 mm ø1.772 in)

------------------------------ Tab2 showing ------------------------------

Specifications

Safety light curtain individual specifications

SF4B-F□G<V2>

TypeMin. sensing object ø14 mm ø0.551 in type (10 mm 0.394 in beam pitch)
Model No.SF4B-F23G
<V2>		SF4B-F31G
<V2>		SF4B-F39G
<V2>		SF4B-F47G
<V2>		SF4B-F55G
<V2>		SF4B-F63G
<V2>
No. of beam
channels		233139475563
Protective
height(Note 2)		244 mm
9.606 in		324 mm
12.756 in		404 mm
15.906 in		484 mm
19.055 in		564 mm
22.205 in		644 mm
25.354 in
 China Press compliant
(GB/T 4584)		220 mm
8.661 in		300 mm
11.811 in		380 mm
14.960 in		460 mm
18.110 in		540 mm
21.260 in		620 mm
24.409 in
Current
consumption		Emitter: 80 mA or less,
Receiver: 120 mA or less		Emitter: 100 mA or less,
Receiver: 160 mA or less
PFHD2.4x10-92.8x10-93.2x10-93.6x10-94.0x10-94.4x10-9
MTTFD100 years or more
Net weight
(Total of
emitter and
receiver)		980 g
approx.		1,340 g
approx.		1,700 g
approx.		2,000 g
approx.		2,400 g
approx.		2,800 g
approx.
TypeMin. sensing object ø14 mm ø0.551 in type (10 mm 0.394 in beam pitch)
Model No.SF4B-F71G
<V2>		SF4B-F79G
<V2>		SF4B-F95G
<V2>		SF4B-F111G
<V2>		SF4B-F127G
<V2>
No. of beam
channels		717995111127
Protective
height(Note 2)		724 mm
28.504 in		804 mm
31.654 in		964 mm
37.953 in		1,124 mm
44.252 in		1,284 mm
50.551 in
 China Press compliant
(GB/T 4584)		700 mm
27.559 in		780 mm
30.708 in		940 mm
37.007 in		1,100 mm
43.306 in		1,260 mm
49.606 in
Current
consumption		Emitter: 100 mA or less,
Receiver: 160 mA or less		Emitter: 115 mA or less,
Receiver: 190 mA or less		Emitter: 135 mA or less,
Receiver: 230 mA or less
PFHD4.8x10-95.2x10-96.0x10-96.8x10-97.6x10-9
MTTFD100 years or more
Net weight
(Total of
emitter and
receiver)		3,200 g
approx.		3,400 g
approx.		4,200 g
approx.		5,000 g
approx.		5,600 g
approx.

Notes:
1) Where measurement conditions have not been specified precisely, the conditions used were an ambient temperature of +20 ℃ +68 ℉. The model No.
with "G" is a robust type.
PFHD: Probability of dangerous failure per hour, MTTFD: Mean time to dangerous failure (in years)
2) In the case of "When used as safety device for presses in China", the distance between the center of the first beam axis and the center of the last beam axis of the device becomes the protective height.

SF4B-H□G<V2>

TypeMin. sensing object ø25 mm ø0.984 in type (20 mm 0.787 in beam pitch)
Model No.SF4B-H12G
<V2>		SF4B-H16G
<V2>		SF4B-H20G
<V2>		SF4B-H24G
<V2>		SF4B-H28G
<V2>
No. of beam
channels		1216202428
Protective
height(Note 2)		244 mm
9.606 in		324 mm
12.756 in		404 mm
15.906 in		484 mm
19.055 in		564 mm
22.205 in
 China Press compliant
(GB/T 4584)		220 mm
11.811 in		300 mm
12.756 in		380 mm mm
14.960 in		460 mm
18.110 in		540 mm
21.260 in
Current
consumption		Emitter: 70 mA or less,
Receiver: 95 mA or less		Emitter: 80 mA or less,
Receiver: 115 mA or less
PFHD1.8x10-92.0x10-92.2x10-92.4x10-92.6x10-9
MTTFD100 years or more
Net weight
(Total of
emitter and
receiver)		980 g
approx.		1,340 g
approx.		1,700 g
approx.		2,000 g
approx.		2,400 g
approx.
TypeMin. sensing object ø25 mm ø0.984 in type (20 mm 0.787 in beam pitch)
Model No.SF4B-H32G
<V2>		SF4B-H36G
<V2>		SF4B-H40G
<V2>		SF4B-H48G
<V2>		SF4B-H56G
<V2>
No. of beam
channels		3236404856
Protective
height(Note 2)		644 mm
25.354 in		724 mm
28.504 in		804 mm
31.654 in		964 mm
37.953 in		1,124 mm
44.252 in
 China Press compliant
(GB/T 4584)		620 mm
24.409 in		700 mm
27.559 in		780 mm
30.708 in		940 mm
37.007 in		1,100 mm
43.306 in
Current
consumption		Emitter: 80 mA or less,
Receiver: 115 mA or less		Emitter: 90 mA or less,
Receiver: 140 mA or less		Emitter: 100 mA or less,
Receiver: 160 mA or less
PFHD2.8x10-93.0x10-93.2x10-93.6x10-94.0x10-9
MTTFD100 years or more
Net weight
(Total of
emitter and
receiver)		2,800 g
approx.		3,200 g
approx.		3,400 g
approx.		4,200 g
approx.		5,000 g
approx.
TypeMin. sensing object ø25 mm ø0.984 in type (20 mm 0.787 in beam pitch)
Model No.SF4B-H64G
<V2>		SF4B-H72G
<V2>		SF4B-H80G
<V2>		SF4B-H88G
<V2>		SF4B-H96G
<V2>
No. of beam
channels		6472808896
Protective
height(Note 2)		1,284 mm
50.551 in		1,444 mm
56.850 in		1,604 mm
63.150 in		1,764 mm
69.449 in		1,924 mm
75.748 in
 China Press compliant
(GB/T 4584)		1,260 mm
49.606 in		1,420 mm
55.905 in		1,580 mm
62.205 in		1,740 mm
68.503 in		1,900 mm
74.803 in
Current
consumption		Emitter: 100 mA or less,
Receiver: 160 mA or less		Emitter: 110 mA or less,
Receiver: 180 mA or less		Emitter: 120 mA or less,
Receiver: 200 mA or less
PFHD4.4x10-94.8x10-95.2x10-95.6x10-96.0x10-9
MTTFD100 years or more
Net weight
(Total of
emitter and
receiver)		5,600 g
approx.		6,400 g
approx.		7,000 g
approx.		7,800 g
approx.		8,400 g
approx.

Notes:
1) Where measurement conditions have not been specified precisely, the conditions used were an ambient temperature of +20 ℃ +68 ℉. The model No.
with "G" is a robust type.
PFHD: Probability of dangerous failure per hour, MTTFD: Mean time to dangerous failure (in years)
2) In the case of "When used as safety device for presses in China", the distance between the center of the first beam axis and the center of the last beam axis of the device becomes the protective height.

SF4B-A□G<V2>

TypeMin. sensing object ø45 mm ø1.772 in type (40 mm 1.575 in beam pitch)
Model No.SF4B-A6G
<V2>		SF4B-A8G
<V2>		SF4B-A10G
<V2>		SF4B-A12G
<V2>		SF4B-A14G
<V2>
No. of beam
channels		68101214
Protective
height(Note 2)		244 mm
9.606 in		324 mm
12.756 in		404 mm
15.906 in		484 mm
19.055 in		564 mm
22.205 in
 China Press compliant
(GB/T 4584)		200 mm
7.874 in		280 mm
11.024 in		360 mm
14.173 in		440 mm
17.323 in		520 mm
20.472 in
Current
consumption		Emitter: 65 mA or less,
Receiver: 85 mA or less		Emitter: 70 mA or less,
Receiver: 95 mA or less
PFHD1.5x10-91.6x10-91.7x10-91.8x10-91.9x10-9
MTTFD100 years or more
Net weight
(Total of
emitter and
receiver)		980 g
approx.		1,340 g
approx.		1,700 g
approx.		2,000 g
approx.		2,400 g
approx.
TypeMin. sensing object ø45 mm ø1.772 in type (40 mm 1.575 in beam pitch)
Model No.SF4B-A16G
<V2>		SF4B-A18G
<V2>		SF4B-A20G
<V2>		SF4B-A24G
<V2>		SF4B-A28G
<V2>
No. of beam
channels		1618202428
Protective
height(Note 2)		644 mm
25.354 in		724 mm
28.504 in		804 mm
31.654 in		964 mm
37.953 in		1,124 mm
44.252 in
 China Press compliant
(GB/T 4584)		600 mm
23.622 in		680 mm
26.772 in		760 mm
29.921 in		920 mm
36.220 in		1,080 mm
42.520 in
Current
consumption		Emitter: 70 mA or less,
Receiver: 95 mA or less		Emitter: 75 mA or less,
Receiver: 105 mA or less		Emitter: 80 mA or less,
Receiver: 120 mA or less
PFHD2.0x10-92.1x10-92.2x10-92.4x10-92.6x10-9
MTTFD100 years or more
Net weight
(Total of
emitter and
receiver)		2,800 g
approx.		3,200 g
approx.		3,400 g
approx.		4,200 g
approx.		5,000 g
approx.
TypeMin. sensing object ø45 mm ø1.772 in type (40 mm 1.575 in beam pitch)
Model No.SF4B-A32G
<V2>		SF4B-A36G
<V2>		SF4B-A40G
<V2>		SF4B-A44G
<V2>		SF4B-A48G
<V2>
No. of beam
channels		3236404448
Protective
height(Note 2)		1,284 mm
50.551 in		1,444 mm
56.850 in		1,604 mm
63.150 in		1,764 mm
69.449 in		1,924 mm
75.748 in
 China Press compliant
(GB/T 4584)		1,240 mm
48.819 in		1,400 mm
55.118in		1,560 mm
61.417 in		1,720 mm
67.716 in		1,880 mm
74.016 in
Current
consumption		Emitter: 80 mA or less,
Receiver: 120 mA or less		Emitter: 85 mA or less,
Receiver: 130 mA or less		Emitter: 95 mA or less,
Receiver: 140 mA or less
PFHD2.8x10-93.0x10-93.2x10-93.4x10-93.6x10-9
MTTFD100 years or more
Net weight
(Total of
emitter and
receiver)		5,600 g
approx.		6,400 g
approx.		7,000 g
approx.		7,800 g
approx.		8,400 g
approx.

Notes:
1) Where measurement conditions have not been specified precisely, the conditions used were an ambient temperature of +20 ℃ +68 ℉. The model No.
with "G" is a robust type.
PFHD: Probability of dangerous failure per hour, MTTFD: Mean time to dangerous failure (in years)
2) In the case of "When used as safety device for presses in China", the distance between the center of the first beam axis and the center of the last beam axis of the device becomes the protective height.

Safety light curtain common specifications

TypeMin. sensing object ø14 mm
ø0.551 in type		Min. sensing object ø25 mm
ø0.984 in type		Min. sensing object ø45 mm
ø1.772 in type
Model No.SF4B-F□G<V2>SF4B-H□G<V2>SF4B-A□G<V2>
Applicable
standards
(Note 2)		International
standard		IEC 61496-1/2 (Type 4), ISO 13849-1 (Category 4, PLe), IEC 61508-1 to 7 (SIL3)
JapanJIS B 9704-1/2 (Type 4), JIS B 9705-1 (Category 4), JIS C 0508-1 to 7 (SIL3)
Europe (EU)EN 61496-1 (Type 4), EN ISO 13849-1 (Category 4, PLe),
EN 61508-1 to 7 (SIL3), EN 55011, EN 50178, EN 61000-6-2
North AmericaANSI/UL 61496-1/2 (Type 4), ANSI/UL 508, UL 1998 (Class 2),
CAN/CSA 61496-1/2 (Type 4), CAN/CSA C22.2 No.14,
OSHA 1910.212, OSHA 1910.217(C), ANSI B11.1 to B11.19, ANSI/RIA 15.06
China (GB)GB 4584
CE marking directive complianceMachinery Directive, EMC Directive, RoHS Directive
Operating range (Note 3)0.3 to 7 m 0.984 to 22.966 ft12 to 64 beam channels type: 0.3 to 9 m 0.984 to 29.528 ft
72 to 96 beam channels type: 0.3 to 7 m 0.984 to 22.966 ft		6 to 32 beam channels type: 0.3 to 9 m 0.984 to 29.528 ft
36 to 48 beam channels type: 0.3 to 7 m 0.984 to 22.966 ft
Min. sensing object
(Note 4)		ø14 mm ø0.551 in opaque objectø25 mm ø0.984 in opaque objectø45 mm ø1.772 in opaque object
Effective aperture angle±2.5° or less [for an operating range exceeding 3 m 9.843 ft
(conforming to IEC 61496-2 / ANSI/UL 61496-2)]
Supply voltage24 V DC ± 10 % Ripple P-P 10 % or less
Control outputs
(OSSD 1, OSSD 2)		PNP open-collector transistor / NPN open-collector transistor (switching method)
・When selecting PNP output: Max. source current 200 mA, When selecting NPN output: Max. sink current 200 mA
・Applied voltage: same as supply voltage (When selecting PNP output: between the control output and +V, When selecting NPN output: between the control output and 0 V)
・Residual voltage: 2.5V or less (When selecting PNP output: source current 200 mA, when selecting NPN output: sink current 200 mA)
(when using 20 m 65.617 ft length cable)
 Operation modeON when all beam channels are received, OFF when one or more beam channels are interrupted
(OFF also in case of any malfunction in the Safety light curtain or the synchronization signal)
(Note 5,6)
Protection circuitIncorporated
Response timeOFF response: 14 ms or less, ON response: 80 to 90 ms
Auxiliary output
(Non-safety output)		PNP open-collector transistor / NPN open-collector transistor (switching method)
・When selecting PNP output: Max. source current 60 mA, When selecting NPN output: Max. sink current 60 mA
・Applied voltage: same as supply voltage (When selecting PNP output: between the auxiliary output and +V, When selecting NPN output: between the auxiliary output and 0 V)
・Residual voltage: 2.5V or less (When selecting PNP output: source current 60 mA, when selecting NPN output: sink current 60 mA)
(when using 20 m 65.617 ft length cable)
 Operation modeOFF when control outputs are ON, ON when control outputs are OFF [Factory setting, operating mode can be changed using the SFB-HC (optional) handy-controller].
Protection circuitIncorporated
Responce timeOFF replay: 34 ms or less, ON replay 110 ms or less
Interference prevention functionIncorporated (Note 7)
Emission halt function /
Interlock function		Incorporated / Incorporated [Manual reset / Auto reset (Note 8)]
External device monitoring functionIncorporated
Override function /
Muting function		Incorporated (Note 7) / Incorporated (Note 7)
Optional functions
(Note 9)		Fixed blanking, floating blanking, auxiliary output switching, interlock setting changing, external relay monitor setting changing,
muting setting changing, protecting, light emitting amount control
Degree of protectionIP67 / IP65 (IEC)
Ambient temperature-10 to +55 ℃ +14 to +131 ℉
(No dew condensation or icing allowed),
Storage: -25 to +70 ℃ -13 to +158 ℉
Ambient humidity30 to 85 % RH, Storage: 30 to 95 % RH
Ambient illuminanceIncandescent light: 3,500 lx or less at the light-receiving face
Dielectric strength voltage1,000 V AC for one min. between all supply terminals connected together and enclosure
Insulation resistance20 MΩ, or more, with 500 V DC megger between all supply terminals connected together and enclosure
Vibration resistance10 to 55 Hz frequency, 0.75 mm 0.030 in double amplitude in X, Y and Z directions for two hours each
Shock resistance300 m/s2 acceleration (30 G approx.) in X, Y and Z directions three times each
Emitting elementInfrared LED (Peak emission wavelength: 870 nm 0.034 mil)
MaterialEnclosure: Aluminium, Upper and lower edges: Iron, Sensing surface: Polycarbonate and Polyester resin, Cap: PBT
Connecting method /
Cable length		Connector /
Total length up to 50 m 164.042 ft is possible for both emitter and receiver, with optional mating cables (Note 10)
AccessoriesMS-SF4BG-2 (Intermediate supporting bracket): (Note 11)
SF4B-TR14 (Test rod): 1 No		MS-SF4BG-2 (Intermediate supporting bracket): (Note 11)
SF4B-TR25 (Test rod): 1 No		MS-SF4BG-2
(Intermediate supporting bracket): (Note 11)

Notes:
1) Where measurement conditions have not been specified precisely, the conditions used were an ambient temperature of +20 ℃ +68℉.
Model Nos. having the suffix “G” are robust type.
2) PLe SIL3 compliant from production in August 2009.
3) The operating range is the possible setting distance between the emitter and the receiver.
4) When the floating blanking function is used, the size of the min. sensing object is changed.
5) The outputs are not "OFF" when muting function is active even if the beam channel is interruped.
6) In case the blanking function is valid, the operation mode is changed.
7) Please use 12-core cable.
8) The manual reset and auto reset are possible to be switched depending on the wiring status.
9) In case of using optional function, the handy-controller (SFB-HC) (optional) is required. However, a handy-controller cannot be used with the SF4B-□-01<V2>, SF4B-□-03<V2> and the SF-C14EX-01.
10) The cable can be extended within 30 m 98.425 ft (for emitter / receiver) when two Safety light curtains are connected in series, within 20 m 65.617 ft when three Safety light curtains are connected in series. Furthermore, when the muting lamp is used, the cable can be extended within 40 m 131.234 ft (for emitter / receiver).
11) The intermediate supporting bracket (MS-SF4BG-2) is enclosed with the following models.
[1 set]
SF4B-F□G<V2>...79 to 127 beam channels,
SF4B-H□G<V2>...40 to 64 beam channels,
SF4B-A□G<V2>...20 to 32 beam channels,
[2 sets]
SF4B-H□G<V2>...72 to 96 beam channels,
SF4B-A□G<V2>...36 to 48 beam channels

Control units

Refer to SF-C10 Specifications Pages for details of the specifications for the control unit SF-C11/C12/C13.

Handy-controller

Model No.SFB-HC
Supply voltage24 V DC ± 10 % Ripple P-P10 % or less
(common to safety light curtain power supply)
Current consumption65 mA or less
Communication methodRS-485 two-way communications (Specific procedure)
Digital display4-digit red LED display x 2
(Selected beam channels, setting contents etc. are displayed.)
Function indicatorGreen LED x 9 (set function is displayed.)
FunctionsFixed blanking (Factory setting: Disabled) /
Floating blanking (Factory setting: Disabled) /
Auxiliary output change (Factory setting: Negative Logic of OSSD) /
Light emitting amount control (Factory setting: Disabled) /
Muting setting change [Factory setting: All beam channels enabled, A = B, Setting of the muting lamp diagnosis function enabled (Ver. 2 or later), Muting sensor output operation setting N.O. / N.C. (Ver. 2.1 or later)] Interlock setting change (Factory setting: start / restart) /
External device monitoring setting change (Factory setting: Enabled, 300 ms) /
Override setting changing function 60 sec. (Ver. 2.1 or later) /
Setting detail monitoring /
Protecting (Factory setting: Disabled) (Factory password setting: 0000) /
Initialization /
Copy
Ambient temperature-10 to +55 ℃ +14 to +131 ℉
(No dew condensation or icing allowed),
Storage: -25 to +70 ℃ -13 to +158 ℉
Ambient humidity30 to 85 % RH, Storage: 30 to 85 % RH
Voltage withstandability1,000 V AC for one min.
between all supply terminals connected together and enclosure
Insulation resistance20 MΩ , or more, with 500 V DC megger between all supply terminals connected together and enclosure
Cable8-core shielded cable, 0.5 m 1.640 ft long, with a connector at the end
(2 cables)
MaterialEnclosure: ABS
WeightNet weight: 200 g approx.
AccessoriesAdapter cable: 2 cables

Note:
Where measurement conditions have not been specified precisely, the conditions used were an ambient temperature of +20 ℃ +68 ℉.

Laser alignment tool

Model No.SF-LAT-4BG
Supply voltage3 V (LR6 battery x 2 pcs.)
Battery1.5 V (LR6 battery) x 2 pcs. (replaceable)(Note 2)
Battery lifetime30 hours approx. of continuous operation
(LR6 battery, at +25 ℃ +77 ℉ ambient temperature)
Light sourceRed semiconductor laser: class 2 (IEC / JIS), Class II (FDA)
(Max. output: 1 mW, Peak emission wavelength: 650 nm 0.026 mil)(Note 3)
Spot diameter10 mm 0.394 in approx. (at 5 m 16.404 ft distance)
Ambient temperature0 to +40 ℃ +32 to +104 ℉ (No dew condensation),
Storage: 0 to +55 ℃ +32 to +131 ℉
Ambient humidity35 to 85 % RH, Storage: 35 to 85 % RH
MaterialEnclosure: ABS, Mounting part: Aluminum
WeightNet weight: 150 g approx. (without batteries)

Notes:
1) Where measurement conditions have not been specified precisely, the conditions used were an ambient temperature of +20 ℃ +68 ℉.
2) LR6 dry cell batteries are not provided with the product. Please purchase them separately.
3) As for FDA regulation, the product complies with 21 CFR 1040.10 and 1040.11 based on Laser Notice No. 50, dated June 24, 2007, issued by CDRH under the FDA.

Corner mirror

Model No.RF-SFBH-□
Attenuation rate of
sensing range		With one corner mirror: Declined to 90 %,
With two corner mirrors: Declined to 80 %
(When used in combination with the SF4B series)
Ambient temperature-10 to +55 ℃ +14 to +131 ℉
(No dew condensation or icing allowed),
Storage: -25 to +70 ℃ -13 to +158 ℉
Ambient humidity30 to 85 % RH, Storage: 30 to 95 % RH
Vibration resistance10 to 55 Hz frequency, 0.75 mm 0.030 in double amplitude in X, Y and Z directions for two hours each
Shock resistance300 m/s2 acceleration (30 G approx.) in X, Y and Z directions three times each
MaterialEnclosure: Aluminum, Mounting bracket: Stainless steel,
Mirror (rear surface mirror): Glass, Side cover: EPDM
AccessoriesIntermediate supporting bracket:
1 set (RF-SFBH-40/48/56/64),
2 sets (RF-SFBH-72/80/88/96)

Note:
Where measurement conditions have not been specified precisely, the conditions used were an ambient temperature of +20 ℃ +68 ℉.

------------------------------ Tab3 showing ------------------------------

Dimensions

  • Unit: mm in

SF4B-□G<V2>

Safety light curtain

Assembly dimensions

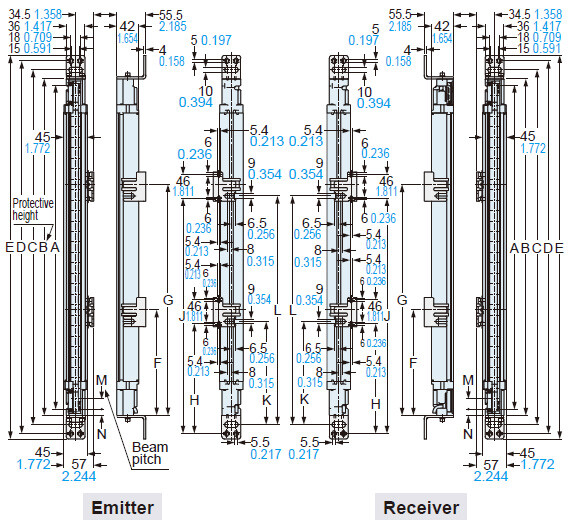

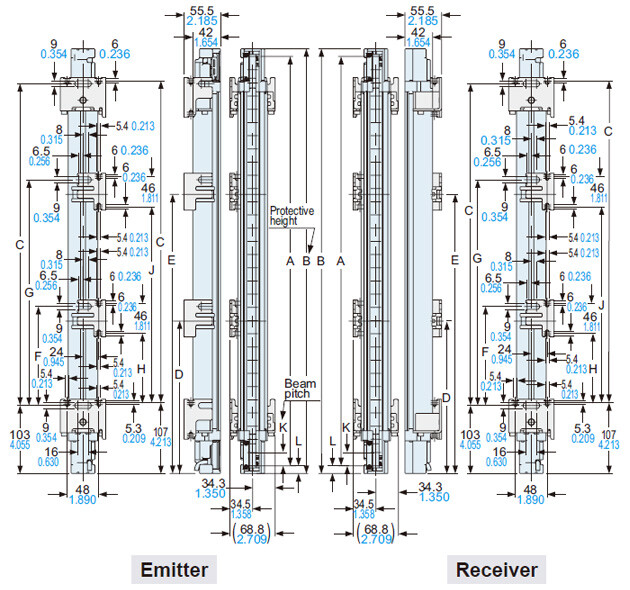

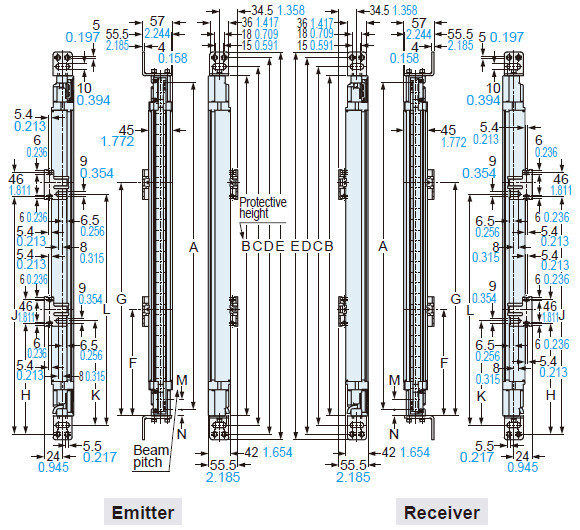

Mounting drawing for safety light curtains using the standard mounting brackets MS-SF4BG-1(optional) and the intermediate supporting brackets.

<Rear mounting>

SF4B-G Rear mounting

<Side mounting>

SF4B-G Side mounting

Model No.Distance
between
beam axes
(Top / Bottom channels)		Protective
height
(Main body
length)		Mounting
pitch
ABCD
SF4B-F□G<V2>
SF4B-H□G<V2>		SF4B-A□G<V2>
SF4B-F23G
<V2>		SF4B-H12G
<V2>		SF4B-A6G
<V2>		220
8.661		200
7.874		244
9.606		279
10.984		313
12.323
SF4B-F31G
<V2>		SF4B-H16G
<V2>		SF4B-A8G
<V2>		300
11.811		280
11.024		324
12.756		359
14.134		393
15.472
SF4B-F39G
<V2>		SF4B-H20G
<V2>		SF4B-A10G
<V2>		380
14.961		360
14.173		404
15.906		439
17.283		473
18.622
SF4B-F47G
<V2>		SF4B-H24G
<V2>		SF4B-A12G
<V2>		460
18.110		440
17.323		484
19.055		519
20.433		553
21.772
SF4B-F55G
<V2>		SF4B-H28G
<V2>		SF4B-A14G
<V2>		540
21.260		520
20.472		564
22.205		599
23.583		633
24.921
SF4B-F63G
<V2>		SF4B-H32G
<V2>		SF4B-A16G
<V2>		620
24.409		600
23.622		644
25.354		679
26.732		713
28.071
SF4B-F71G
<V2>		SF4B-H36G
<V2>		SF4B-A18G
<V2>		700
27.559		680
26.772		724
28.504		759
29.882		793
31.220
SF4B-F79G
<V2>		SF4B-H40G
<V2>		SF4B-A20G
<V2>		780
30.709		760
29.921		804
31.654		839
33.031		873
34.370
SF4B-F95G
<V2>		SF4B-H48G
<V2>		SF4B-A24G
<V2>		940
37.008		920
36.220		964
37.953		999
39.331		1,033
40.669
SF4B-F111G
<V2>		SF4B-H56G
<V2>		SF4B-A28G
<V2>		1,100
43.307		1,080
42.520		1,124
44.252		1,159
45.630		1,193
46.968
SF4B-F127G
<V2>		SF4B-H64G
<V2>		SF4B-A32G
<V2>		1,260
49.606		1,240
48.819		1,284
50.551		1,319
51.929		1,353
53.268
-SF4B-H72G
<V2>		SF4B-A36G
<V2>		1,420
55.905		1,400
55.118		1,444
56.850		1,479
58.228		1,513
59.567
-SF4B-H80G
<V2>		SF4B-A40G
<V2>		1,580
62.205		1,560
61.417		1,604
63.150		1,639
64.528		1,673
65.866
-SF4B-H88G
<V2>		SF4B-A44G
<V2>		1,740
68.504		1,720
67.716		1,764
69.449		1,799
70.827		1,833
72.165
-SF4B-H96G
<V2>		SF4B-A48G
<V2>		1,900
74.803		1,880
74.016		1,924
75.748		1,959
77.126		1,993
78.464
Model No.Total
length		Intermediate supporting
bracket mounting pitch
EFGHJKL
SF4B-F23G
<V2>		SF4B-H12G
<V2>		SF4B-A6G
<V2>		334
13.150		------
SF4B-F31G
<V2>		SF4B-H16G
<V2>		SF4B-A8G
<V2>		414
16.299		------
SF4B-F39G
<V2>		SF4B-H20G
<V2>		SF4B-A10G
<V2>		494
19.449		------
SF4B-F47G
<V2>		SF4B-H24G
<V2>		SF4B-A12G
<V2>		574
22.598		------
SF4B-F55G
<V2>		SF4B-H28G
<V2>		SF4B-A14G
<V2>		654
25.748		------
SF4B-F63G
<V2>		SF4B-H32G
<V2>		SF4B-A16G
<V2>		734
28.898		------
SF4B-F71G
<V2>		SF4B-H36G
<V2>		SF4B-A18G
<V2>		814
32.047		------
SF4B-F79G
<V2>		SF4B-H40G
<V2>		SF4B-A20G
<V2>		894
35.197		441
17.362		-414
16.299		-419
16.496		-
SF4B-F95G
<V2>		SF4B-H48G
<V2>		SF4B-A24G
<V2>		1,054
41.496		521
20.512		-494
19.449		-499
19.646		-
SF4B-F111G
<V2>		SF4B-H56G
<V2>		SF4B-A28G
<V2>		1,214
47.795		601
23.661		-574
22.598		-579
22.795		-
SF4B-F127G
<V2>		SF4B-H64G
<V2>		SF4B-A32G
<V2>		1,374
54.094		681
26.811		-654
25.748		-659
25.945		-
-SF4B-H72G
<V2>		SF4B-A36G
<V2>		1,534
60.394		520
20.472		1,001
39.409		493
19.409		974
38.346		498
19.606		979
38.543
-SF4B-H80G
<V2>		SF4B-A40G
<V2>		1,694
66.693		573
22.559		1,108
43.622		546
21.496		1,081
42.559		551
21.693		1,086
42.756
-SF4B-H88G
<V2>		SF4B-A44G
<V2>		1,854
72.992		627
24.685		1,215
47.835		600
23.622		1,188
46.772		605
23.819		1,193
46.968
-SF4B-H96G
<V2>		SF4B-A48G
<V2>		2,014
79.291		680
26.772		1,321
52.008		653
25.709		1,294
50.945		658
25.906		1,289
50.748
型式名Beam pitchFirst beam
channel position
MN
SF4B-F□G<V2>10 0.39411.8 0.465
SF4B-H□G<V2>20 0.78711.8 0.465
SF4B-A□G<V2>40 1.57521.8 0.858

SF4B-□G<V2>

Safety light curtain

Assembly dimensions

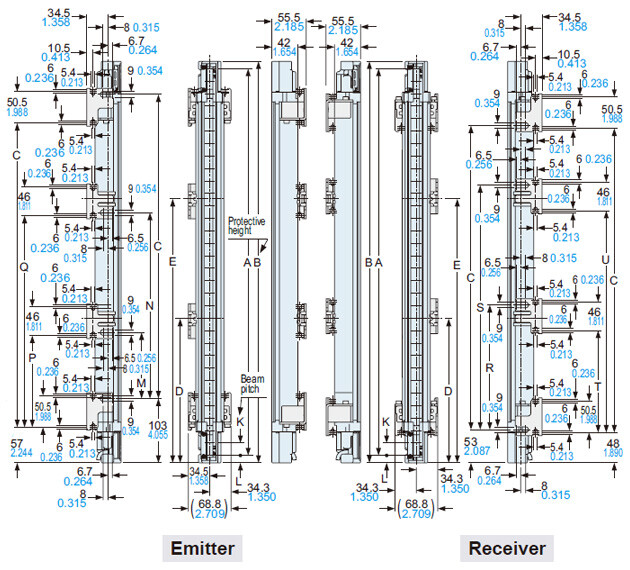

Mounting drawing for safety light curtains using the Dead zoneless mounting brackets MS-SF4BG-3 (optional) and the intermediate supporting brackets.

<Rear mounting>

SF4B-□G<:V2>: Rear mounting

<Side mounting>

Model No.Distance
between
beam axes
(Top / Bottom channels)		Protective
height
(Main body
length)		Mounting
pitch
ABC
SF4B-F□G<V2>
SF4B-H□G<V2>		SF4B-A□G<V2>
SF4B-F23G
<V2>		SF4B-H12G
<V2>		SF4B-A6G
<V2>		220
8.661		200
7.874		244
9.606		64.5
2.539
SF4B-F31G
<V2>		SF4B-H16G
<V2>		SF4B-A8G
<V2>		300
11.811		280
11.024		324
12.756		144.5
5.689
SF4B-F39G
<V2>		SF4B-H20G
<V2>		SF4B-A10G
<V2>		380
14.961		360
14.173		404
15.906		224.5
8.839
SF4B-F47G
<V2>		SF4B-H24G
<V2>		SF4B-A12G
<V2>		460
18.110		440
17.323		484
19.055		304.5
11.988
SF4B-F55G
<V2>		SF4B-H28G
<V2>		SF4B-A14G
<V2>		540
21.260		520
20.472		564
22.205		384.5
15.138
SF4B-F63G
<V2>		SF4B-H32G
<V2>		SF4B-A16G
<V2>		620
24.409		600
23.622		644
25.354		464.5
18.287
SF4B-F71G
<V2>		SF4B-H36G
<V2>		SF4B-A18G
<V2>		700
27.559		680
26.772		724
28.504		544.5
21.437
SF4B-F79G
<V2>		SF4B-H40G
<V2>		SF4B-A20G
<V2>		780
30.709		760
29.921		804
31.654		624.5
24.587
SF4B-F95G
<V2>		SF4B-H48G
<V2>		SF4B-A24G
<V2>		940
37.008		920
36.220		964
37.953		784.5
30.886
SF4B-F111G
<V2>		SF4B-H56G
<V2>		SF4B-A28G
<V2>		1,100
43.307		1,080
42.520		1,124
44.252		944.5
37.185
SF4B-F127G
<V2>		SF4B-H64G
<V2>		SF4B-A32G
<V2>		1,260
49.606		1,240
48.819		1,284
50.551		1,104.5
43.484
-SF4B-H72G
<V2>		SF4B-A36G
<V2>		1,420
55.905		1,400
55.118		1,444
56.850		1,264.5
49.783
-SF4B-H80G
<V2>		SF4B-A40G
<V2>		1,580
62.205		1,560
61.417		1,604
63.150		1,424.5
56.083
-SF4B-H88G
<V2>		SF4B-A44G
<V2>		1,740
68.504		1,720
67.716		1,764
69.449		1,584.5
62.382
-SF4B-H96G
<V2>		SF4B-A48G
<V2>		1,900
74.803		1,880
74.016		1,924
75.748		1,744.5
68.681
Model No.Intermediate supporting
bracket mounting pitch
DEFGHJM
SF4B-F23G
<V2>		SF4B-H12G
<V2>		SF4B-A6G
<V2>		-------
SF4B-F31G
<V2>		SF4B-H16G
<V2>		SF4B-A8G
<V2>		-------
SF4B-F39G
<V2>		SF4B-H20G
<V2>		SF4B-A10G
<V2>		-------
SF4B-F47G
<V2>		SF4B-H24G
<V2>		SF4B-A12G
<V2>		-------
SF4B-F55G
<V2>		SF4B-H28G
<V2>		SF4B-A14G
<V2>		-------
SF4B-F63G
<V2>		SF4B-H32G
<V2>		SF4B-A16G
<V2>		-------
SF4B-F71G
<V2>		SF4B-H36G
<V2>		SF4B-A18G
<V2>		-------
SF4B-F79G
<V2>		SF4B-H40G
<V2>		SF4B-A20G
<V2>		414
16.299		-333
13.110		-288
11.339		-289
11.378
SF4B-F95G
<V2>		SF4B-H48G
<V2>		SF4B-A24G
<V2>		494
19.449		-413
16.260		-368
14.488		-369
14.528
SF4B-F111G
<V2>		SF4B-H56G
<V2>		SF4B-A28G
<V2>		574
22.598		-493
19.409		-448
17.638		-449
17.677
SF4B-F127G
<V2>		SF4B-H64G
<V2>		SF4B-A32G
<V2>		654
25.748		-573
22.559		-528
20.787		-529
20.827
-SF4B-H72G
<V2>		SF4B-A36G
<V2>		493
19.409		974
38.346		412
16.220		893
35.157		367
14.449		848
33.386		368
14.488
-SF4B-H80G
<V2>		SF4B-A40G
<V2>		546
21.496		1,081
42.559		465
18.307		1,000
39.370		420
16.535		955
37.598		421
16.575
-SF4B-H88G
<V2>		SF4B-A44G
<V2>		600
23.622		1,188
46.772		519
20.433		1,107
43.583		474
18.661		1,062
41.811		475
18.701
-SF4B-H96G
<V2>		SF4B-A48G
<V2>		653
25.709		1,294
50.945		572
22.520		1,213
47.756		527
20.748		1,168
45.984		528
20.787
Model No.Intermediate supporting
bracket mounting pitch
NPQRSTU
SF4B-F23G
<V2>		SF4B-H12G
<V2>		SF4B-A6G
<V2>		-------
SF4B-F31G
<V2>		SF4B-H16G
<V2>		SF4B-A8G
<V2>		-------
SF4B-F39G
<V2>		SF4B-H20G
<V2>		SF4B-A10G
<V2>		-------
SF4B-F47G
<V2>		SF4B-H24G
<V2>		SF4B-A12G
<V2>		-------
SF4B-F55G
<V2>		SF4B-H28G
<V2>		SF4B-A14G
<V2>		-------
SF4B-F63G
<V2>		SF4B-H32G
<V2>		SF4B-A16G
<V2>		-------
SF4B-F71G
<V2>		SF4B-H36G
<V2>		SF4B-A18G
<V2>		-------
SF4B-F79G
<V2>		SF4B-H40G
<V2>		SF4B-A20G
<V2>		-330
12.992		-383
15.079		-347
13.661		-
SF4B-F95G
<V2>		SF4B-H48G
<V2>		SF4B-A24G
<V2>		-410
16.142		-463
18.228		-427
16.811		-
SF4B-F111G
<V2>		SF4B-H56G
<V2>		SF4B-A28G
<V2>		-490
19.291		-543
21.378		-507
19.961		-
SF4B-F127G
<V2>		SF4B-H64G
<V2>		SF4B-A32G
<V2>		-570
22.441		-623
24.528		-587
23.110		-
-SF4B-H72G
<V2>		SF4B-A36G
<V2>		849
33.425		409
16.102		890
35.039		462
18.189		943
37.126		426
16.772		907
35.709
-SF4B-H80G
<V2>		SF4B-A40G
<V2>		956
37.638		462
18.189		997
39.252		515
20.276		1,050
41.339		479
18.858		1,014
39.921
-SF4B-H88G
<V2>		SF4B-A44G
<V2>		1,063
41.850		516
20.315		1,104
43.465		569
22.402		1,157
45.551		533
20.984		1,121
44.134
-SF4B-H96G
<V2>		SF4B-A48G
<V2>		1,169
46.024		569
22.402		1,210
47.638		622
24.488		1,263
49.724		586
23.071		1,227
48.307
Model No.Beam pitchFirst beam
channel position
KL
SF4B-F□G<V2>10 0.39411.8 0.465
SF4B-H□G<V2>20 0.78711.8 0.465
SF4B-A□G<V2>40 1.57521.8 0.858

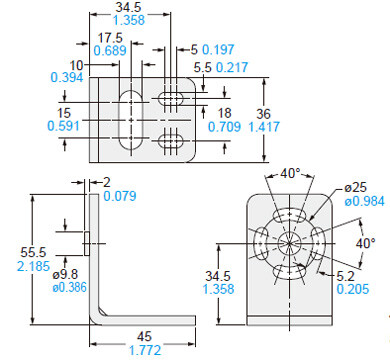

MS-SF4BG-1

Standard L mounting bracket (Optional)

MS-SF4BG-1

Material: SPCC

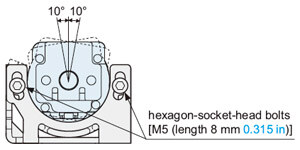

Four bracket set [Eight M5 (length: 10 mm 0.394 in) hexagon-socket-head bolts are attached.]

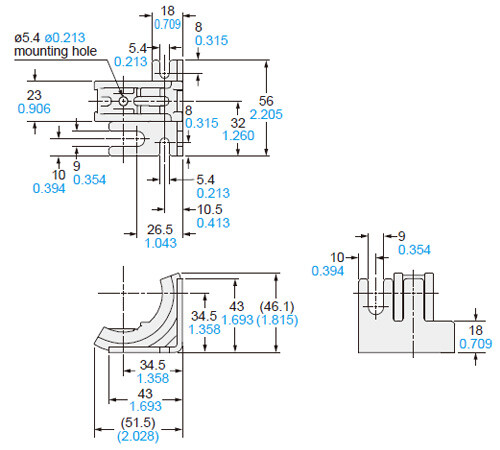

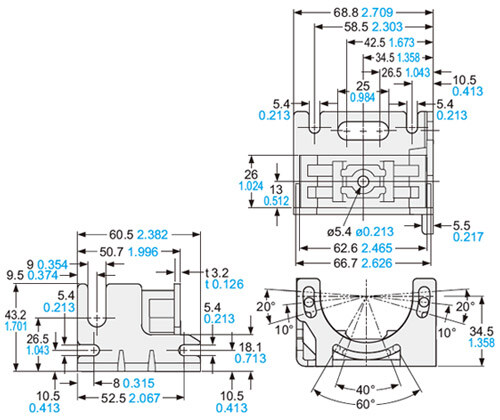

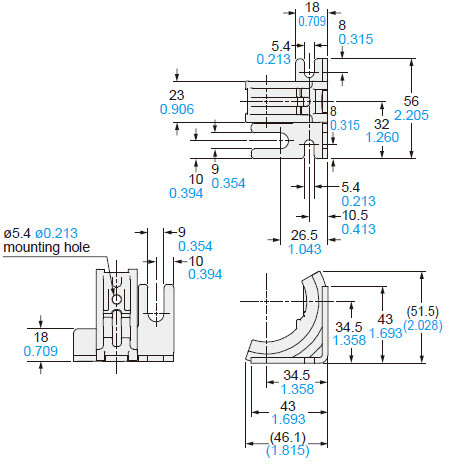

MS-SF4BG-2

Intermediate supporting bracket (Accessory for safety light curtain)

Rear mounting

MS-SF4BG-2 Rear mounting

Side mounting

MS-SF4BG-2 Side mounting

Note: The intermediate supporting bracket MS-SF4BG-2 is enclosed with the following products. The quantity differs depending on the product as shown below:
1 set:
SF4B-F□G・・・ Safety light curtain with 79 to 127 beam channels
SF4B-H□G□・・・ Safety light curtain with 40 to 64 beam channels
SF4B-A□G・・・ Safety light curtain with 20 to 32 beam channels
2 sets:
SF4B-H□G□・・・ Safety light curtain with 72 to 96 beam channels
SF4B-A□G・・・ Safety light curtain with 36 to 48 beam channels

MS-SF4BG-3

Dead zoneless mounting bracket (Optional)

Material:
Dead zoneless mounting bracket ··· SPCC (Trivalent chrome plated)
Dead zoneless supporting bracket ··· PPS

Mounting adjustment range

The adjustment range of the safety light curtain angle is up to ±10 degrees.

SF-LAT-4BG

Laser alignment tool (Optional)

SF-LAT-4BG

SFB-HC

Handy-controller (optional)

SFB-HC

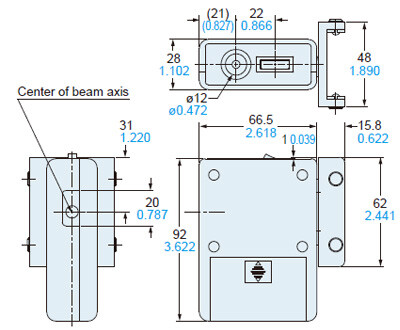

SF-IND-2

Large display unit for light curtain (optional)

SF-IND-2

Material:
Bracket...Cold rolled carbon steel (SPCC)(Black chromate)
Enclosure...POM
Cover...Polycarbonate

------------------------------ Tab4 showing ------------------------------

I/O Circuit and Wiring diagrams

I/O circuit diagram

<In case of using I/O circuit for PNP output>

I/O circuit diagram In case of using I/O circuit for PNP output

Note: The above diagram is when using a 12-core cable. If an 8-core cable is used, the red, yellow, gray, gray / black, sky-blue / white and sky-blue / black lead wires are absent.


*S1

Switch S1

  • Emission halt input / Reset input
    For manual reset
    Vs to Vs – 2.5 V (sink current 5 mA or less): Emission halt (Note 1)
    Open: Emission
    For automatic reset
    Vs to Vs – 2.5 V (sink current 5 mA or less): Emission (Note 1)
    Open: Emission halt
  • Interlock setting input, Override input, Muting input A / B,
    External device monitoring input
    Vs to Vs – 2.5 V (sink current 5 mA or less): Enabled (Note 1)
    Open: Disabled

Note: Vs is the applying supply voltage.

<In case of using I/O circuit for NPN output>

I/O circuit diagram In case of using I/O circuit for NPN output

Note: The above diagram is when using a 12-core cable. If an 8-core cable is used, the red, yellow, gray, gray / black, sky-blue / white and sky-blue / black lead wires are absent.

*S1

Switch S1

  • Emission halt input / Reset input
    For manual reset
    0 to +1.5 V (source current 5 mA or less): Emission halt
    Open: Emission
    For automatic reset
    0 to +1.5 V (source current 5 mA or less): Emission
    Open: Emission halt
  • Interlock setting input, Override input, Muting input A / B,
    External device monitor input
    0 to +1.5 V (source current 5 mA or less): Enabled
    Open: Disabled

Connection example

Standard components (8-core cable): Interlock function “enabled (manual reset)”, external device monitoring function “enabled”

<In case of using I/O circuit for PNP output>

Connection example In case of using I/O circuit for PNP output

*S1

Switch S1

  • Emission halt input / Reset input
    For manual reset
    Vs to Vs – 2.5 V (sink current 5 mA or less): Emission halt (Note)
    Open: Emission
    For automatic reset
    Vs to Vs – 2.5 V (sink current 5 mA or less): Emission (Note)
    Open: Emission halt

Note: Vs is the applying supply voltage.

The diagram at above shows the configuration when using PNP output, interlock function “enabled (manual reset)” and external device monitoring function “enabled”.

In case of setting the interlock function to “disabled (automatic reset)”

Connection example In case of setting the interlock function to “disabled (automatic reset)”

*Refer to the SF4B<V2> instruction manual for details of the interlock function.


In case of setting the external device monitoring function to “disabled”

Connection example In case of setting the external device monitoring function to “disabled”

*Refer to the SF4B<V2> instruction manual for details of the external device monitoring function.



<In case of using I/O circuit for NPN output>

Connection example In case of using I/O circuit for NPN output

*S1

Switch S1

  • Emission halt input / Reset input
    For manual reset
    0 to +1.5 V (source current 5 mA or less): Emission halt
    Open: Emission
    For automatic reset
    0 to +1.5 V (source current 5 mA or less): Emission
    Open: Emission halt

The diagram at above shows the configuration when using NPN output, interlock function “enabled (manual reset)” and external device monitoring function “enabled”.

In case of setting the interlock function to “disabled (automatic reset)”

Connection example In case of setting the interlock function to “disabled (automatic reset)”

*Refer to the SF4B<V2> instruction manual for details of the interlock function.


In case of setting the external device monitoring function to “disabled”

Connection example In case of setting the external device monitoring function to “disabled”

*Refer to the SF4B<V2>instruction manual for details of the external device monitoring function.



Connection example

Muting control components (12-core cable, with interference prevention wires): Interlock function “disabled (automatic reset)”, external device monitoring function “disabled”

<In case of using I/O circuit for PNP output>

Connection example In case of using I/O circuit for PNP output

*S1

Switch S1

  • Emission halt input / Reset input
    For manual reset
    Vs to Vs – 2.5 V (sink current 5 mA or less): Emission halt (Note), Open: Emission
    For automatic reset
    Vs to Vs – 2.5 V (sink current 5 mA or less): Emission (Note), Open: Emission halt
  • Override input, Muting input A / B, External device monitoring input
    Vs to Vs – 2.5 V (sink current 5 mA or less): Enabled (Note), Open: Disabled

Note: Vs is the applying supply voltage.

The diagram at above shows the configuration when using PNP output, interlock function “disabled (automatic reset)” and external device monitoring function “disabled”.


In case of setting the interlock function to “enabled (manual reset)”

  • When the interlock function is “enabled (manual reset)”, the override function cannot be used.

Connection example In case of setting the interlock function to “enabled (manual reset)”

*Refer to the SF4B<V2> instruction manual for details of the interlock function.


In case of setting the external device monitoring function to “enabled”

Connection example In case of setting the external device monitoring function to “enabled”

*Refer to the SF4B<V2> instruction manual for details of the external device monitoring function.


<In case of using I/O circuit for NPN output>

Connection example In case of using I/O circuit for NPN output

*S1

Switch S1

  • Emission halt input / Reset input
    For manual reset
    0 to +1.5 V (source current 5 mA or less): Emission halt, Open: Emission
    For automatic reset
    0 to +1.5 V (source current 5 mA or less): Emission, Open: Emission halt
  • Override input, Muting input A / B, External device monitoring input
    0 to +1.5 V (source current 5 mA or less): Enabled, Open: Disabled

The diagram at above shows the configuration when using NPN output, interlock function “disabled (automatic reset)” and external device monitoring function “disabled”.


In case of setting the interlock function to “enabled (manual reset)”

  • When the interlock function is “enabled (manual reset)”, the override function cannot be used.

Connection example In case of setting the interlock function to “enabled (manual reset)”

*Refer to the SF4B<V2> instruction manual for details of the interlock function.


In case of setting the external device monitoring function to “enabled”

Connection example In case of setting the external device monitoring function to “enabled”

*Refer to the SF4B<V2> instruction manual for details of the external device monitoring function.



SF-C11

SF4B / SF4B-G series wiring diagram (Control Category 4)

For PNP output (minus ground)

  • Set the safety light curtain input polarity selection switch to the PNP side and ground the 0 V line.

SF-C11 For PNP output (minus ground)

Notes:
1) The above diagram is when using manual reset. If automatic reset is used, disconnect the lead from X2 and connect it to X3. In this case, a reset (RESET) button is not needed.
2) Use a momentary-type switch as the reset (RESET) button.
3) Emission halt occurs when the test (TEST) button is open, and emission occurs when the test (TEST) button is short-circuited. If not using the test (TEST) button, short-circuit T1 and T2.

For NPN output (plus ground)

  • In the above diagram, set the safety light curtain input polarity selection switch to the NPN side and ground the + side.

SF4B series wiring diagram (Control Category 4) For NPN output (plus ground)


When SF-C11 is connected to the safety light curtain, be sure to use the following mating cable.
SFB-CB□, SFB-CCJ10□



Terminal arrangement diagram

SF-C11 Terminal arrangement diagram

TerminalFunction
A1+24 V DC
A20 V
13-14, 23-24, 33-34Safety output (NO contact × 3)
41-42Auxiliary output (NC contact × 1)
X1Reset output terminal
X2Reset input terminal (Manual)
X3Reset input terminal (Automatic)
ANot used
B
T1Test output terminal
T2Test input terminal
AUXSemiconductor auxiliary output


Pin layout for safety light curtain connectors

SF-C11 Pin layout for safety light curtain connectors

Connector pin No.Emitter side connectorReceiver side connector
①InterlockOSSD 2
②+24 V DC+24 V DC
③Emission haltOSSD 1
④Auxiliary outputEDM (External relay monitor)
⑤Synchronization wire +Synchronization wire +
⑥Synchronization wire –Synchronization wire –
⑦0 V0 V
⑧Shield wireShield wire

SF-C12

SF4B / SF4B-G series wiring diagram (Control Category 4)

For PNP output (minus ground)

  • Set the two safety light curtain input polarity select switches to the PNP side and connect the FG terminal to the 0 V line.

SF-C12 SF4B series wiring diagram (Control Category 4)

Note: The above diagram is when using manual reset. If automatic reset is used, connect a normally closed type pushbutton switch between T1 and T2 and leave between X1 and X2 open.

For NPN output (plus ground)

  • In the above diagram, set the two safety light curtain input polarity selection switches to the NPN side and connect the F.G. terminal to the + side.

When SF-C12 is connected to the safety light curtain, be sure to use the following mating cable.
SFB-CB05-MU, SFB-CCJ10□-MU



Terminal arrangement diagram

SF-C12 Terminal arrangement diagram

TerminalFunction
FGFrame ground (F.G.) terminal
A20 V
A1+24 V DC
13-14, 23-24Safety output (NO contact × 2)
31-32Auxiliary output (NC contact × 1)
FB4External relay monitor terminal 2
FB3
FB2External relay monitor terminal 1
FB1
TerminalFunction
R+Interference prevention wire – (Receiver side)
R–Interference prevention wire + (Receiver side)
E+Interference prevention wire – (Emitter side)
E–Interference prevention wire + (Emitter side)
T2Emission halt input terminal
T1
X2Automatic reset / manual reset selection terminal
Manual reset: X1 – X2 short-circuited
X1


Pin layout for safety light curtain connectors

SF-C12 Pin layout for safety light curtain connectors

Note: Input and output for pin Nos. ⑪ and ⑫ are not used by this device.

Connector pin No.Emitter side connectorReceiver side connector
①InterlockOSSD 2
②+24 V DC+24 V DC
③Emission haltOSSD 1
④Auxiliary outputEDM (External relay monitor)
⑤Synchronization wire +Synchronization wire +
⑥Synchronization wire –Synchronization wire –
⑦0 V0 V
⑧Shield wireShield wire
⑨Interference prevention wire +Interference prevention wire +
⑩Interference prevention wire –Interference prevention wire –
⑪(Override input)(Muting input 1)
⑫(Muting lamp output)(Muting input 2)

SF-C13

SF4B / SF4B-G series wiring diagram (Control Category 4)

For PNP output (minus ground)

  • Connect the safety light curtain control outputs OSSD 1 and OSSD 2 to S1 and S2 respectively.

SF-C13 For PNP output (minus ground)

Notes:
1) The above diagram is when using manual reset. If automatic reset is used, disconnect the lead from X2 and connect it to X3. In this case, a reset (RESET) button is not needed.
2) Use a momentary-type switch as the reset (RESET) button.

For NPN output (plus ground)

  • Connect the safety light curtain control outputs OSSD 1 and OSSD 2 to S4 and S2 respectively and ground the + side.

SF-C13 For NPN output (plus ground)

Notes:
1) The above diagram is when using manual reset. If automatic reset is used, disconnect the lead from X2 and connect it to X3. In this case, a reset (RESET) button is not needed.
2) Use a momentary-type switch as the reset (RESET) button.

When SF-C13 is connected to the safety light curtain, be sure to use the following descrete wire mating cable.
SFB-CCB□(-MU), SFB-CC□(-MU)

Terminal arrangement diagram

SF-C13 Terminal arrangement diagram

TerminalFunction
A1+24 V DC
A20 V
S1 to S4Safety light curtain control output (OSSD) input terminal
AUXSemiconductor auxiliary output
X1Reset output terminal
X2Reset input terminal (Manual)
X3Reset input terminal (Automatic)
13-14, 23-24, 33-34Safety output (NO contact × 3)
41-42Auxiliary output (NC contact × 1)

A terminal block is required for wiring of safety light curtain side.



SF-C14EX(-01)

SF4B / SF4B-G series wiring diagram (Control Category 4)

For PNP output (minus ground)

  • Set the output polarity selection switch to the PNP side and ground the 0 V line.

Notes:
1) The above diagram is when using manual reset.If automatic reset is used, disconnect the lead from X12 and connect it to X13,and disconnect the lead from X22 and connect it to X23, as shown by the dotted lines. In this case, a reset (RESET) button is not needed. Terminals X31 to X32 are for manual reset only.
2) Use a momentary-type switch for the reset (RESET) button.

For NPN output (plus ground)

  • Set the output polarity selection switch to the NPN side and ground the side of the power supply input.

SF-C14EX(-01) For NPN output (plus ground)

Notes:
1) The left diagram is when using manual reset. If automatic reset is used, disconnect the lead from X12 and connect it to X13, and disconnect the lead from X22 and connect it to X23, as shown by the dotted lines. In this case, a reset (RESET) button is not needed. Terminals X31 to X32 are for manual reset only.
2) Use a momentary-type switch for the reset (RESET) button.

  • When SF-C14EX is connected to the safety safety light curtain, be sure to use the following mating cable.
    SFB-CB□-EX, SFB-CCJ10□
  • If the NO (Normally Open) contact switch is used as a muting sensor, wire it as shown in the figure below.
    SF-C14EX(-01) For PNP output (minus ground)
  • If the emergency stop button is not used, short-circuit between the terminals S11 to S12 and S21 to S22 directly.

Terminal arrangement diagram

SF-C14EX(-01) Terminal arrangement diagram

TerminalFunctionTerminalFunction
14Safety output 1, Beam received / Beam interrupted output of the safety light curtainS11Emergency stop
contact input
2 NC input
Between S11 and S12
Between S21 and S22
24S12
34Safety output 2, safety light curtain output including the muting functionS21
44S22
54Safety output 3 Emergency stop outputX11Safety output 1 reset input
X11 - X12: Manual reset
X11 - X13: Automatic reset
64X12
S3+Muting sensor input 1 (PNP output type)
S3+, S3–: Power supply
S3: Sensor output		X13
S3X21Safety output 2 reset input
X21 - X22: Manual reset
X21 - X23: Automatic reset
S3–X22
S4+Muting sensor input 2(NPN output type)
S4+, S4–: Power supply
S4: Sensor output		X23
S4X31Safety output 3 reset input
X31 - X32: Manual reset
S4–X32
T1Test input terminal
Open: Test mode
Short-circuit: Normal operation		AUX1Auxiliary output 1, Muting output
T2AUX2Auxiliary output 2, Override output
O1Override input terminal
Open: Invalid
Short-circuit: Valid		AUX3Auxiliary output 3, Blown lamp output
O2AUX4Auxiliary output 4, Safety light curtain auxiliary output
L1+Muting lamp output 1IE+Interference prevention terminal, Emitter side +
L1–IE–Interference prevention terminal, Emitter side –
L2+Muting lamp output 2IR+Interference prevention terminal, Receiver side +
L2–IR–Interference prevention terminal, Receiver side –
A1+24 V DC-
A20 V-

Pin layout for safety light curtain connectors

SF-C14EX(-01) Terminal arrangement diagram Pin layout for safety light curtain connectors

Connector pin No.Emitter side connectorReceiver side connector
①Interference prevention wire +Interference prevention wire +
②+24 V DC+24 V DC
③Interference prevention wire –Interference prevention wire –
④Auxiliary outputNot used
⑤Synchronization wire +Synchronization wire +
⑥Synchronization wire –Synchronization wire –
⑦0 V0 V
⑧Shield wireShield wire

------------------------------ Tab5 showing ------------------------------

Cautions For Use

■ Information on SF4B series Ver.2

Attentions of SF4B-□G Ver.2 series are the same as SF4B Ver.2 series. Refer to SF4B Ver.2 series for details.

>>Go to Light Curtain Type 4 SF4B Ver.2

MENU

Recently checked products

Recently checked product numbers
