GX-M SERIES (Discontinued Products)
Download
-
Discontinued Products
-
Specifications
-
Dimensions
-
Circuit/ Wiring
-
Cautions For Use
Ⅾiscontinued
Last time buy (JST)
September 30, 2022
Please refer to the details of the discontinued products and the recommended substitutes list below.
------------------------------ Tab1 showing ------------------------------
Discontinued Products
------------------------------ Tab2 showing ------------------------------
Specifications
DC 3-wire type
Type | Shielded type | ||||
---|---|---|---|---|---|
Model No. | Normally open | GX-M8A□ | GX-M12A□ | GX-18A□ | GX-M30A□ |
Normally closed | GX-M8B□ | GX-M12B□ | GX-18B□ | GX-M30B□ | |
CE marking directive compliance | EMC Directive, RoHS Directive | ||||
Max. operation distance (Note 2,3) | 1.5 mm 0.06 in ±10 % | 2 mm 0.08 in ±10 % | 5 mm 0.20 in ±10 % | 10 mm 0.39 in ±10 % | |
Stable sensing range (Note 2,3) | 0 to 1.2 mm 0 to 0.05 in | 0 to 1.6 mm 0 to 0.06 in | 0 to 4 mm 0 to 0.16 in | 0 to 8 mm 0 to 0.32 in | |
Standard sensing object | Iron sheet 8 x 8 x t 1 mm 0.32 x 0.32 x t 0.04 in | Iron sheet 12 x 12 x t 1 mm 0.47 x 0.47 x t 0.04 in | Iron sheet 18 x 18 x t 1 mm 0.71 x 0.71 x t 0.04 in | Iron sheet 30 x 30 x t 1 mm 1.18 x 1.18 x t 0.04 in | |
Hysteresis (Note 2) | 15 % or less of operation distance (with standard sensing object) | ||||
Repeatability (Note 2) | Along sensing axis: 5 % or less of operation distance | ||||
Supply voltage | 12 to 24 V DC ±10 % Ripple P-P 10 % or less | ||||
Current consumption | 10 mA or less | ||||
Output | <NPN output type> NPN open-collector transistor • Maximum sink current 200 mA • Applied voltage: 24 V DC or less (between output and 0 V) • Residual voltage 2 V or less <PNP output type> PNP open-collector transistor • Maximum source current 200 mA • Applied voltage: 24 V DC or less (between output and + V) • Residual voltage 2 V or less | ||||
Utilization category | DC-12 or DC-13 | ||||
Short-circuit protection | Incorporated | ||||
Max. response frequency | 5 kHz | 5 kHz | 2 kHz | 1 kHz | |
Operation indicator | Yellow LED (lights up when the output is ON) | ||||
Pollution degree | 3 (industrial enviroment) | ||||
Protection | IP67 (IEC) | IP69K (DIN), IP68 (IEC) (2 m cable length type only), IP67 (IEC) (M12 plug-in connector type only) | |||
Ambient temperature | –25 to +70 ℃ –13 to +158 ℉, Storage: –40 to +85 ℃ –40 to +185 ℉ | ||||
Ambient humidity | 50 % RH or less (at +70 ℃ +158 ℉) | ||||
Voltage withstandability | 500 V AC for one min. between all supply terminals connected together and enclosure | ||||
Vibration resistance | 10 to 55 Hz frequency, 0.5 mm 0.02 in double amplitude in X, Y and Z directions for 1.5 hours each | ||||
Shock resistance | 294 m/s2 acceleration (30 G approx.) in X, Y and Z directions three times each | ||||
Sensing range variation (Note 2) | Within ±10 % fluctuation of sensing range at +23 ℃ +73 ℉ and rated voltage in the range of allowable temperature and supply voltage | ||||
Material | Enclosure: Brass (Nickel plated), Sensing part: PPS | ||||
Cable (except for M12 plug-in connector type) | 0.44 mm2 (0.15 mm2 for GX-M8□) 3-core cabtyre cable, 2 m 6.56 ft long | ||||
Cable extension | Extension up to total 10 m 32.80 ft is possible with 0.34 mm2, or more, cable. | ||||
Net weight (Note 4) | 2 m cable length type | 40 g approx. | 70 g approx. | 90 g approx. | 150 g approx. |
M12 plug-in connector type | 15 g approx. | 20 g approx. | 45 g approx. | 110 g approx. | |
Accessories | Nut: 2 pcs. |
Type | Non-shielded type | ||||
---|---|---|---|---|---|
Model No. | Normally open | GX-MK12A□ | GX-MK18A□ | GX-MK30A□ | |
Normally closed | GX-MK12B□ | GX-MK18B□ | GX-MK30B□ | ||
CE marking directive compliance | EMC Directive, RoHS Directive | ||||
Max. operation distance (Note 2,3) | 7 mm 0.28 in ±10 % | 12 mm 0.47 in ±10 % | 22 mm 0.87 in ±10 % | ||
Stable sensing range (Note 2,3) | 0 to 5.6 mm 0 to 0.22 in | 0 to 9.6 mm 0 to 0.38 in | 0 to 17.6 mm 0 to 0.69 in | ||
Standard sensing object | Iron sheet 24 x 24 x t 1 mm 0.94 x 0.94 x t 0.04 in | Iron sheet 24 x 24 x t 1 mm 0.94 x 0.94 x t 0.04 in | Iron sheet 45 x 45 x t 1 mm 1.77 x 1.77 x t 0.04 in | ||
Hysteresis (Note 2) | 15 % or less of operation distance (with standard sensing object) | ||||
Repeatability (Note 2) | Along sensing axis: 5 % or less of operation distance | ||||
Supply voltage | 12 to 24 V DC ±10 % Ripple P-P 10 % or less | ||||
Current consumption | 10 mA or less | ||||
Output | <NPN output type> NPN open-collector transistor • Maximum sink current 200 mA • Applied voltage: 24 V DC or less (between output and 0 V) • Residual voltage 2 V or less <PNP output type> PNP open-collector transistor • Maximum source current 200 mA • Applied voltage: 24 V DC or less (between output and + V) • Residual voltage 2 V or less | ||||
Utilization category | DC-12 or DC-13 | ||||
Short-circuit protection | Incorporated | ||||
Max. response frequency | 2.5 kHz | 1 kHz | 0.5 kHz | ||
Operation indicator | Yellow LED (lights up when the output is ON) | ||||
Pollution degree | 3 (industrial enviroment) | ||||
Protection | IP69K (DIN), IP68 (IEC) (2 m cable length type only), IP67 (IEC) (M12 plug-in connector type only) | ||||
Ambient temperature | –25 to +70 ℃ –13 to +158 ℉, Storage: –40 to +85 ℃ –40 to +185 ℉ | ||||
Ambient humidity | 50 % RH or less (at +70 ℃ +158 ℉) | ||||
Voltage withstandability | 500 V AC for one min. between all supply terminals connected together and enclosure | ||||
Vibration resistance | 10 to 55 Hz frequency, 0.5 mm 0.02 in double amplitude in X, Y and Z directions for 1.5 hours each | ||||
Shock resistance | 294 m/s2 acceleration (30 G approx.) in X, Y and Z directions three times each | ||||
Sensing range variation (Note 2) | Within ±10 % fluctuation of sensing range at +23 ℃ +73 ℉ and rated voltage in the range of allowable temperature and supply voltage | ||||
Material | Enclosure: Brass (Nickel plated), Sensing part: PPS | ||||
Cable (except for M12 plug-in connector type) | 0.44 mm2 (0.15 mm2 for GX-M8□) 3-core cabtyre cable, 2 m 6.56 ft long | ||||
Cable extension | Extension up to total 10 m 32.80 ft is possible with 0.34 mm2, or more, cable. | ||||
Net weight (Note 4) | 2 m cable length type | 75 g approx. | 100 g approx. | 180 g approx. | |
M12 plug-in connector type | 25 g approx. | 55 g approx. | 140 g approx. | ||
Accessories | Nut: 2 pcs. |
Notes:
1) Where measurement conditions have not been specified precisely, the conditions used were an ambient temperature of +23 ℃ +73.4 ℉.
2) It is the value in state where the circumference of a detection side has a metal object.
3) The maximum operation distance stands for the maximum distance for which the sensor can detect the standard sensing object.
The stable sensing range stands for the sensing range for which the sensor can stably detect the standard sensing object even if there is an ambient temperature drift and/or supply voltage fluctuation.
4)The weight includes the weight of two nuts.
DC 2-wire type
Type | Standard type | ||||
---|---|---|---|---|---|
Model No. | Normally open | GX-M8A-U(-J) | GX-M12A-U(-Z) | GX-M18A-U(-Z) | GX-M30A-U(-Z) |
Normally closed | GX-M8B-U(-J) | GX-M12B-U(-Z) | GX-M18B-U(-Z) | GX-M30B-U(-Z) | |
CE marking directive compliance | EMC Directive, RoHS Directive | ||||
Max. operation distance (Note 2,3) | 1.5 mm 0.06 in ±10 % | 2 mm 0.08 in ±10 % | 5 mm 0.20 in ±10 % | 10 mm 0.39 in ±10 % | |
Stable sensing range (Note 2,3) | 0 to 1.2 mm 0 to 0.05 in | 0 to 1.6 mm 0 to 0.06 in | 0 to 4 mm 0 to 0.09 in | 0 to 8 mm 0 to 0.22 in | |
Standard sensing object | Iron sheet 8 x 8 x t 1 mm 0.32 x 0.32 x t 0.04 in | Iron sheet 12 x 12 x t 1 mm 0.47 x 0.47 x t 0.04 in | Iron sheet 18 x 18 x t 1 mm 0.71 x 0.71 x t 0.04 in | Iron sheet 30 x 30 x t 1 mm 1.18 x 1.18 x t 0.04 in | |
Hysteresis (Note 2) | 15 % or less of operation distance (with standard sensing object) | ||||
Repeatability (Note 2) | Along sensing axis: 5 % or less of operation distance | ||||
Supply voltage | 12 to 24 V DC ±10 % Ripple P-P 10 % or less | ||||
Current consumption (Note 4) | 0.5 mA or less | ||||
Output | Non-contact DC 2-wire type • Load current: 1.5 to 100 mA • Residual voltage: 4.2 V or less (Note 5) | ||||
Utilization category | DC-12 or DC-13 | ||||
Short-circuit protection | Incorporated | ||||
Max. response frequency | 1 kHz | 1 kHz | 1.2 kHz | 1.3 kHz | |
Operation indicator | Yellow LED (lights up when the output is ON) | ||||
Pollution degree | 3 (industrial enviroment) | ||||
Protection | IP67 (IEC) | IP69K (DIN), IP68 (IEC) (2 m cable length type only) , IP67 (IEC) (M12 plug-in connector type only) | |||
Ambient temperature | –25 to +70 ℃ –13 to +158 ℉, Storage: –40 to +85 ℃ –40 to +185 ℉ | ||||
Ambient humidity | 50 % RH or less (at +70 ℃ +158 ℉) | ||||
Voltage withstandability | 500 V AC for one min. between all supply terminals connected together and enclosure | ||||
Vibration resistance | 10 to 55 Hz frequency, 0.5 mm 0.02 in double amplitude in X, Y and Z directions for 1.5 hours each | ||||
Shock resistance | 294 m/s2 acceleration (30 G approx.) in X, Y and Z directions three times each | ||||
Sensing range variation (Note 2) | Within ±10 % fluctuation of sensing range at +23 ℃ +73 ℉ and rated voltage in the range of allowable temperature and supply voltage | ||||
Material | Enclosure: Brass (Nickel plated), Sensing part: PPS | ||||
Cable (except for M12 plug-in connector type) | 0.44 mm2 [0.15 mm2 for GX-M(L)8□-U] 2-core cabtyre cable, 2 m 6.56 ft long | ||||
Cable extension | Extension up to total 10 m 32.80 ft is possible with 0.34 mm2, or more, cable. | ||||
Net weight (Note 6) | 2 m cable length type | 40 g approx. | 70 g approx. | 90 g approx. | 150 g approx. |
M12 pigtailed(-J type) / M12 plug-in connector type | 20 g approx. | 20 g approx. | 45 g approx. | 110 g approx. | |
Accessories | Nut: 2 pcs. |
Type | Long range type | ||||
---|---|---|---|---|---|
Model No. | Normally open | GX-ML8A-U(-J) | GX-ML12A-U(-Z) | GX-ML18A-U(-Z) | GX-ML30A-U(-Z) |
Normally closed | GX-ML8B-U(-J) | GX-ML12B-U(-Z) | GX-ML18B-U(-Z) | GX-ML30B-U(-Z) | |
CE marking directive compliance | EMC Directive, RoHS Directive | ||||
Max. operation distance (Note 2,3) | 2.5 mm 0.10 in ±10 % | 4 mm 0.16 in ±10 % | 8 mm 0.32 in ±10 % | 15 mm 0.59 in ±10 % | |
Stable sensing range (Note 2,3) | 0 to 2 mm 0 to 0.08 in | 0 to 3.2 mm 0 to 0.13 in | 0 to 6.4 mm 0 to 0.25 in | 0 to 12 mm 0 to 0.47 in | |
Standard sensing object | Iron sheet 8 x 8 x t 1 mm 0.32 x 0.32 x t 0.04 in | Iron sheet 12 x 12 x t 1 mm 0.47 x 0.47 x t 0.04 in | Iron sheet 18 x 18 x t 1 mm 0.71 x 0.71 x t 0.04 in | Iron sheet 30 x 30 x t 1 mm 1.18 x 1.18 x t 0.04 in | |
Hysteresis (Note 2) | 15 % or less of operation distance (with standard sensing object) | ||||
Repeatability (Note 2) | Along sensing axis: 5 % or less of operation distance | ||||
Supply voltage | 12 to 24 V DC ±10 % Ripple P-P 10 % or less | ||||
Current consumption (Note 4) | 0.5 mA or less | ||||
Output | Non-contact DC 2-wire type • Load current: 1.5 to 100 mA • Residual voltage: 4.2 V or less (Note 5) | ||||
Utilization category | DC-12 or DC-13 | ||||
Short-circuit protection | Incorporated | ||||
Max. response frequency | 1.1 kHz | 1.3 kHz | 1.5 kHz | 0.8 kHz | |
Operation indicator | Yellow LED (lights up when the output is ON) | ||||
Pollution degree | 3 (industrial enviroment) | ||||
Protection | IP69K (DIN), IP68 (IEC) (2 m cable length type only) , IP67 (IEC) (M12 plug-in connector type only) | ||||
Ambient temperature | –25 to +70 ℃ –13 to +158 ℉, Storage: –40 to +85 ℃ –40 to +185 ℉ | ||||
Ambient humidity | 50 % RH or less (at +70 ℃ +158 ℉) | ||||
Voltage withstandability | 500 V AC for one min. between all supply terminals connected together and enclosure | ||||
Vibration resistance | 10 to 55 Hz frequency, 0.5 mm 0.02 in double amplitude in X, Y and Z directions for 1.5 hours each | ||||
Shock resistance | 294 m/s2 acceleration (30 G approx.) in X, Y and Z directions three times each | ||||
Sensing range variation (Note 2) | Within ±10 % fluctuation of sensing range at +23 ℃ +73 ℉ and rated voltage in the range of allowable temperature and supply voltage | ||||
Material | Enclosure: Brass (Nickel plated), Sensing part: PPS | ||||
Cable (except for M12 plug-in connector type) | 0.44 mm2 [0.15 mm2 for GX-M(L)8□-U] 2-core cabtyre cable, 2 m 6.56 ft long | ||||
Cable extension | Extension up to total 10 m 32.80 ft is possible with 0.34 mm2, or more, cable. | ||||
Net weight (Note 6) | 2 m cable length type | 40 g approx. | 70 g approx. | 90 g approx. | 150 g approx. |
M12 pigtailed(-J type) / M12 plug-in connector type | 20 g approx. | 20 g approx. | 45 g approx. | 110 g approx. | |
Accessories | Nut: 2 pcs. |
Notes:
1) Where measurement conditions have not been specified precisely, the conditions used were an ambient temperature of +23 ℃ +73.4 ℉.
2) It is the value in state where the circumference of a detection side has a metal object.
3) The maximum operation distance stands for the maximum distance for which the sensor can detect the standard sensing object.
The stable sensing range stands for the sensing range for which the sensor can stably detect the standard sensing object even if there is an ambient temperature drift and/or supply voltage fluctuation.
4) It is the leakage current when the output is in the OFF state.
5) When the cable is extended, the residual voltage becomes larger.
6) The weight includes the weight of two nuts.
------------------------------ Tab3 showing ------------------------------
Dimensions
- Unit: mm in
DC 3-wire type
Shielded type
Sensors | 2 m cable length type (mm in) | M12 plug-in connector type (mm in) | |||
---|---|---|---|---|---|
Shielded type | a | b | a | b | |
M8 | GX-M8□ | 33 1.30 | 25 0.98 | 45 1.77 | 24 0.94 |
M12 | GX-M12□ | 35 1.38 | 25 0.98 | 50 1.97 | 30 1.18 |
M18 | GX-M18□ | 39 1.54 | 28 1.10 | 50 1.97 | 28 1.10 |
M30 | GX-M30□ | 43 1.69 | 32 1.26 | 55 2.17 | 32 1.26 |
Non-shielded type
Sensors | 2 m cable length type (mm in) | M12 plug-in connector type (mm in) | |||||
---|---|---|---|---|---|---|---|
Non-shielded type | a | b | C | a | b | C | |
M12 | GX-MK12□ | 55 2.17 | 42 1.65 | 5 0.20 | 66 2.60 | 42 1.65 | 5 0.20 |
M18 | GX-MK18□ | 60 2.36 | 44 1.73 | 8 0.32 | 72 2.83 | 44 1.73 | 8 0.32 |
M30 | GX-MK30□ | 63 2.48 | 41 1.61 | 13 0.51 | 74 2.91 | 41 1.61 | 13 0.51 |
DC 2-wire type
Standard type, Long range type
Sensors | 2 m cable length type (mm in) | M12 plug-in connector type (mm in) (M8 size: M12 pigtailed type) | |||
---|---|---|---|---|---|
Standard type Long range type | a | b | a | b | |
M8 | GX-M(L)8□-U(-J) | 33 1.30 | 25 0.98 | - | 24 0.94 |
M12 | GX-M(L)12□-U(-Z) | 35 1.38 | 25 0.98 | 50 1.97 | 30 1.18 |
M18 | GX-M(L)18□-U(-Z) | 39 1.54 | 28 1.10 | 50 1.97 | 28 1.10 |
M30 | GX-M(L)30□-U(-Z) | 43 1.69 | 32 1.26 | 55 2.17 | 32 1.26 |
------------------------------ Tab4 showing ------------------------------
I/O Circuit and Wiring diagrams
DC 3-wire type
Wiring diagrams

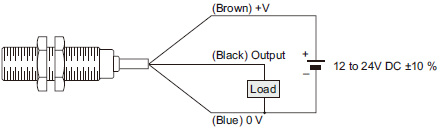

NPN output type

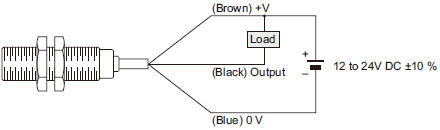

PNP output type
Connector pin position
M12 connector
•Normally Open
1 : +V
2 : Not connected
3 : 0 V
4 : Output
•Normally Closed
1 : +V
2 : Output
3 : 0 V
4 : Not connected
DC 2-wire type

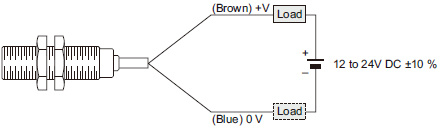

Wiring diagrams
Connector pin position
M12 connector
•Normally Open
(except for GX-M8□-U-J and GX-ML8□-U-J)
1 : Not connected
2 : Not connected
3 : +V
4 : 0 V
•Normally Closed
1 : +V
2 : 0 V
3 : Not connected
4 : Not connected
•Normally Open
(GX-M8□-U-J and GX-ML8□-U-J only)
1 : +V
2 : Not connected
3 : Not connected
4 : 0 V
------------------------------ Tab5 showing ------------------------------
Cautions For Use
- Never use this product as a sensing device for personnel protection.
- In case of using sensing devices for personnel protection, use products which meet laws and standards, such as OSHA, ANSI or IEC etc., for personnel protection applicable in each region or country.
Mounting
- The tightening torque should be under the value given below.
Model No. | Tightening torque | ||
---|---|---|---|
Sensor size | Sensor | Connector (Note) | |
GX-M□ | M8 | 5 N·m | 2 N·m |
M12 | 6 N·m | 2 N·m | |
M18 | 15 N·m | 2 N·m | |
M30 | 40 N·m | 2 N·m | |
GX-M(L)8□-U-J | M8 | 5 N·m | 1.5 N·m |
Note: Connector is equipped with "-Z" type or "-J" type.
Distance from surrounding metal
- As metal around the sensor may affect the sensing performance, pay attention to the following points.
Influence of surrounding metal
- The surrounding metal will affect the sensing performance.
Keep the minimum distance specified in the table below.
Type | A (mm in) | |||
---|---|---|---|---|
M8 | M12 | M18 | M30 | |
DC 3-wire shielded type | 3 0.12 | 4 0.16 | 10 0.39 | 20 0.79 |
DC 3-wire non-shielded type | - | 21 0.83 | 36 1.42 | 66 2.60 |
DC 2-wire standard type | 4.5 0.18 | 6 0.23 | 15 0.59 | 30 1.18 |
DC 2-wire long range type | 8 0.32 | 12 0.47 | 25 0.98 | 45 1.77 |
Embedding of the sensor in metal
- Sensing range may decrease if the sensor is completely embedded in metal. Especially for the non-shielded type, keep the minimum distance specified in the right table.
Sensor size | B (mm in) | C (mm in) |
---|---|---|
M12 | 12 0.47 | 12 0.47 |
M18 | 18 0.71 | 18 0.71 |
M30 | 30 1.18 | 30 1.18 |
Note: With the non-shielded type, the sensing range may vary depending on the position of the nuts.
Mutual interference
- When two or more sensors are installed in parallel or face to face, keep the minimum separation distance specified below to avoid mutual interference.
Face to face mounting
Parallel mounting
Type | D (mm in) | E (mm in) | ||||||
---|---|---|---|---|---|---|---|---|
M8 | M12 | M18 | M30 | M8 | M12 | M18 | M30 | |
DC 3-wire shielded type | 18 0.71 | 24 0.94 | 60 2.36 | 120 4.72 | 3 0.12 | 4 0.16 | 10 0.39 | 20 0.77 |
DC 3-wire non-shielded type | - | 84 3.30 | 144 5.67 | 264 10.39 | - | 48 1.89 | 72 2.83 | 120 4.72 |
DC 2-wire standard type | 18 0.71 | 24 0.94 | 60 2.36 | 120 4.72 | 3 0.12 | 4 0.16 | 10 0.39 | 20 0.77 |
DC 2-wire long range type | 30 1.18 | 50 1.97 | 100 3.93 | 180 7.09 | 5 0.20 | 8 0.32 | 16 0.63 | 30 1.18 |
Wiring
- Make sure that the power supply is off while wiring.
- Verify that the supply voltage variation is within the rating.
- Ensure that an isolation transformer is utilized for the DC power supply. If an autotransformer is utilized, the main body or power supply may be damaged.
- If the used power supply generates a surge, connect a surge absorber to the power supply to absorb the surge.
- In case noise generating equipment (switching regulator, inverter motor, etc.) is used in the vicinity of this product, connect the frame ground (F.G.) terminal of the equipment to an actual ground.
- Do not run the wires together with high-voltage lines or power lines or put them in the same raceway. This can cause malfunction due to induction.
- Damage or burnout may result in case of short circuit of load or miswiring.
- Make a cable length as short as possible to lessen noise pickup.
Others
- Our products have been developed / produced for industrial use only.
- Avoid using a product where there is excessive vapor, dust or corrosive gas, or in a place where it could be exposed directly to water or chemicals.
- Take care that the sensor does not come in direct contact with water, oil, grease or organic solvents, such as, thinner, etc.
- Do not use in an environment containing inflammable or explosive gases.
- Never disassemble or modify the product.
