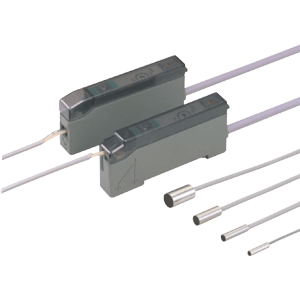

Micro-size Inductive Proximity Sensor GA-10/GH (Discontinued Products)

Download

  • Discontinued Products

  • Specifications

  • Dimensions

Ⅾiscontinued

Last time buy (JST)

September 30, 2006

We are sorry, the products have been discontinued.
Please refer to the details of the discontinued products and the recommended substitutes list below.

------------------------------ Tab1 showing ------------------------------

Discontinued Products

pic01

Notes on using recommended replacements

Recommended replacementsSensing
performance		SpecificationsOutput circuitMounting
dimensions		DimensionsEnclosure
color
GA-311◎◎◎◎○◎
GH-□E◎◎-◎◎◎

◎ Highly interchangeable

○ Almost no difference

- No corresponding item or model

  • High degree of interchangeability in specifications and operability, so that replacement can be carried out smoothly.
  • Recommended replacements are connector types. A quickconnection cable (optional) is required.
  • The quick-connection cable must be changed to the CN-73-C□ (3-core) and CN-71-C□ (1-core) which are compatible with the GA-311.

------------------------------ Tab2 showing ------------------------------

Specifications

TypeOne-touch clampingScrew tightening
Model No.GA-14GA-15
Applicable sensor headGH series
Supply voltage12 to 24 V DC±10 % Ripple P-P 10 % or less
Current consumption25 mA or less
OutputNPN open-collector transistor
・Maximum sink current: 100 mA
・Applied voltage: 30 V DC or less (between sensing output and 0 V)
・Residual voltage:
3 V or less (at 100 mA sink current)
0.4 V or less (at 16 mA sink current)
 Output operationSwitchable either Normally open or Normally closed
Short-circuit protectionIncorporated
Max. response frequency3.3kHz
Operation indicatorRed LED (lights up when the sensing output is ON)
Disconnection alarm indicatorOrange LED (lights up when the disconnection alarm output is ON)
Sensitivity adjuster18-turn adjuster
Ambient temperature-10 to +60 ℃ +14 to +140 ℉ (No dew condensation or icing allowed),
Storage: -20 to +70 ℃ -4 to +158 ℉
MaterialEnclosure: Heat-resistant ABS, Cover: Polycarbonate
Cable lock lever: PPS (GA-14 only), DIN rail stopper: POM
Connecting method0.2 mm2 4-core cabtyre cable, 2 m 6.562 ft long
Weight65 g approx.
AccessoriesMS-DIN-2 (Amplifier mounting bracket): 1 pc., Adjusting screwdriver: 1 pc.

------------------------------ Tab3 showing ------------------------------

Dimensions

Unit: mm in

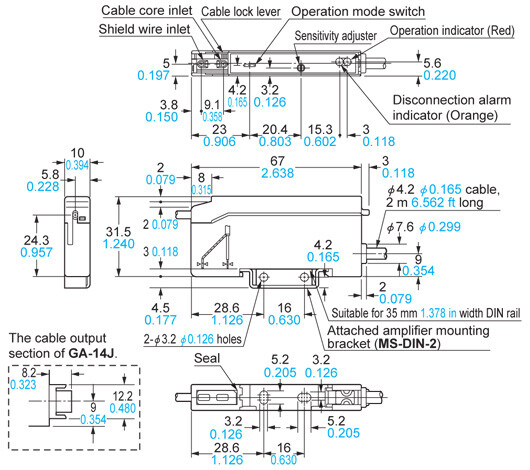

GA-14

One-touch clamping amplifier

Micro-size Inductive Proximity Sensor GA-10/GH (Discontinued Products)

(Note) : The top view is without the cable and the cover.

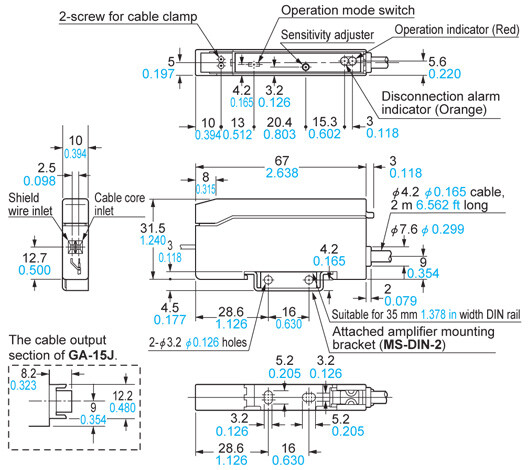

GA-15

Screw tightening amplifier

Micro-size Inductive Proximity Sensor GA-10/GH (Discontinued Products)

(Note) : The top view is without the cable and the cover.

GH-□S

Sensor head

Micro-size Inductive Proximity Sensor GA-10/GH (Discontinued Products)

Model No.ABC
GH-2Sø2.8 ø0.11012 0.472ø1.6 ø0.063
GH-3Sø1.6 ø0.06315 0.591ø2.5 ø0.098
GH-5Sø5.4 ø0.21315 0.591ø2.5 ø0.098
GH-8Sø8.0 ø0.31515 0.591ø2.5 ø0.098
GH-F8Sø8.0 ø0.31515 0.591ø2.65 ø0.104
