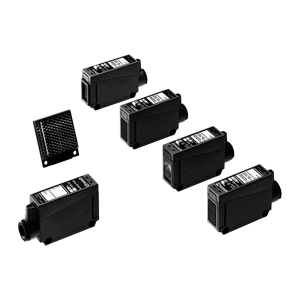

Terminal Connection Type Photoelectric Sensor VF2 (Discontinued Products)
Download
-
Discontinued Products
-
Specifications
-
Dimensions
Ⅾiscontinued
Last time buy (JST)
September 30, 2006
We are sorry, the products have been discontinued. Please refer to the details of the discontinued products and the recommended substitutes list below.
Discontinued Products

Specifications
Type | Thru-beam | Retroreflective | Diffuse reflective | ||
---|---|---|---|---|---|
With polarizing filters | |||||
Model No. | VF2-M10 | VF2-RM5 | VF2-PRM3 | VF2-D500 | |
Sensing range | 10m 32.808 ft | 0.1 to 5m 0.328 to 16.404 ft | 0.2 to 3m 0.656 to 9.843 ft | 500mm 19.685 in | |
検出物体 | ø20 mm ø0.787 in or more opaque object | ø50 mm ø1.969 in or more opaque or translucent object | ø50 mm ø1.969 in or more opaque, translucent or specular object | Opaque, translucent or transparent object | |
Hysteresis | - | 10 % or less of operation distance | |||
Supply voltage | 12 to 24V DC±10% Ripple P-P 10% or less | ||||
Sensing output | NPN universal transistor ・Maximum sink current: 100 mA ・Residual voltage: 1 V or less(at 100 mA sink current) 0.4 V or less(at 16 mA sink current) PNP open-collector transistor ・Maximum source current: 100 mA ・Residual voltage: 3 V or less(at 100 mA source current) | ||||
Output operation | Switchable either Light-ON or Dark-ON | ||||
Response time | 3 ms or less | ||||
Protection | IP66 (IEC) | ||||
Ambient temperature | - 10 to + 60 ℃ + 14 to + 140 ℉ (No dew condensation or icing allowed), Storage: - 20 to + 70 ℃ - 4 to + 158 ℉ | ||||
Emitting element | Infrared LED (modulated) | Red LED (modulated) | Infrared LED (modulated) | ||
Material | Enclosure: PBT, Lens: Acrylic (front surface of VF2-PRM3 and VF-PRM3: Triacetate) | ||||
Cable | Suitable for round cable ø6 to ø10mm ø0.236 to ø0.394 in (Conductor cross section area: 0.25 to 0.75mm2) | ||||
Weight | Emitter: 70 g approx. Receiver: 85 g approx. | 85 g approx. |
Specifications
Type | Thru-beam | Retroreflective | Diffuse reflective | ||
---|---|---|---|---|---|
With polarizing filters | |||||
Model No. | VF2-M10 | VF2-RM5 | VF2-PRM3 | VF2-D500 | |
Sensing range | 10m 32.808 ft | 0.1 to 5m 0.328 to 16.404 ft | 0.2 to 3m 0.656 to 9.843 ft | 500mm 19.685 in | |
検出物体 | ø20 mm ø0.787 in or more opaque object | ø50 mm ø1.969 in or more opaque or translucent object | ø50 mm ø1.969 in or more opaque, translucent or specular object | Opaque, translucent or transparent object | |
Hysteresis | - | 10 % or less of operation distance | |||
Supply voltage | 12 to 24V DC±10% Ripple P-P 10% or less | ||||
Sensing output | NPN universal transistor ・Maximum sink current: 100 mA ・Residual voltage: 1 V or less(at 100 mA sink current) 0.4 V or less(at 16 mA sink current) PNP open-collector transistor ・Maximum source current: 100 mA ・Residual voltage: 3 V or less(at 100 mA source current) | ||||
Output operation | Switchable either Light-ON or Dark-ON | ||||
Response time | 3 ms or less | ||||
Protection | IP66 (IEC) | ||||
Ambient temperature | - 10 to + 60 ℃ + 14 to + 140 ℉ (No dew condensation or icing allowed), Storage: - 20 to + 70 ℃ - 4 to + 158 ℉ | ||||
Emitting element | Infrared LED (modulated) | Red LED (modulated) | Infrared LED (modulated) | ||
Material | Enclosure: PBT, Lens: Acrylic (front surface of VF2-PRM3 and VF-PRM3: Triacetate) | ||||
Cable | Suitable for round cable ø6 to ø10mm ø0.236 to ø0.394 in (Conductor cross section area: 0.25 to 0.75mm2) | ||||
Weight | Emitter: 70 g approx. Receiver: 85 g approx. | 85 g approx. |
Dimensions
- Unit: mm in

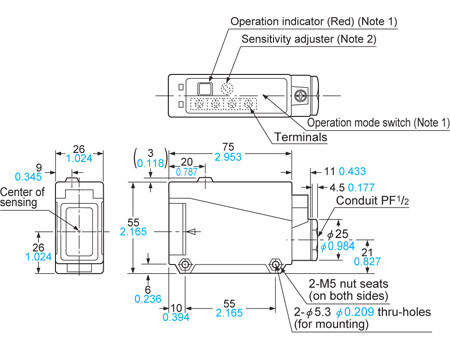

VF2-M10

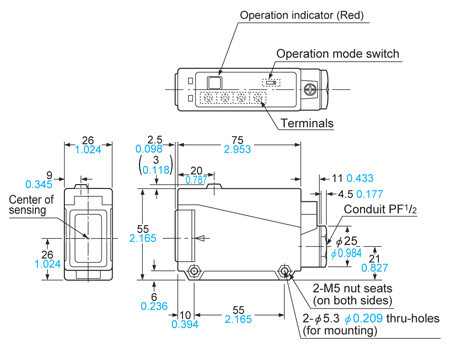

VF2-RM5
VF2-D500
Note 1 :
All units, except emitters, are incorporated with operation indicators.
Note 2 :
Only the diffuse reflective type sensor is incorporated with the sensitivity adjuster.
