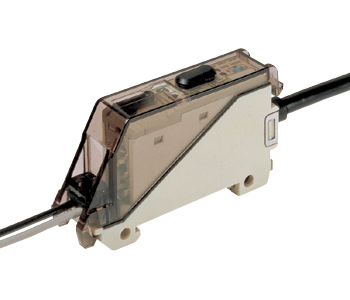

| Applicable sensor heads | SH-2□, SH-3□, SH-72 |
|---|
| Supply voltage | 12 to 24 V DC ± 10 % Ripple P-P 10 % or less |
|---|
| Current consumption | 40 mA or less |
|---|
| Sensing output | NPN open-collector transistor
・Maximum sink current: 100 mA
・Applied voltage: 30 V DC or less (between sensing output and 0 V)
・Residual voltage: 1.5 V or less (at 100 mA sink current)
0.4 V or less (at 16 mA sink current) |
|---|
| | Output operation | Selectable either Light-ON or Dark-ON with the operation mode switch |
|---|
| Short-circuit protection | Incorporated |
|---|
| Self-diagnosis output | NPN open-collector transistor
・Maximum sink current: 50 mA
・Applied voltage: 30 V DC or less (between self-diagnosis output and 0 V)
・Residual voltage: 1 V or less (at 50 mA sink current)
0.4 V or less (at 16 mA sink current) |

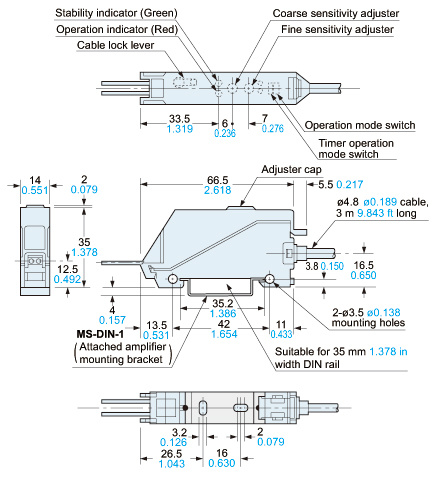

|---|
| | Output operation | ON under stable sensing condition |
|---|
| Short-circuit protection | - |
|---|
| Response time | 1 ms or less |
|---|
| Operation indicator | Red LED (lights up when the sensing output is ON) |
|---|
| Stability indicator | Green LED
(lights up under stable light received condition or stable dark condition) |

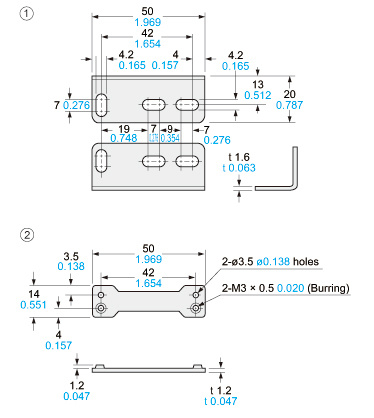

|---|
| Sensitivity adjuster | Continuously variable twin adjusters |
|---|
| Automatic interference prevention function | Incorporated (Two units of sensors can be mounted close together.) |
|---|
| Timer function | Approx. 40 ms fixed OFF-delay timer, selectable either effective or ineffective |
|---|
| Ambient temperature | -25 to +60 ℃ -13 to +140 ℉ (No dew condensation or icing allowed), Storage: -30 to +70 ℃ -22 to +158 ℉ |
|---|
| Ambient humidity | 35 to 85 % RH, Storage: 35 to 85 % RH |
|---|
| Voltage withstandability | 1,000 V AC for one min. between all supply terminals connected together and enclosure |
|---|
| Insulation resistance | 20 MΩ, or more, with 500 V DC megger between all supply terminals connected together and enclosure |
|---|
| Vibration resistance | 10 to 55 Hz frequency, 1.5 mm 0.059 in amplitude in X, Y and Z directions for two hours each |
|---|
| Shock resistance | 100 m/s2 acceleration (10 G approx.) in X, Y and Z directions for three times each |
|---|
| Material | Enclosure: Heat-resistant ABS, Cover: Polyethersulfone |
|---|
| Cable | 0.2 mm2 4-core cabtyre cable, 3 m 9.843 ft long |
|---|
| Cable extension | Extension up to total 100 m 328.084 ft is possible with 0.3 mm2, or more, cable. |
|---|
| Weight | Net weight: 120 g approx. |
|---|
| Accessories | MS-DIN-1 (Amplifier mounting bracket): 1pc., Adjusting screwdriver: 1 pc., Adjuster cap: 1 pc. |
|---|
