Ultra-minute Photoelectric Sensor EX-Z
Download
-
Basic Information
-
Applications
-
Order guide
-
Option
-
Specifications
-
Dimensions
-
Circuit/ Wiring
-
Sensing characteristics
-
Cautions For Use
------------------------------ Tab1 showing ------------------------------
Basic Information
The World’s No.1 in Compactness
* Among photoelectric sensors with built-in amplifier, as of April 2017 in-company survey
UL/C-UL,CE,UKCA Approved
UL : Recognition
Features
Movie Library

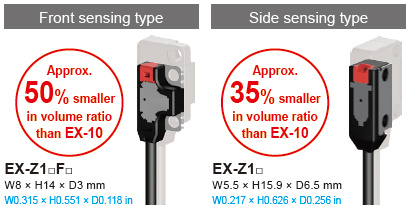

Unit volume ratio reduced by about 50%*
* As compared to EX-10 series
The world's thinnest* sensor dimension of 3 mm 0.118 in has been achieved by utilizing new semiconductor packaging technology that does not use wire bonding.
The small unit size allows installation of sensors in a narrow space where only a conventional fiber sensor head could be installed before. The built-in amplifier also saves on installation space.
* Among photoelectric sensors with built-in amplifier, as of April 2017 in-company survey

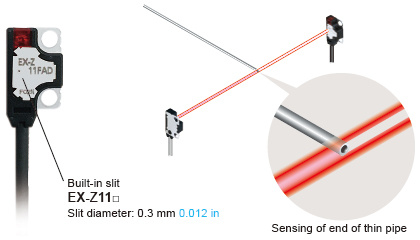

Capable of sensing an extremely small ø0.3 mm ø0.012 in object without slit [EX-Z11□]
A slit is provided on the front side of the main sensor body. The sensor can detect a ø0.3 mm ø0.012 in object (the smallest-object sensing capability in the industry*) without using an optional slit.
* Among photoelectric sensors with built-in amplifier, as of April 2017 in-company survey
Capability to sense a small ø1.0 mm ø0.039 in object over long distance [EX-Z13□]
The high-brightness 4-element red LED provides strong light emission stably over a long period of time. In spite of the extremely small size, both front sensing and side sensing units can sense a small ø1.0 mm ø0.039 in object from a long distance of 500 mm 19.685 in. Since the spotlight is clearly visible, the sensing position can be easily confirmed.
ENVIRONMENTAL RESISTANCE
Bending-resistant cable type available for all models
Bending-resistant cable type with improved flex resistance is available for all models. Select the model suitable for your specific application.
The standard type comes with lead wires with the same diameter as previous models, but the outside diameter of the cable is 2.0 mm 0.079 in and thinner than the cables of the EX‑10 series. This facilitates cable routing.

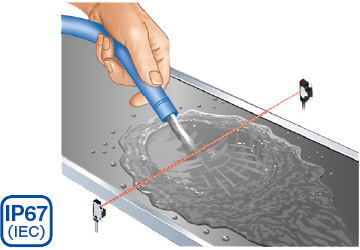

Waterproof IP67
The sensors features an IP67 rating to allow their use in process lines where water is used or splashed.
Rust-resistant stainless steel sensor mounting brackets and screws are available.
Note: If water splashes on the sensor during sensing operation, it may sense water as an object.
Options
A variety of mounting brackets are available!

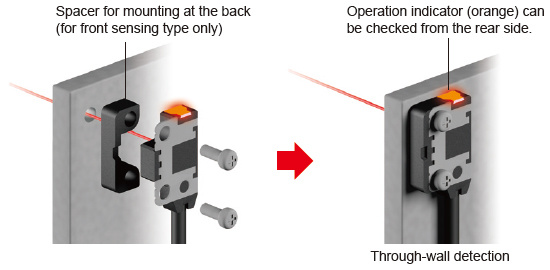

A spacer for mounting at the back (1 type) for through-wall sensing and sensor mounting brackets (3 types) are available to meet a diversity of sensor installation needs.
------------------------------ Tab2 showing ------------------------------
Applications

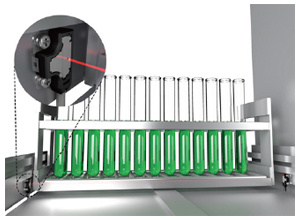

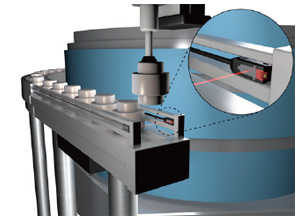

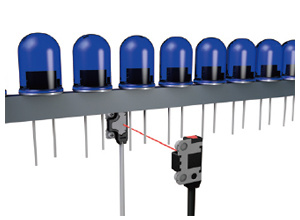

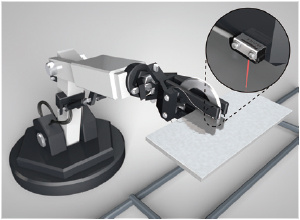

Detection of parts in parts feederDetection of presence / absence of test tube trayDetection of LED lead用途
------------------------------ Tab3 showing ------------------------------
Order guide
Thru-beam
Note: Mounting bracket is not supplied with the sensor. Please select from the range of optional sensor mounting brackets (MS-EXZ-□).
Type | Appearance | Sensing range | Model No. (Note) | Output operation | ||
---|---|---|---|---|---|---|
NPN output | PNP output | |||||
Front sensing | 50 mm 1.969 in | EX-Z11FA | EX-Z11FA-P | Light-ON | ||
EX-Z11FB | EX-Z11FB-P | Dark-ON | ||||
200 mm 7.874 in | EX-Z12FA | EX-Z12FA-P | Light-ON | |||
EX-Z12FB | EX-Z12FB-P | Dark-ON | ||||
500 mm 19.685 in | EX-Z13FA | EX-Z13FA-P | Light-ON | |||
EX-Z13FB | EX-Z13FB-P | Dark-ON | ||||
Inflection resistant cable | 50 mm 1.969 in | EX-Z11FA-R | EX-Z11FA-P-R | Light-ON | ||
EX-Z11FB-R | EX-Z11FB-P-R | Dark-ON | ||||
200 mm 7.874 in | EX-Z12FA-R | EX-Z12FA-P-R | Light-ON | |||
EX-Z12FB-R | EX-Z12FB-P-R | Dark-ON | ||||
500 mm 19.685 in | EX-Z13FA-R | EX-Z13FA-P-R | Light-ON | |||
EX-Z13FB-R | EX-Z13FB-P-R | Dark-ON | ||||
Side sensing | 50 mm 1.969 in | EX-Z11A | EX-Z11A-P | Light-ON | ||
EX-Z11B | EX-Z11B-P | Dark-ON | ||||
200 mm 7.874 in | EX-Z12A | EX-Z12A-P | Light-ON | |||
EX-Z12B | EX-Z12B-P | Dark-ON | ||||
500 mm 19.685 in | EX-Z13A | EX-Z13A-P | Light-ON | |||
EX-Z13B | EX-Z13B-P | Dark-ON | ||||
Inflection resistant cable | 50 mm 1.969 in | EX-Z11A-R | EX-Z11A-P-R | Light-ON | ||
EX-Z11B-R | EX-Z11B-P-R | Dark-ON | ||||
200 mm 7.874 in | EX-Z12A-R | EX-Z12A-P-R | Light-ON | |||
EX-Z12B-R | EX-Z12B-P-R | Dark-ON | ||||
500 mm 19.685 in | EX-Z13A-R | EX-Z13A-P-R | Light-ON | |||
EX-Z13B-R | EX-Z13B-P-R | Dark-ON |
Note:The model No. with "E" shown on the label affixed to the thru-beam type sensor is the emitter, "D" shown on the label is the receiver.
------------------------------ Tab4 showing ------------------------------
Option
Designation | Model No. | Description |
---|---|---|
Sensor mounting bracket | MS-EXZ-1 | L-shaped mounting bracket (SUS304) for front sensing and side sensing types (2 sets are required) |
MS-EXZ-2 | Mounting bracket (SUS304) for front sensing type (2 sets are required) | |
MS-EXZ-3 | Mounting bracket (SUS304) for side sensing type (2 sets are required) | |
Spacer for mounting at the back | MS-EXZ-4 | Spacer for mounting at the back (polyacetal) for front sensing type (One set consists of 10 pcs.) |
Sensor mounting bracket
・MS-EXZ-1
Material: Stainless steel(SUS304)Two M2 (length 4 mm0.157 in) pan head screws and two M2 (length 8 mm0.315 in) pan head screws are attached.
・MS-EXZ-2
Material: Stainless steel(SUS304)Two M2 (length 4 mm0.157 in) pan head screws are attached.
・MS-EXZ-3
Material: Stainless steel(SUS304)Two M2 (length 8 mm0.315 in) pan head screws are attached.
Spacer for mounting at the back
・MS-EXZ-4
Material: PolyacetalM2 (length: 10 mm0.394 in) screws, nuts, spring washers and flat washers are attached. (20 pieces each)
Recommended e-CON connector
Manufactured by 3M Japan Limited
Adapted connector : 37104-4080-G00 FL
Please refer to "Introducing the 3M™ mini-clamp connector" for details.
------------------------------ Tab5 showing ------------------------------
Specifications
Type | Thru-beam | |||
---|---|---|---|---|
Front sensing | Side sensing | Front sensing | ||
Model No. (Note 2) | Light-ON | EX-Z11FA (-P)(-R) | EX-Z11A (-P)(-R) | EX-Z12FA (-P)(-R) |
Dark-ON | EX-Z11FB (-P)(-R) | EX-Z11B (-P)(-R) | EX-Z12FB (-P)(-R) | |
Applicable regulations and certifications | CE Marking (EMC Directive, RoHS Directive), UKCA Marking (EMC Regulations, RoHS Regulations), UL/c-UL Certification | |||
Sensing distance | 50 mm 1.969 in | 200 mm 7.874 in | ||
Minimum sensing object | ø0.3 mm ø0.012 in opaque object (Completely beam interrupted object) (Setting distance between emitter and receiver: 50 mm 1.969 in) | ø0.5 mm ø0.02 in opaque object (Completely beam interrupted object) (Setting distance between emitter and receiver: 200 mm 7.874 in) | ||
Hysteresis | - | |||
Repeatability (Perpendicular to sensing axis) | 0.02 mm 0.001 in or less | 0.03 mm 0.001 in or less | ||
Supply voltage | 12 to 24 V DC ±10 % Ripple P-P 10 % or less | |||
Current consumption | Emitter: 10 mA or less, Receiver: 10 mA or less | |||
Output | <NPN output type> NPN open-collector transistor • Maximum sink current: 20 mA • Applied voltage: 30 V DC or less (between output and 0 V) • Residual voltage: 1.5 V or less (at 20 mA sink current) <PNP output type> PNP open-collector transistor • Maximum source current: 20 mA • Applied voltage: 30 V DC or less (between output and +V) • Residual voltage: 1.5 V or less (at 20 mA source current) | |||
Short-circuit protection | Incorporated | |||
Response time | 0.5 ms or less | |||
Operation indicator | Orange LED (Lights up when the sensing output is ON) | |||
Stability indicator | Green LED (Lights up under the stable light received condition or the stable dark condition) | |||
Environment resistance | Protection | IP67 (IEC) | ||
Ambient temperature | -10 to +55 ℃ 14 to +131 ℉ (No dew condensation or icing allowed), Storage: -30 to +70 ℃ -22 to +158 ℉ | |||
Ambient humidity | 35 to 85 % RH, Storage: 35 to 85 % RH | |||
Ambient illuminance | Incandescent light: 5,000 ℓx at the light-receiving face | |||
Voltage withstandability | 1,000 V AC for one min. between all supply terminals connected together and enclosure | |||
Insulation resistance | 20 MΩ or more, with 250 V DC megger between all supply terminals connected together and enclosure | |||
Vibration resistance | 10 to 500 Hz frequency, 3 mm 0.118 in amplitude in X, Y and Z directions for two hours each | |||
Shock resistance | 500 m/s2 acceleration (50 G approx.) in X, Y and Z directions for three times each | |||
Light emitting element | Red LED (Peak emission wavelength: 650 nm 0.026 mil, modulated) | |||
Grounding | Floating | |||
Material | Enclosure: PBT, Lens: Polycarbonate, Metallic part: Stainless steel (SUS304) (SUS301 for rear side of front sensing type) | |||
Cable (Note 3) | 0.1 mm2 3-core (emitter: 2-core) cabtyre cable, 2 m 6.562 ft long | |||
Cable extension | Extension up to total 50 m 164 ft is possible with 0.3 mm2, or more, cable (both emitter and receiver). | |||
Weight | Net weight (each emitter and receiver): 15 g approx., Gross weight: 35 g approx. | |||
Accessories | M2 mounting screws: 1 set (front sensing type: 6 mm 0.236 in in length; side sensing type: 10 mm 0.394 in in length) |
Notes:
1)Where measurement conditions have not been specified precisely, the conditions used were an ambient temperature of +23 ℃ 73 ℉.
2)Model Nos. having the "-P" are PNP output type and model Nos. having the "-R" are inflection resistant cable type.
3)The bending-resistant cable type has a 0.1 mm2 3-core (thru-beam type emitter: 2-core) bending-resistant cabtyre cable, 2 m 6.562 ft long.
Type | Thru-beam | |||
---|---|---|---|---|
Side sensing | Front sensing | Side sensing | ||
Model No. (Note 2) | Light-ON | EX-Z12A (-P)(-R) | EX-Z13FA (-P)(-R) | EX-Z13A (-P)(-R) |
Dark-ON | EX-Z12B (-P)(-R) | EX-Z13FB (-P)(-R) | EX-Z13B (-P)(-R) | |
CE marking directive compliance | EMC Directive, RoHS Directive | |||
Sensing distance | 200 mm 7.874 in | 500 mm 19.685 in | ||
Minimum sensing object | ø0.5 mm ø0.02 in opaque object (Completely beam interrupted object) (Setting distance between emitter and receiver: 200 mm 7.874 in) | ø1.0 mm ø0.039 in opaque object (Completely beam interrupted object) (Setting distance between emitter and receiver: 500 mm 19.685 in) | ||
Hysteresis | - | |||
Repeatability (Perpendicular to sensing axis) | 0.03 mm 0.001 in or less | 0.05 mm 0.002 in or less | ||
Supply voltage | 12 to 24 V DC ±10 % Ripple P-P 10 % or less | |||
Current consumption | Emitter: 10 mA or less, Receiver: 10 mA or less | |||
Output | <NPN output type> NPN open-collector transistor • Maximum sink current: 20 mA • Applied voltage: 30 V DC or less (between output and 0 V) • Residual voltage: 1.5 V or less (at 20 mA sink current) <PNP output type> PNP open-collector transistor • Maximum source current: 20 mA • Applied voltage: 30 V DC or less (between output and +V) • Residual voltage: 1.5 V or less (at 20 mA source current) | |||
Short-circuit protection | Incorporated | |||
Response time | 0.5 ms or less | |||
Operation indicator | Orange LED (Lights up when the sensing output is ON) | |||
Stability indicator | Green LED (Lights up under the stable light received condition or the stable dark condition) | |||
Environment resistance | Protection | IP67 (IEC) | ||
Ambient temperature | -10 to +55 ℃ 14 to +131 ℉ (No dew condensation or icing allowed), Storage: -30 to +70 ℃ -22 to +158 ℉ | |||
Ambient humidity | 35 to 85 % RH, Storage: 35 to 85 % RH | |||
Ambient illuminance | Incandescent light: 5,000 ℓx at the light-receiving face | |||
Voltage withstandability | 1,000 V AC for one min. between all supply terminals connected together and enclosure | |||
Insulation resistance | 20 MΩ or more, with 250 V DC megger between all supply terminals connected together and enclosure | |||
Vibration resistance | 10 to 500 Hz frequency, 3 mm 0.118 in amplitude in X, Y and Z directions for two hours each | |||
Shock resistance | 500 m/s2 acceleration (50 G approx.) in X, Y and Z directions for three times each | |||
Light emitting element | Red LED (Peak emission wavelength: 650 nm 0.026 mil, modulated) | |||
Grounding | Floating | |||
Material | Enclosure: PBT, Lens: Polycarbonate, Metallic part: Stainless steel (SUS304) (SUS301 for rear side of front sensing type) | |||
Cable (Note 3) | 0.1 mm2 3-core (emitter: 2-core) cabtyre cable, 2 m 6.562 ft long | |||
Cable extension | Extension up to total 50 m 164 ft is possible with 0.3 mm2, or more, cable (both emitter and receiver). | |||
Weight | Net weight (each emitter and receiver): 15 g approx., Gross weight: 35 g approx. | |||
Accessories | M2 mounting screws: 1 set (front sensing type: 6 mm 0.236 in in length; side sensing type: 10 mm 0.394 in in length) |
Notes:
1)Where measurement conditions have not been specified precisely, the conditions used were an ambient temperature of +23 ℃ 73 ℉.
2)Model Nos. having the "-P" are PNP output type and model Nos. having the "-R" are inflection resistant cable type.
3)The bending-resistant cable type has a 0.1 mm2 3-core (thru-beam type emitter: 2-core) bending-resistant cabtyre cable, 2 m 6.562 ft long.
------------------------------ Tab6 showing ------------------------------

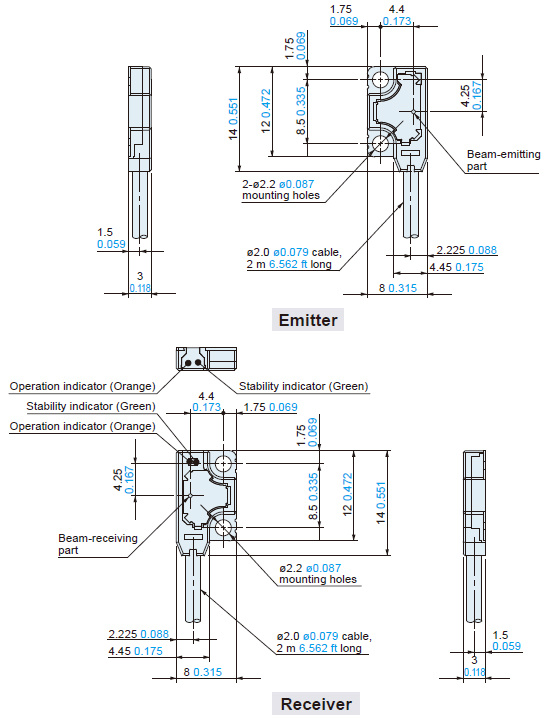

Dimensions
- Unit: mm in

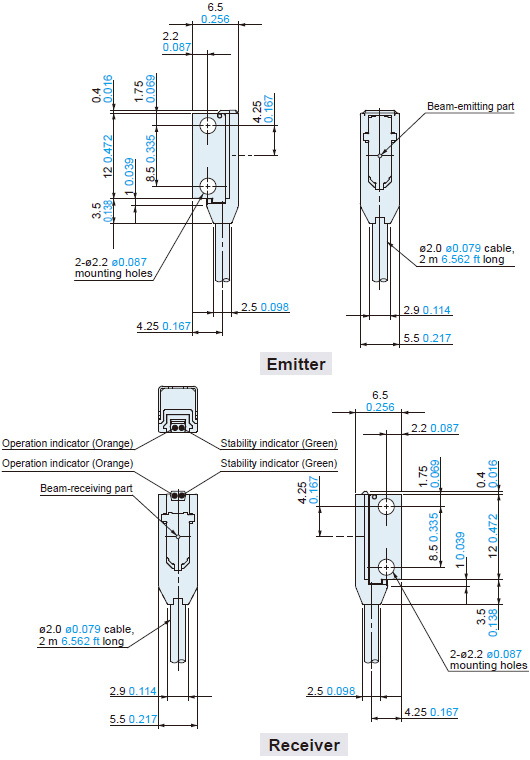

EX-Z11F□ EX-Z12F□ EX-Z13F□
Sensor
EX-Z11□ EX-Z12□ EX-Z13□
Sensor

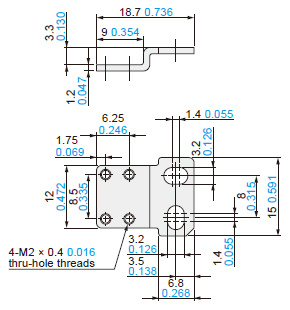

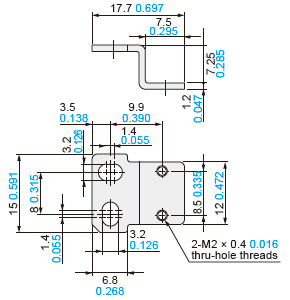

MS-EXZ-1
Sensor mounting bracket (Optional)
Material: Stainless steel (SUS304)Two M2 (length 4 mm0.157 in) pan head screws and two M2 (length 8 mm0.315 in) pan head screws are attached.
MS-EXZ-2
Sensor mounting bracket (Optional)
Material: Stainless steel (SUS304)Two M2 (length 4 mm0.157 in) pan head screws are attached.
MS-EXZ-3
Sensor mounting bracket (Optional)
Material: Stainless steel (SUS304)Two M2 (length 8 mm0.315 in) pan head screws are attached.

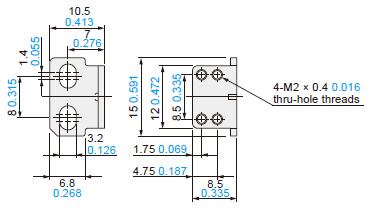

MS-EXZ-4
Spacer for mounting at the back (Optional)
Material: PolyacetalSet of 10 piecesM2 (length: 10 mm0.394 in) screws, nuts, spring washers and flat washers are attached. (20 pieces each)
------------------------------ Tab7 showing ------------------------------
I/O Circuit and Wiring diagrams
NPN output type
I/O circuit diagram
Note: The emitter does not incorporate the output.
PNP output type
I/O circuit diagram
Note: The emitter does not incorporate the output.
------------------------------ Tab8 showing ------------------------------

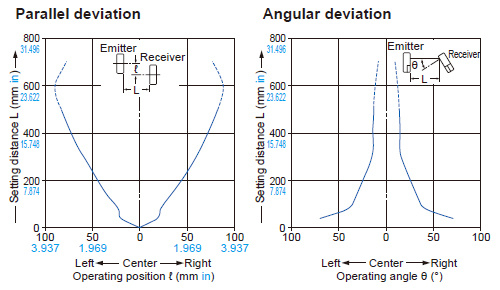

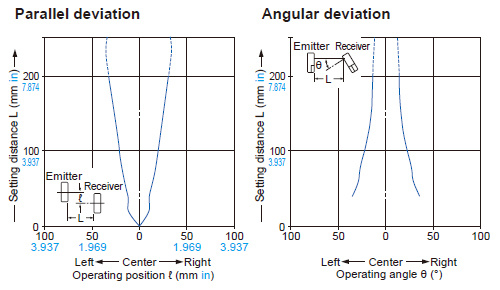

Sensing characteristics
(TYPICAL)

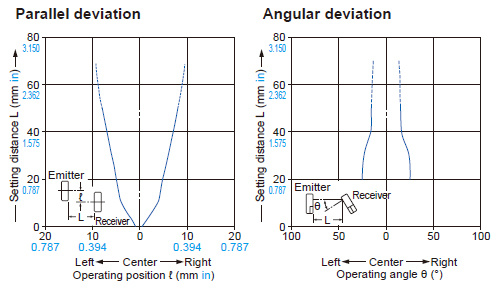

EX-Z11F□
EX-Z11□
Thru-beam type
EX-Z12F□
EX-Z12□
Thru-beam type
EX-Z13F□
EX-Z13□
Thru-beam type
------------------------------ Tab9 showing ------------------------------
Cautions For Use
- Never use this product as a sensing device for personnel protection.
- In case of using sensing devices for personnel protection, use products which meet laws and standards, such as OSHA, ANSI or IEC etc., for personnel protection applicable in each region or country.
Mounting

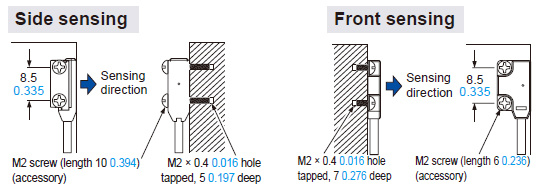

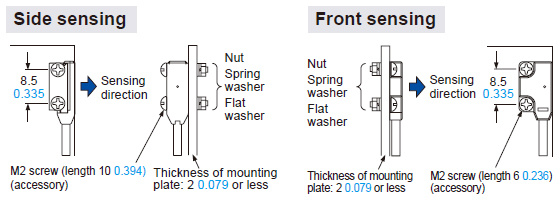

- In case of mounting on tapped holes (Unit: mm in)
The tightening torque should be 0.2 N·m or less.
- In case of using attached screws and nuts (Unit: mm in)
The tightening torque should be 0.2 N·m or less.
Other
- Do not use during the initial transient time (0.5 sec. approx.) after the power supply is switched on.
