Discontinued Products
------------------------------ Tab2 showing ------------------------------

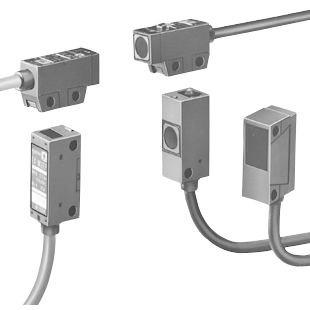

Specifications
■Notice of change for conforming to the revised CE Mark related directive
>> Click here
| Type | Thru-beam | Diffuse reflective | ||
|---|---|---|---|---|
| Side sensing | Top sensing | Side sensing | ||
| Model No. | EX-M2E | EX-M2 | EX-D200E | |
| Sensing range | 2 m 6.562 ft | 200 mm 7.874 in (Note 2) | ||
| Sensing object | ø7 mm ø0.276 in or more opaque object (Note 3) | Opaque, translucent or transparent object (Note 4) | ||
| Hysteresis | - | 15 % or less of operation distance | ||
| Repeatability (perpendicular to sensing axis) | 0.1 mm 0.004 in or less | 0.04 mm 0.002 in or less | - | |
| Supply voltage | 12 to 24V DC ± 10 % Ripple P-P 10 % or less | |||
| Current consumption | Emitter: 20 mA or less, Receiver: 20 mA or less | 30 mA or less | ||
| Output | NPN open-collector transistor ・Maximum sink current: 100 mA ・Applied voltage: 30 V DC or less (between output and 0 V) ・Residual voltage: 1 V or less (at 100 mA sink current) 0.4 V or less (at 16 mA sink current) | |||
| Utilization category | DC-12 or DC-13 | |||
| Output operation | Selectable either Light-ON or Dark-ON by the control input | |||
| Response time | 1 ms or less | |||
| Sensitivity adjuster | - | Continuously variable adjuster | ||
| Pollution degree | 3 (Industrial environment) | |||
| Protection | IP 65 (IEC) | |||
| Ambient temperature | -10 to +60 ℃ -14 to +76 ℉ (No dew condensation or icing allowed), Storage: -30 to +70 ℃ -22 to +158 ℉ | |||
| Emitting element | Infrared LED (modulated) | |||
| Material | Enclosure: PBT (glass fiber reinforced) Lens: Polycarbonate | |||
| Net weight | Emitter: 60 g approx. Receiver: 60 g approx. | Emitter: 60 g approx. Receiver: 65 g approx. | 65 g approx. | |
| Accessories | MS-EX-1E (Sensor mounting bracket): 2 sets | MS-EX-1 (Sensor mounting bracket): 2 sets | MS-EX-1E (Sensor mounting bracket): 1 set Adjusting screwdriver: 1 No. Adjuster cap: 1 No. | |
| Dimensions | W10 x H26 x D12 mm W0.394 x H1.024 x D0.472 in | W10 x H15 x D25 mm W0.394 x H0.591 x D0.984 in | W10.4 x H25 x D15 mm W0.409 x H0.984 x D0.591 in | |
Note 1:Where measurement conditions have not been specified precisely, the conditions used were an ambient temperature of +23 ℃ +73.4 ℉.
Note 2:The sensing range of the diffuse reflective type sensor is specified for white non-glossy paper (200 x 200 mm 7.874 x 7.874 in) as the object.
Note 3:If slit masks (optional) are fitted, an object of 0.5 x 3 mm 0.020 x 0.118 in in case of EX-M2E and 0.5 x 2 mm 0.020 x 0.079 in in case of EX-M2 can be detected.
Note 4:Make sure to confirm detection with an actual sensor before use.
------------------------------ Tab3 showing ------------------------------
Dimensions
- Unit: mm in

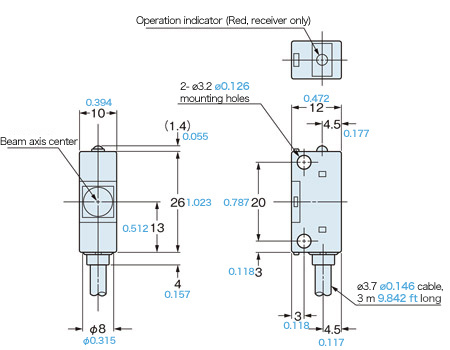

EX-M2E
Sensor

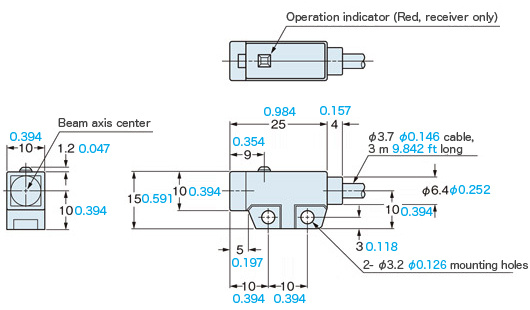

EX-M2
Sensor

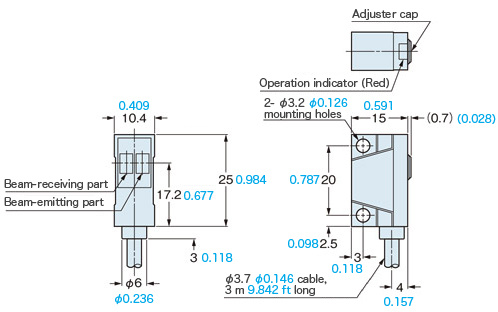

EX-D200E
Sensor

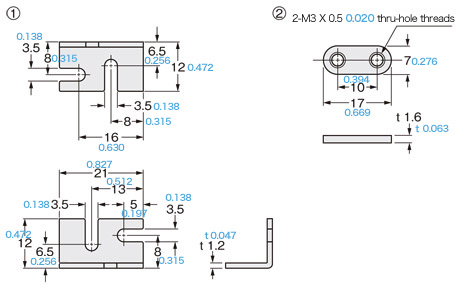

MS-EX-1
Sensor mounting bracket (attached to EX-M2)
Material:Cold rolled carbon steel (SPCC) (Uni-chrome plated)Two M3 (length 16 mm0.630 in) screws with washers are attached.

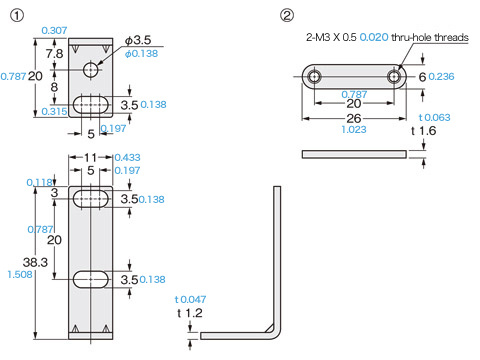

MS-EX-1E
Sensor mounting bracket (attached to EX-M2E, EX-D200E)
Material:Cold rolled carbon steel (SPCC) (Uni-chrome plated)Two M3 (length 16 mm0.630 in) screws with washers are attached.
