Discontinued Products
------------------------------ Tab2 showing ------------------------------
Specifications
| Type | Thru-beam | Retroreflective | ||
|---|---|---|---|---|
| Long sensing range | With polarizing filters | |||
| Model No. | NPN output | CX-M10 | CX-RVM5 | CX-PRVM3 |
| PNP output (Note 2) | CX-M10-PN | CX-RVM5-PN | CX-PRVM3-PN | |
| Sensing range | 10 m 32.808 ft | 0.1 to 0.5 m 32.808 to 19.685 in (Note 3) | 0.1 to 3 m 32.808 to 11.811 in (Note 3) | |
| Sensing object | ø9 mm ø0.354 in or more opaque object | ø50 mm ø1.969 in or more opaque or translucent object (Note 3, 5) | ø50 mm ø1.969 in or more opaque, translucent or specular object (Note 3, 5) | |
| Hysteresis | - | |||
| Repeatability (perpendicular to sensing axis) | 0.5 mm 0.020 in or less | |||
| Supply voltage | 12 to 24 V DC ± 10 % Ripple P-P 10 % or less | |||
| Current consumption | Emitter: 10 mA or less Receiver: 30 mA or less (Note 6) | 40 mA or less (Note 7) | ||
| Sensing output | <NPN output type> NPN open-collector transistor ・Maximum sink current: 100 mA ・Applied voltage: 30 V DC or less (between sensing output and 0 V) ・Residual voltage: 1.5 V or less (at 100 mA sink current) 0.4 V or less (at 16 mA sink current) <PNP output type> PNP open-collector transistor ・Maximum source current: 100 mA ・Applied voltage: 30 V DC or less (between sensing output and +V) ・Residual voltage: 1.5 V or less (at 100 mA source current) 0.4 V or less (at 16 mA source current) | |||
| Output operation | Switchable either Light-ON or Dark-ON | |||
| Self-diagnosis output | <NPN output type> NPN open-collector transistor ・Maximum sink current: 50 mA ・Applied voltage: 30 V DC or less (between self-diagnosis output and 0 V) ・Residual voltage: 1 V or less (at 50 mA sink current) 0.4 V or less (at 16 mA sink current) <PNP output type> PNP open-collector transistor ・Maximum source current: 50 mA ・Applied voltage: 30 V DC or less (between self-diagnosis output and +V) ・Residual voltage: 1 V or less (at 50 mA source current) 0.4 V or less (at 16 mA source current) | |||
| Output operation | ON under unstable sensing condition. | |||
| Type | Diffuse reflective | Narrow-view | ||
|---|---|---|---|---|
| Long sensing range | Short sensing range | |||
| Model No. | NPN output | CX-D800 | CX-D100 | CX-ND300R |
| PNP output (Note 2) | CX-D800-PN | CX-D100-PN | CX-ND300R-PN | |
| Sensing range | 800 mm 31.496 in (Note 4) | 100 mm 3.937 in (Note 4) | 70 to 300 mm 2.756 to 11.811 in (Note 4) | |
| Sensing object | Opaque, translucent or transparent object (Note 5) | Opaque, translucent or transparent object (Note 5) (Min. sensing object: ø0.5 mm ø0.020 in copper wire) | ||
| Hysteresis | 15 % or less of operation distance | |||
| Repeatability (perpendicular to sensing axis) | 0.5 mm 0.020 in or less | |||
| Supply voltage | 12 to 24 V DC ± 10 % Ripple P-P 10 % or less | |||
| Current consumption | 40 mA or less (Note 7) | |||
| Sensing output | <NPN output type> NPN open-collector transistor ・Maximum sink current: 100 mA ・Applied voltage: 30 V DC or less (between sensing output and 0 V) ・Residual voltage: 1.5 V or less (at 100 mA sink current) 0.4 V or less (at 16 mA sink current) <PNP output type> PNP open-collector transistor ・Maximum source current: 100 mA ・Applied voltage: 30 V DC or less (between sensing output and +V) ・Residual voltage: 1.5 V or less (at 100 mA source current) 0.4 V or less (at 16 mA source current) | |||
| Output operation | Switchable either Light-ON or Dark-ON | |||
| Self-diagnosis output | <NPN output type> NPN open-collector transistor ・Maximum sink current: 50 mA ・Applied voltage: 30 V DC or less (between self-diagnosis output and 0 V) ・Residual voltage: 1 V or less (at 50 mA sink current) 0.4 V or less (at 16 mA sink current) <PNP output type> PNP open-collector transistor ・Maximum source current: 50 mA ・Applied voltage: 30 V DC or less (between self-diagnosis output and +V) ・Residual voltage: 1 V or less (at 50 mA source current) 0.4 V or less (at 16 mA source current) | |||
| Output operation | ON under unstable sensing condition. | |||
Note 1 :Where measurement conditions have not been specified precisely, the conditions used were an ambient temperature of +23 ℃ +73.4 ℉.
Note 2 :Please note that the inverter light resistant circuit is not installed on the PNP output type.

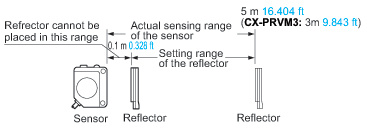

Note 3 :The sensing range and the sensing object of the retroreflective type sensor are specified for the RF-230 reflector. Further, the sensing range is the possible setting range for the reflector. The sensor can detect an object less than 0.1 m 0.328 ft away.
Note 4 :The sensing range of the diffuse reflective type sensor is specified for white non-glossy paper (200 x 200 mm 7.874 x 7.874 in) as the object.
Note 5 :Make sure to confirm detection with an actual sensor befor use.
Note 6 :For PNP output type, the current consumption is 40 mA or less.
Note 7 :For PNP output type, the current consumption is 50 mA or less.
| Type | Thru-beam | Retroreflective | ||
|---|---|---|---|---|
| Long sensing range | With polarizing filters | |||
| Model No. | NPN output | CX-M10 | CX-RVM5 | CX-PRVM3 |
| PNP output | CX-M10-PN | CX-RVM5-PN | CX-PRVM3-PN | |
| Test input (emission halt) function | Incorporated | - | ||
| Response time | 1 ms or less | |||
| Sensitivity adjuster | 2-turn adjuster with indicator | |||
| Automatic interference prevention function | - | Incorporated (Two units of sensors can be mounted close together.) | ||
| Protection | IP67 (IEC) | |||
| Ambient temperature | -25 to +55 ℃ -13 to +131 ℉ (No dew condensation or icing allowed ) (Note 8) , Storage: -30 to +70 ℃ -22 to +158 ℉ | |||
| Ambient humidity | 35 to 85 % RH, Storage: 35 to 85 % RH | |||
| Emitting element | Infrared (modulated) | Red LED (modulated) | ||
| Material | Enclosure: Heat-resistant ABS, Lens: Acylic, Indicator cover: Polyalylate | |||
| Net weight | Emitter: 50 g approx. Receiver: 50 g approx. | 50 g approx. | ||
| Accessories | MS-CX-1 (Sensor mounting bracket): 2 set Adjusting screwdriver: 1 pc. | MS-CX-1 (Sensor mounting bracket): 1 set RF-230 (Reflector) : 1 pc., Adjusting screwdriver: 1 pc. | ||
| Dimensions | W12 x H31 x D25 mm W0.472 x H1.220 x D0.984 in | |||
| Type | Diffuse reflective | Narrow-view | ||
|---|---|---|---|---|
| Long sensing range | Short sensing range | |||
| Model No. | NPN output | CX-D800 | CX-D100 | CX-ND300R |
| PNP output | CX-D800-PN | CX-D100-PN | CX-ND300R-PN | |
| Test input (emission halt) function | - | |||
| Response time | 1 ms or less | |||
| Sensitivity adjuster | 2-turn adjuster with indicator | |||
| Automatic interference prevention function | Incorporated (Two units of sensors can be mounted close together.) | |||
| Protection | IP67 (IEC) | |||
| Ambient temperature | -25 to +55 ℃ -13 to +131 ℉ (No dew condensation or icing allowed ) (Note 8) , Storage: -30 to +70 ℃ -22 to +158 ℉ | |||
| Ambient humidity | 35 to 85 % RH, Storage: 35 to 85 % RH | |||
| Emitting element | Infrared LED (modulated) | Red LED (modulated) | ||
| Material | Enclosure: Heat-resistant ABS, Lens: Acylic, Indicator cover: Polyalylate | |||
| Net weight | 50 g approx. | |||
| Accessories | MS-CX-1 (Sensor mounting bracket): 2 set Adjusting screwdriver: 1 pc. | |||
| Dimensions | W12 x H31 x D25 mm W0.472 x H1.220 x D0.984 in | |||
Note 8 :
In case the sensor is to be used at an ambient tempreature of +15 ℃ +23 ℉, or less, please contact our office.
------------------------------ Tab3 showing ------------------------------
Dimensions
- Unit: mm in

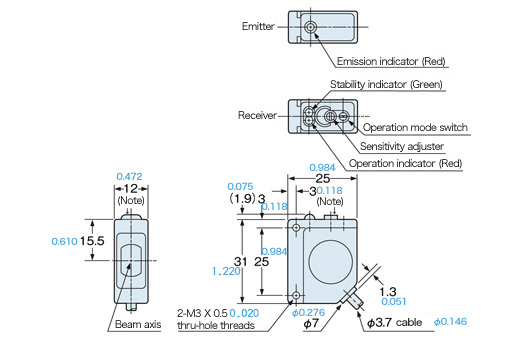

CX-M10
Sensor
Note:Emitter may be different in appearance.

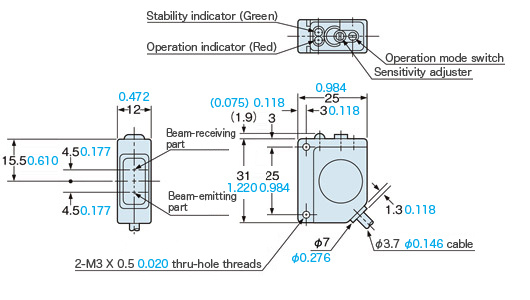

CX-RVM5 CX-D800 CX-ND300R
Sensor

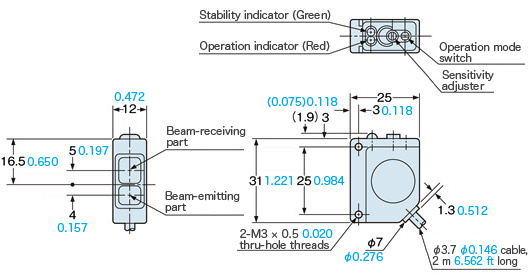

CX-PRVM3 CX-D100
Sensor
RF-230
Reflector (Accessory for the retroreflective type sensor)
Material:Acrylic (Reflector)ABS (Base)

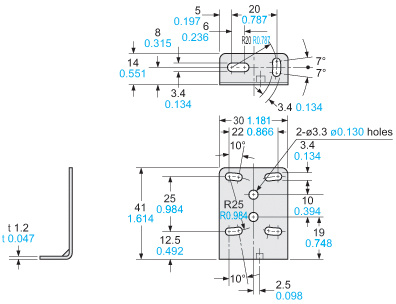

MS-CX-1
Sensor head mounting bracket (Optional)
Material:Stainless steel (SU301)Two M3 (length 12mm0.472 in) screws with washers are attached.

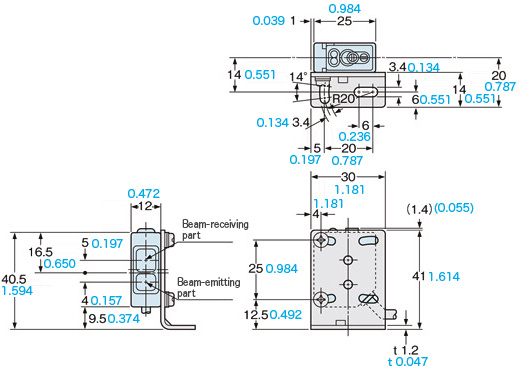

Assembly Dimensions
Mounting drawing with CX-ND300R
